Toyota COROLLA 制动配管和卡箍 — Figure 4708

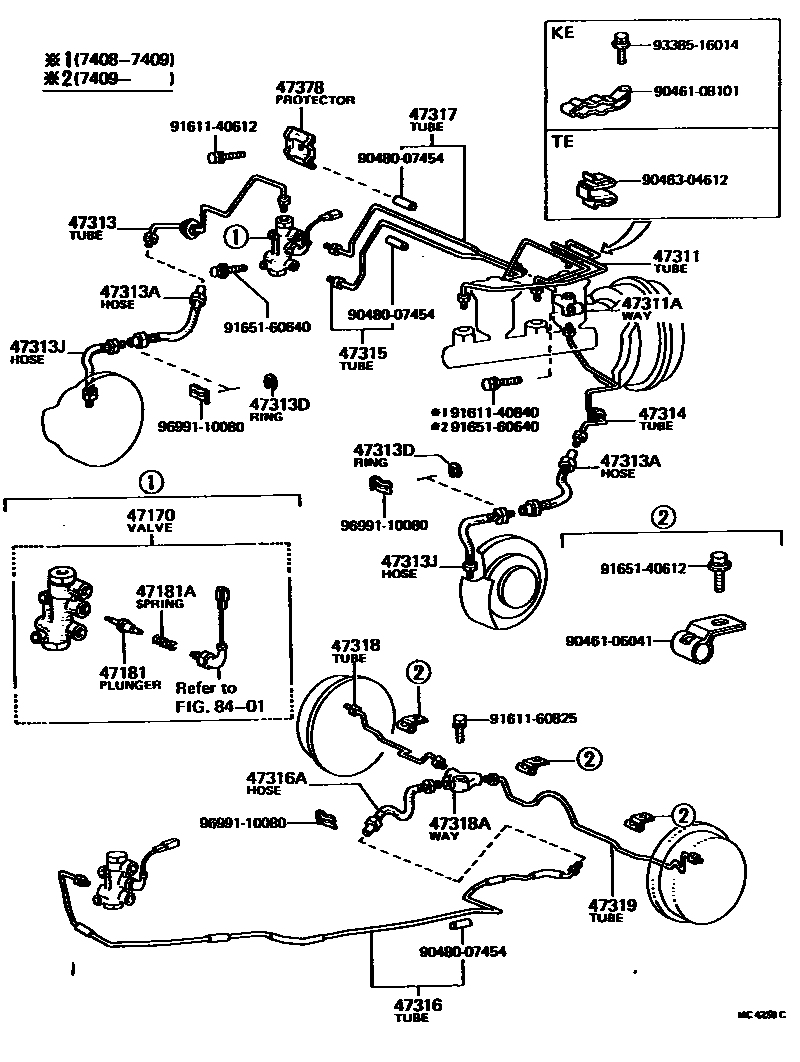

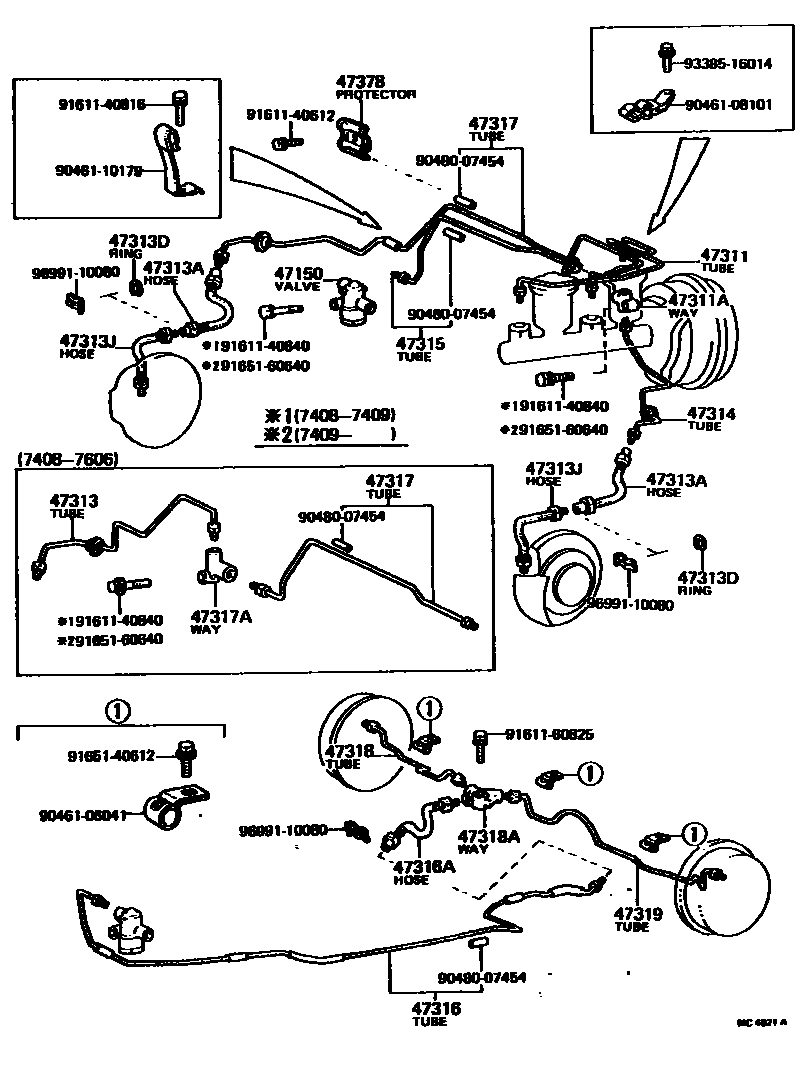

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47150 | Proportional valve assembly | 47150-12030 · 47150-12031 |
| 47170 | Brake combination valve assembly | 47170-12010 · 47170-12021 · 47170-14030 |
| 47181 | Differential pressure valve switch plunger | 47181-12010 |
| 47181A | Compression spring (for pressure differential valve switch) | 90501-05002 |
| 47311 | No. 1 front brake pipe | 47311-12280 · 47311-12290 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10148 |
| 47313 | No. 3 front brake pipe | 47313-12080 · 47313-12100 · 47313-12101 |
| 47313A | No. 1 front flexible hose | 90947-02259 |
| 47313D | E-ring (used to secure the front flexible hose) | 96160-01200 |
| 47313J | No. 2 front flexible hose | 90947-02260 |
| 47314 | No. 4 front brake pipe | 47314-12090 |
| 47315 | No. 5 front brake pipe | 47315-12200 · 47315-12210 |
| 47316 | No. 6 front brake pipe | 47316-12140 · 47316-12141 · 47316-13130 · 47316-13131 |
| 47316A | Flexible hose (for rear brake pipe) | 96940-30305 · 96940-31305 · 96940-33005 |
| 47317 | No. 7 front brake pipe | 47312-12010 · 47313-12110 |
| 47317A | Pipe fitting (for brake pipe) | 90412-10082 |
| 47318 | No. 8 front brake pipe | 47318-12090 · 47318-12091 · 47318-12100 · 47318-12101 · 47318-12110 · 47318-12111 |
| 47318A | Pipe fitting (for right rear brake pipe) | 90413-10029 · 90413-10139 |
| 47319 | No. 9 front brake pipe | 47319-12090 · 47319-12091 · 47319-12100 · 47319-12101 · 47319-12110 · 47319-12111 |
| 47378 | Brake pipe guard | 47378-12020 |
