Toyota COROLLA 车轮和车轮盖 — Figure 4103

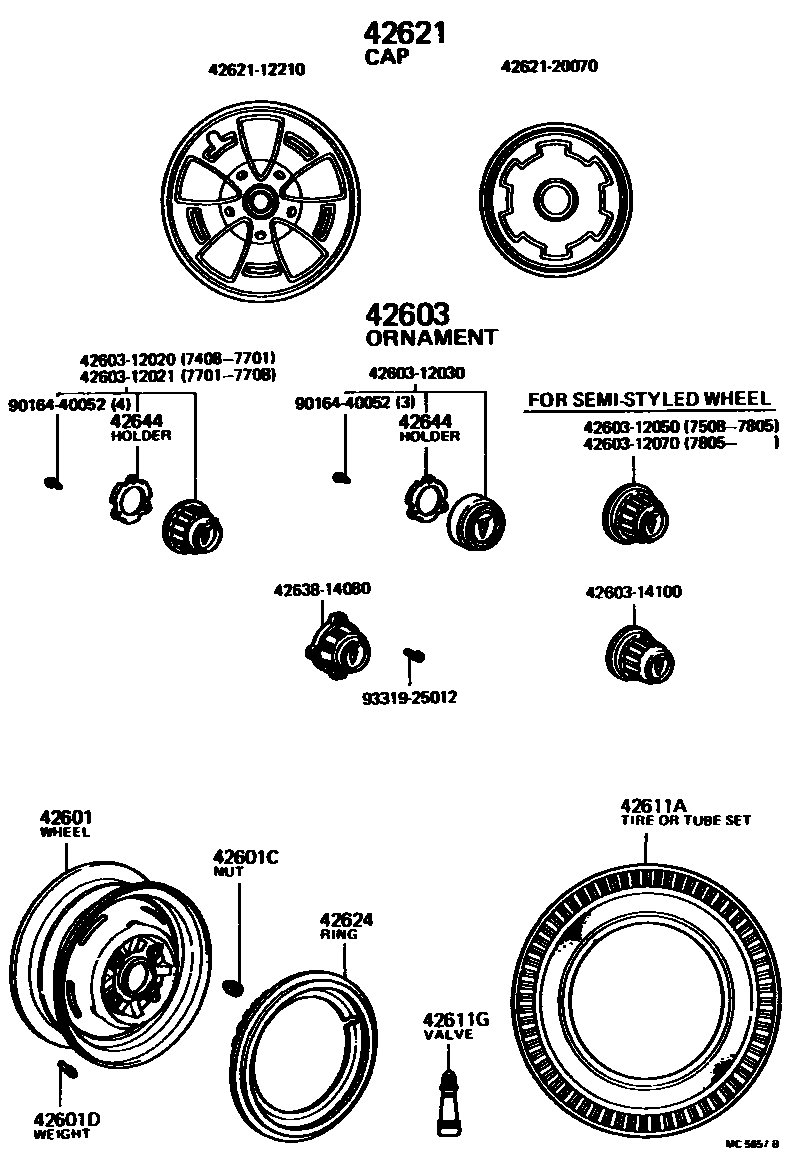

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-12240 · 42611-12241 · 42611-12401 · 42611-12430 · 42611-13040 · 42611-14101 · 42611-14110 · 42611-14120 · 42611-14310 · 42611-14330 · 42611-22080 · 42611-22090 · 42611-22121 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01017 · 90942-01020 · 90942-01021 · 90942-01026 |
| 42601D | Balance weight (for spoked wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03092 · 90942-03093 · 90942-03094 · 90942-03095 · 90942-03096 · 90942-03097 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-12020 · 42603-12021 · 42603-12030 · 42603-12050 · 42603-12070 · 42603-14100 · 42638-14080 |
| 42611A | Tubeless tire assembly or tubeless tire | 42605-12100 · 42605-12130 · 42605-14040 · 42652-12040 · 42652-12050 · 42652-12060 · 42652-12070 · 42652-12160 · 42652-12170 · 42652-12270 · 42652-12280 · 42652-12290 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42621 | wheel cover | 42621-12210 · 42621-20070 |
| 42624 | wheel cover ring | 42624-14021 · 42624-14022 · 42624-14023 |
| 42644 | Wheel hub trim fixings | 42644-14021 · 42644-14041 |
