Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102

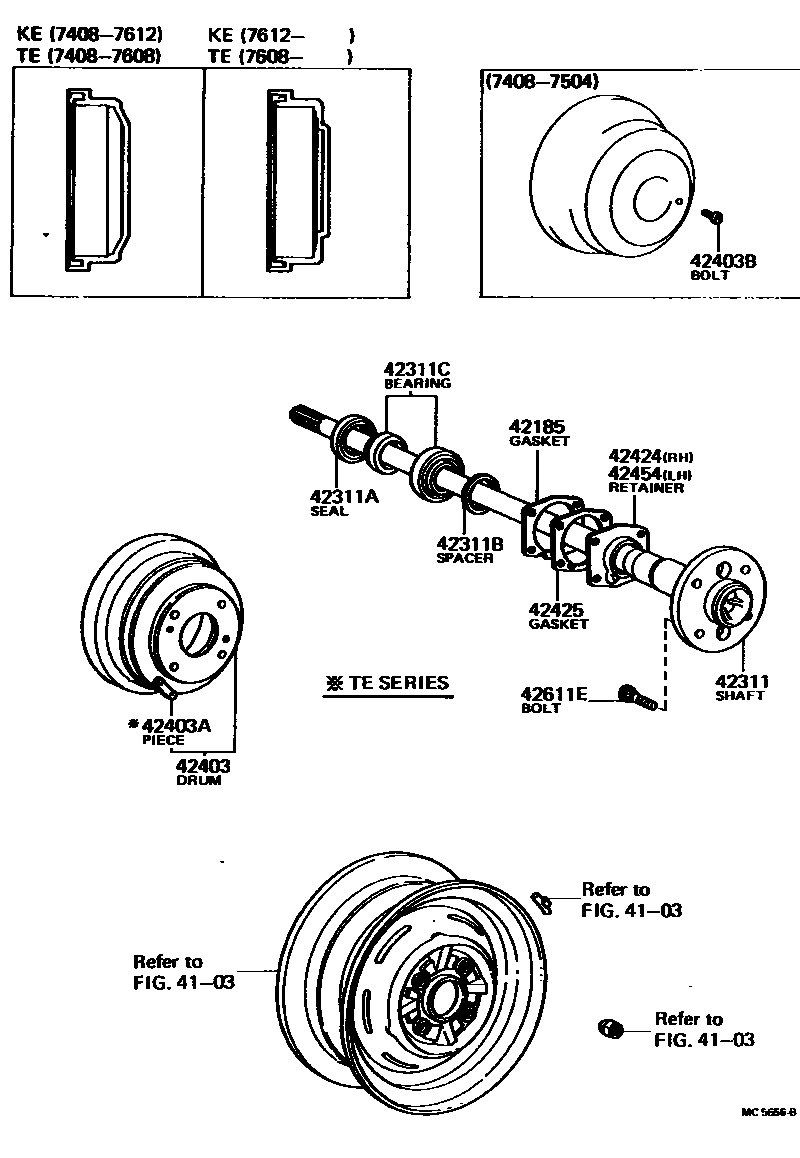

Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42185 | Rear axle housing end gasket | 42185-12010 · 42185-13010 · 42185-13020 · 42185-22010 · 42185-22020 |
| 42311 | Rear axle half shaft | 42311-12050 · 42311-12051 · 42311-12120 · 42311-15010 · 42311-20042 · 42311-20060 |
| 42311A | Oil seal (for rear axle half shaft) | 90311-42055 · 90311-52059 |
| 42311B | Spacer (for rear axle half shaft bearing) | 90560-30152 · 90560-35153 |
| 42311C | Bearings (for rear axle half shaft) | 04421-12010 · 04421-13010 · 04421-30010 · 04421-30011 |
| 42403 | Rear brake drum sub-assembly | 42431-12020 · 42431-12021 · 42431-12040 · 42431-12050 · 42431-12060 · 42431-14060 · 42431-20040 · 42431-22050 |
| 42403A | Balance weight (for rear brake drum) | 90937-01117 · 90937-01118 · 90937-01119 · 90937-01120 · 90937-01121 · 90937-01122 · 90937-01141 · 90937-01142 · 90937-01143 · 90937-01144 · 90937-01145 · 90937-01195 · 90937-01196 · 90937-01197 |
| 42403B | Fixing bolt (for fixing the rear brake drum) | 90113-10007 |
| 42424 | Rear axle right bearing outer retainer | 42424-20010 · 42424-21010 |
| 42425 | Rear axle bearing retainer gasket | 42425-13010 · 42425-20010 · 42425-22020 |
| 42454 | Rear axle left bearing outer retainer | 42454-20010 · 42454-21010 |
| 42611E | Hub bolts (for rear axle) | 90942-02021 · 90942-02032 · 90942-02035 |
