Toyota COROLLA 节气阀连杆和阀杆(ATM) — Figure 3513

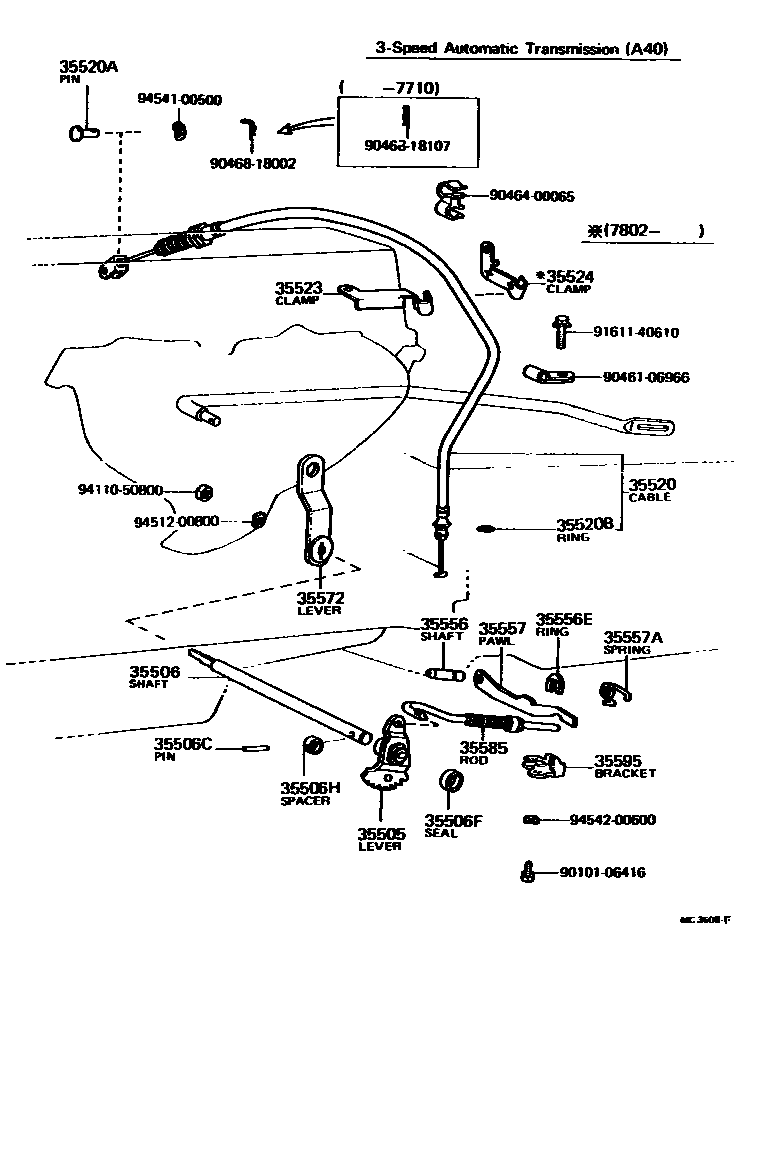

Toyota COROLLA EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35505 | Manual valve stem sub-assembly | 35505-22010 |
| 35506 | Manual valve stem shaft sub-assembly | 35561-20021 |
| 35506C | Slotted spring pin (for manual valve stem shaft) | 90254-03004 · 90254-03044 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-11128 |
| 35506H | Spacer (for manual valve stem shaft) | 90560-20003 |
| 35520 | Throttle valve cable assembly | 35520-12032 · 35520-12050 |
| 35520A | Throttle valve cable pin | 90240-05139 |
| 35520B | O-ring (for throttle valve cable) | 90301-09063 |
| 35523 | Throttle valve cable clamp | 35523-12020 · 35523-12021 · 35523-12022 |
| 35524 | No. 2 throttle valve cable clamp | 35524-12010 |
| 35556 | Parking lock pawl shaft | 35556-22010 |
| 35556E | E-ring (for parking lock pawl shaft) | 90523-08021 |
| 35557 | Parking pawl | 35557-22010 |
| 35557A | Torsion spring (for parking pawl) | 90508-25329 |
| 35572 | Transmission right control lever | 35572-12020 |
| 35585 | Parking lock lever | 35501-22010 |
| 35595 | Parking lock pawl bracket | 35595-22010 |
