Toyota COROLLA 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510

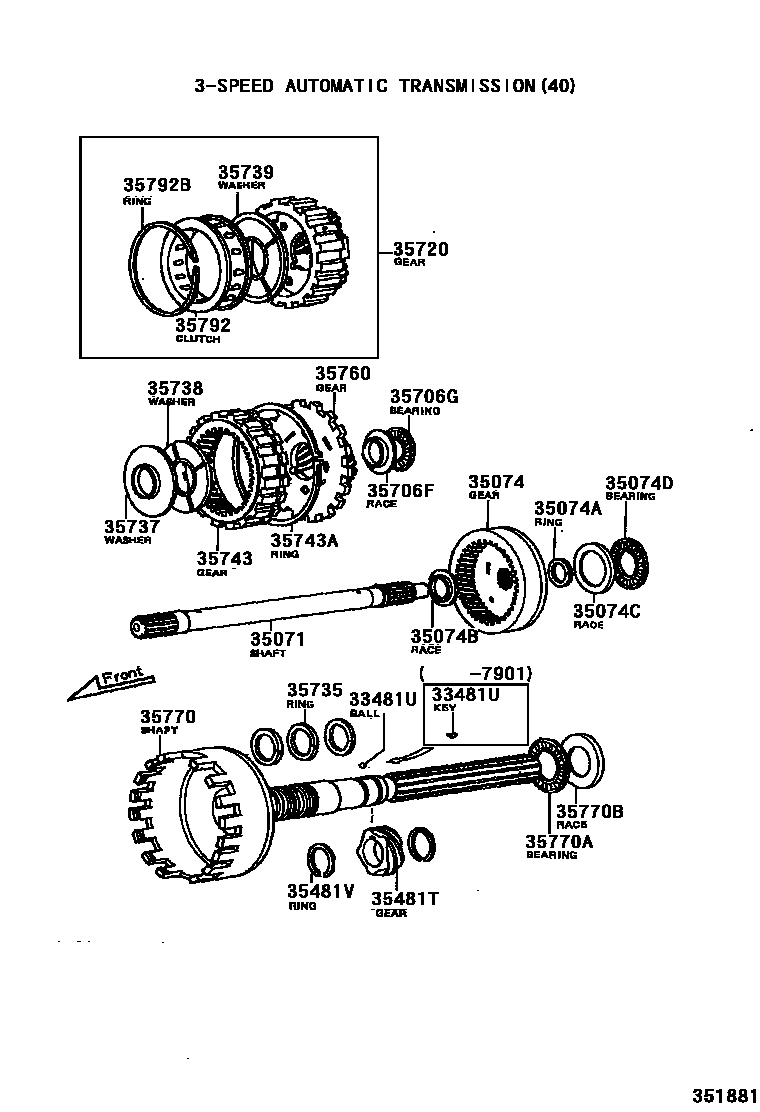

Toyota COROLLA EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33481U | Steel ball (for speedometer driving gear) | 90280-03005 · 90360-06004 |
| 35071 | Planetary intermediate shaft sub-assembly | 35708-22010 |
| 35074 | Rear planetary ring gear sub-assembly | 35074-22010 |
| 35074A | Locating ring (for rear planetary ring gear) | 90522-20037 |
| 35074B | Front thrust bearing race (for rear planetary ring gear) | 35789-22050 |
| 35074C | Rear thrust bearing race (for rear planetary ring gear) | 35789-22020 |
| 35074D | Rear thrust bearing (for rear planetary ring gear) | 90374-28014 |
| 35481T | Speedometer driving gear (ATM) | 33481-25030 · 33481-30050 |
| 35481V | Ring or spacer (for automatic transmission speedometer drive gear) | 90520-28009 |
| 35706F | Rear thrust bearing race (for sun gear) | 35789-22010 |
| 35706G | Rear thrust bearing (for sun gear) | 90374-23012 |
| 35720 | Front planetary gear assembly | 35720-22011 |
| 35735 | Planetary gear output shaft snap ring | 35735-22010 |
| 35737 | Planetary gear carrier thrust washer | 35737-22010 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-22010 |
| 35739 | No. 3 planetary gear carrier thrust washer | 35739-22011 |
| 35743 | Front planetary ring gear | 35743-22010 |
| 35743A | Shaft snap ring (for front planetary gear) | 90520-99121 |
| 35760 | Rear planetary gear assembly | 35760-22011 |
| 35770 | Output shaft assembly | 35770-22010 · 35770-22011 |
| 35770A | Thrust bearing (for output shaft) | 90374-38013 |
| 35770B | Thrust bearing race (for output shaft) | 35789-22040 |
| 35792 | No. 2 one-way clutch | 35792-22020 |
| 35792B | Hole snap ring (for No. 2 one-way clutch) | 90521-79148 |
