Toyota COROLLA 速度表从动齿轮(ATM) — Figure 3505

Toyota COROLLA EPC diagram 3505, 速度表从动齿轮(ATM), with 1 images and 8 PNC and OE references.

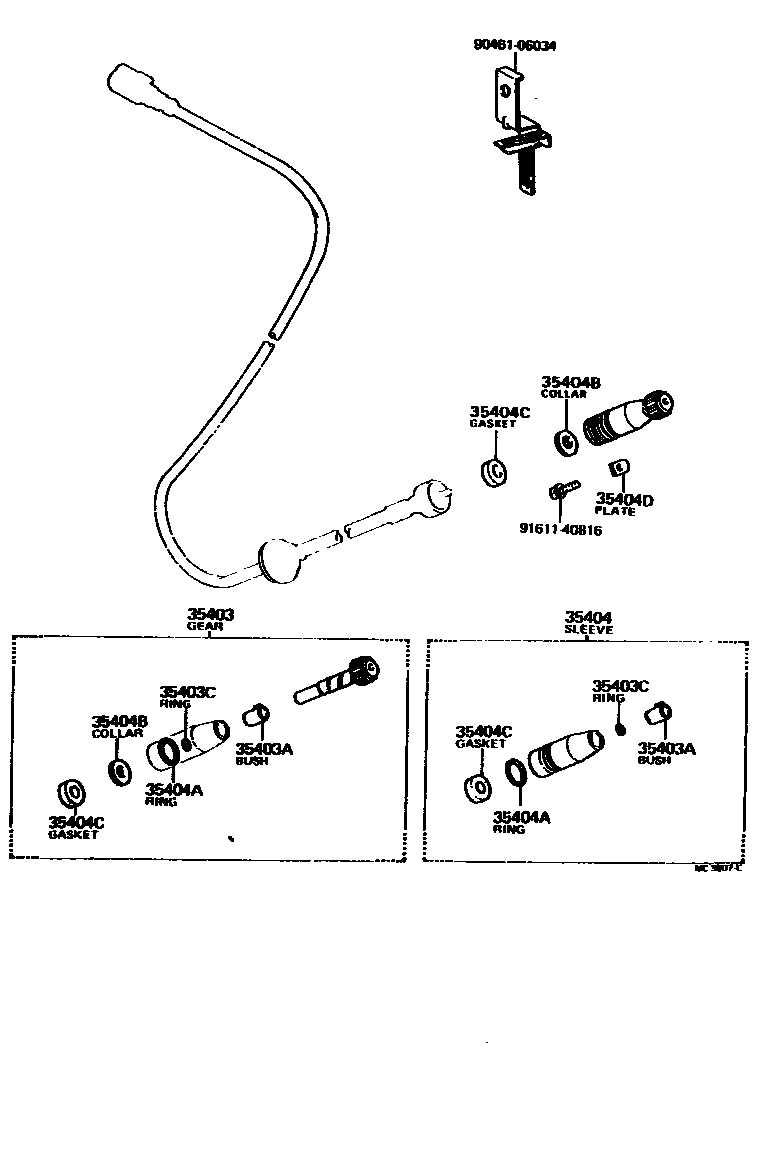

Toyota COROLLA 速度表从动齿轮(ATM) EPC diagram — MC3607C
速度表从动齿轮(ATM) — MC3607C (197408 – 197908)

PNC and OE references

PNCPart nameOE numbers
35403Speedometer driven gear sub-assembly (ATM)33482-39015
35403ABushing (for automatic transmission speedometer shaft sleeve)90386-09078
35403CO-ring (for automatic transmission speedometer shaft)90301-09017
35404Speedometer shaft sleeve sub-assembly (ATM)33404-39016
35404AO-ring (for automatic transmission speedometer shaft sleeve)90301-18018
35404BSpeedometer Flexible Tube Shaft Pad Collar (ATM)90201-07069
35404CSpeedometer flexible tube shaft gasket (ATM)90303-06017
35404DSpeedometer sleeve locking plate (ATM)33485-30010
