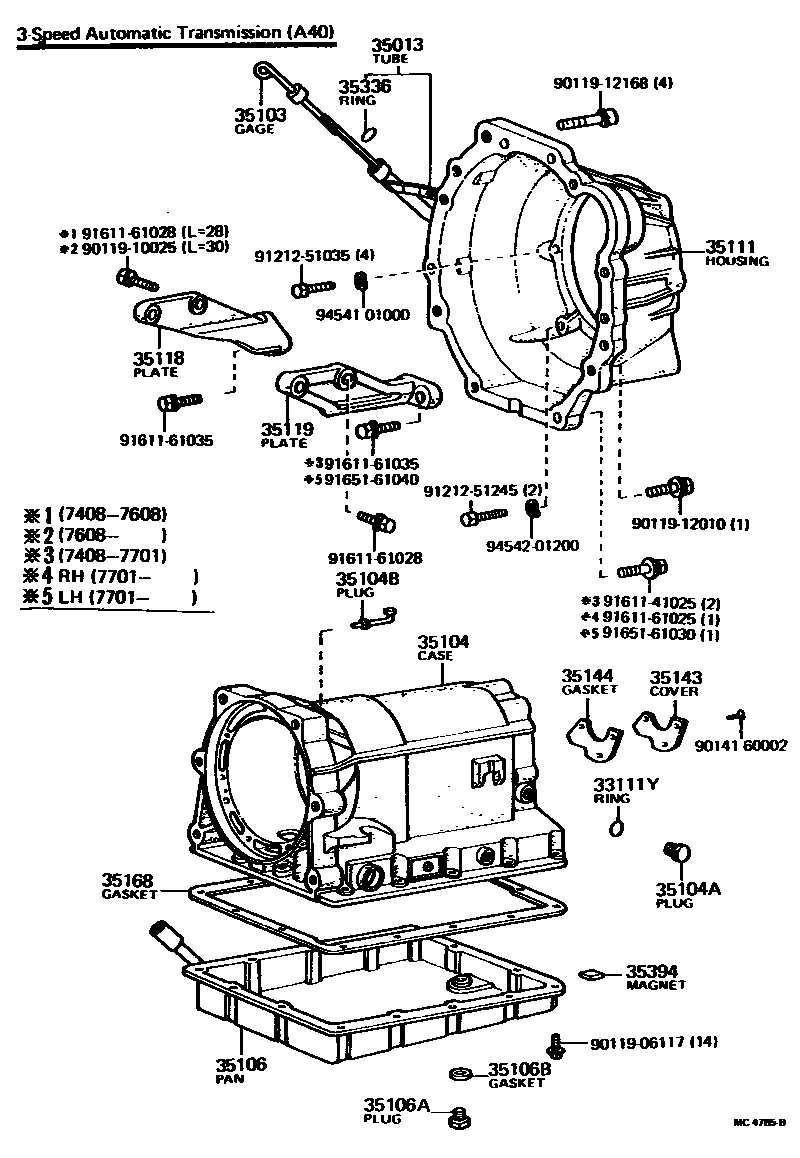

Toyota COROLLA 变速器壳和油底壳(ATM) — Figure 3503
Toyota COROLLA EPC diagram 3503, 变速器壳和油底壳(ATM), with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35013 | Transmission oil pipe sub-assembly | 35013-12042 · 35013-12080 |
| 35103 | Transmission oil level scoring assembly | 35103-12021 · 35103-12022 · 35103-20040 |
| 35104 | Automatic transmission housing sub-assembly | 35104-22021 · 35104-22022 |
| 35104A | automatic transmission plug | 90341-08079 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03061 |
| 35106 | Automatic transmission oil pan sub-assembly | 35106-22020 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-10078 |
| 35106B | Drain plug gasket (ATM) | 90202-10110 |
| 35111 | automatic transmission housing | 35111-12050 · 35111-12051 |
| 35118 | Right reinforcement plate (ATM) | 33118-12020 |
| 35119 | Left reinforcement plate (ATM) | 33119-12010 · 33119-12011 |
| 35143 | Gearbox rear cover | 35143-22010 |
| 35144 | Transmission rear cover gasket | 35144-22010 |
| 35168 | Automatic transmission oil pan gasket | 35168-22010 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30010 · 35394-30011 |
