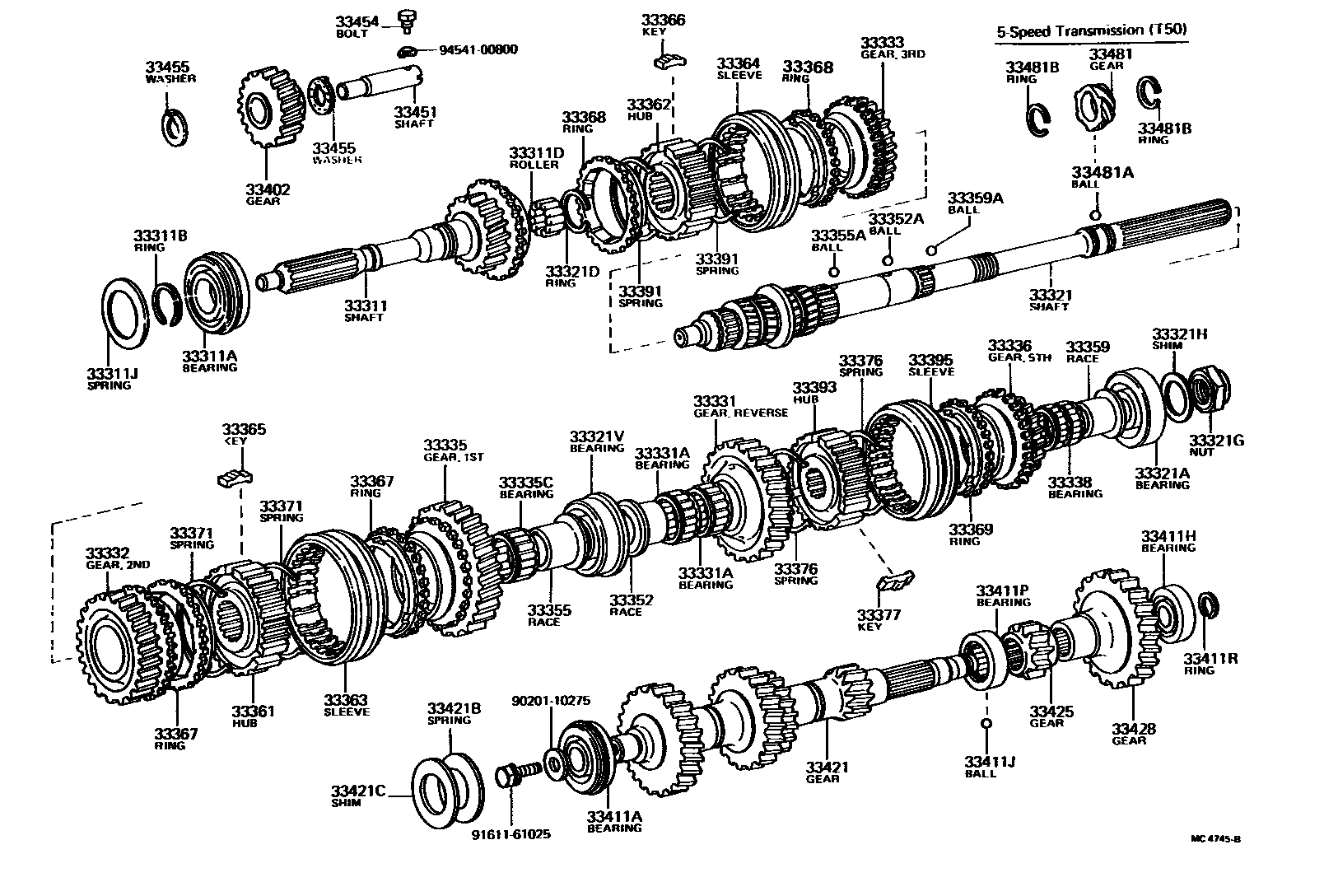

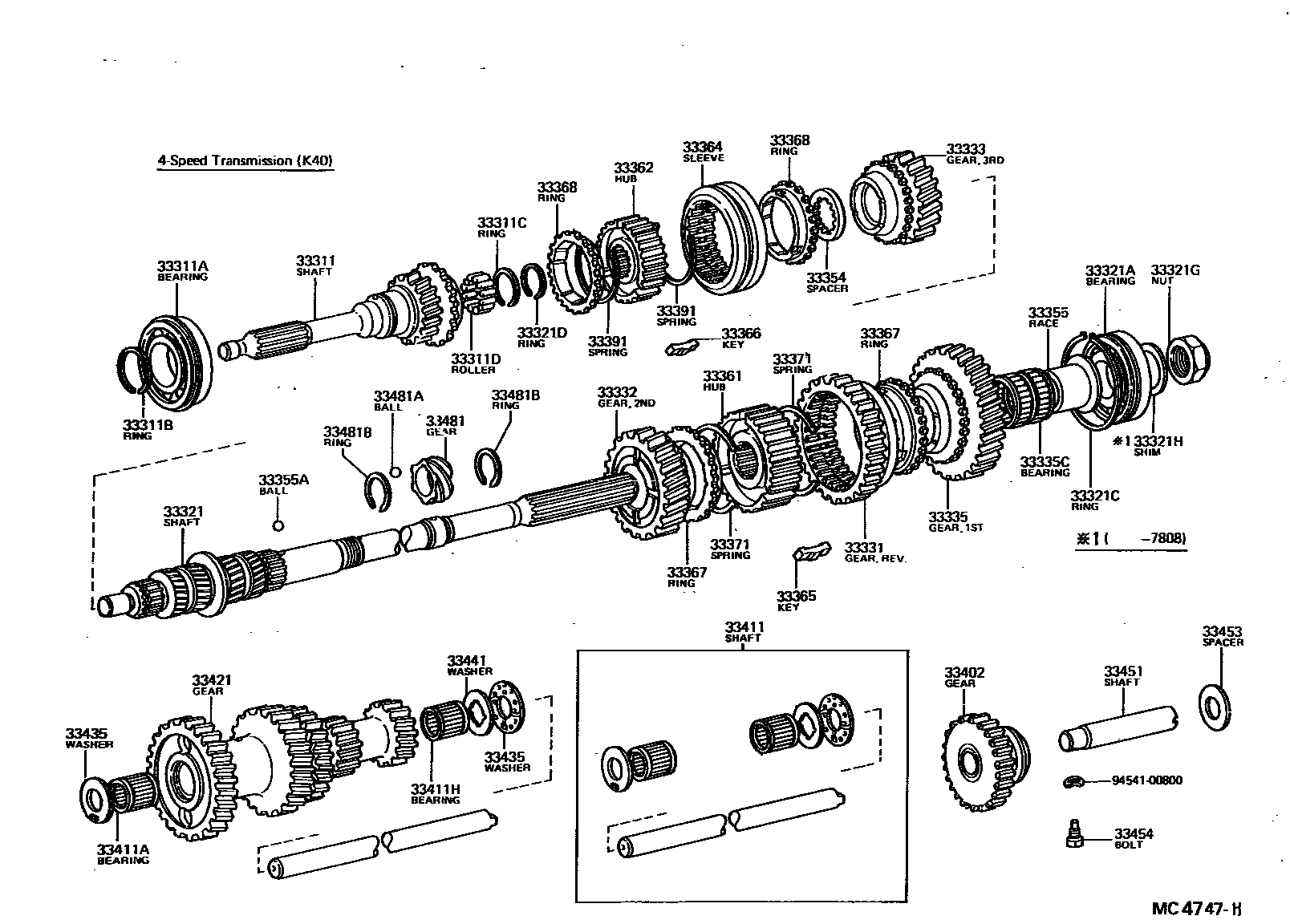

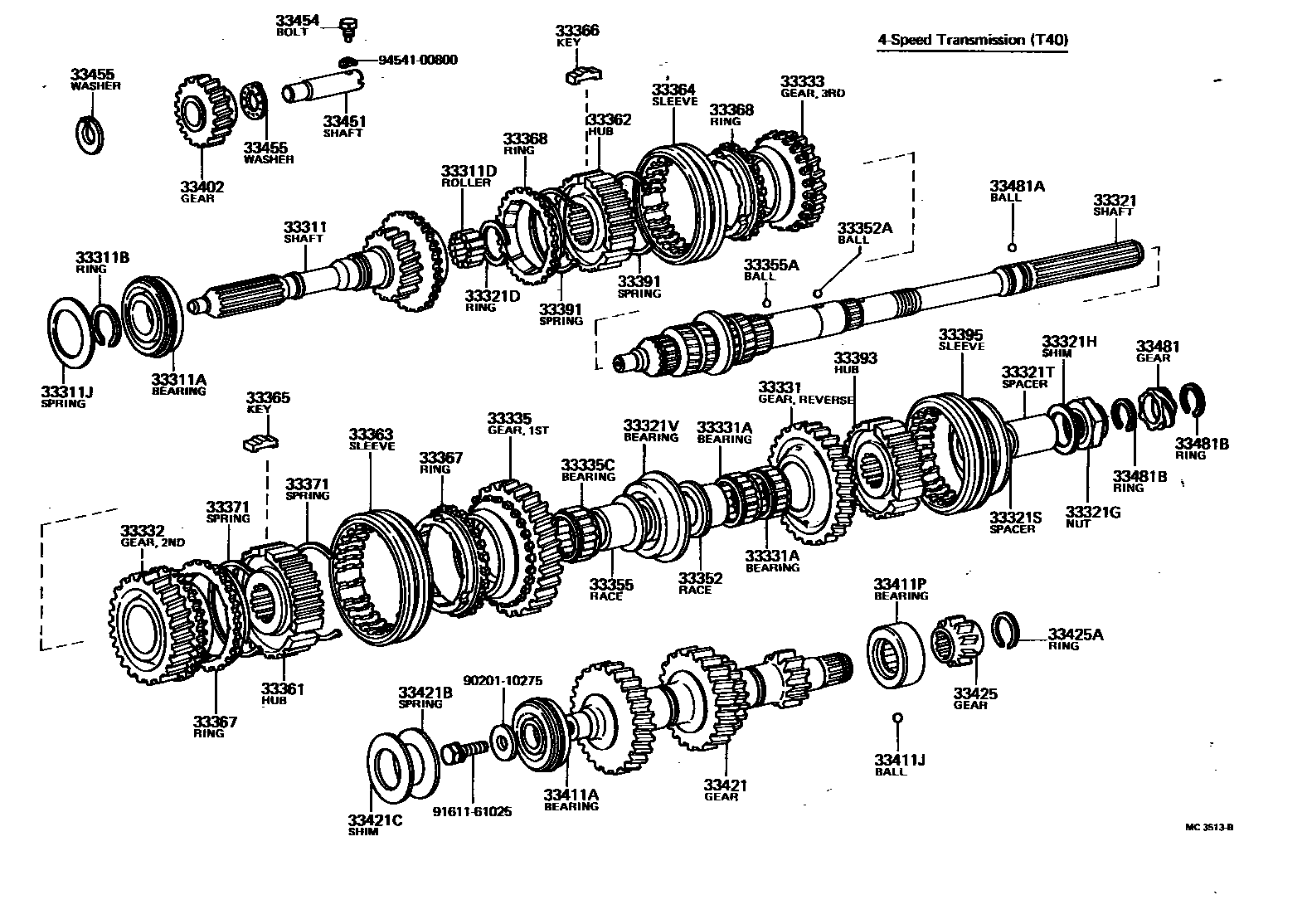

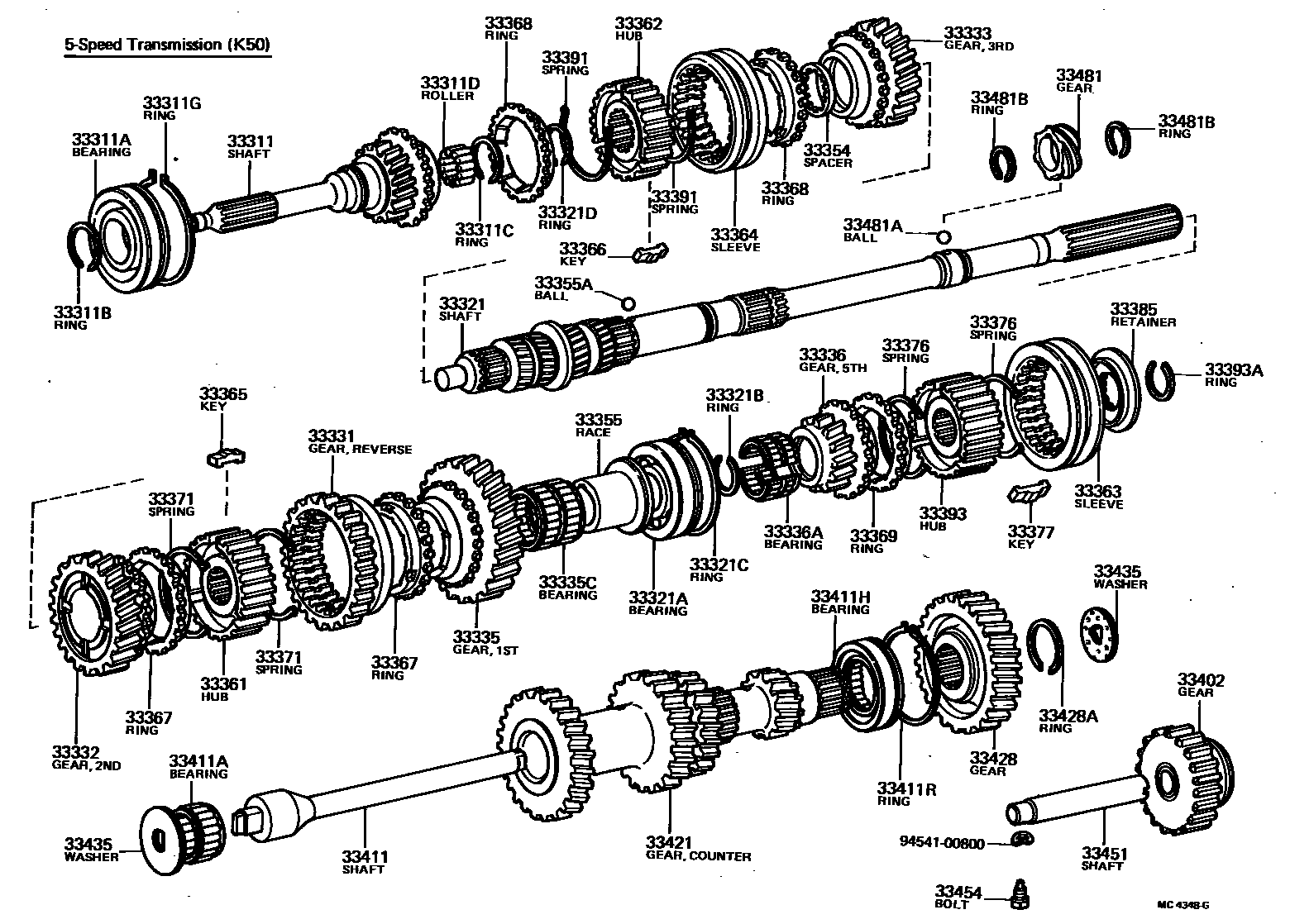

Toyota COROLLA 变速器齿轮(MTM) — Figure 3305
Toyota COROLLA EPC diagram 3305, 变速器齿轮(MTM), with 4 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33311 | input shaft | 33301-14010 · 33311-12021 |
| 33311A | Bearing (for front input shaft) | 90363-30003 · 90363-30004 · 90363-30009 · 90363-30017 · 97154-06206 · 97163-06206 |
| 33311B | Shaft snap ring (for front bearing) | 90520-28067 · 90520-28068 · 90520-28205 · 90520-28206 · 90520-28207 |
| 33311C | Hole snap ring (for needle rollers) | 90521-30150 |
| 33311D | Input shaft bearing | 90361-06047 |
| 33311G | Shaft snap ring (for front bearing) | 90520-59001 · 90520-65001 |
| 33311J | Input shaft thrust spring | 90208-41002 |
| 33321 | output shaft | 33321-10030 · 33321-10031 · 33321-12013 · 33321-14010 · 33321-14011 · 33321-14020 · 33321-14021 |
| 33321A | Bearings (for rear output shaft) | 90363-25004 · 90363-25014 · 97113-06305 · 97183-06305 |
| 33321B | Shaft snap ring (for output shaft bearing) | 90520-23001 · 90520-23002 · 90520-23089 · 90520-23090 · 90520-23115 · 90520-23143 · 90520-23144 · 90520-23145 · 90520-23146 · 90520-23147 |
| 33321C | Shaft snap ring (for output shaft bearing) | 90520-59001 · 90520-59071 · 90520-60001 |
| 33321D | Shaft snap ring (for clutch hub assembly) | 90520-23089 · 90520-23090 · 90520-23115 · 90520-23143 · 90520-23144 · 90520-23145 · 90520-23146 · 90520-23147 · 90520-30200 · 90520-30201 · 90520-30202 · 90520-30203 · 90520-30204 |
| 33321G | Nut (used to secure the manual transmission rear output shaft) | 90179-25057 · 90179-25107 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-26105 |
| 33321S | Spacer (for gear stop) | 33385-14010 |
| 33321T | Spacer (for output shaft) | 90560-25322 |
| 33321V | Bearings (for center output shaft) | 90369-30041 |
| 33331 | reverse gear | 33331-12014 · 33331-14011 |
| 33331A | Bearing (for reverse gear) | 90364-37061 |
| 33332 | Second gear | 33033-14011 · 33332-12020 · 33332-12031 · 33332-12032 |
| 33333 | Third gear | 33034-14010 · 33333-12020 · 33333-12031 · 33333-12040 |
| 33335 | first gear | 33032-14011 · 33335-12012 · 33335-12020 · 33335-12022 |
| 33335C | Needle roller bearing (for first gear) | 90364-32036 · 90364-37041 |
| 33336 | fifth gear | 33036-14011 · 33336-10010 · 33336-10011 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-23002 |
| 33338 | Fifth gear bushing or bearing | 90364-32048 |
| 33352 | Reverse gear bearing inner race | 33344-14010 |
| 33352A | Reverse gear bearing inner race locking key or steel ball | 90360-05012 |
| 33354 | clutch hub spacer | 33354-12011 · 33354-12020 · 33354-12030 |
| 33355 | First gear bearing inner race | 33345-12015 · 33345-14010 · 33345-14011 |
| 33355A | First gear bearing inner race locking key or steel ball | 90360-05006 · 90360-05012 |
| 33359 | Fifth gear gear bearing inner race | 33338-14011 · 33338-14012 |
| 33359A | Fifth gear gear bearing inner race locking steel ball | 90360-05012 |
| 33361 | No. 1 transmission clutch hub | 33361-12011 · 33361-14010 |
| 33362 | No. 2 transmission clutch hub | 33362-12010 · 33362-14010 |
| 33363 | No. 1 transmission hub sleeve | 33363-14010 · 33363-14012 · 33364-10010 |
| 33364 | No. 2 transmission hub sleeve | 33363-12013 · 33364-14010 |
| 33365 | No. 1 synchromesh shift key | 33365-12010 · 33365-14010 · 33365-14011 |
| 33366 | No. 2 synchromesh shift key | 33366-12010 · 33366-14010 |
| 33367 | Synchronizer lock ring No. 1 | 33367-12012 · 33367-12020 · 33368-12012 · 33368-20012 |
| 33368 | Synchronizer lock ring No. 2 | 33367-14010 · 33369-12012 |
| 33369 | No. 3 synchronizer lock ring | 33367-14010 · 33369-12012 |
| 33371 | No. 1 synchromesh shift key spring | 33371-12011 · 33371-14030 · 33371-20010 |
| 33376 | Synchronizer shift key spring (for No. 3 clutch hub) | 33371-14010 · 33391-12011 |
| 33377 | Synchronizer shift key (for clutch hub No. 3) | 33366-12010 · 33394-14010 |
| 33385 | shift key block | 33385-10010 · 33385-10011 |
| 33391 | No. 2 synchromesh shift key spring | 33371-14010 · 33391-12011 |
| 33393 | No. 3 transmission clutch hub | 33393-10010 · 33393-14010 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-23001 · 90520-23002 · 90520-23003 · 90520-23004 · 90520-23005 · 90520-23006 · 90520-23007 · 90520-23089 · 90520-23090 · 90520-23115 · 90520-23143 · 90520-23144 · 90520-23145 · 90520-23146 · 90520-23147 |
| 33395 | No. 3 transmission hub sleeve | 33395-14010 |
| 33402 | Reverse idler gear sub-assembly | 33402-12011 · 33402-14010 |
| 33411 | intermediate shaft | 33411-10010 · 33411-10011 · 33411-12020 · 33411-19015 · 33411-19016 |
| 33411A | Bearing or roller (for front countershaft gear) | 90364-16002 · 90364-16003 · 90364-16047 · 90364-23001 · 90364-30006 · 97153-06304 |
| 33411H | Bearing or roller (for countershaft rear gear) | 90363-20069 · 90364-16003 · 90364-16047 · 90365-32001 · 90365-32003 |
| 33411J | Intermediate shaft gear intermediate bearing limit ball | 90360-05012 |
| 33411P | intermediate shaft intermediate bearing | 90365-27012 |
| 33411R | Countershaft gear rear bearing snap ring | 90520-18264 · 90520-18265 · 90520-18266 · 90520-47001 · 90520-48001 |
| 33421 | countershaft gear | 33421-10041 · 33421-10043 · 33421-12020 · 33421-12031 · 33421-12033 · 33421-12060 · 33421-12070 · 33421-14010 · 33421-14021 |
| 33421B | countershaft gear thrust spring | 90208-31001 |
| 33421C | Spacer (for countershaft gear thrust spring) | 90564-29147 |
| 33425 | countershaft reverse gear | 33425-14010 |
| 33425A | Shaft snap ring (for countershaft gear) | 90520-21198 · 90520-21199 |
| 33428 | Countershaft fifth gear | 33428-10010 · 33428-14010 |
| 33428A | Shaft snap ring (for countershaft fifth gear) | 90520-26001 · 90520-26002 · 90520-26003 |
| 33435 | Countershaft gear cover side thrust washer | 33435-10010 · 33435-10020 · 33435-10030 · 33435-10040 · 33435-10041 · 33435-12010 · 33435-12020 · 33435-12040 |
| 33441 | No. 1 countershaft gear cover side thrust washer | 33441-12010 · 33442-12011 · 33443-12011 · 33444-12010 |
| 33451 | Reverse gear idler shaft | 33451-12010 · 33451-14010 |
| 33453 | Reverse gear idler shaft spacer | 90560-19198 |
| 33454 | Shaft fixing bolt | 33454-12010 |
| 33455 | Reverse idler thrust washer | 33455-14010 |
| 33481 | Speedometer driving gear (MTM) | 33481-12020 · 33481-14010 · 33481-20080 |
| 33481A | Speedometer driving gear key or steel ball (MTM) | 90360-05006 · 90360-05012 |
| 33481B | Ring or spacer (for MTM speedometer driving gear) | 90520-21066 |
