Toyota COROLLA 速度表从动齿轮(MTM) — Figure 3304

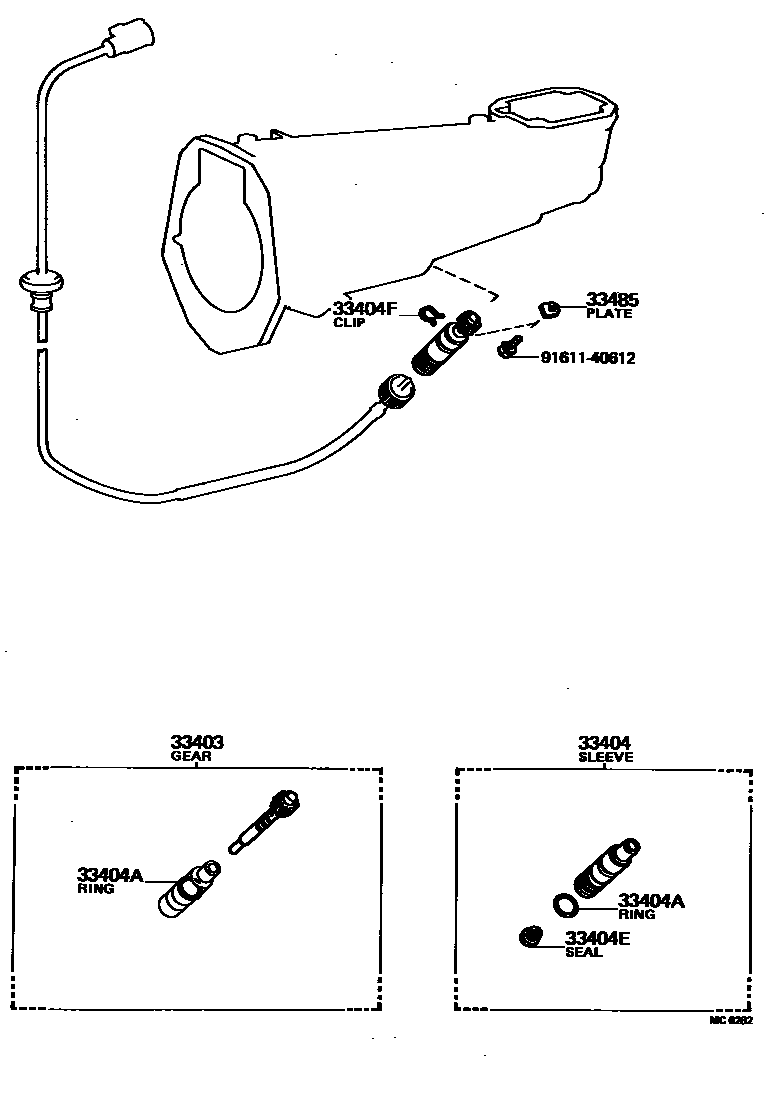

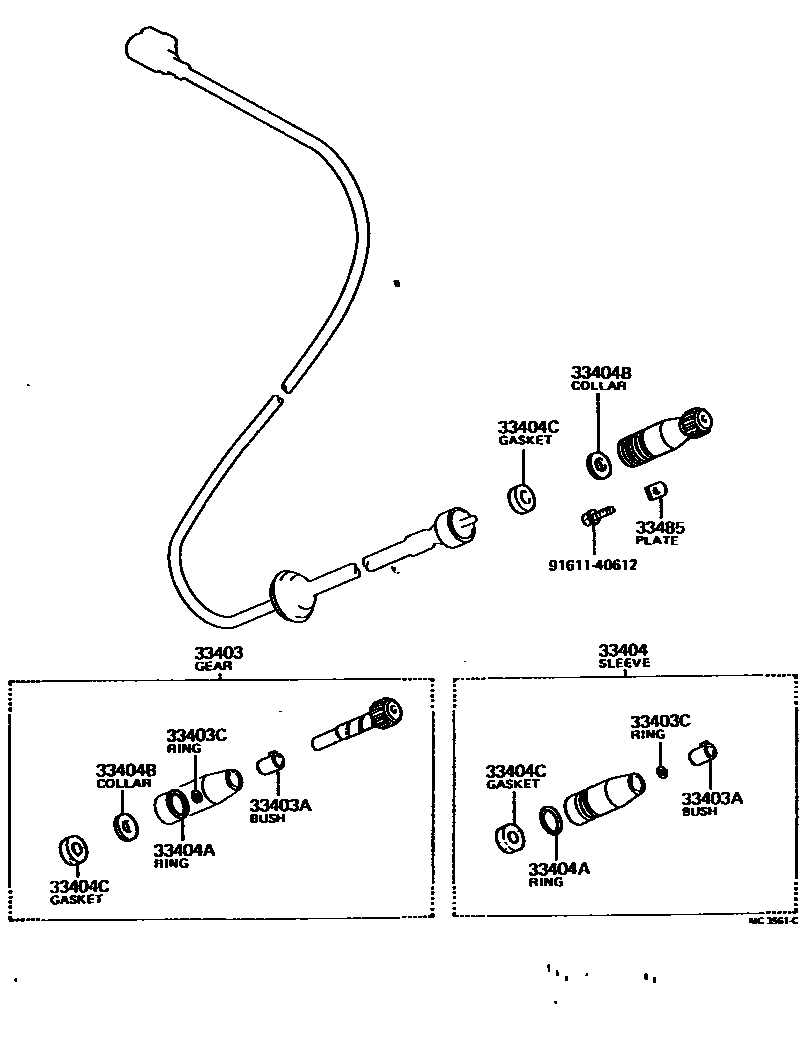

Toyota COROLLA EPC diagram 3304, 速度表从动齿轮(MTM), with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33403 | Speedometer driven gear sub-assembly (MTM) | 33403-19055 · 33403-19065 · 33403-19075 · 33403-19085 · 33403-19095 · 33403-19155 · 33403-19165 · 33403-19175 · 33403-19185 · 33403-29095 |
| 33403A | Bushing (for manual transmission speedometer shaft sleeve) | 90386-09055 |
| 33403C | O-ring (for manual transmission speedometer shaft) | 90301-09010 |
| 33404 | Speedometer shaft sleeve sub-assembly (MTM) | 33404-16010 · 33404-19015 |
| 33404A | O-ring (for manual transmission speedometer shaft sleeve) | 96710-02018 |
| 33404B | Speedometer Flexible Tube Shaft Pad Collar (MTM) | 90201-07069 |
| 33404C | Speedometer Flexible Tube Shaft Pad (MTM) | 90303-06017 |
| 33404E | Oil seal (for manual transmission speedometer shaft sleeve) | 90310-09001 |
| 33404F | Clamp (for manual transmission speedometer shaft sleeve) | 90468-12005 |
| 33485 | Speedometer sleeve locking plate (MTM) | 33485-10010 · 33485-16010 |
