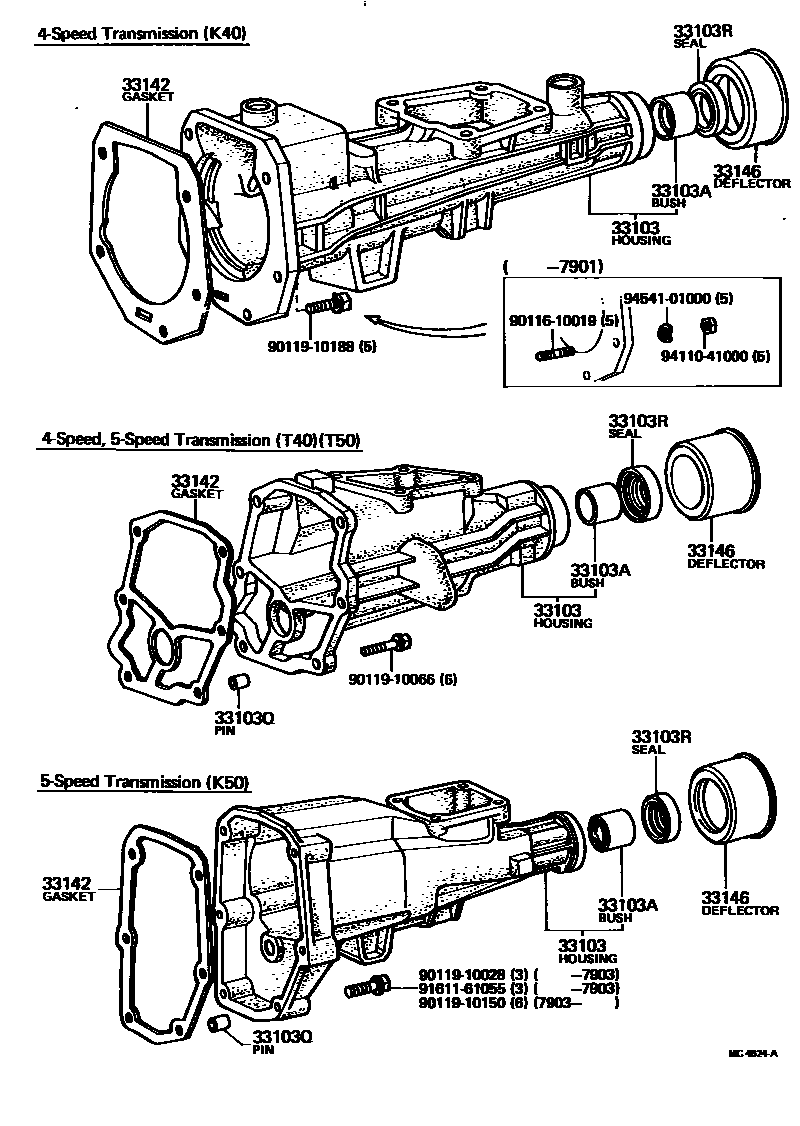

Toyota COROLLA Extended shell (MTM) — Figure 3303
Toyota COROLLA EPC diagram 3303, Extended shell (MTM), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33103 | Extended shell sub-assembly (MTM) | 33103-10042 · 33103-12050 · 33103-14010 |
| 33103A | Bushing (for manual transmission extension housing) | 90999-72022 · 90999-72024 |
| 33103Q | Ring pin (for extension housing) | 90253-13017 |
| 33103R | Oil seal (for manual transmission extension housing) | 90311-32086 |
| 33142 | Extended shell liner (MTM) | 33142-10021 · 33142-12020 · 33142-14010 |
| 33146 | Extension housing dust cover (MTM) | 33146-12010 |
