Toyota COROLLA 离合器和分离叉 — Figure 3101

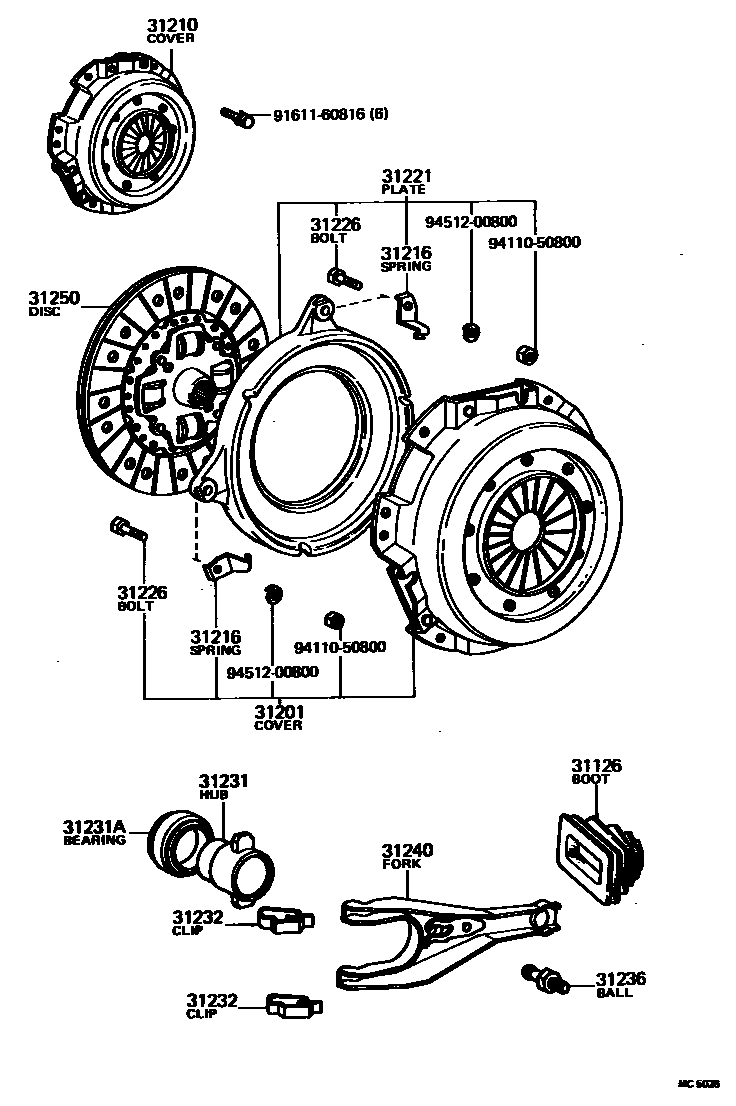

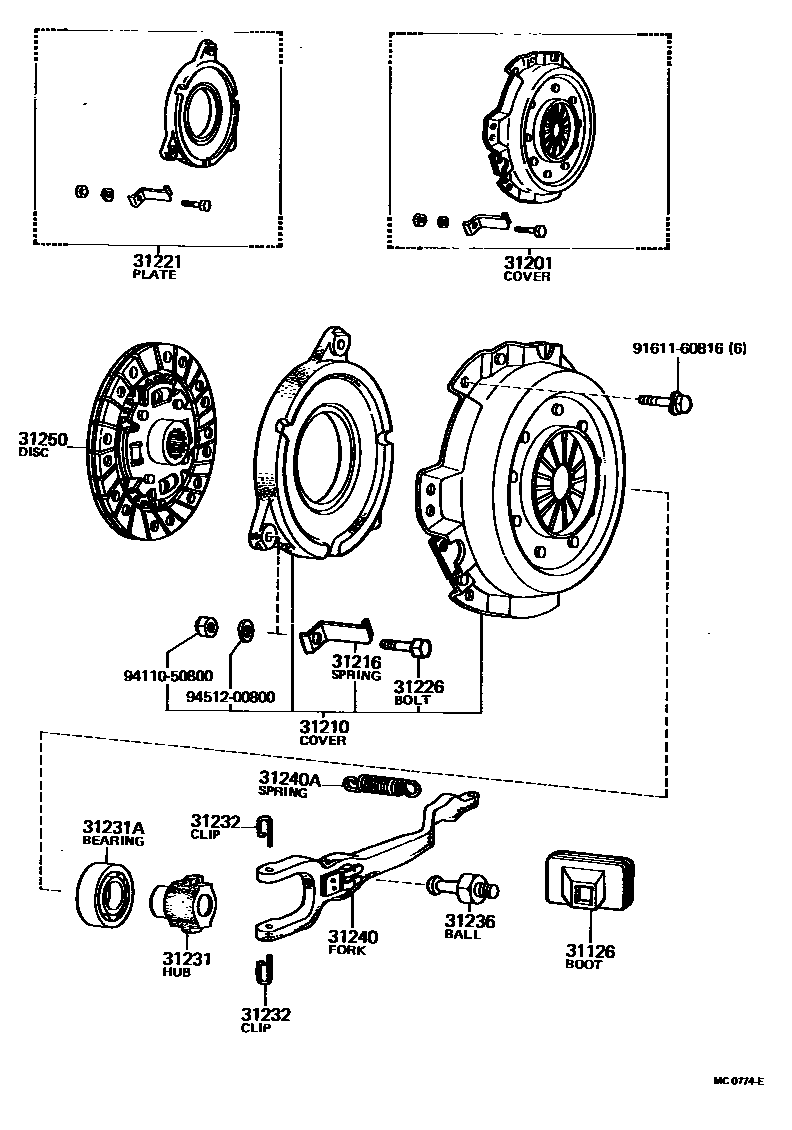

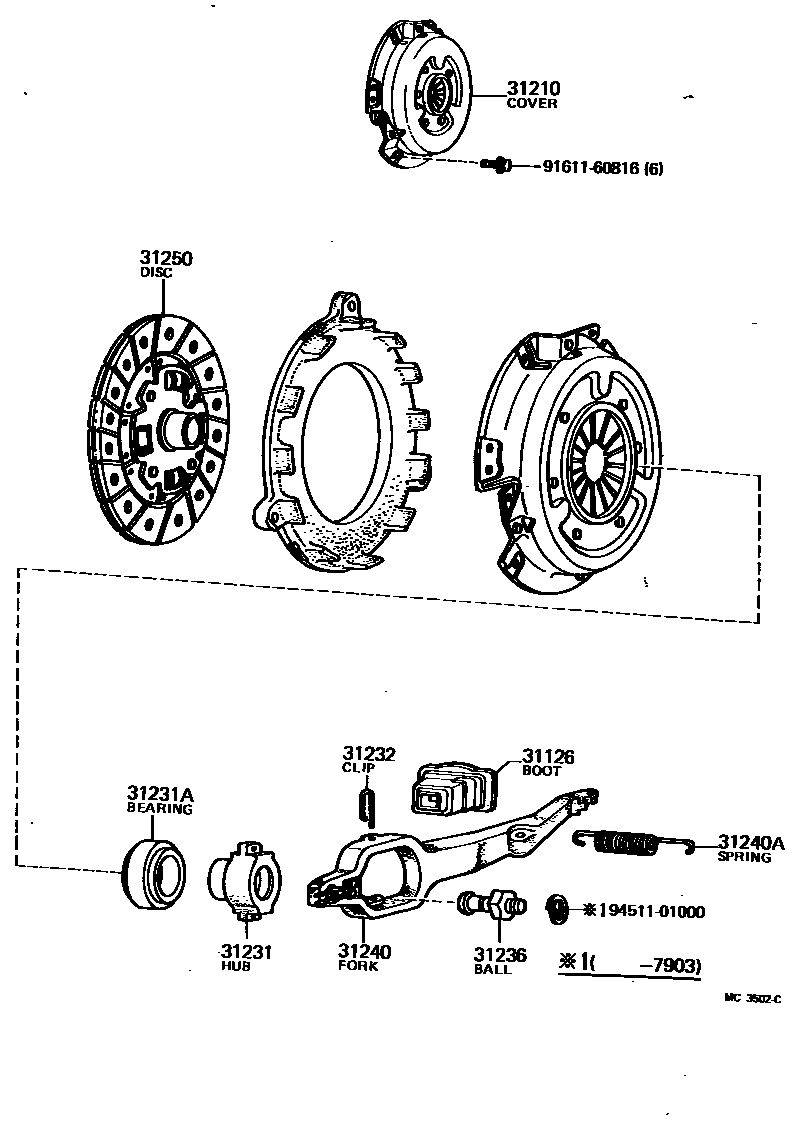

Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-10030 · 31126-12020 · 31126-12040 · 31126-20040 · 31126-22040 |
| 31201 | Clutch cover sub-assembly | 31201-29056 · 31201-29057 · 31201-29058 |
| 31210 | Clutch cover assembly | 31210-12040 · 31210-12041 · 31210-14012 · 31210-14013 · 31210-14080 |
| 31216 | clutch return spring | 31216-20020 |
| 31221 | clutch pressure plate | 31221-19015 |
| 31226 | Clutch pressure plate bolt | 90101-08350 |
| 31231 | Clutch release bearing hub | 31231-12030 · 31231-12031 · 31231-14011 · 31231-14012 · 31231-14030 |
| 31231A | Ball bearing (for clutch release hub) | 90363-33002 · 90363-33080 · 90363-38084 · 90363-40001 |
| 31232 | Release bearing hub clip or spring | 31232-12010 · 31232-22010 · 31232-30010 |
| 31236 | Breakaway fork steel ball | 31236-20020 · 31236-30030 |
| 31240 | Clutch release fork assembly | 31204-10040 · 31204-12010 · 31204-20040 · 31204-22030 |
| 31240A | Tension spring (for clutch release fork return) | 90506-14139 · 90506-16402 |
| 31250 | Clutch disc assembly | 31250-12021 · 31250-12040 · 31250-14010 · 31250-14090 |
