Toyota COROLLA 废气再循环系统 — Figure 2501

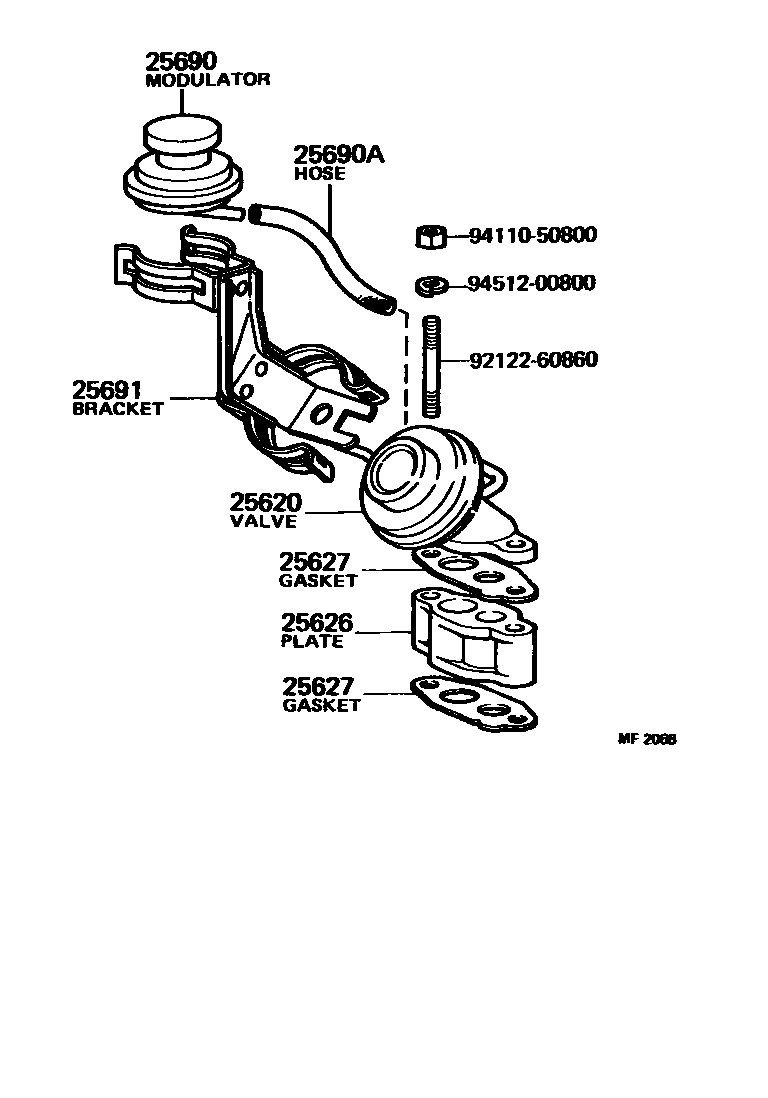

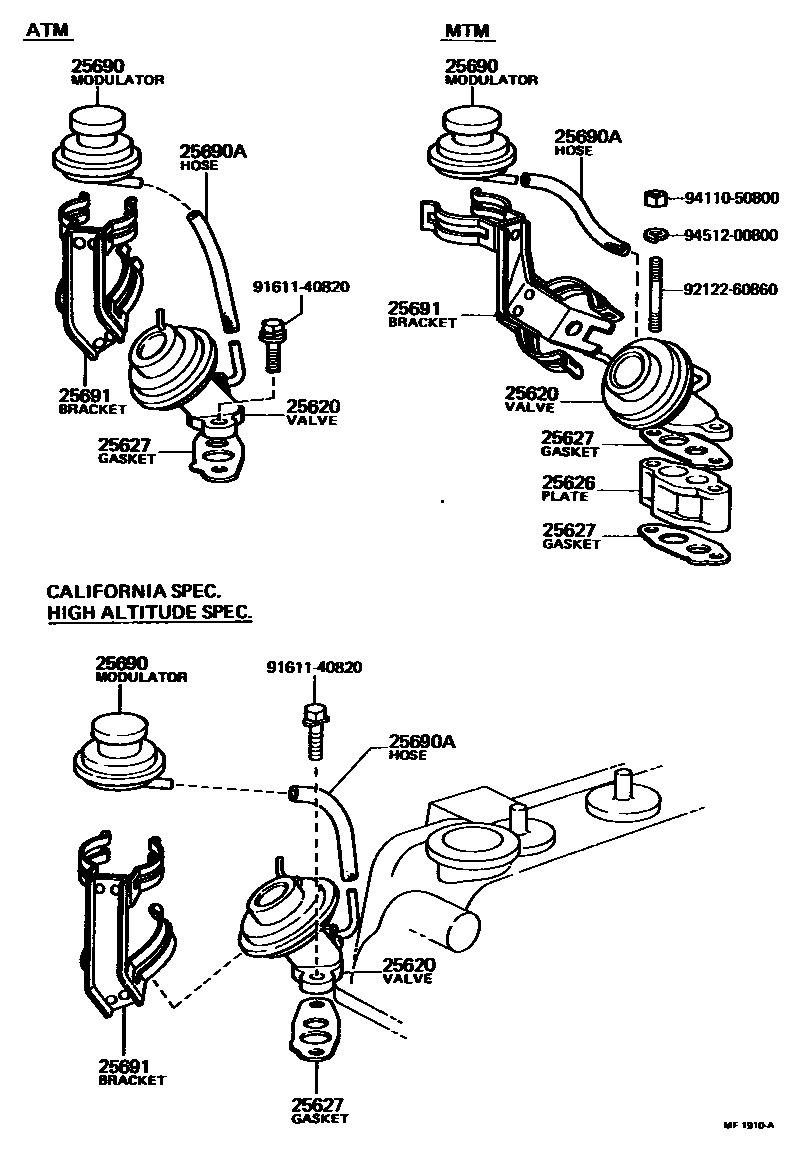

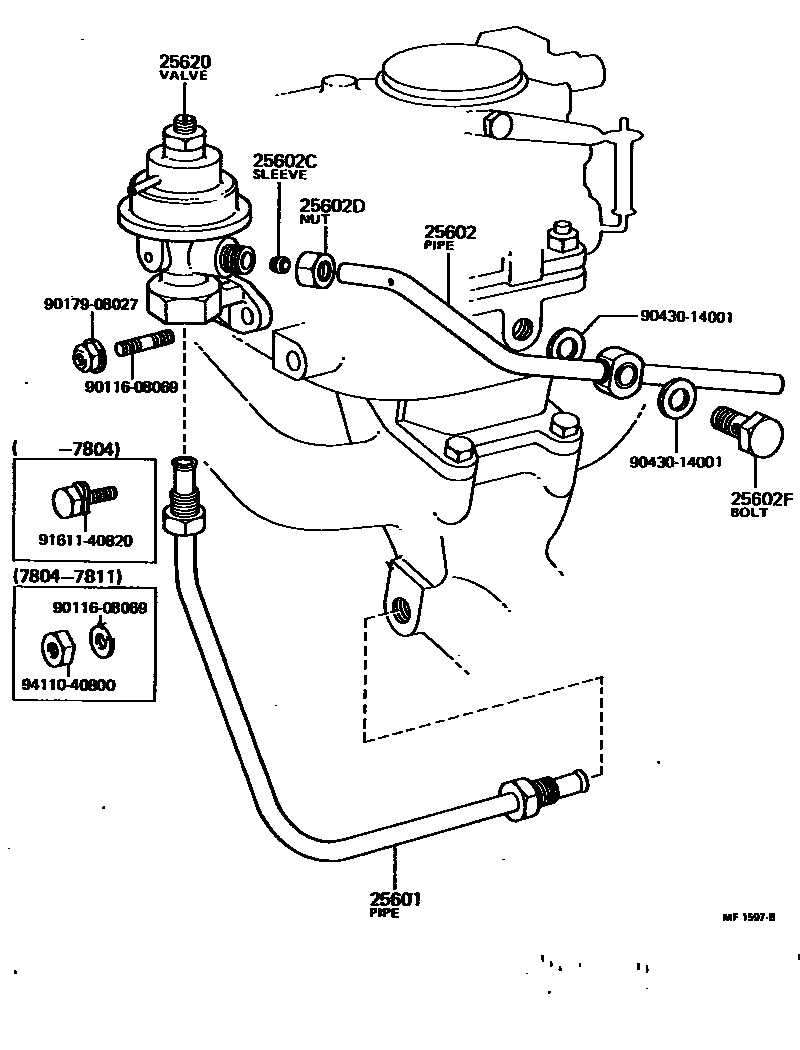

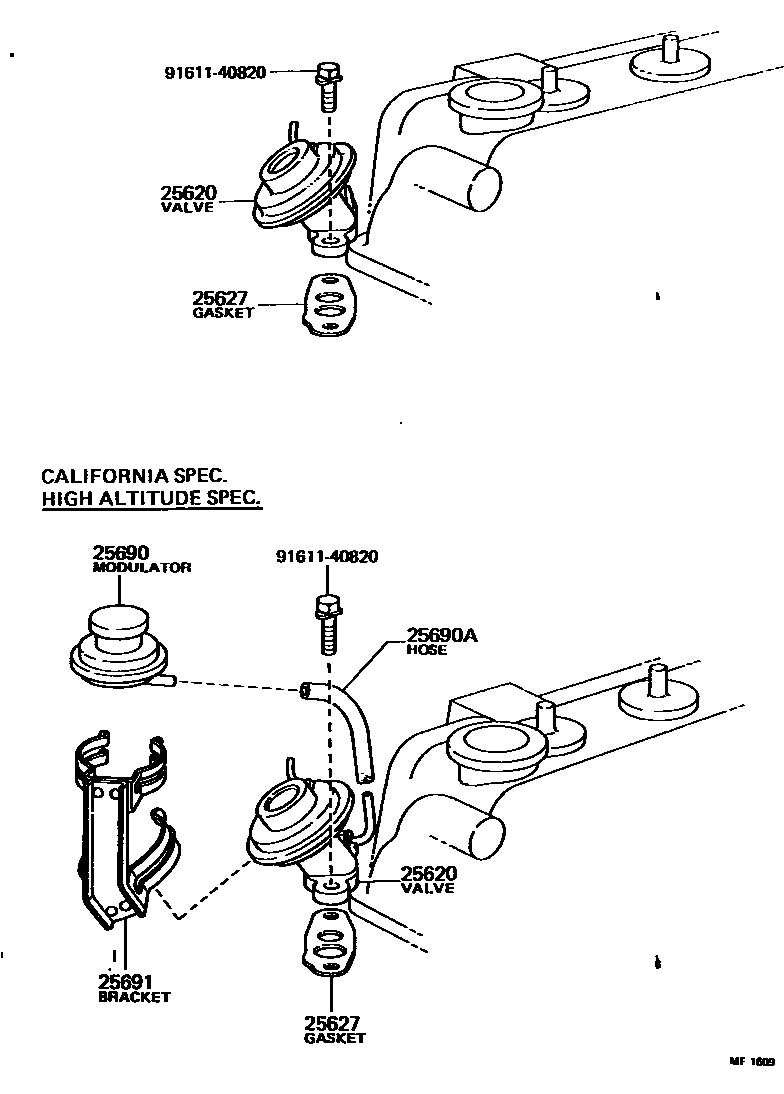

Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-24020 · 25601-24021 |
| 25602 | No. 2 EGR pipe assembly | 25602-24020 · 25602-24021 |
| 25602C | Ball sleeve (for No. 2 EGR tube) | 90410-10001 |
| 25602D | Connecting nut (for No. 2 EGR tube) | 90402-18002 |
| 25602F | Connector (for No. 2 EGR tube) | 90401-14002 |
| 25620 | EGR valve assembly | 25620-24020 · 25620-24040 · 25620-26010 · 25620-26011 · 25620-26020 · 25620-26021 · 25620-26050 · 25620-26070 |
| 25626 | EGR orifice plate | 25626-26010 · 25626-26011 · 25626-26020 |
| 25627 | EGR valve gasket | 25627-26010 |
| 25690 | EGR vacuum regulator assembly | 25690-26010 · 25690-26020 |
| 25690A | Hoses (for EGR vacuum regulator) | 90445-11013 · 90445-11020 |
| 25691 | EGR vacuum regulator bracket | 25691-26010 · 25691-27010 |
