Toyota COROLLA fuel filter — Figure 2302

Toyota COROLLA EPC diagram 2302, fuel filter, with 2 images and 2 PNC and OE references.

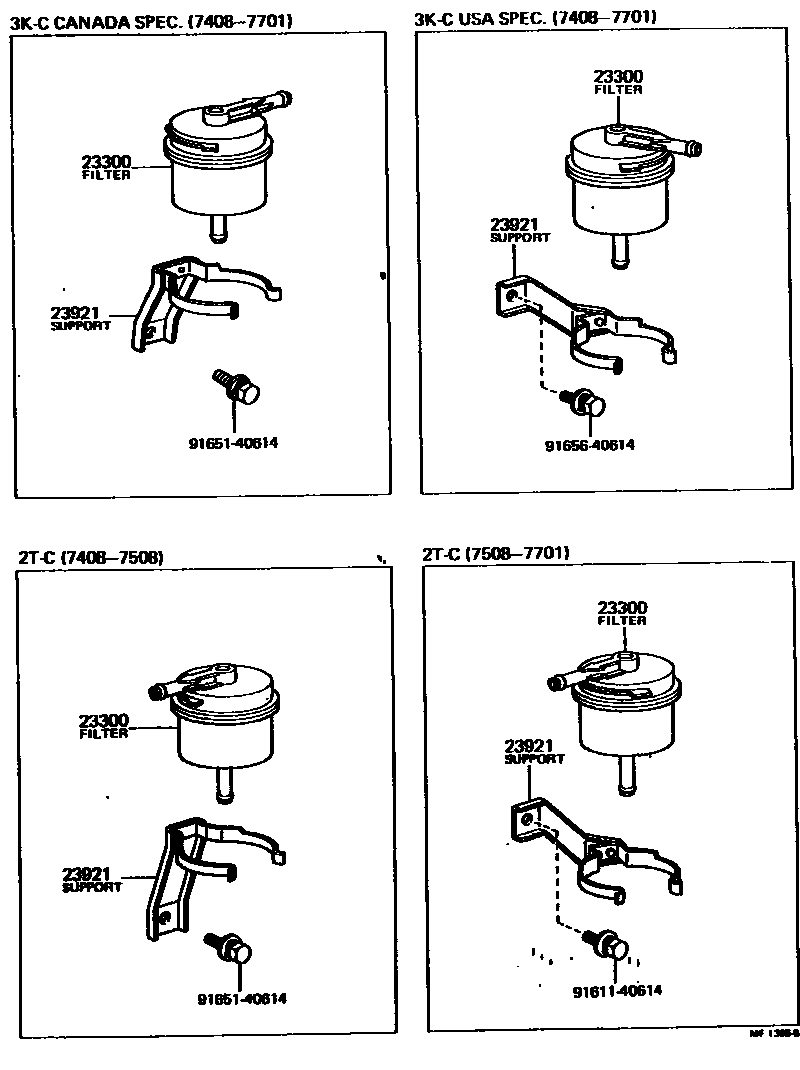

Toyota COROLLA fuel filter EPC diagram — MF1366B
fuel filter — MF1366B (197408 – 197701)

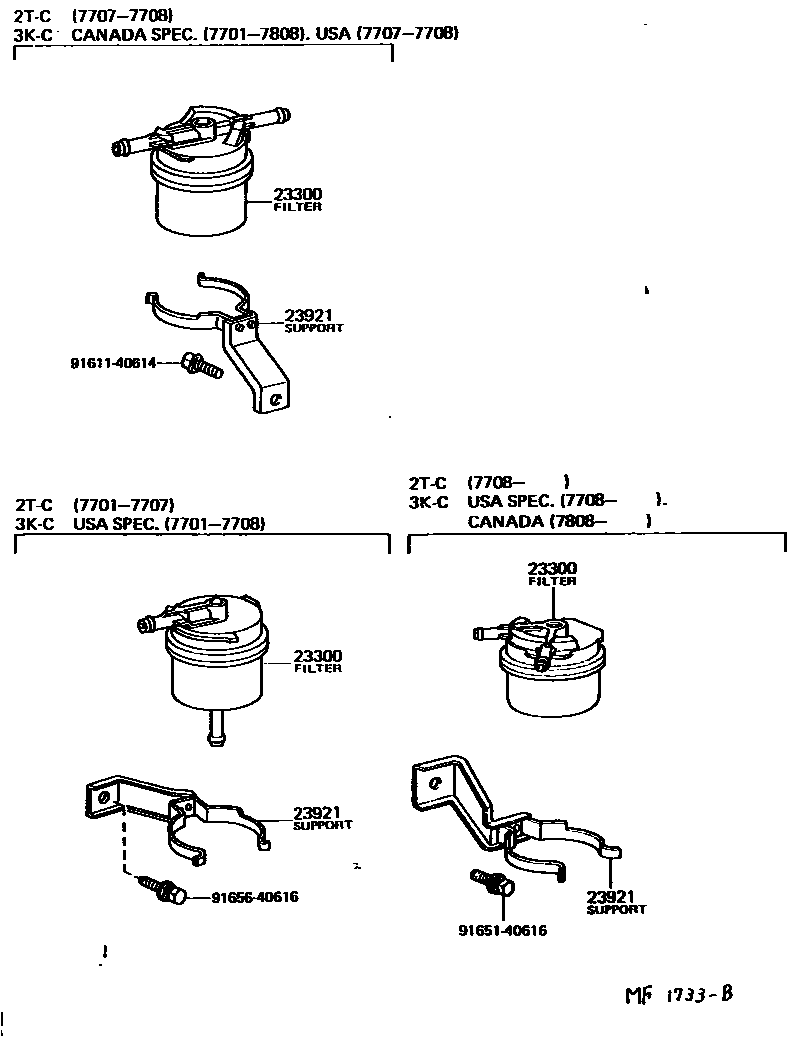

Toyota COROLLA fuel filter EPC diagram — MF1733B
fuel filter — MF1733B (197701 – 197908)

PNC and OE references

PNCPart nameOE numbers
23300fuel filter assembly23300-24050 · 23300-25020 · 23300-26060
23921Fuel filter support23921-24040 · 23921-24041 · 23921-24042 · 23921-26010 · 23921-26011 · 23921-26012 · 23921-26020
