Toyota COROLLA 燃油泵和燃油管 — Figure 2301

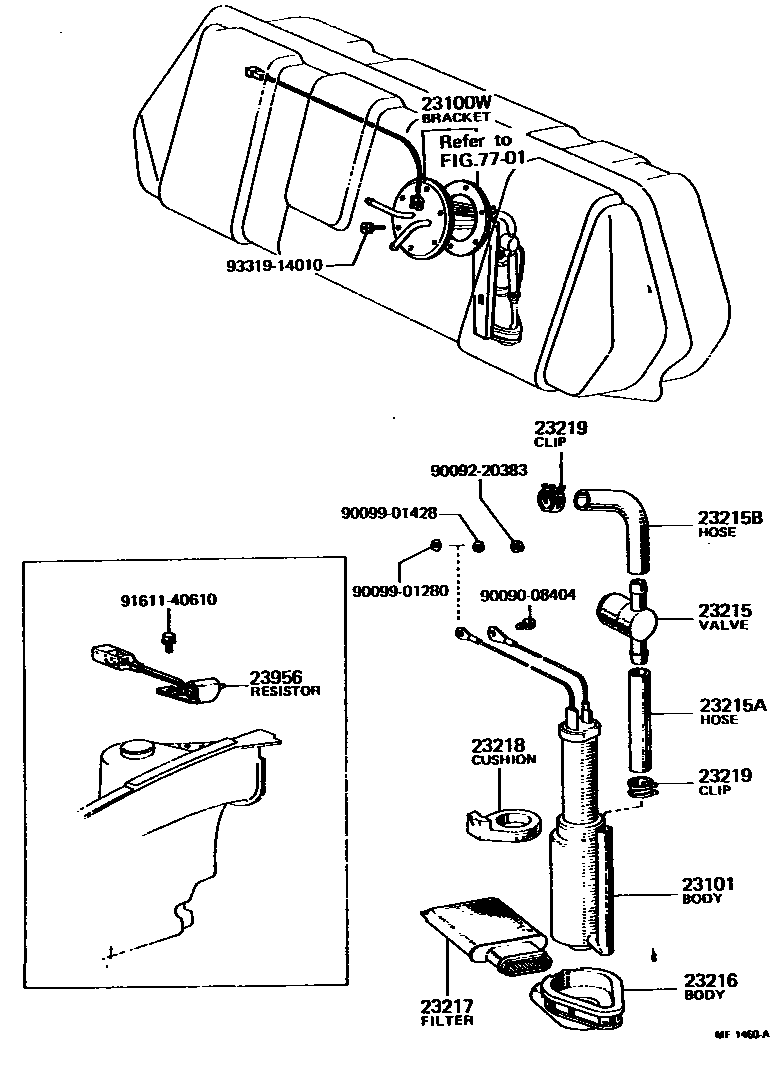

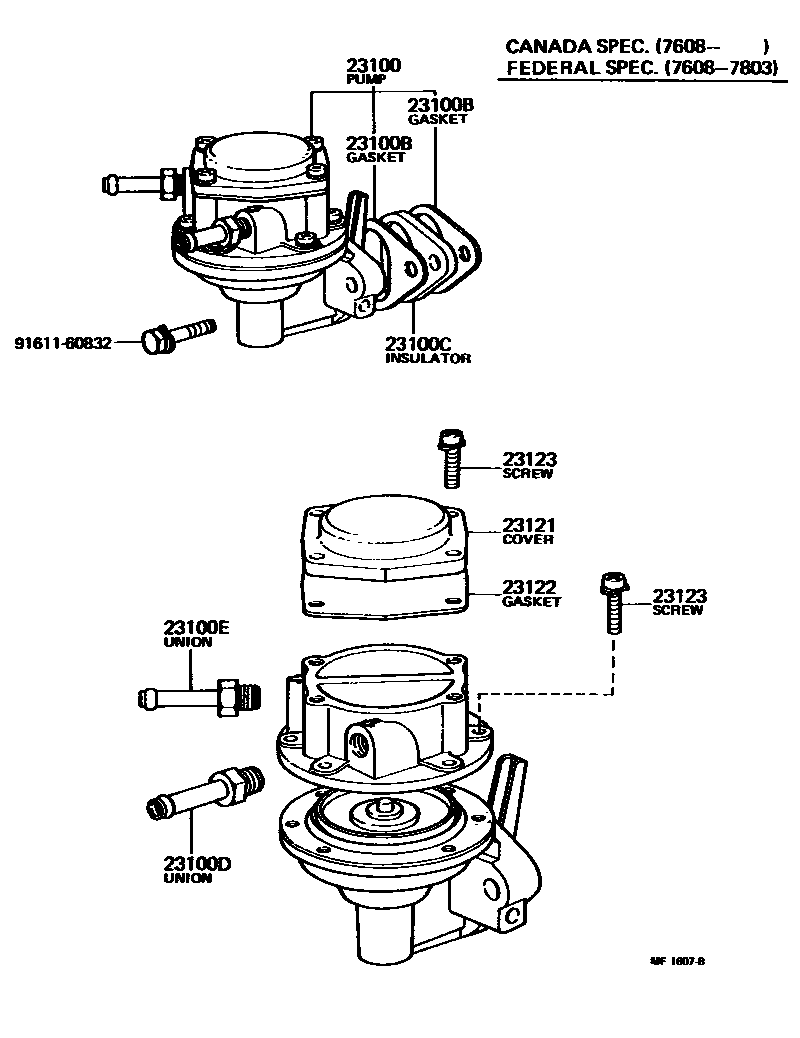

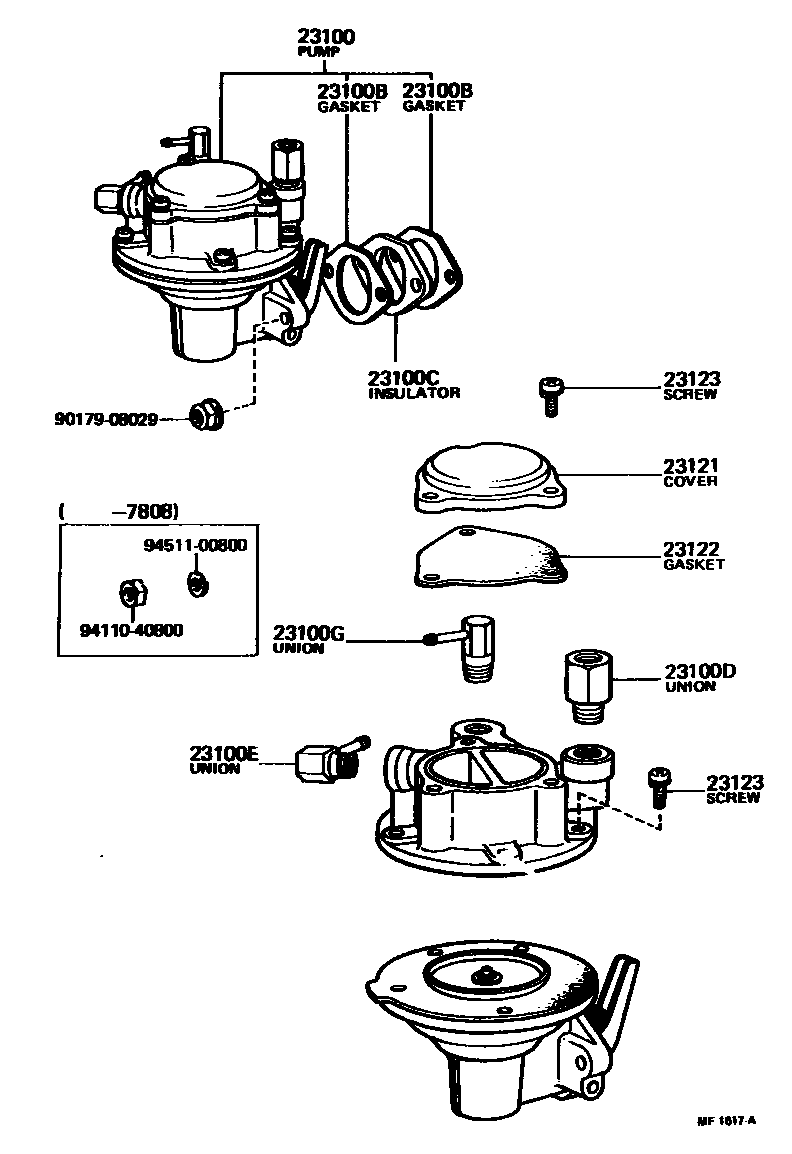

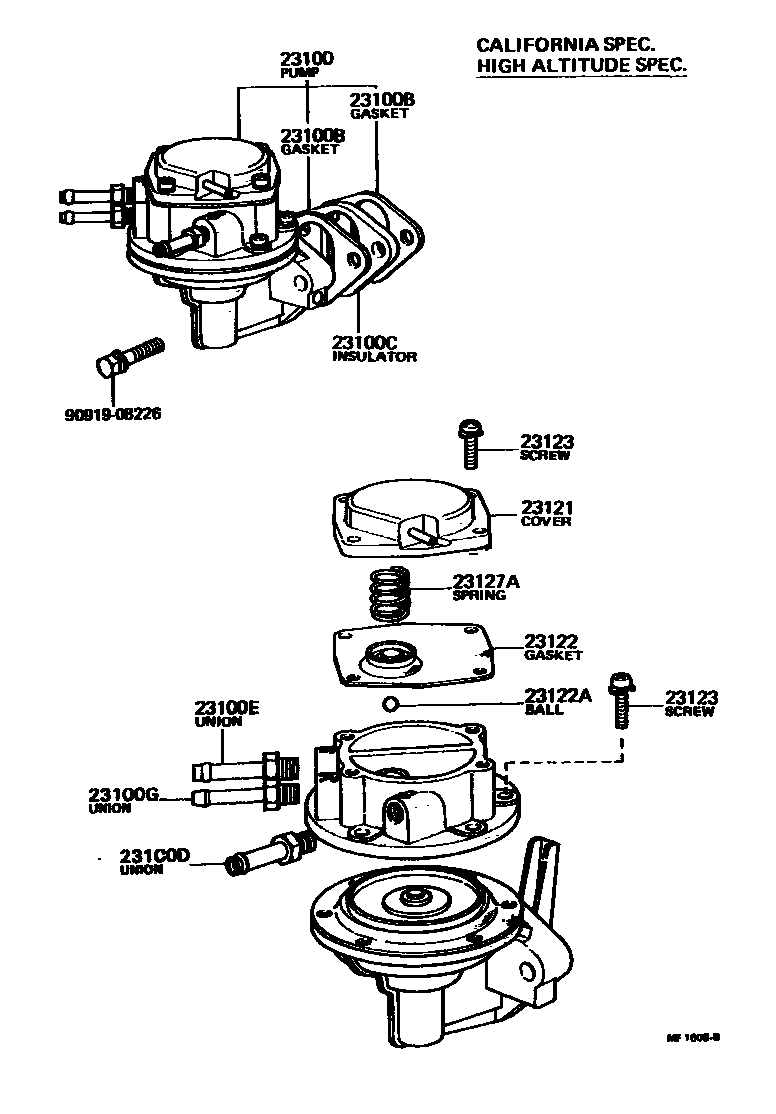

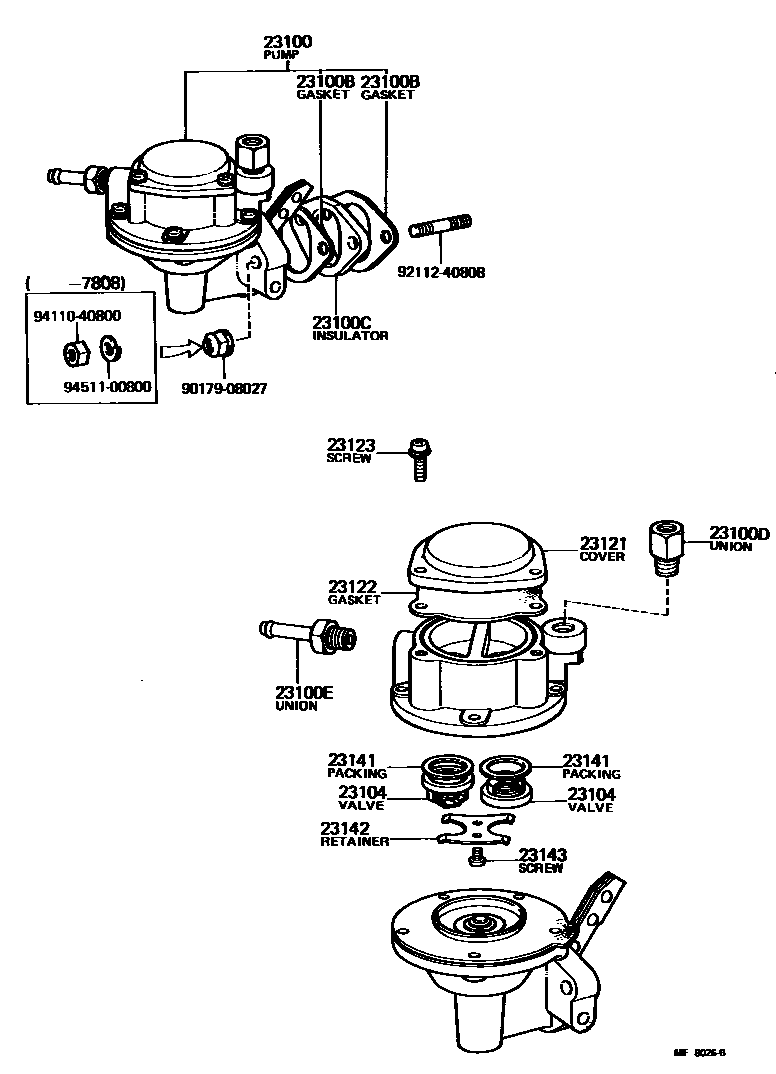

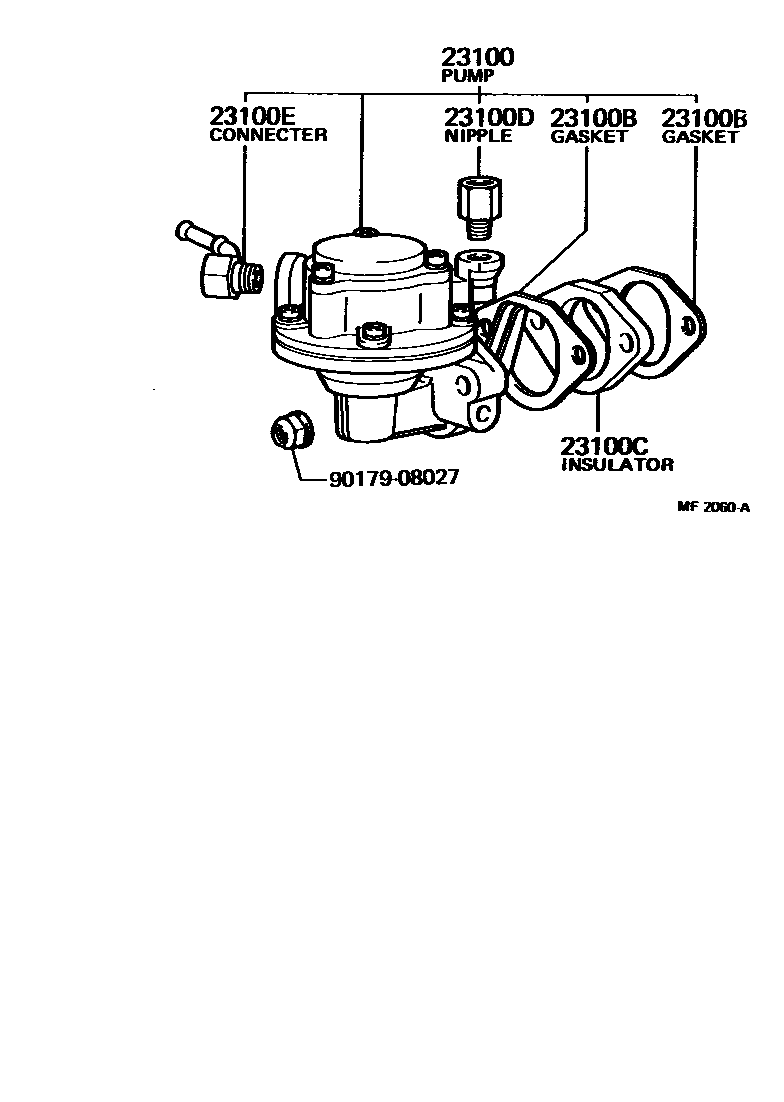

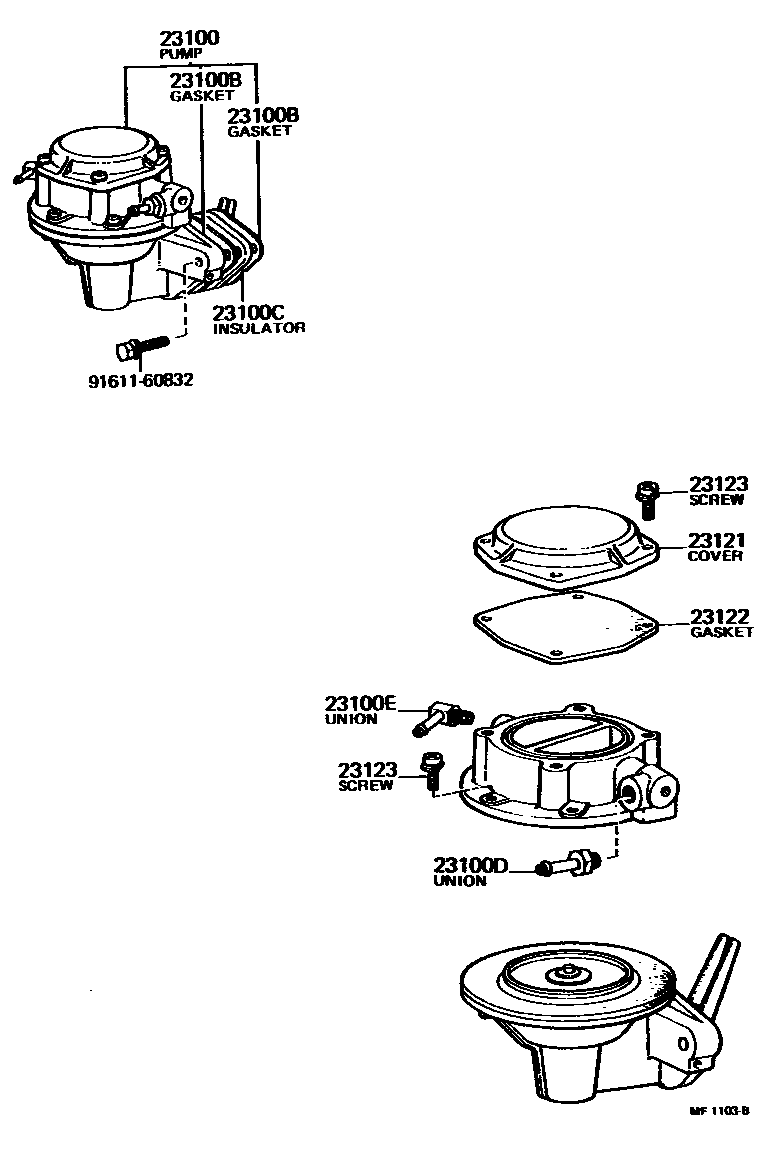

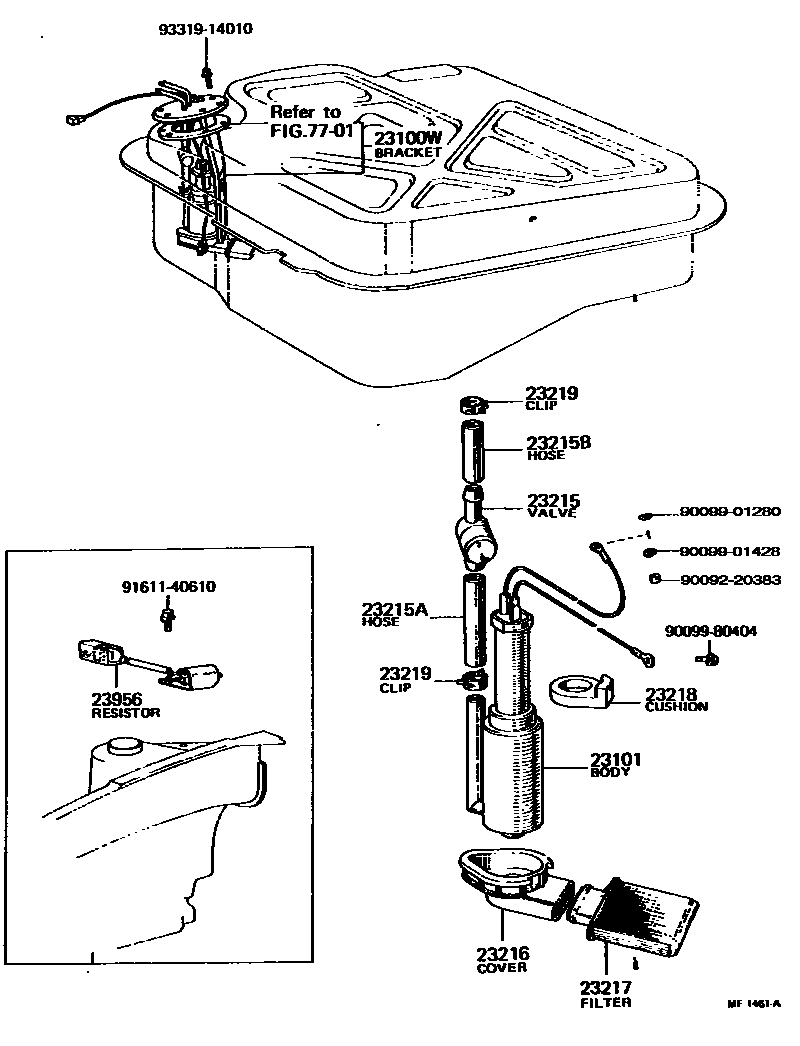

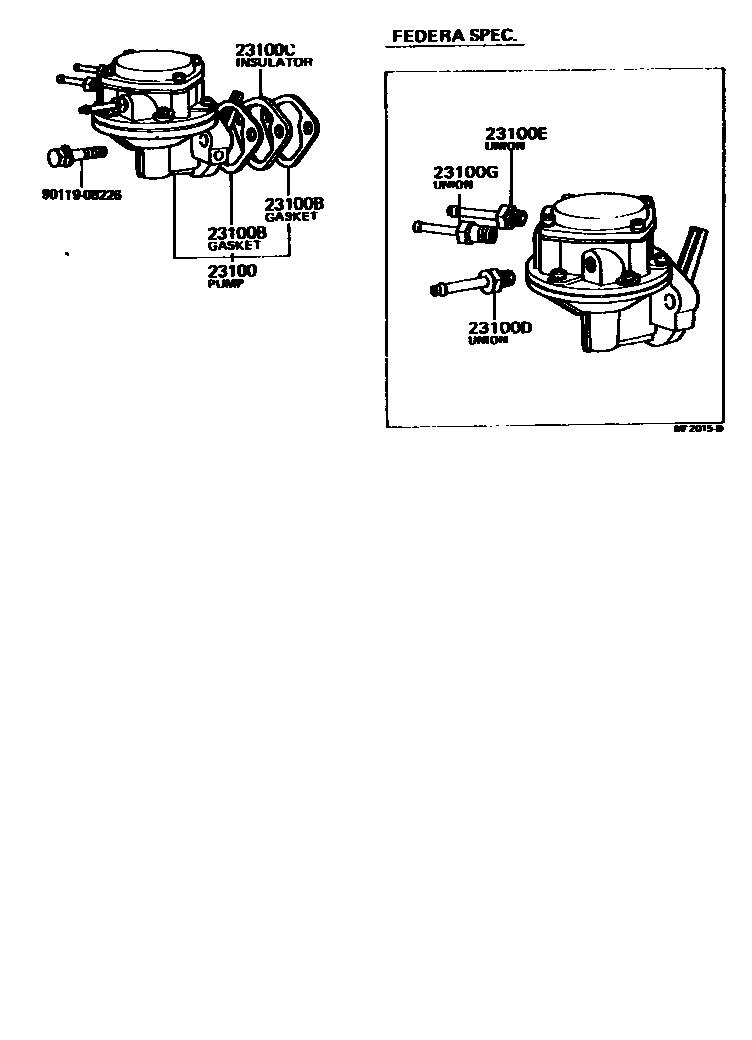

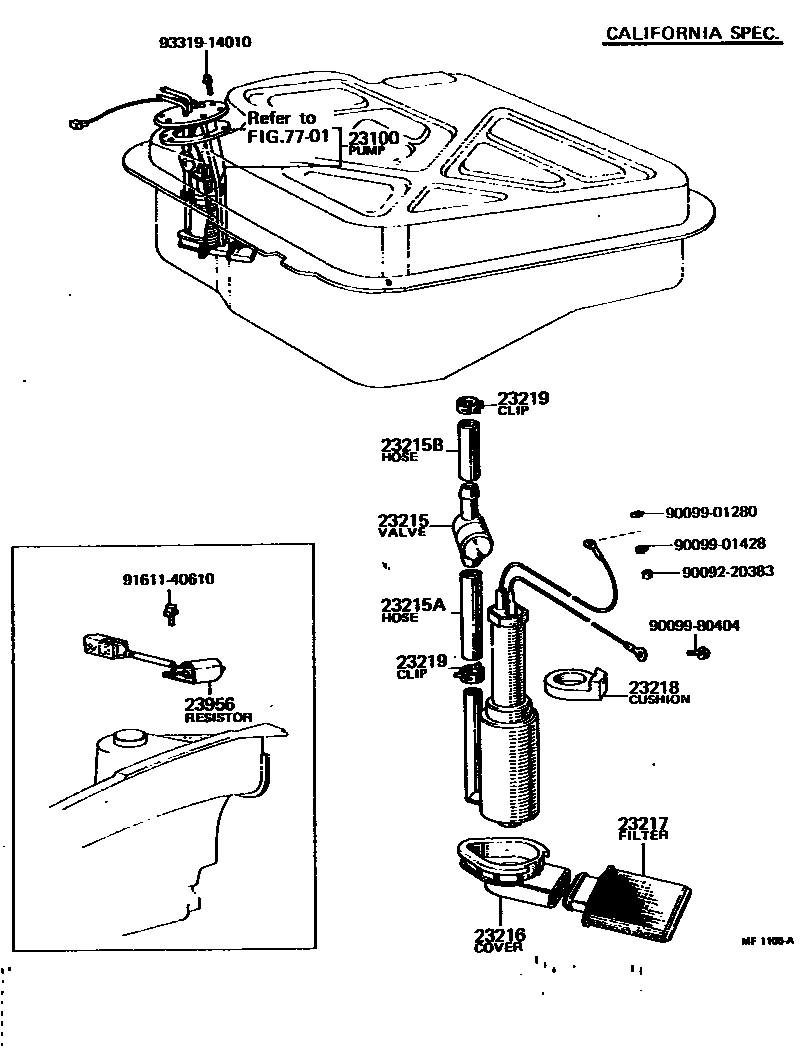

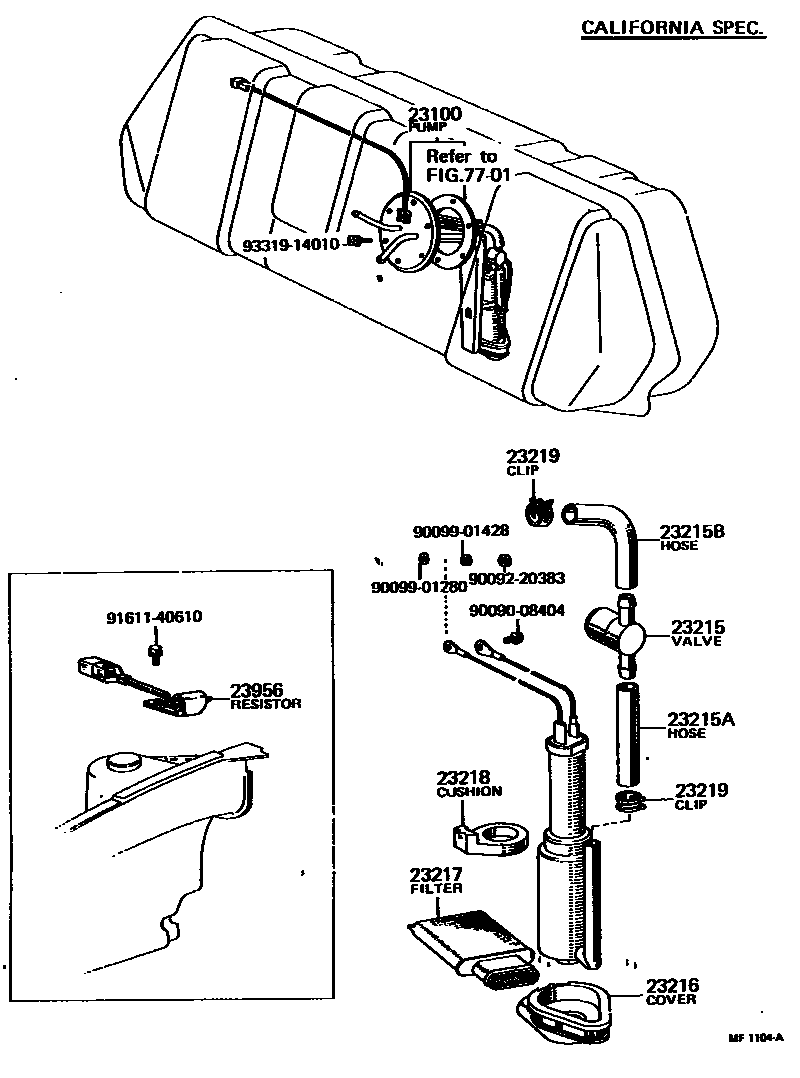

Toyota COROLLA EPC diagram 2301, 燃油泵和燃油管, with 11 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100 | fuel pump assembly | 23100-29085 · 23100-29145 · 23100-29146 · 23100-29155 · 23100-29165 · 23100-29205 · 23100-29206 · 23100-29215 · 23100-29225 · 23100-29235 · 23100-29275 |
| 23100B | fuel pump gasket | 90923-05005 · 90923-05006 |
| 23100C | Fuel pump vibration isolation pad | 90923-06001 · 90923-06003 |
| 23100D | Oil pipe joint (for fuel outlet pipe) | 23116-24010 · 90404-51244 · 90404-51266 |
| 23100E | Fuel pipe joint (for fuel inlet pipe) | 23116-24070 · 23116-31040 · 23116-31041 · 23116-34030 · 90404-51244 |
| 23100G | Fuel pipe connector (for fuel return hose) | 23116-24070 · 23116-24071 · 90404-26120 · 90413-26110 |
| 23100W | Bracket (for fuel pump and fuel gauge sensor) | 23206-29035 · 23206-29045 · 23206-29055 |
| 23101 | Fuel pump body sub-assembly | 23101-38010 |
| 23104 | Valve sub-assembly | 23104-40010 |
| 23121 | fuel pump cover | 23103-26110 · 23121-24010 · 23121-24040 · 23121-26100 · 23121-41030 |
| 23122 | fuel pump cover gasket | 23104-26110 · 23122-24010 · 23122-24040 · 23122-26100 · 23122-41030 |
| 23122A | steel ball | 90911-26110 |
| 23123 | No. 1 cover fixing screw | 23123-33011 · 93319-15014 |
| 23127A | One way valve spring | 90512-26110 |
| 23141 | valve seal | 23141-60010 |
| 23142 | Valve seat ring | 23142-30020 |
| 23143 | Valve seat ring fixing screw | 23143-60021 |
| 23215 | Pressure reducing valve | 23215-26060 · 23215-38011 |
| 23215A | No. 1 fuel pump hose | 90099-19102 · 90099-19103 |
| 23215B | No. 2 fuel pump hose | 23228-38020 · 90099-19101 |
| 23216 | fuel pump cover | 23216-38020 |
| 23217 | fuel pump filter | 23217-26060 · 23217-26061 |
| 23218 | Rubber pad | 23218-38010 |
| 23219 | Hose clip | 23219-26060 · 23219-38010 |
| 23956 | fuel pump resistor | 23956-26011 · 23956-26012 · 23956-26013 |
