Toyota COROLLA 燃油管和卡箍 — Figure 2101

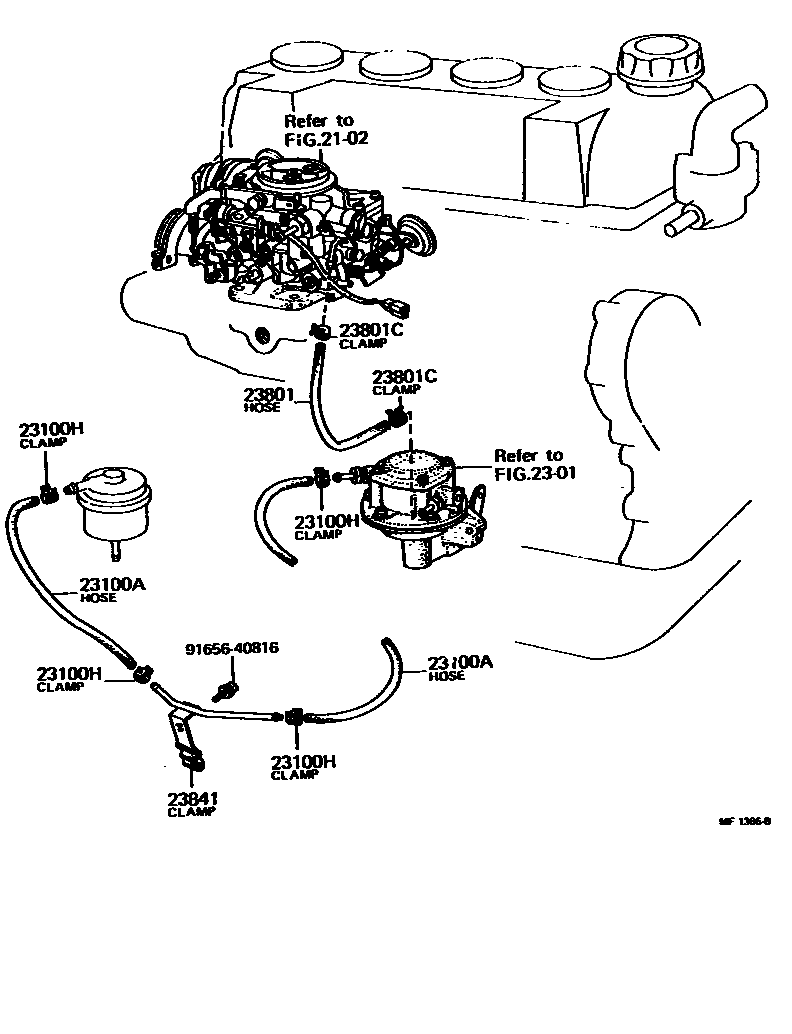

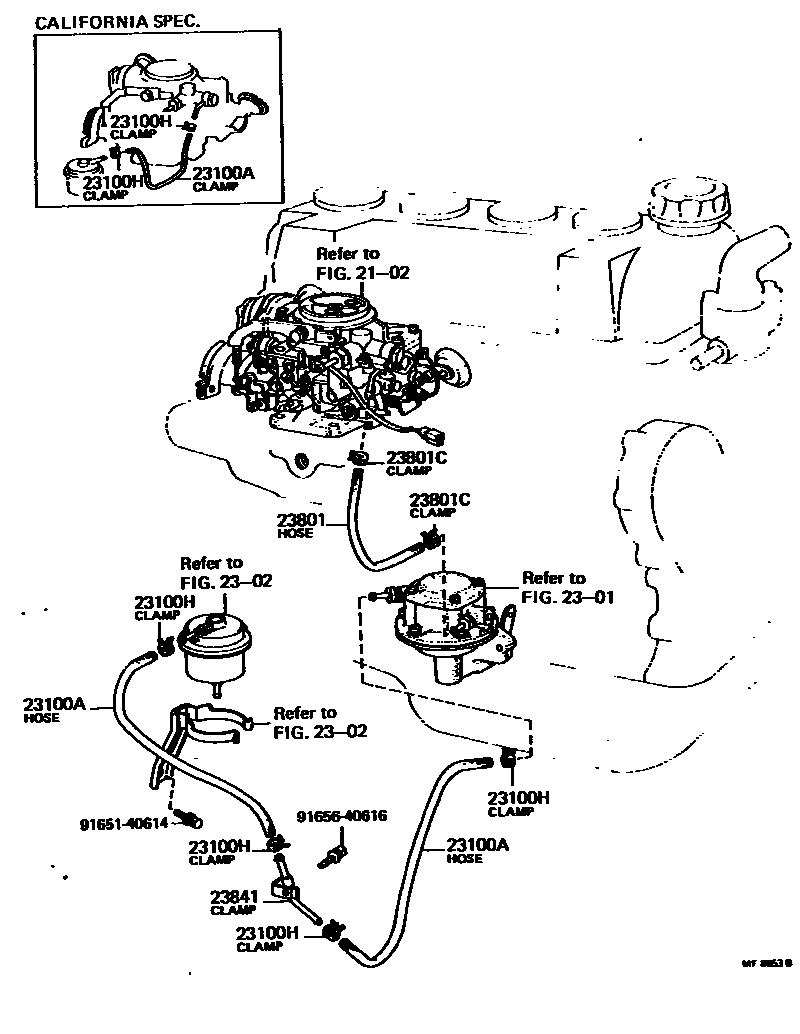

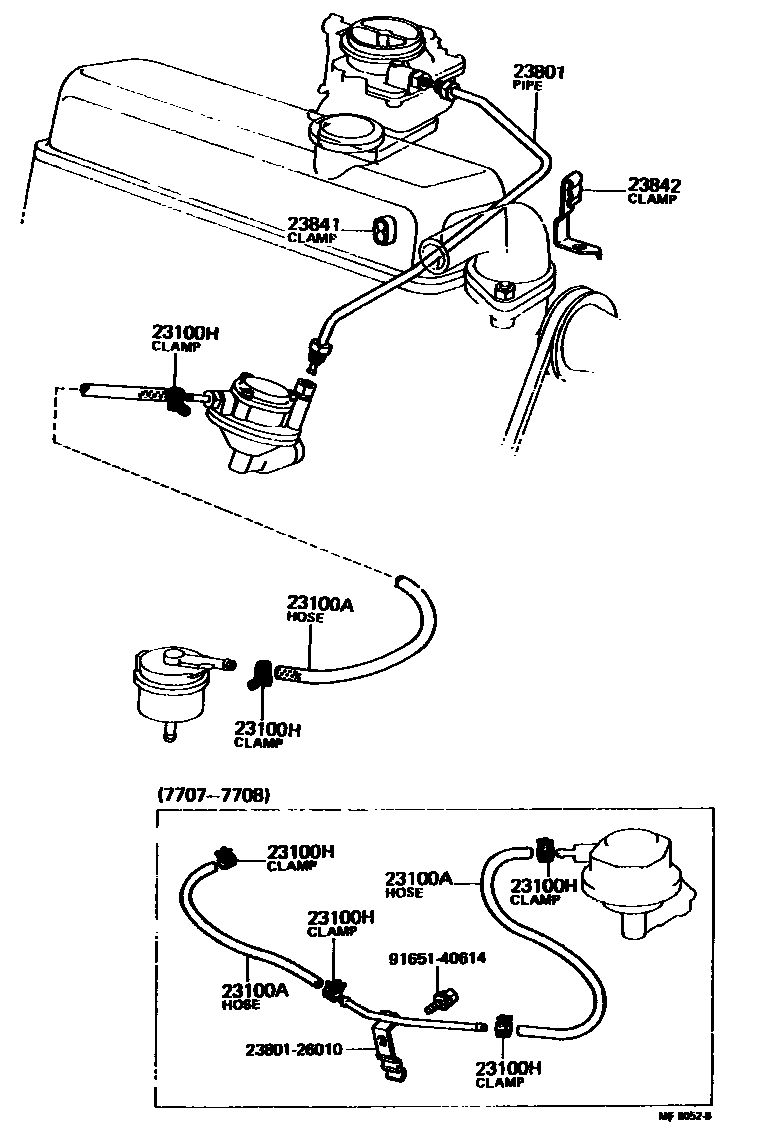

Toyota COROLLA EPC diagram 2101, 燃油管和卡箍, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100A | fuel hose | 90445-12034 · 90445-12061 · 95331-06019 · 95331-06026 · 95331-06030 · 95331-06032 · 95331-06034 · 95331-06038 · 95331-06042 · 95332-06032 · 95332-06034 · 95332-06038 · 95332-06042 · 95332-06060 |
| 23100H | Clamp (for fuel hose) | 96132-30600 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 23801-24011 · 23801-24040 · 23801-24041 · 95331-06026 · 95331-06030 · 95331-06040 · 95331-06044 · 95332-06032 · 95332-06038 · 95332-06046 |
| 23801C | Clamp (for carburetor fuel hose) | 96132-30600 |
| 23841 | No. 1 fuel pipe (hose) clamp | 23801-26010 · 23841-25011 · 23842-11010 · 90464-00082 |
| 23842 | No. 2 fuel pipe (hose) clamp | 90461-08190 · 90461-08532 |
