Toyota COROLLA 点火线圈和火花塞 — Figure 1901

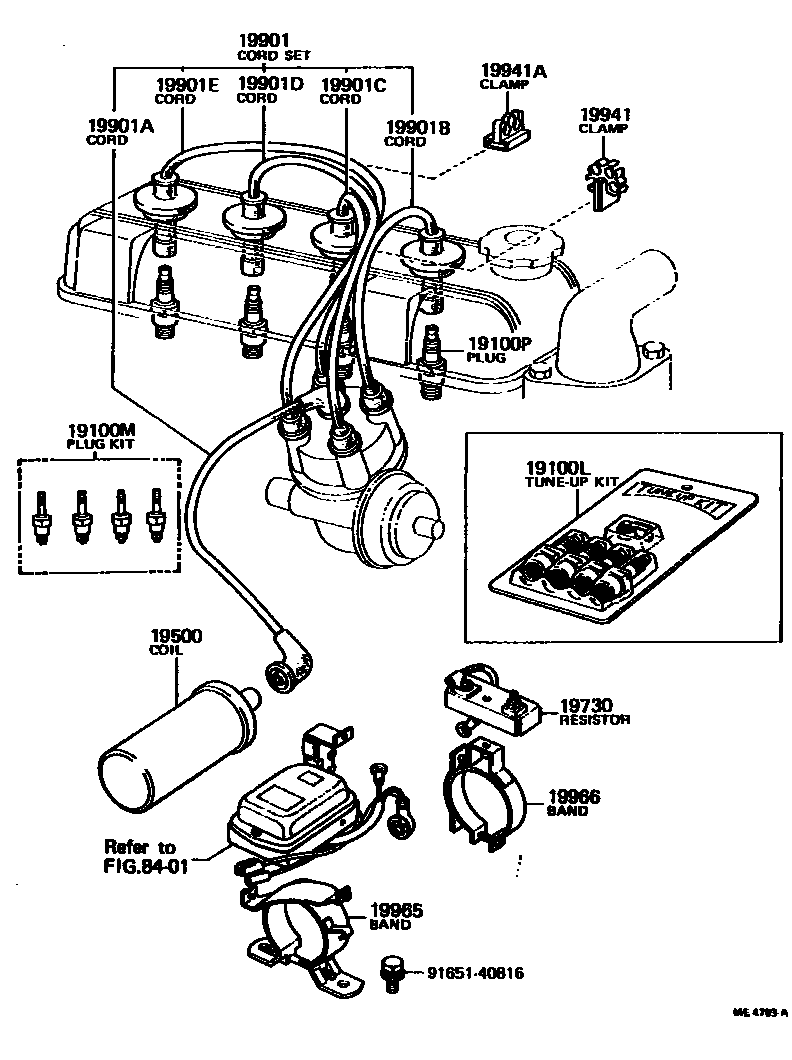

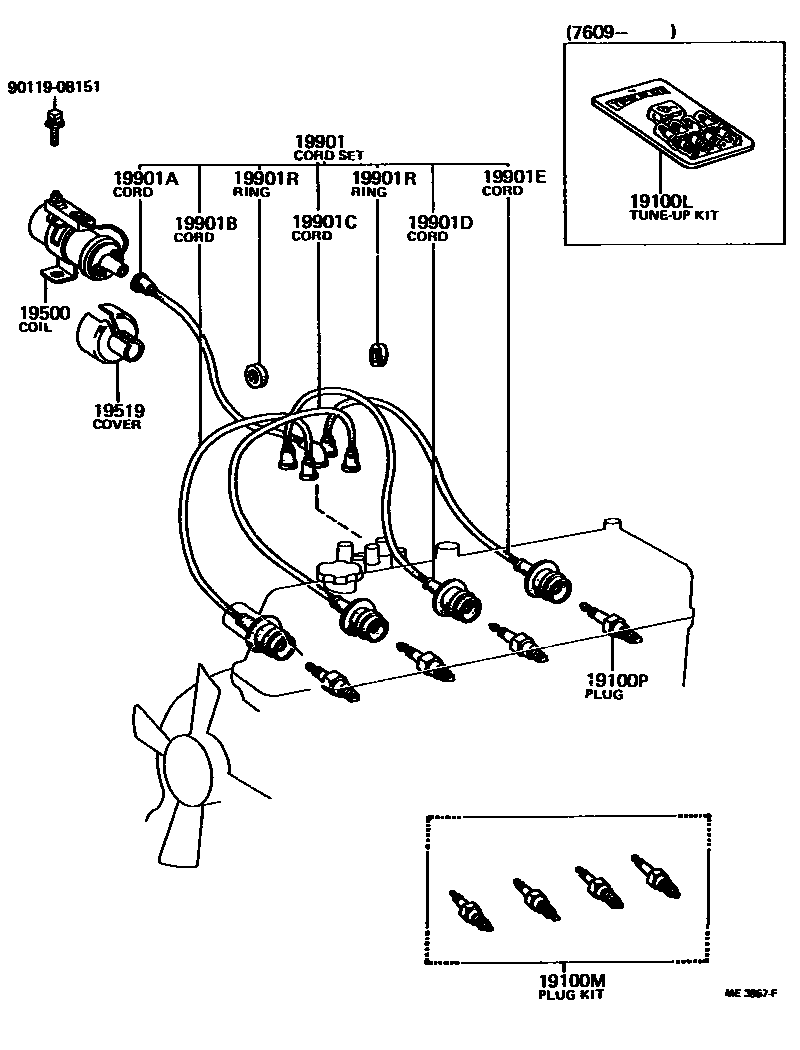

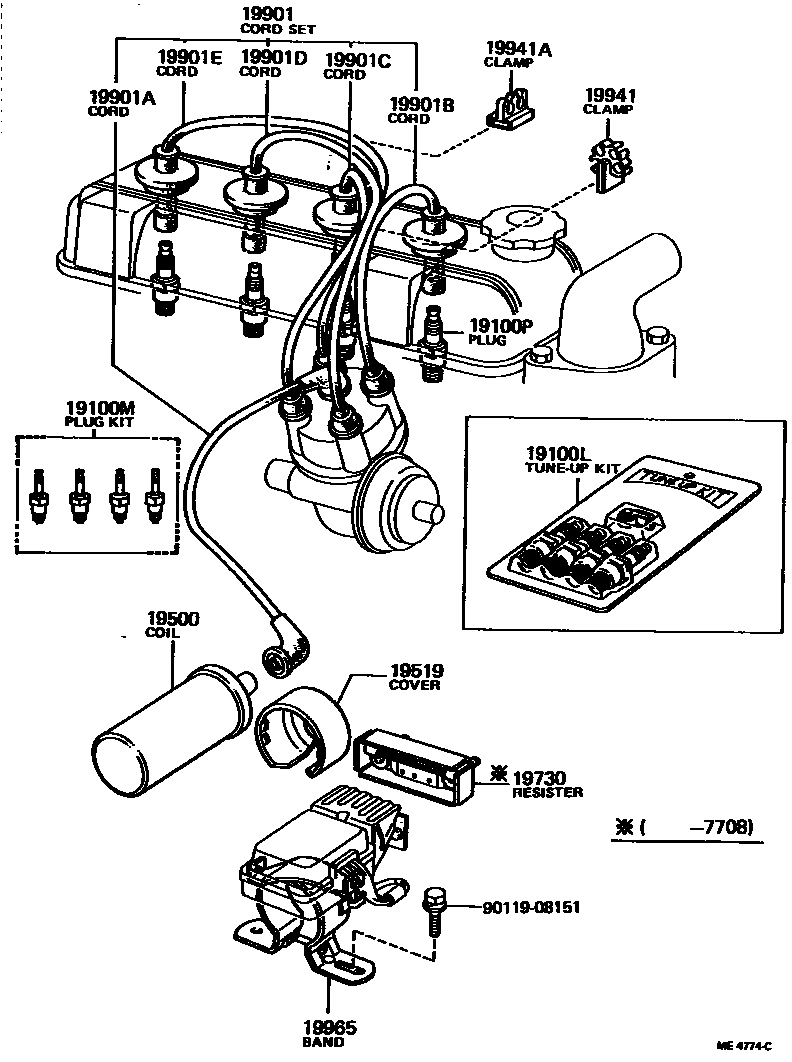

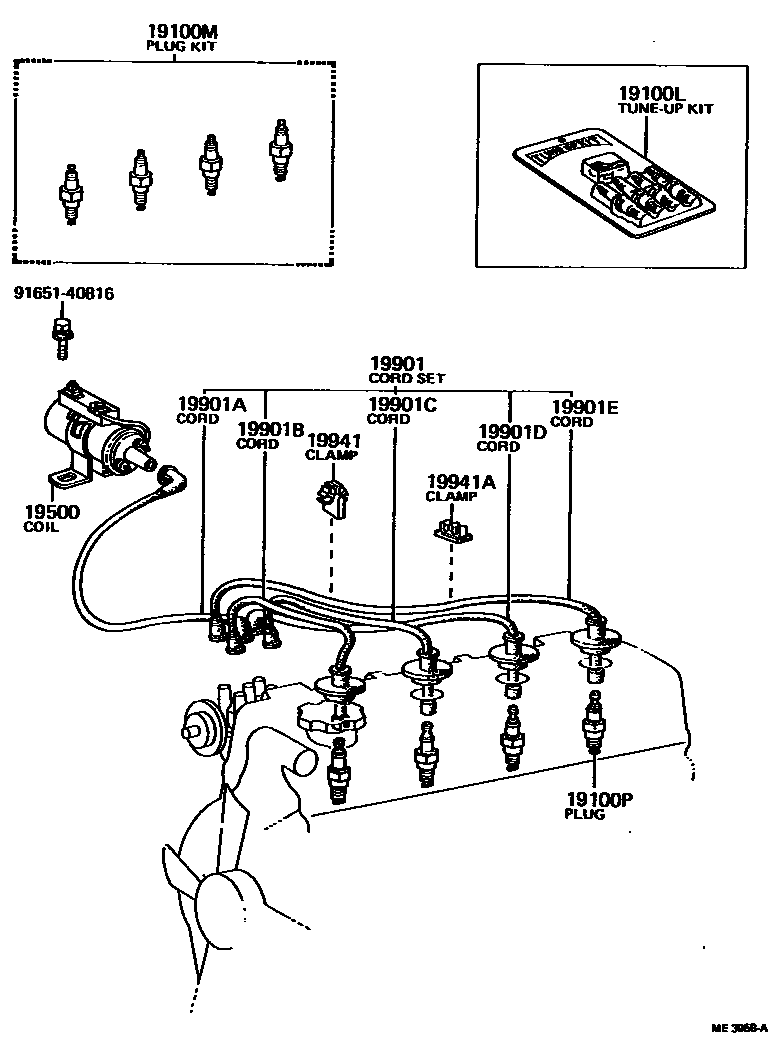

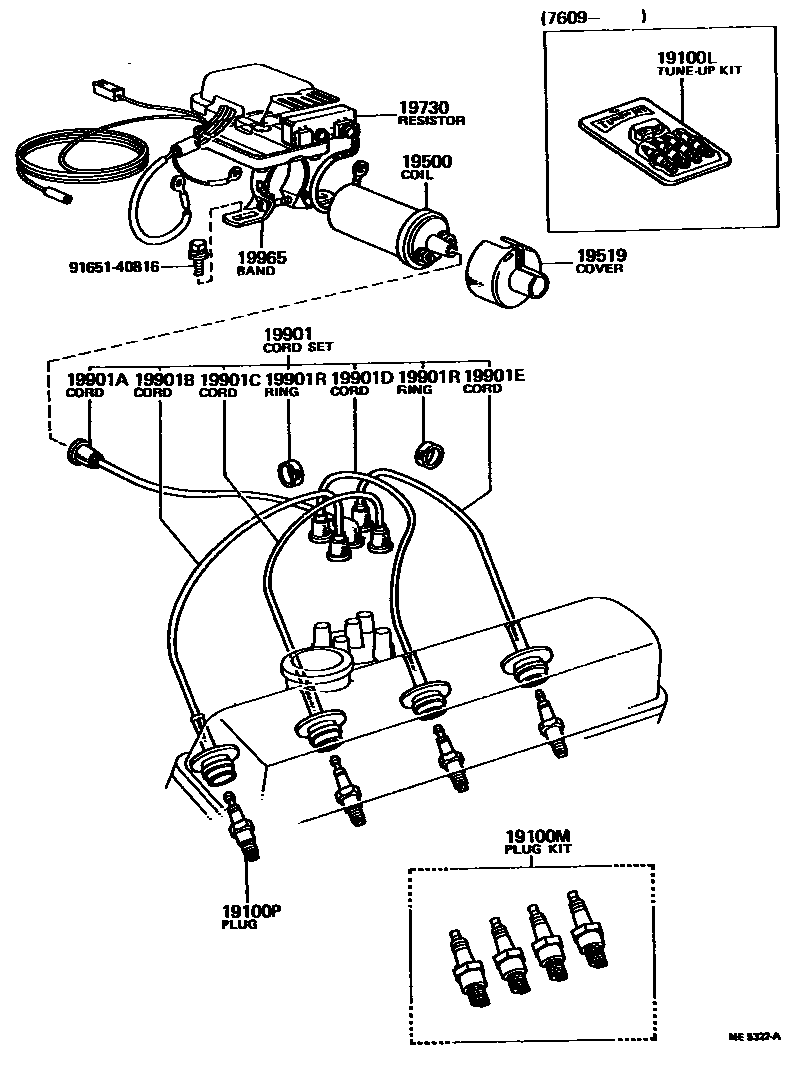

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100L | Adjust components | 04193-24030 · 04193-24031 · 04193-26020 · 04193-26021 · 04193-38010 |
| 19100M | spark plug assembly | 04195-34010 |
| 19100P | spark plug | 90919-01027 · 90919-01051 · 90919-01059 |
| 19500 | Ignition coil assembly | 90919-02056 · 90919-02058 · 90919-02078 · 90919-02083 · 90919-02086 · 90919-02096 |
| 19519 | Ignition coil cover | 19519-38010 · 19519-38020 · 19519-38030 |
| 19730 | Ignition coil resistor | 90919-04008 · 90919-04011 · 90919-04014 · 90919-04018 · 90919-04020 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21070 · 90919-21090 · 90919-21142 · 90919-21178 · 90919-21182 |
| 19901A | coil damping line | 90919-13031 · 90919-13046 · 90919-13048 · 90919-13073 · 90919-13097 · 90919-13102 · 99231-10570 |
| 19901B | No. 1 spark plug damper wire | 90919-12084 · 90919-12090 · 90919-12243 · 90919-12252 |
| 19901C | No. 2 spark plug damper wire | 90919-12083 · 90919-12091 · 90919-12242 · 90919-12253 |
| 19901D | No. 3 spark plug damper wire | 90919-12083 · 90919-12092 · 90919-12242 · 90919-12254 |
| 19901E | No. 4 spark plug damper wire | 90919-12084 · 90919-12093 · 90919-12243 · 90919-12255 |
| 19901R | Rubber spark plug damping wire ring | 90202-11067 |
| 19941 | No. 1 damping wire clip | 90464-00053 |
| 19941A | Clamp (for damping wire) | 90464-00001 |
| 19965 | No. 1 ignition coil band | 90919-03025 · 90919-03027 · 90919-03037 · 90919-03047 · 90919-03051 · 90919-03065 |
| 19966 | No. 2 ignition coil band | 90919-03018 |
