Toyota COROLLA vacuum tube — Figure 1708

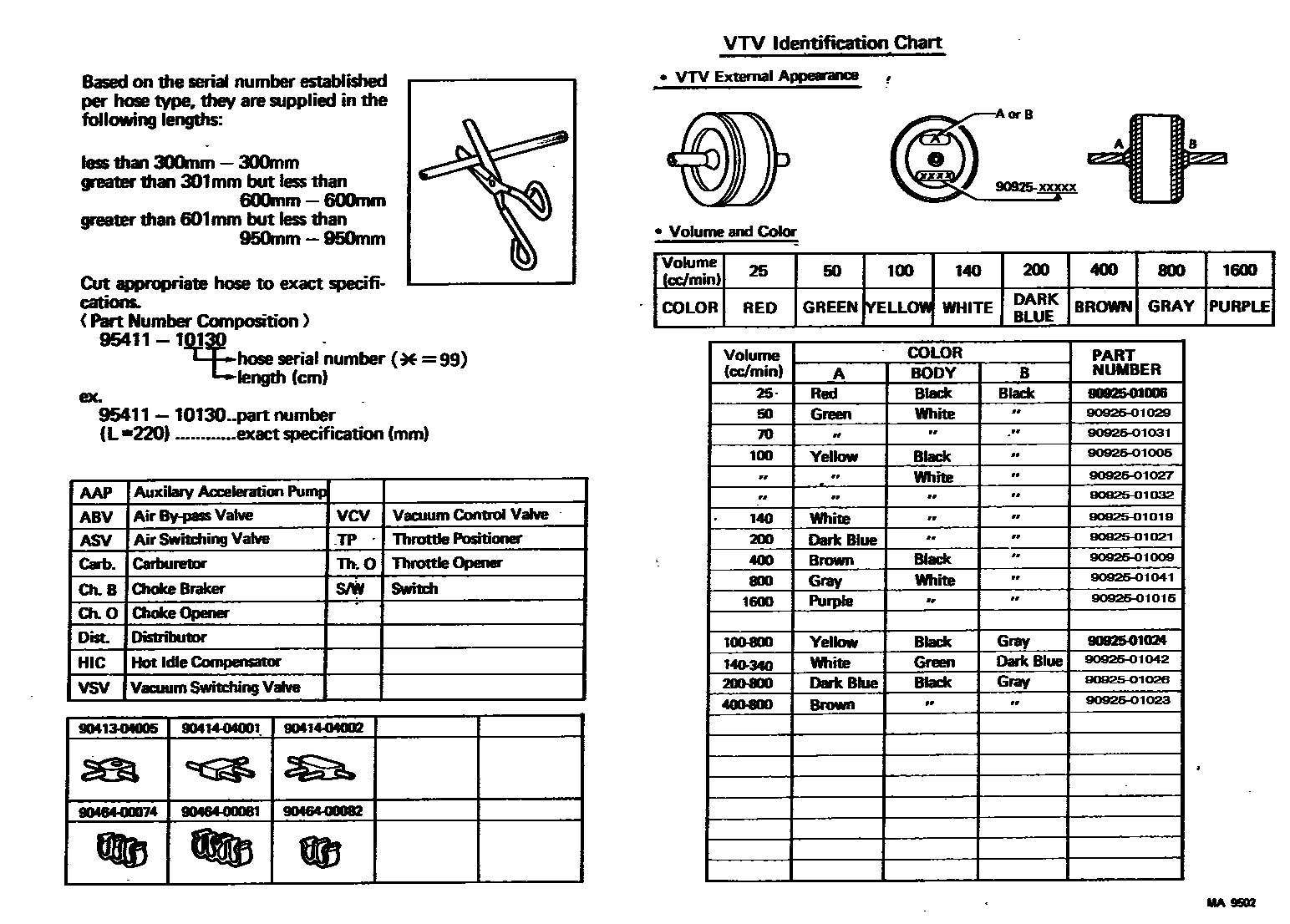

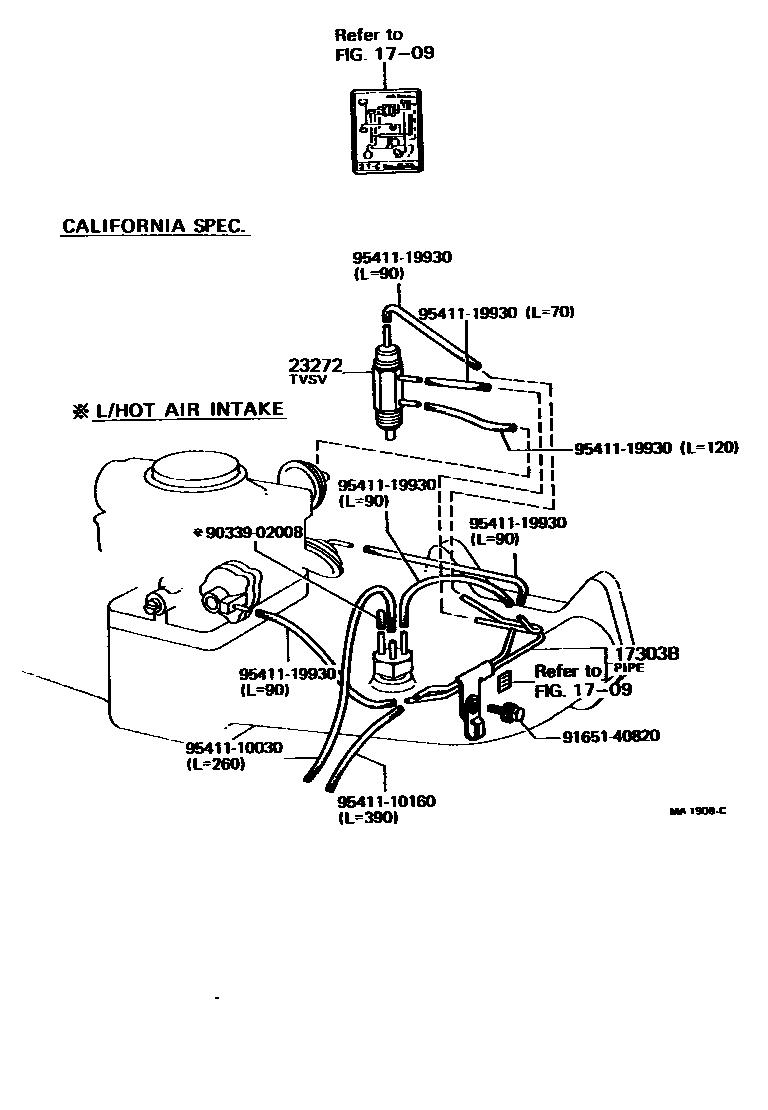

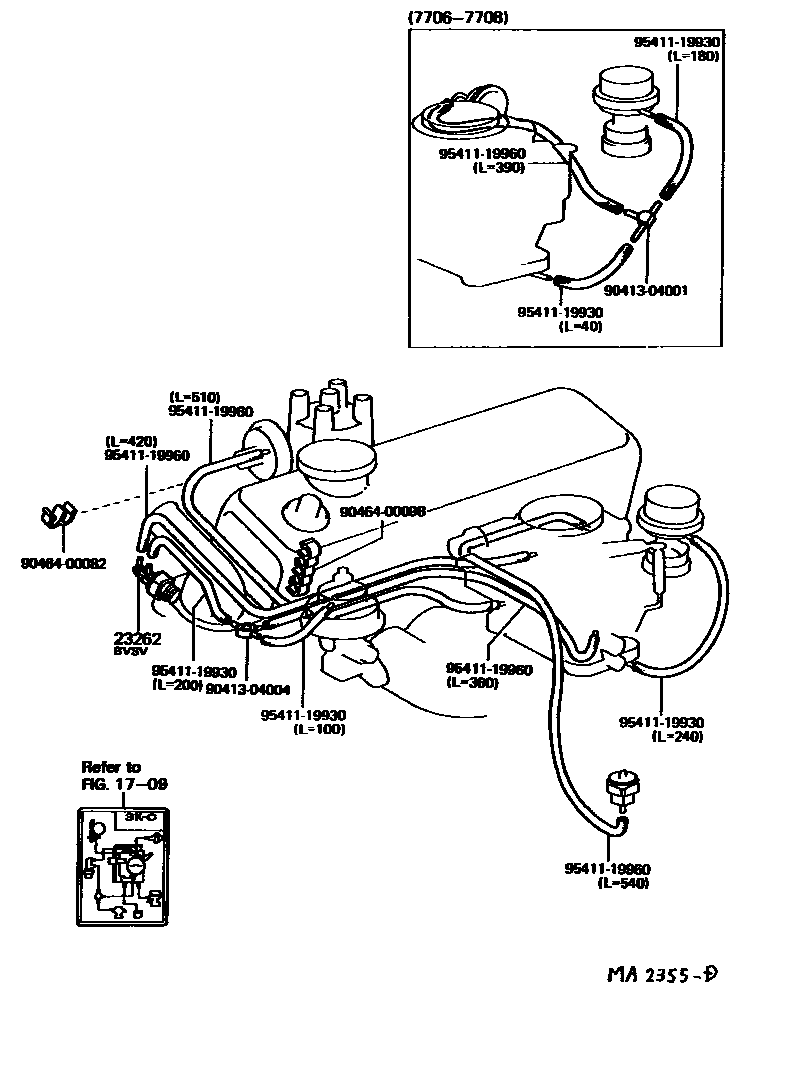

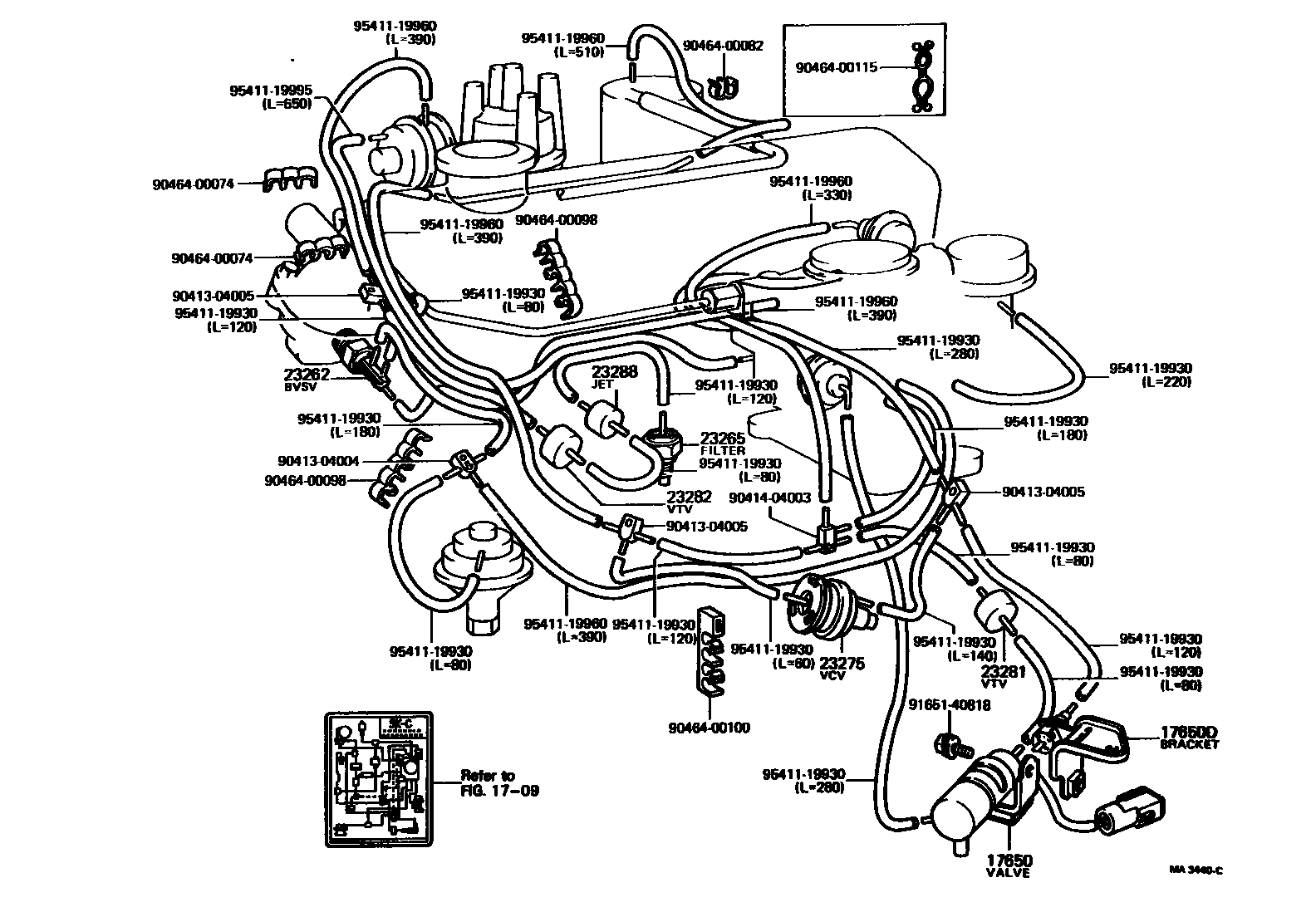

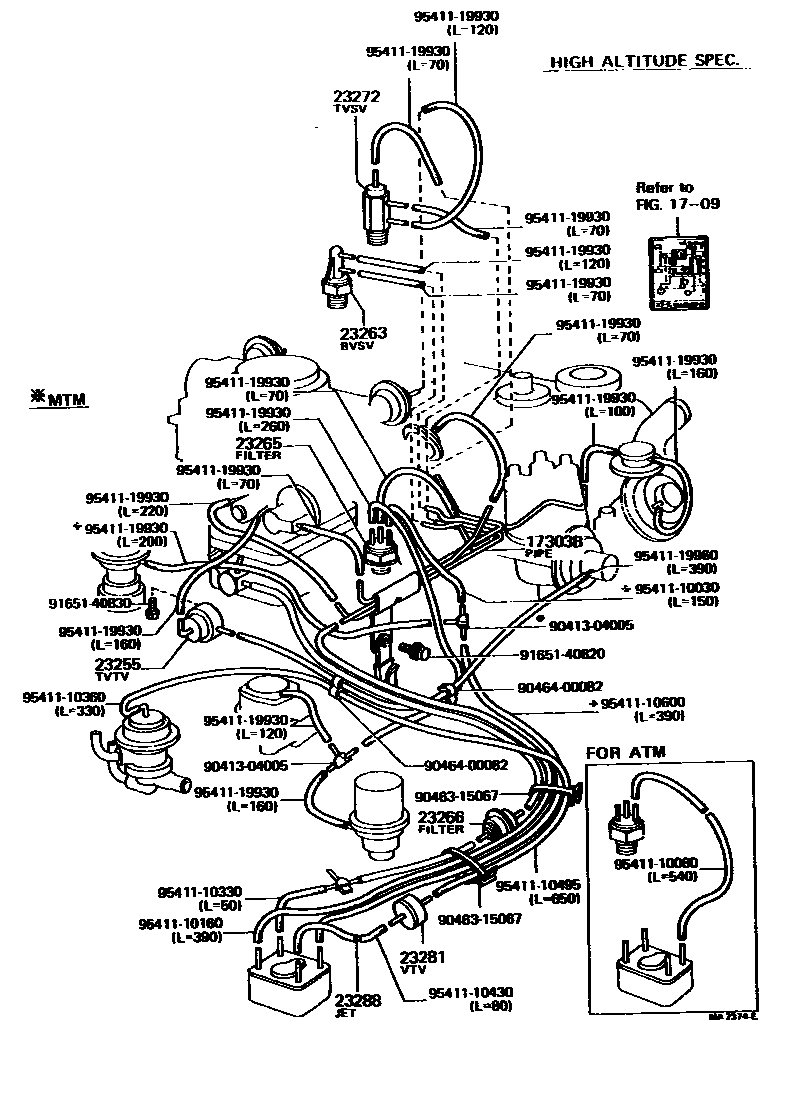

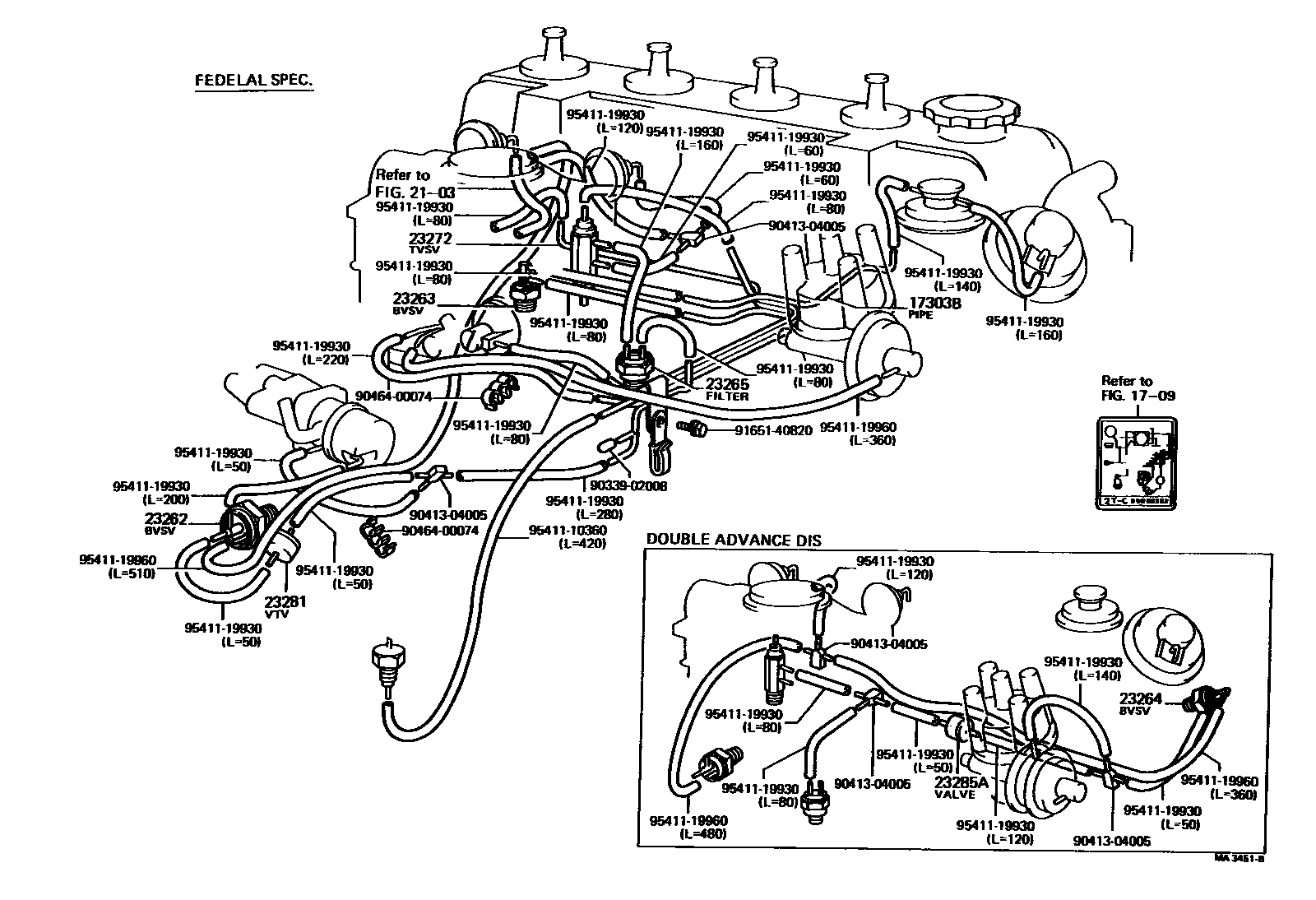

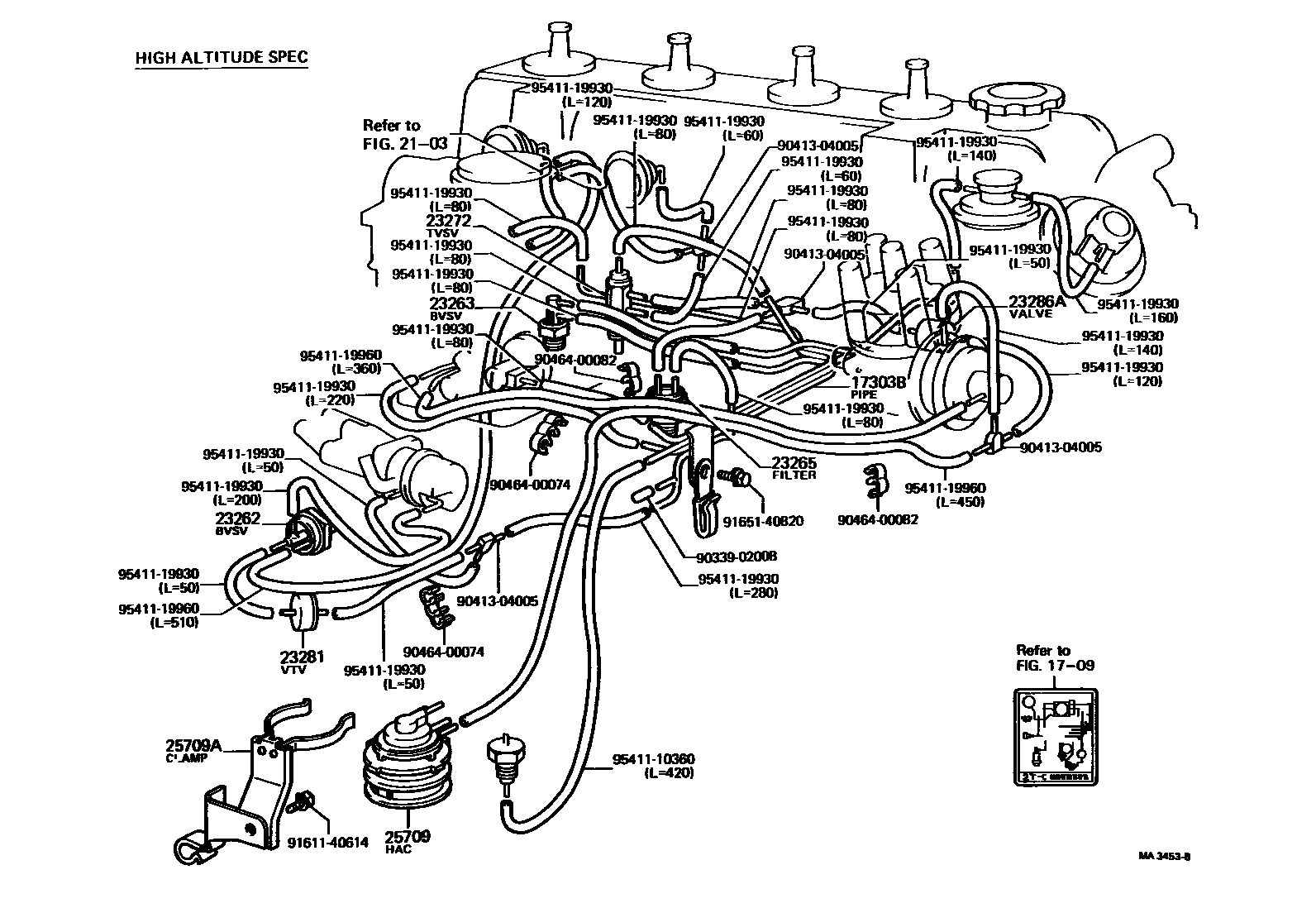

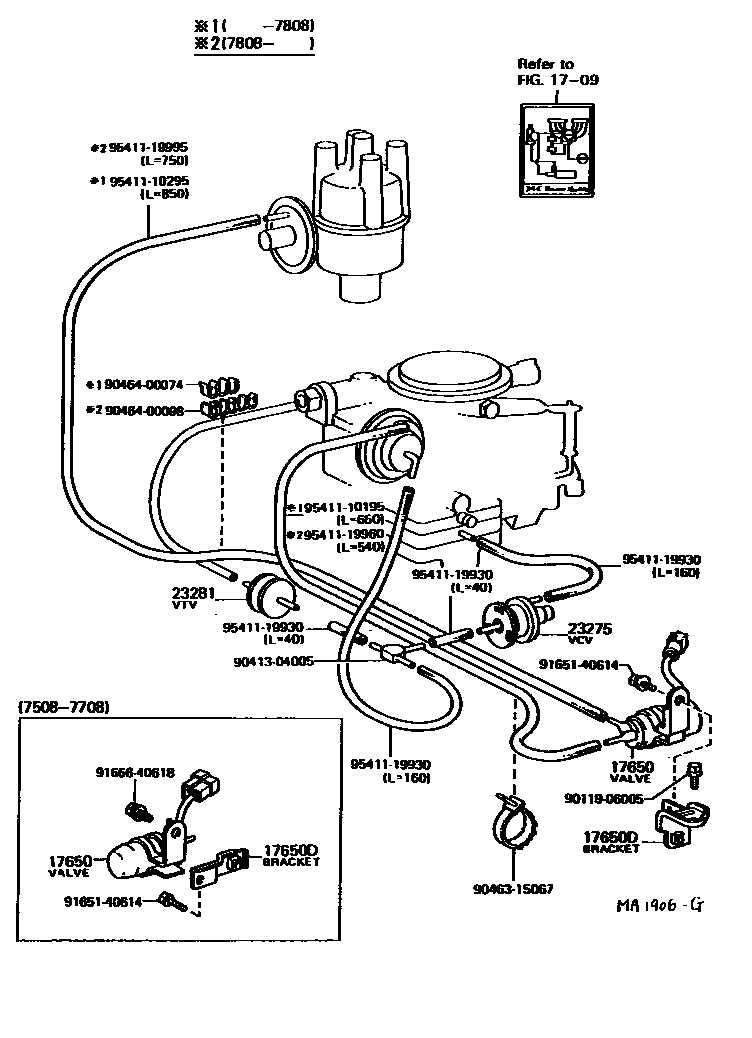

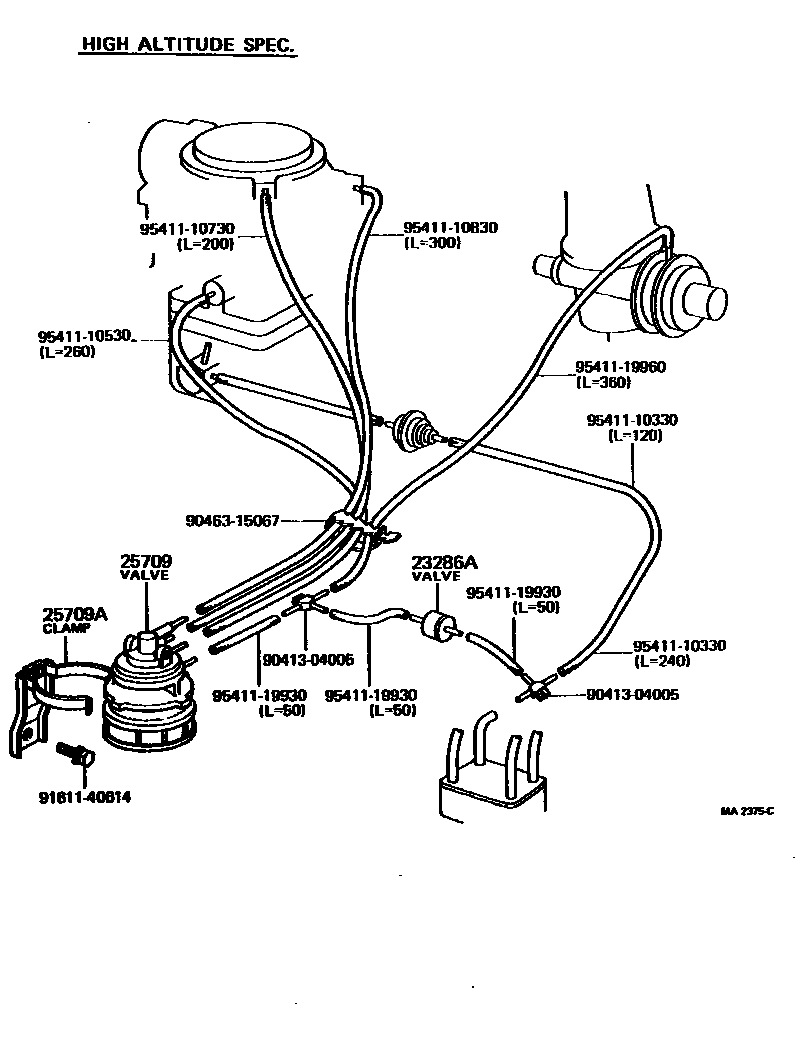

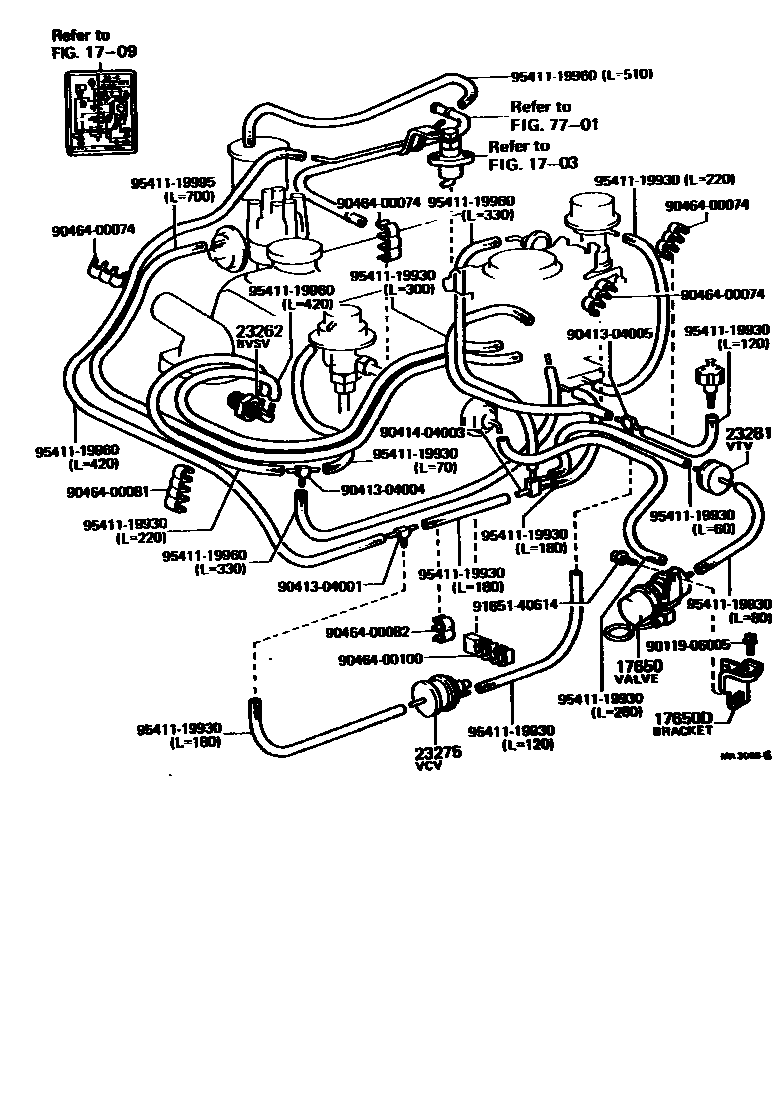

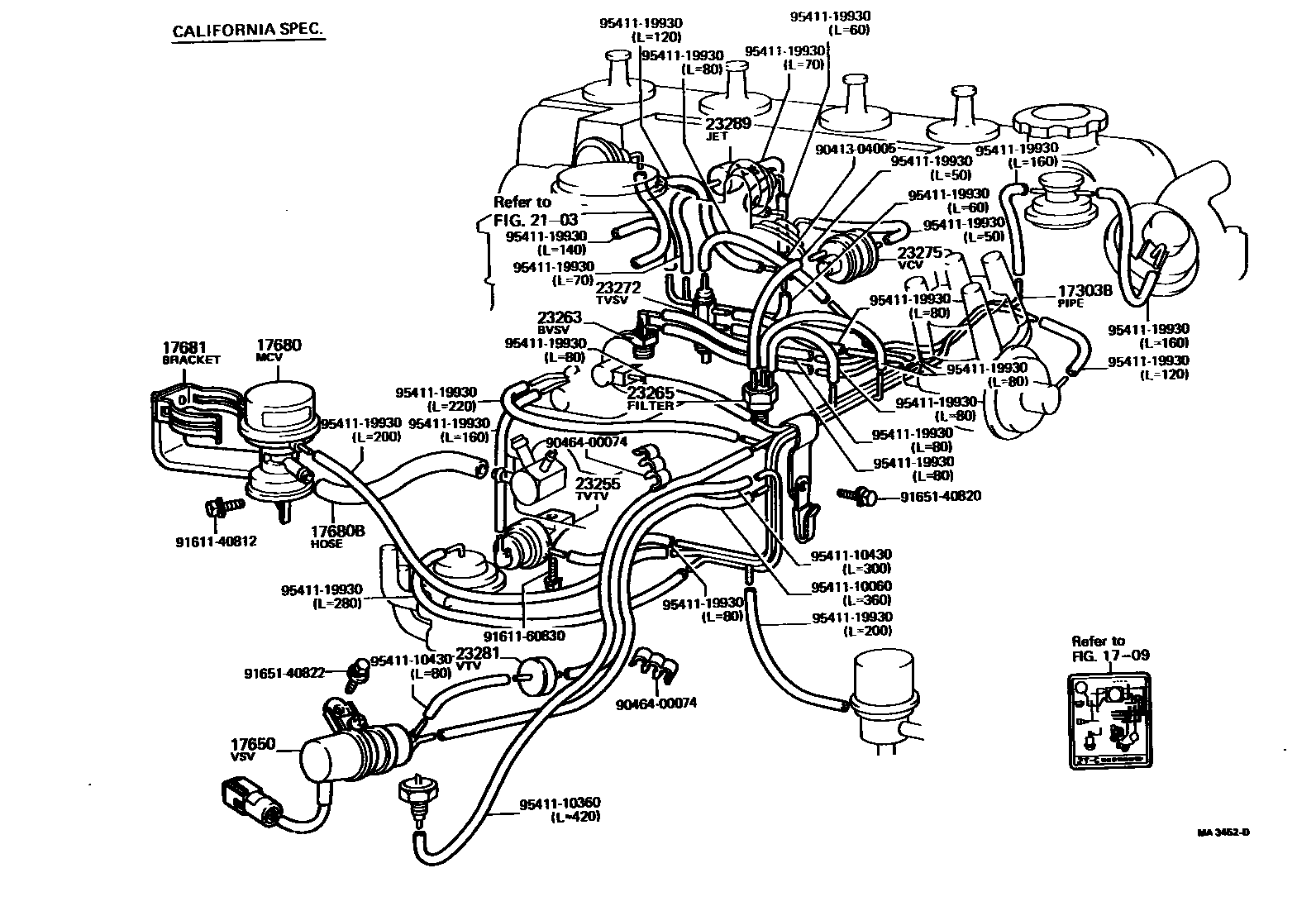

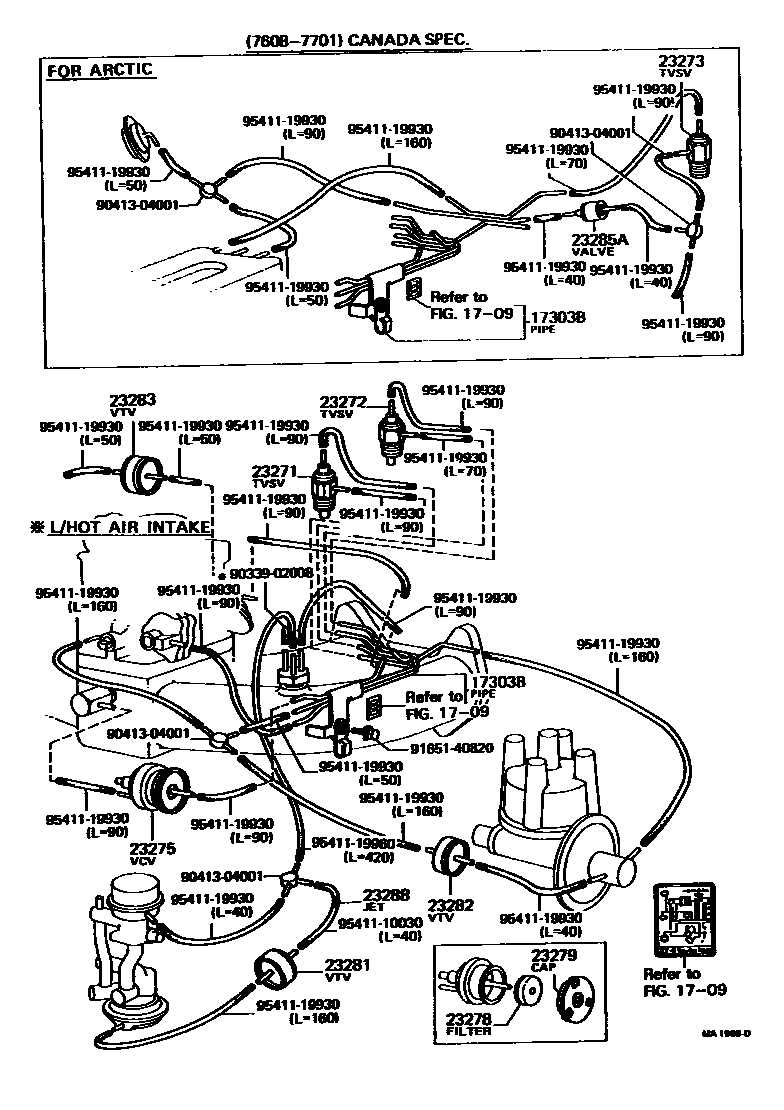

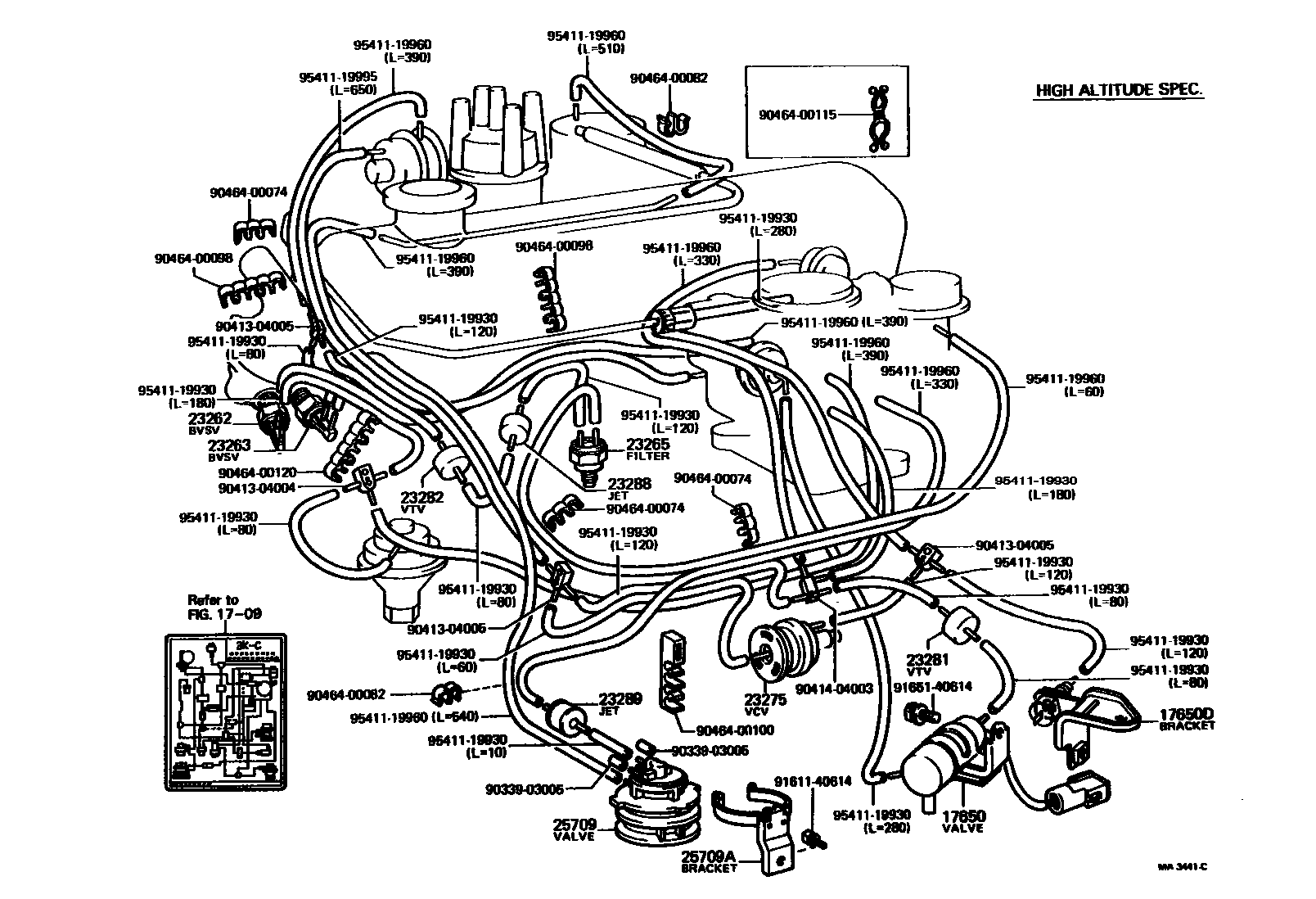

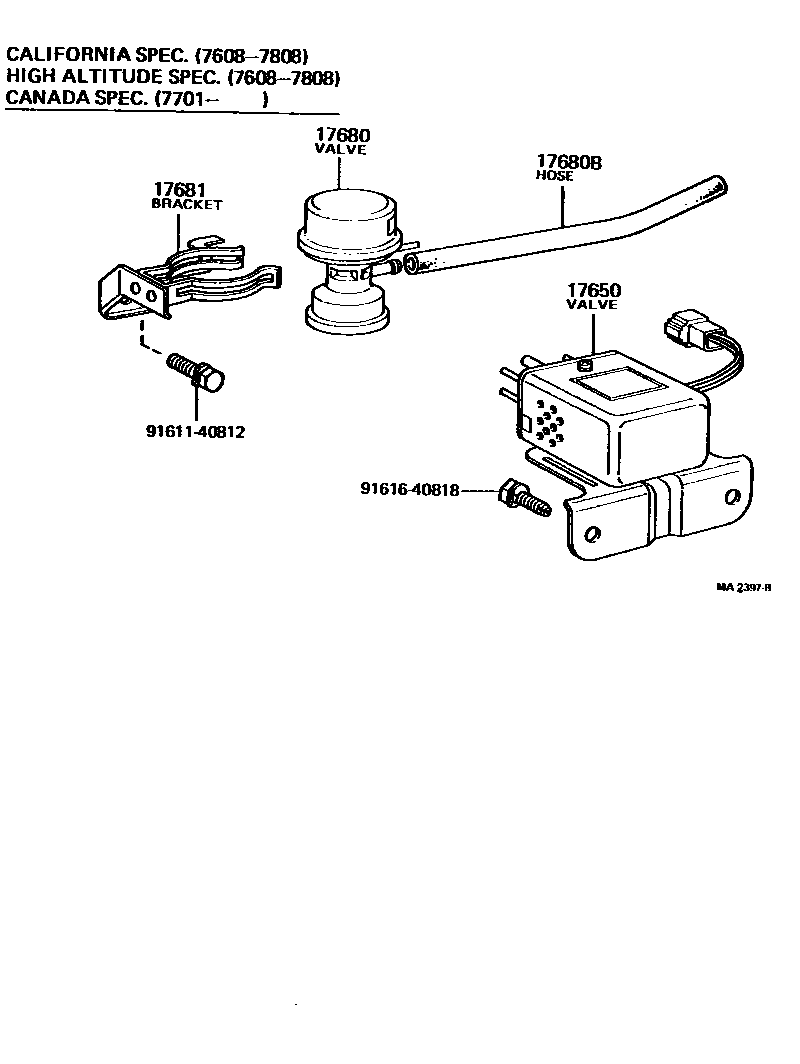

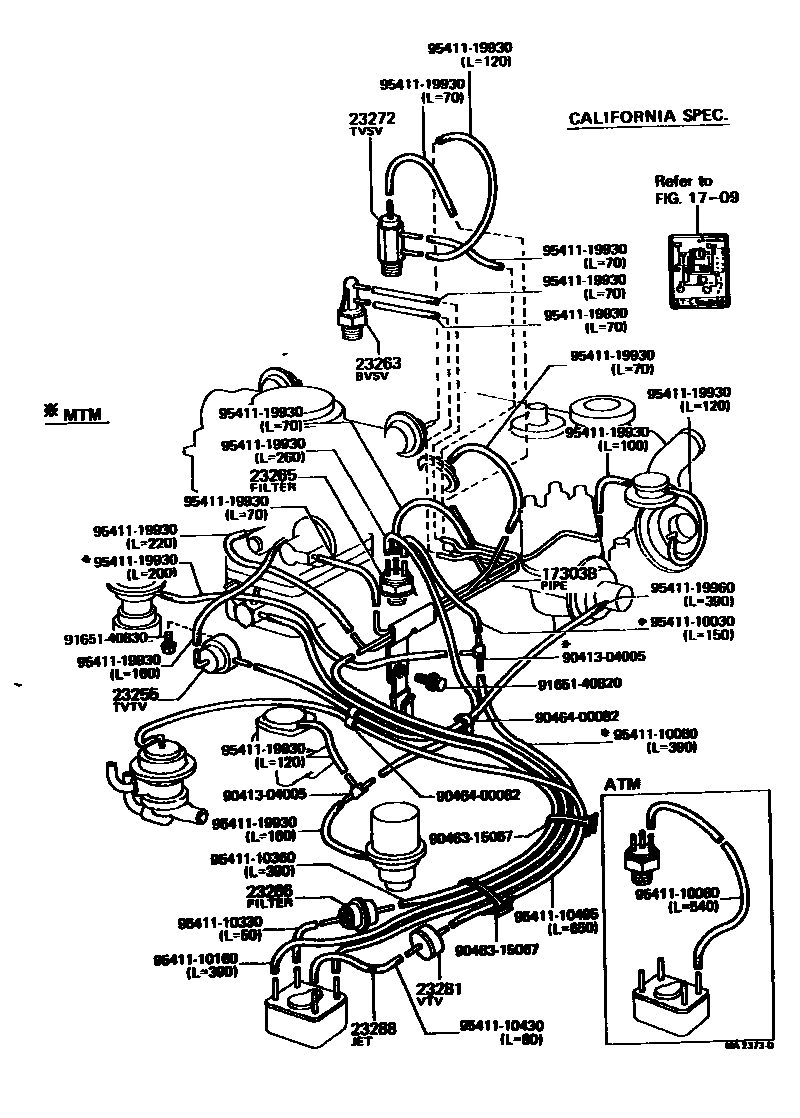

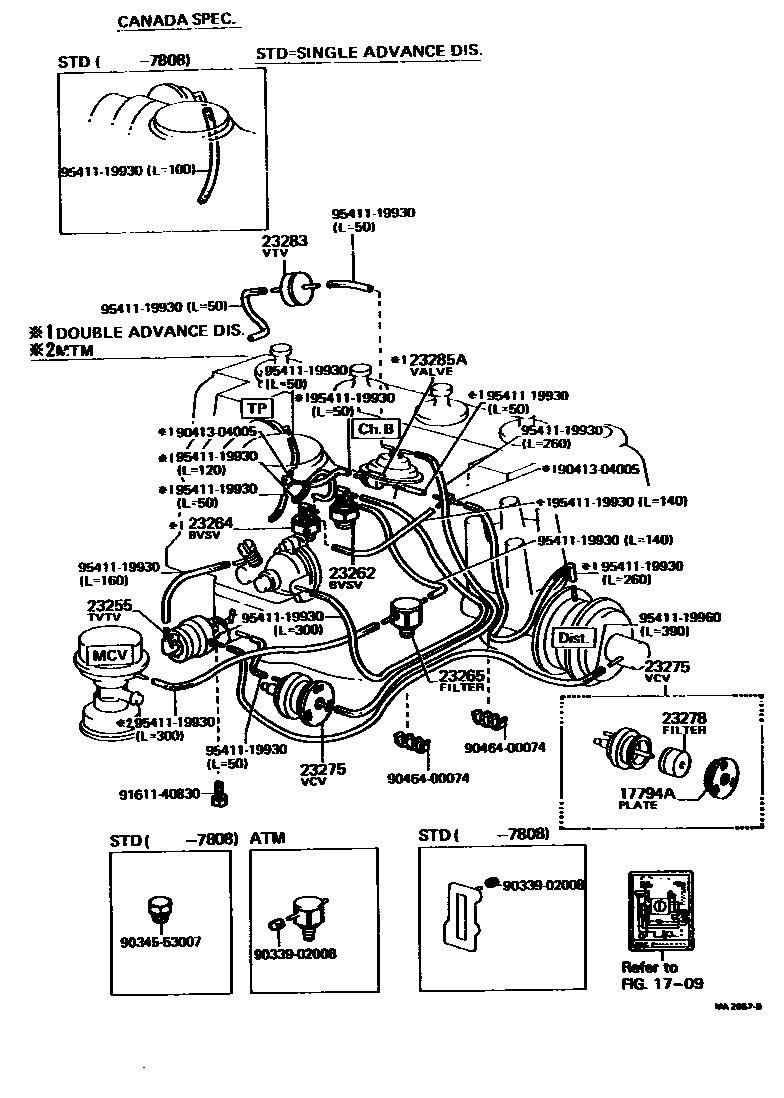

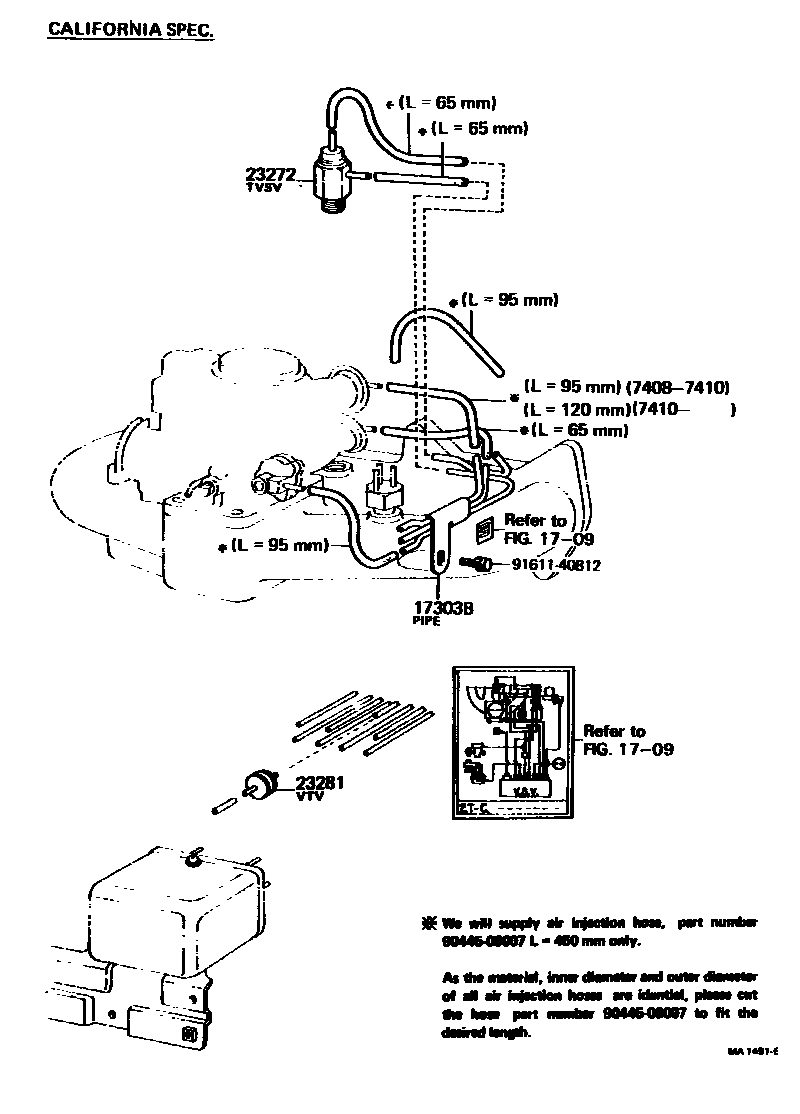

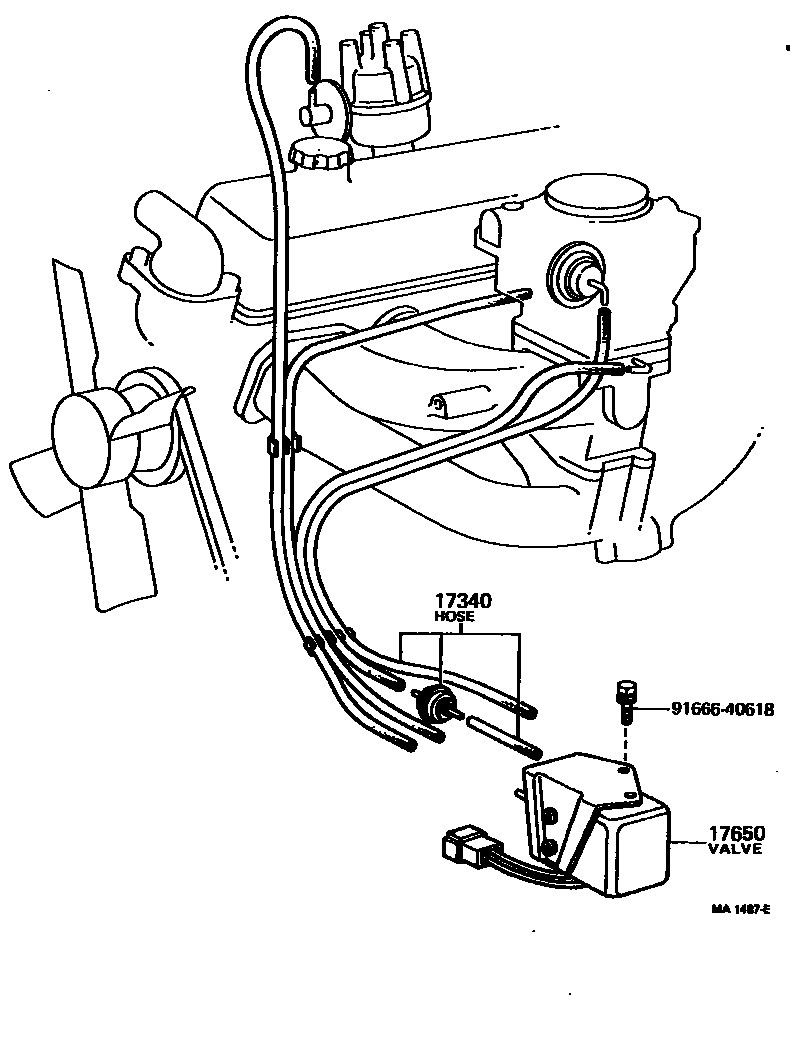

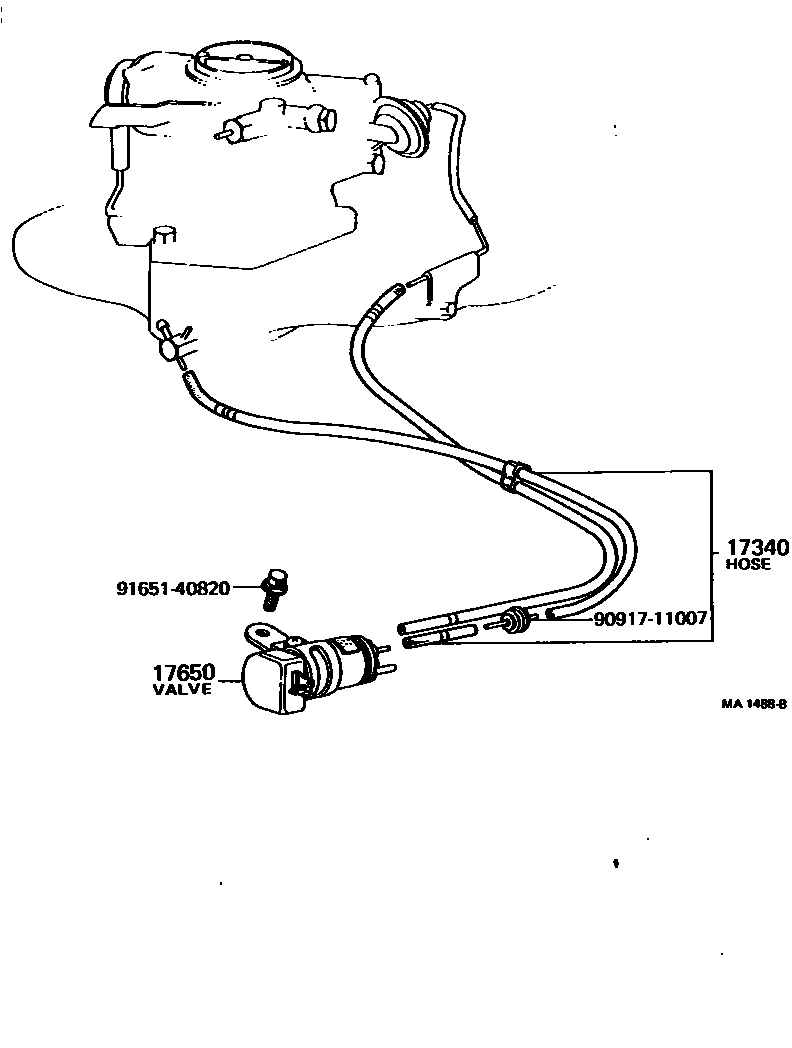

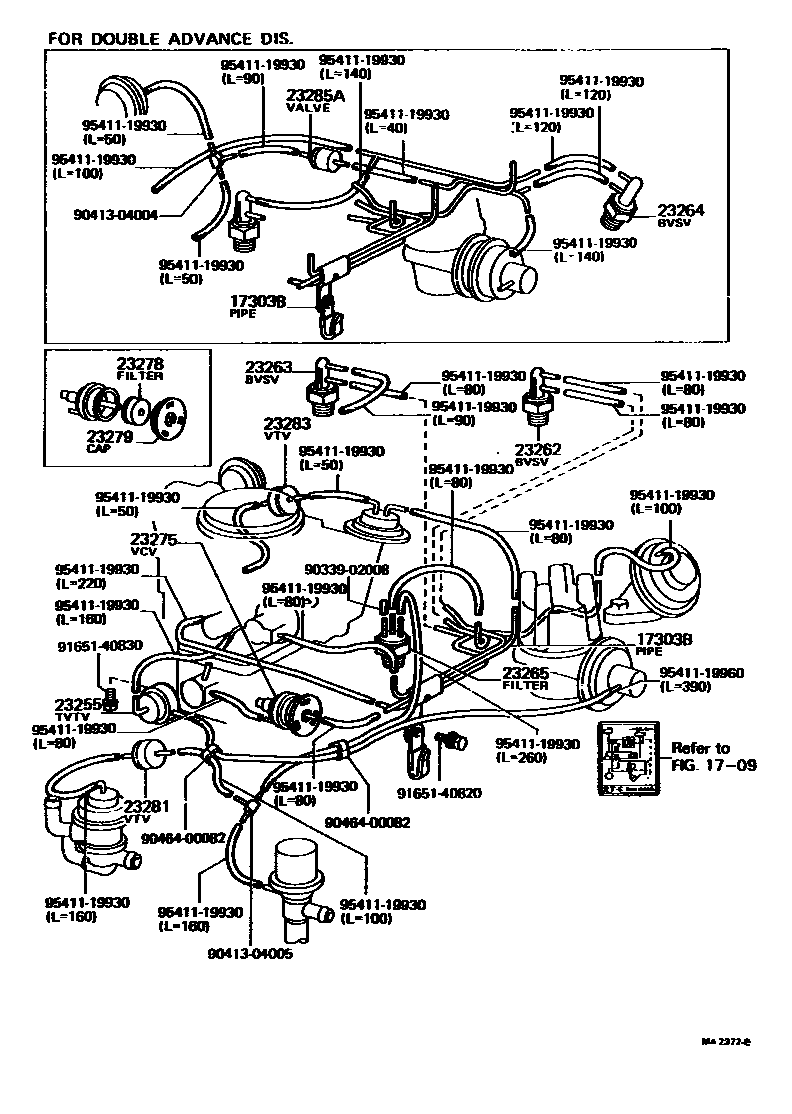

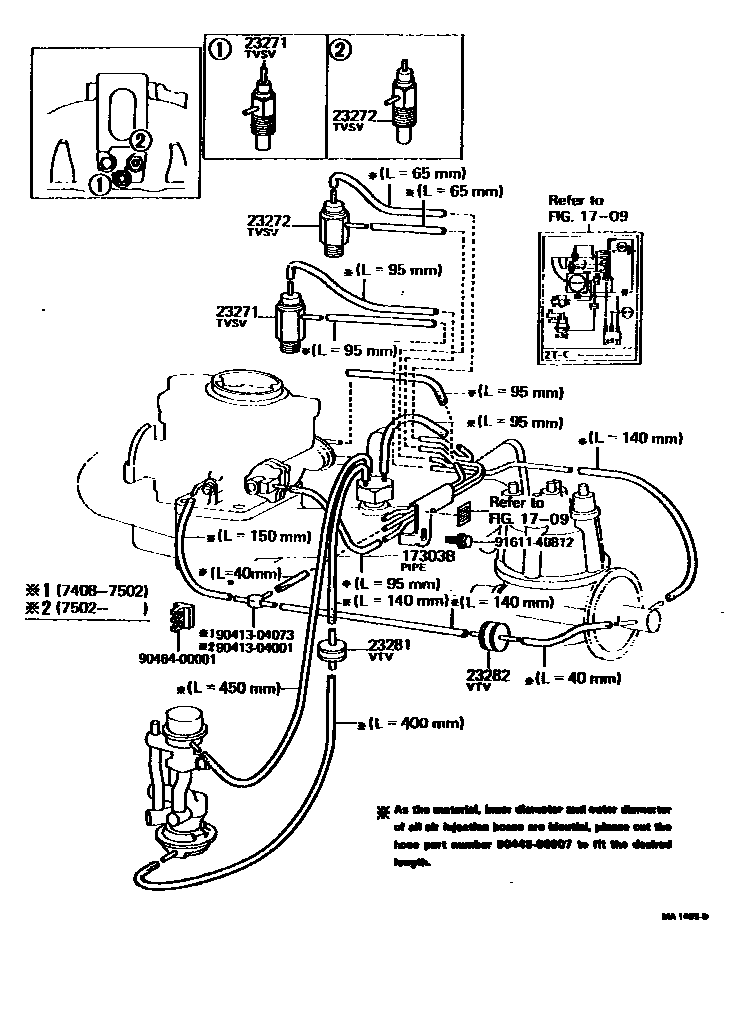

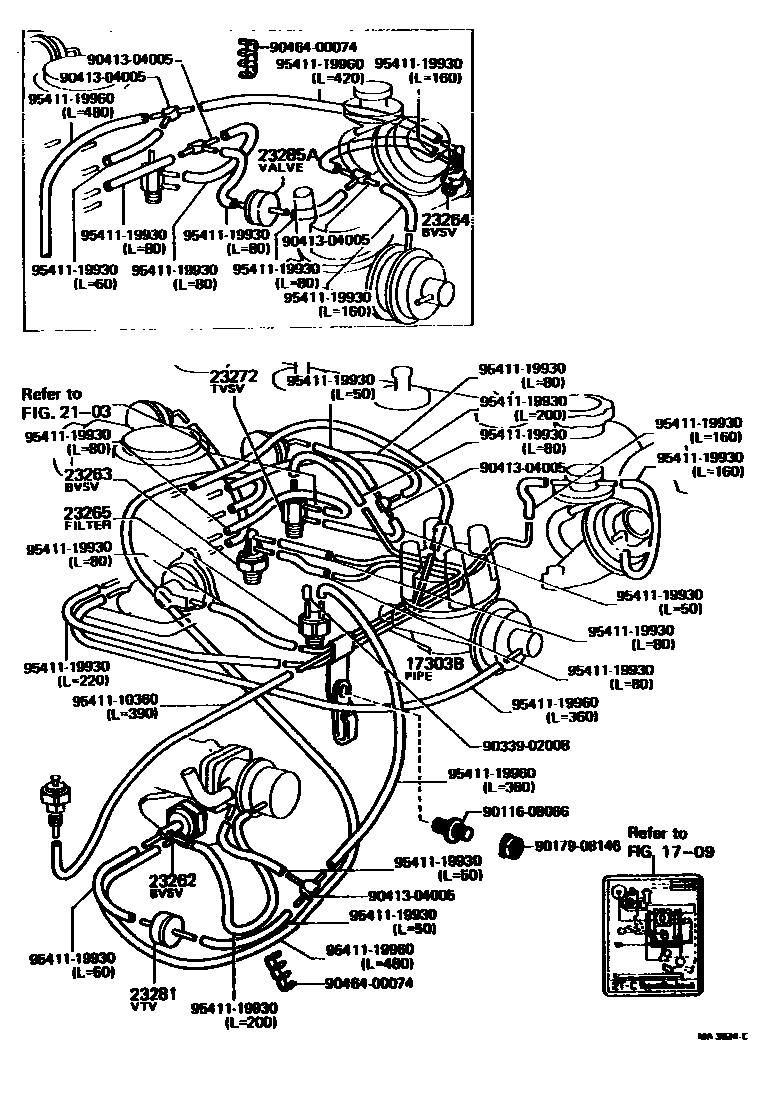

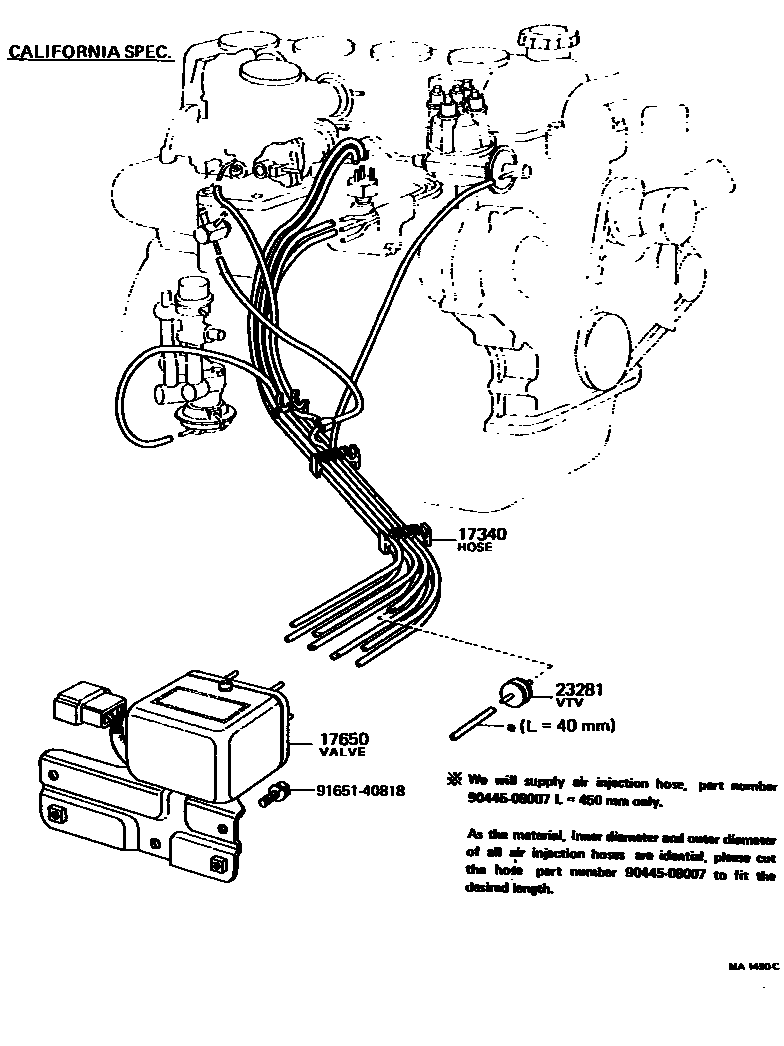

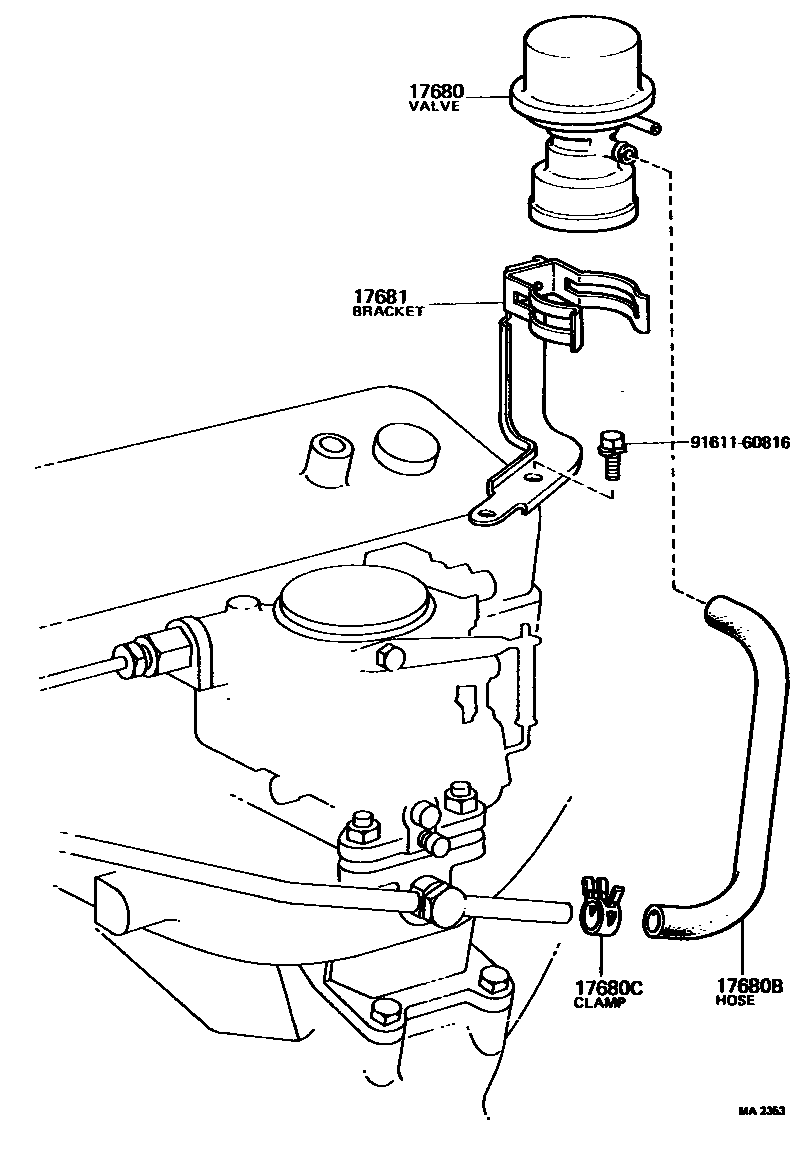

Toyota COROLLA EPC diagram 1708, vacuum tube, with 24 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-26010 · 17303-26020 · 17303-26021 · 17303-26022 · 17303-26023 · 17303-26024 · 17303-26040 · 17303-26060 · 17303-26070 · 17303-26090 |
| 17340 | Vacuum switch valve hose assembly | 17308-26010 · 17340-24012 · 17340-26040 |
| 17650 | Vacuum switch valve assembly | 17650-24020 · 17650-24021 · 17650-26030 · 17650-26040 · 17650-26050 · 17650-26090 · 89570-12010 · 89570-12030 · 89570-12040 · 89570-12050 · 89570-12080 |
| 17650D | Vacuum switch valve bracket | 89579-12010 · 89579-12020 |
| 17680 | Mixture control valve assembly | 17680-24010 · 17680-26020 |
| 17680B | Hoses (for mixture control valve) | 90445-16003 · 90445-16005 · 90445-17030 · 90910-05120 |
| 17680C | Clip or clip (for mixture control valve hose) | 96132-31000 |
| 17681 | Mixture control valve bracket | 17681-24010 · 17681-26010 · 17681-26011 |
| 17794A | Nameplate | 17794-26010 · 17794-26020 · 17794-26021 |
| 23255 | Thermostatic Vacuum Transfer Valve No. 1 | 90925-01030 · 90925-01039 · 90925-01044 · 90925-01050 · 90925-01051 |
| 23262 | No. 1 bimetallic vacuum switch valve | 25810-13010 · 90925-05015 · 90925-05016 · 90925-05030 · 90925-05040 |
| 23263 | No. 2 bimetallic vacuum switch valve | 90925-05015 · 90925-05017 |
| 23264 | No. 3 bimetallic vacuum switch valve | 90925-05009 · 90925-05035 |
| 23265 | No. 1 gas filter | 90917-11003 · 90917-11012 · 90917-11015 · 90917-11023 · 90917-11024 · 90917-11025 |
| 23266 | No. 2 gas filter | 90917-11007 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02001 |
| 23272 | No. 2 thermostatic vacuum switching valve | 90925-02002 · 90925-02020 · 90925-02048 · 90925-02055 |
| 23273 | No. 3 thermostatic vacuum switching valve | 90925-02019 |
| 23275 | Vacuum control valve No. 1 | 90925-03022 · 90925-03060 · 90925-03074 · 90925-03075 |
| 23278 | Filter (for vacuum control valve) | 90925-06001 |
| 23279 | Cover (for vacuum control valve) | 90925-07001 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01009 · 90925-01019 · 90925-01021 · 90925-01023 · 90925-01027 · 90925-01029 · 90925-01032 |
| 23282 | Vacuum Transfer Valve No. 2 | 90925-01005 · 90925-01027 |
| 23283 | Vacuum Transfer Valve No. 3 | 90925-01023 · 90925-01024 · 90925-01026 |
| 23285A | No. 1 one-way valve | 90917-10038 |
| 23286A | No. 2 one-way valve | 90917-10038 |
| 23288 | Nozzle No. 1 | 90925-04001 · 90925-04015 |
| 23289 | Nozzle No. 2 | 90925-04007 · 90925-04016 |
| 25709 | High altitude compensator valve sub-assembly | 25709-38010 |
| 25709A | Clamp (for high altitude compensator valve) | 90461-10189 · 90461-10404 |
