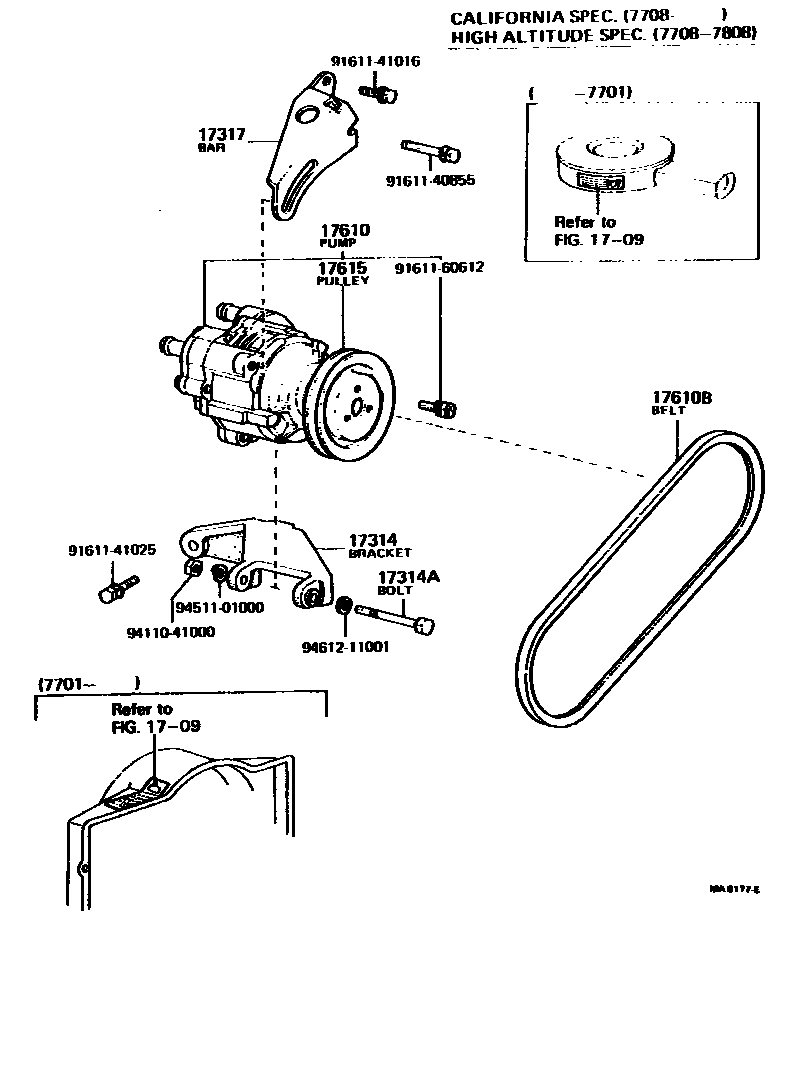

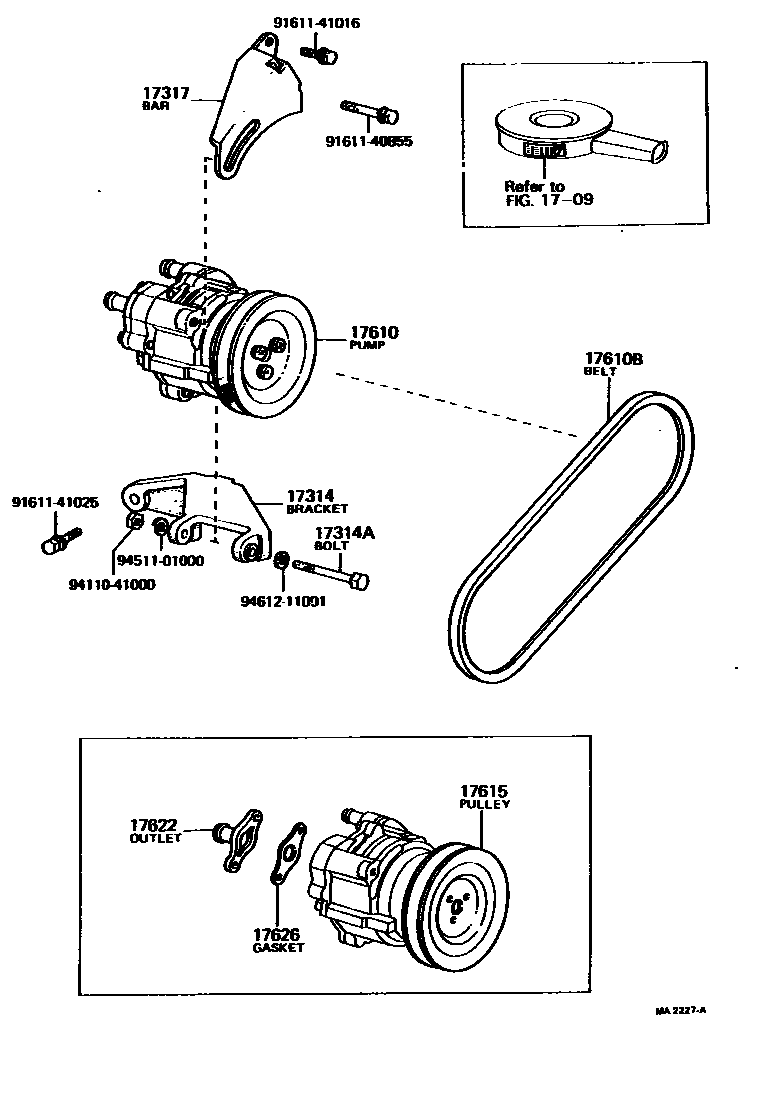

Toyota COROLLA 空气泵 — Figure 1705
Toyota COROLLA EPC diagram 1705, 空气泵, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17314 | air pump bracket | 17314-26020 · 17314-26021 · 17314-26022 |
| 17314A | Hexagonal bolts (used to secure the air pump bracket) | 90101-10402 |
| 17317 | No. 1 air pump adjustment lever | 17317-26020 · 17317-26021 |
| 17610 | air pump assembly | 17610-26020 · 17610-26030 |
| 17610B | V-belt (for air pump) | 99322-00805 · 99322-50815 · 99522-10808 · 99522-10815 · 99522-10880 |
| 17615 | Pulley (for air pump) | 17615-25010 · 17615-26020 |
| 17622 | air pump air outlet | 17622-26010 |
| 17626 | Air pump outlet gasket | 17626-26010 |
