Toyota COROLLA Air Cleaner — Figure 1703

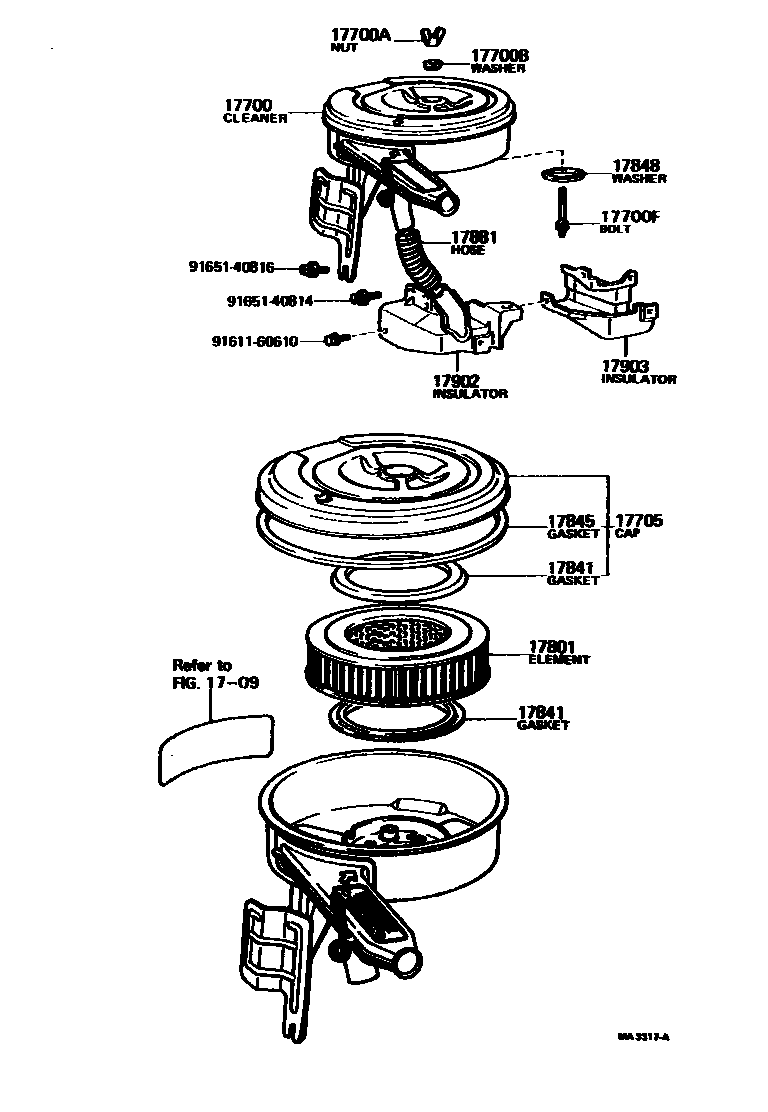

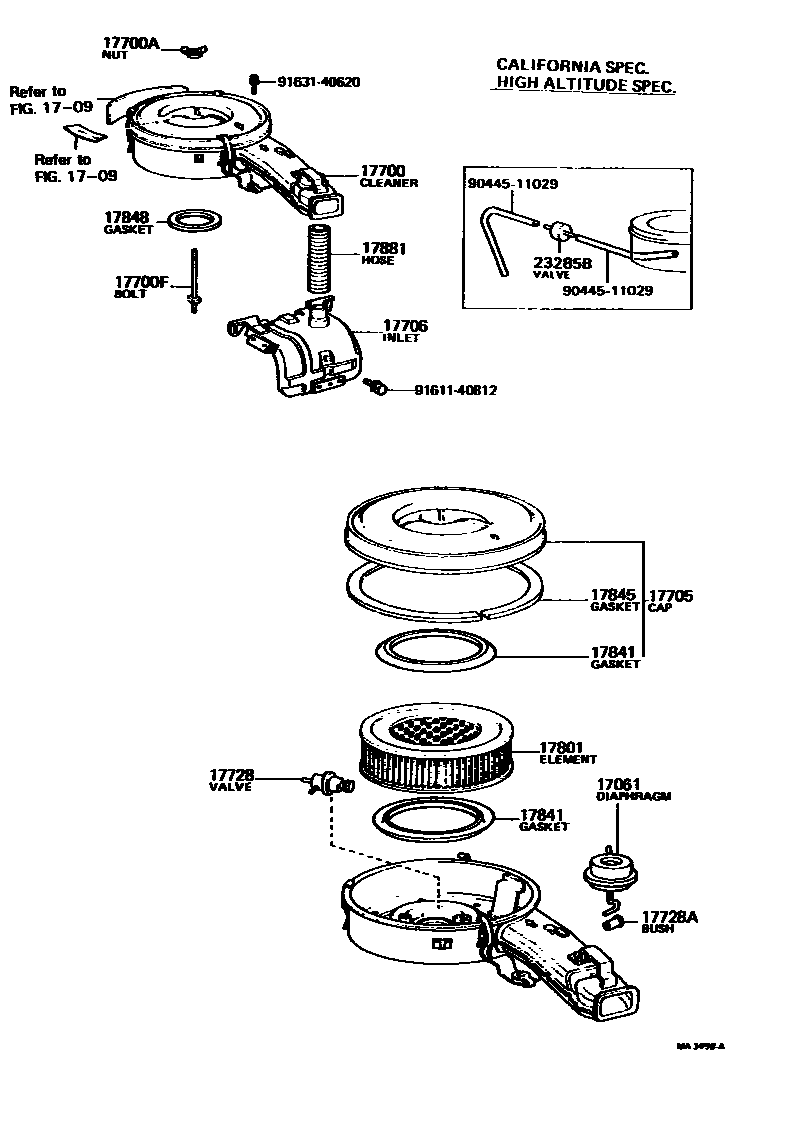

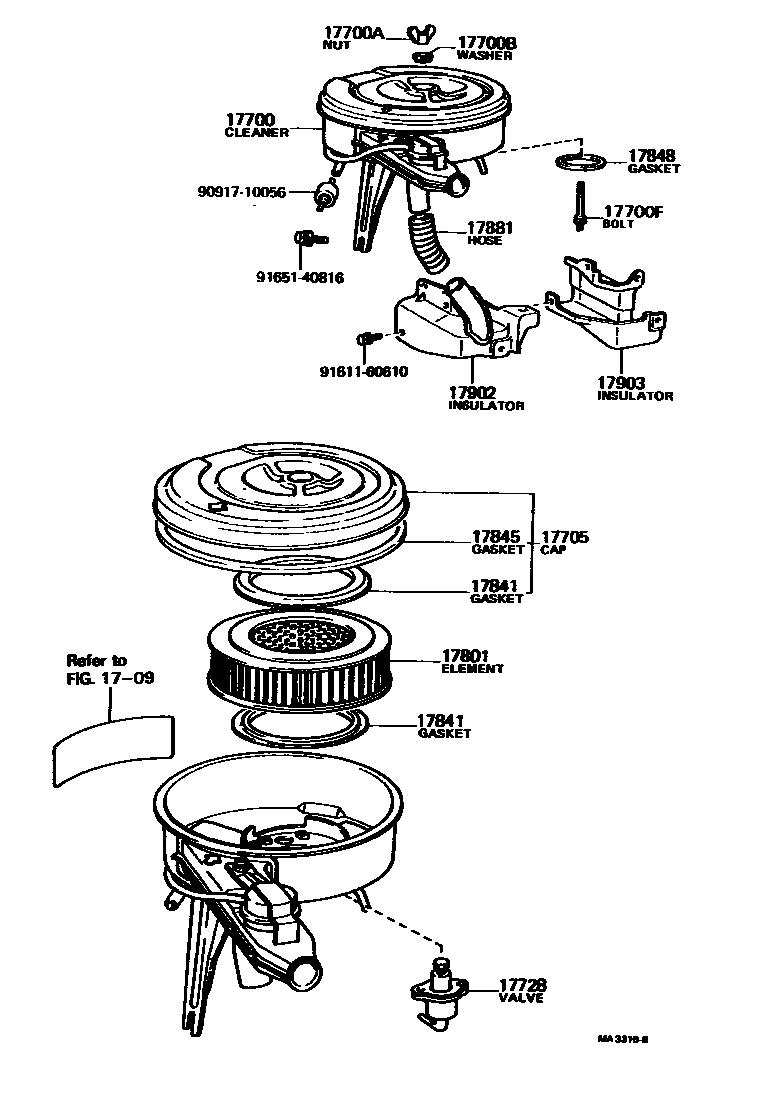

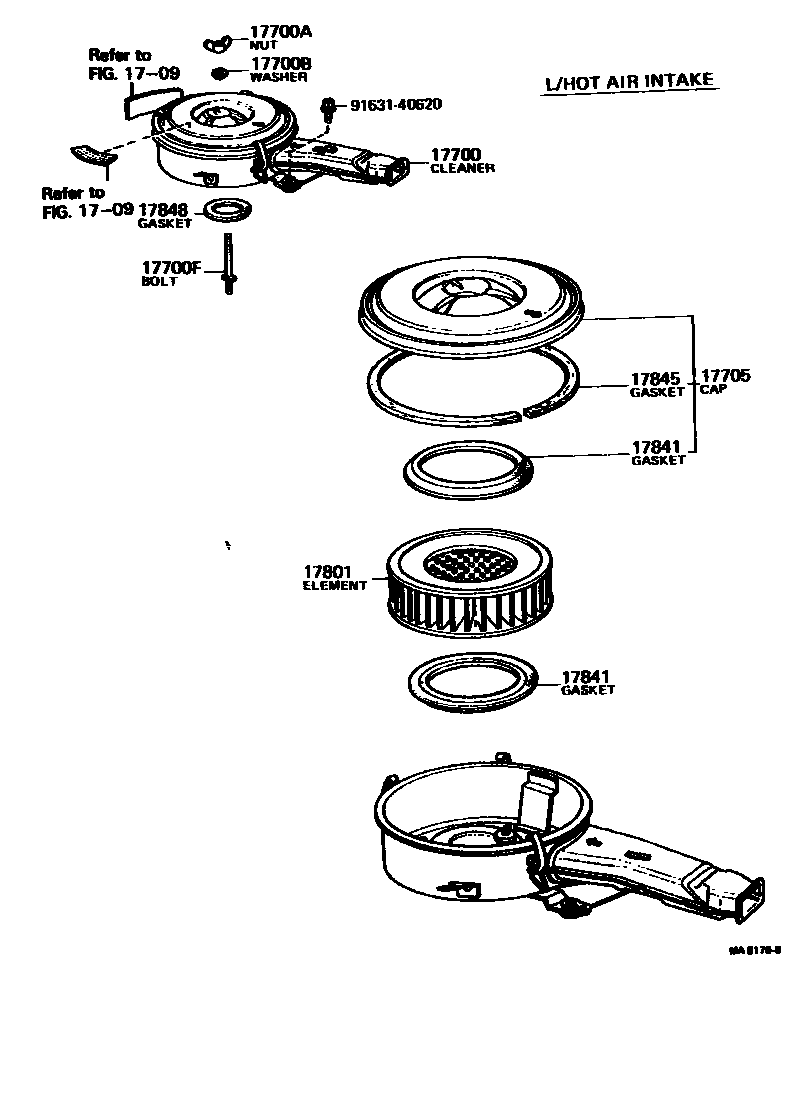

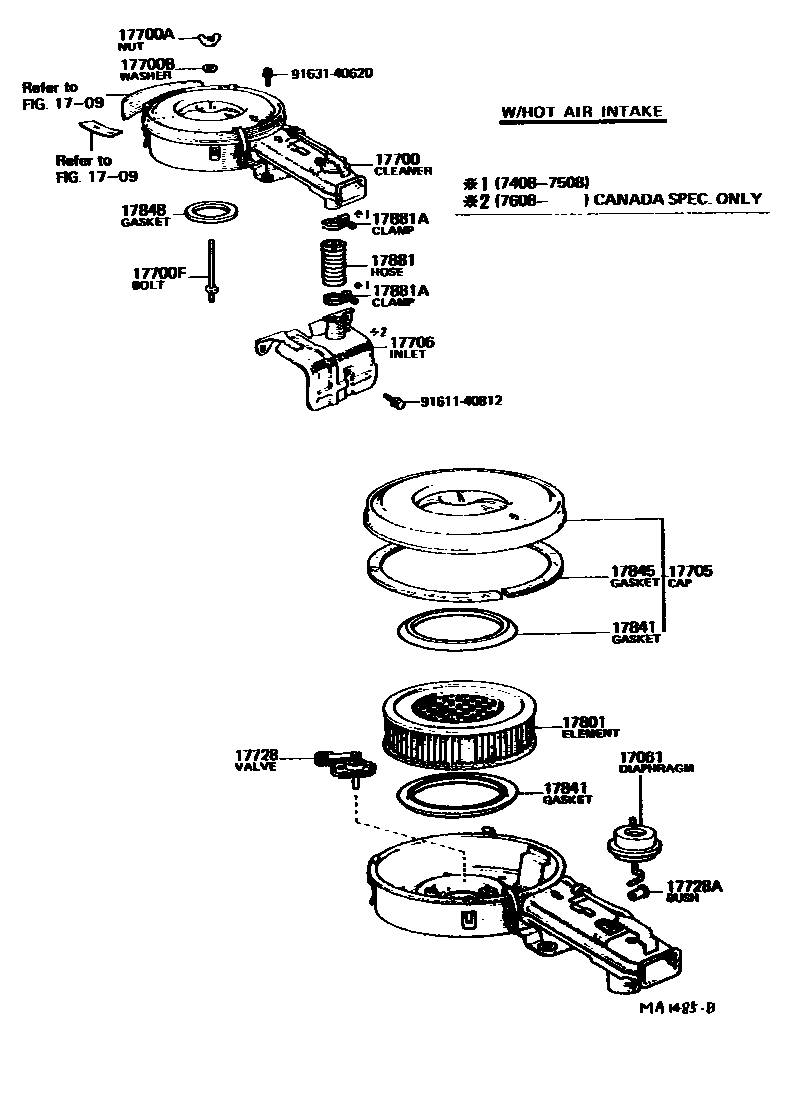

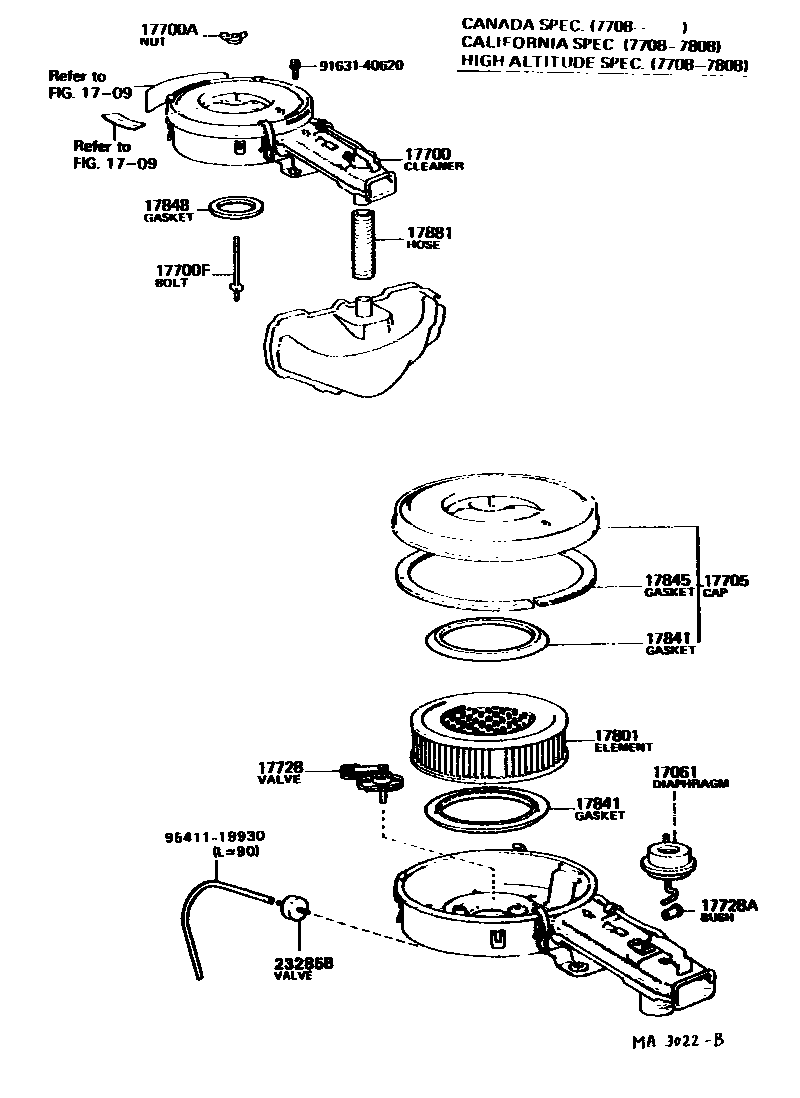

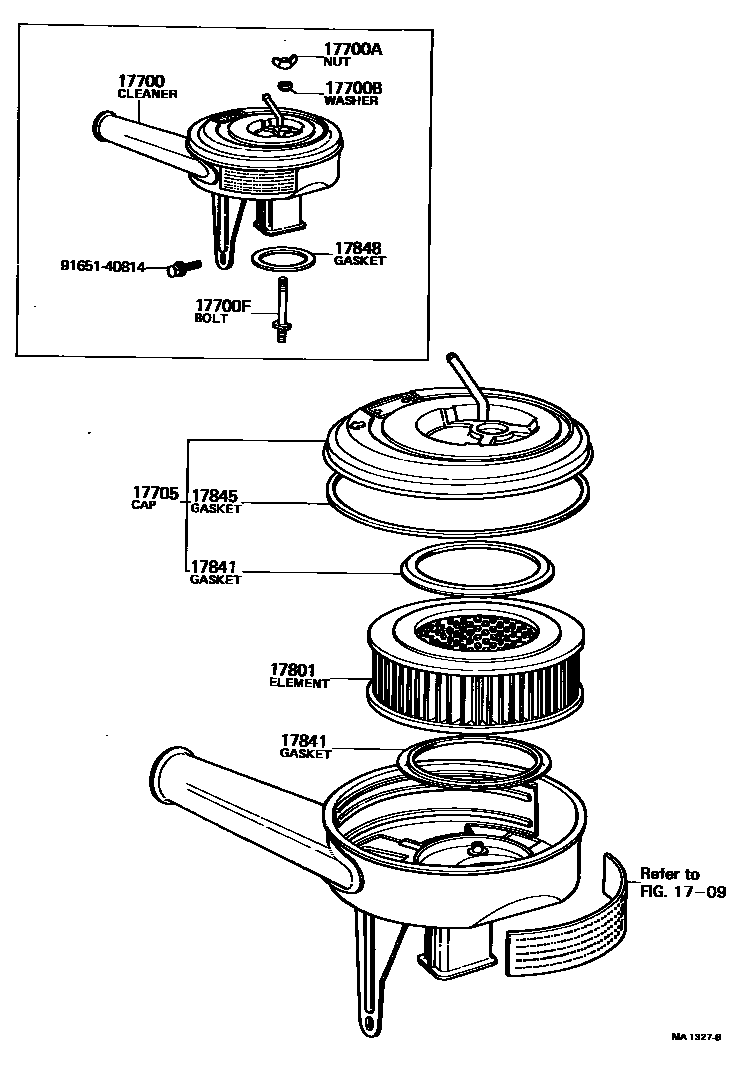

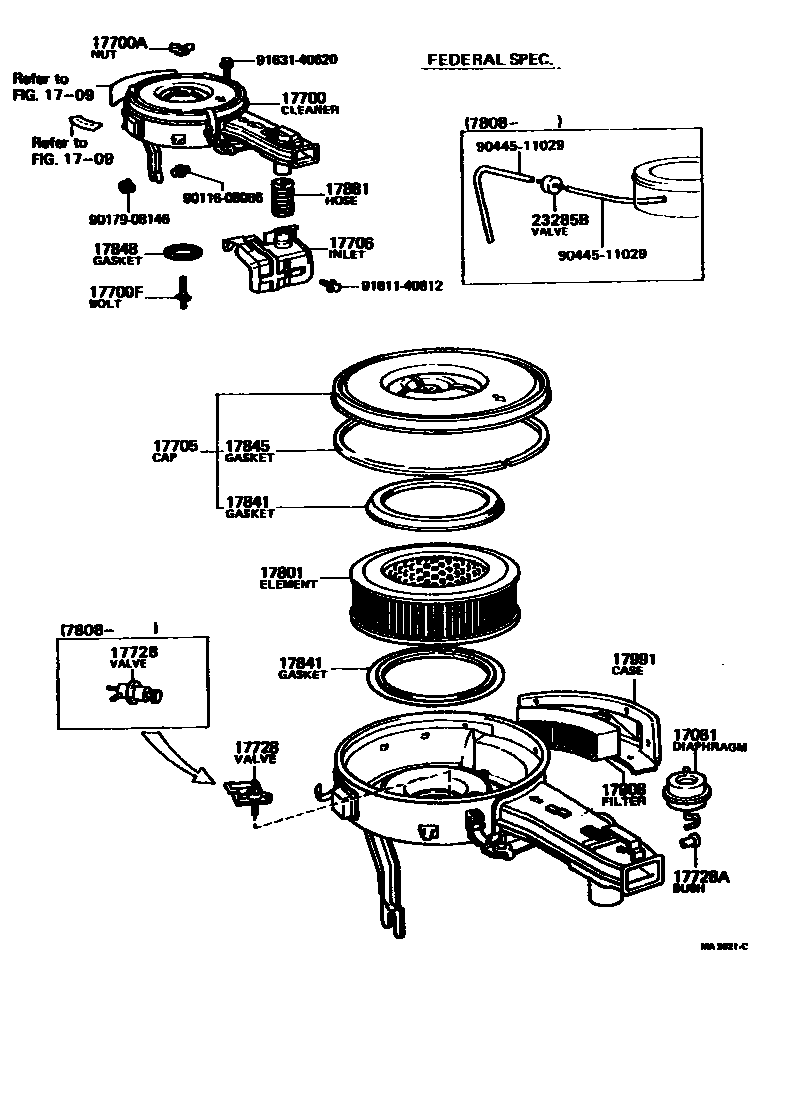

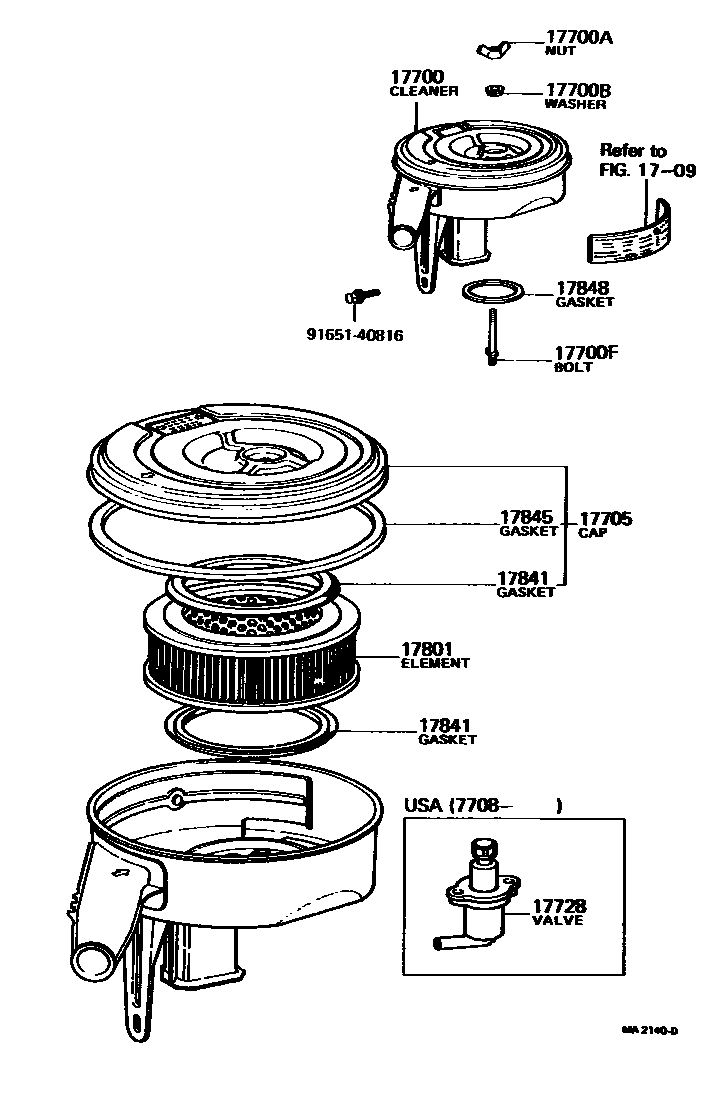

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 9 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-26010 |
| 17700 | air filter assembly | 17700-24201 · 17700-24332 · 17700-24470 · 17700-24490 · 17700-24540 · 17700-24550 · 17700-24551 · 17700-26080 · 17700-26081 · 17700-26082 · 17700-26090 · 17700-26150 · 17700-26151 · 17700-26152 · 17700-26230 · 17700-26231 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 · 94271-00600 |
| 17700B | Gasket (for air cleaner) | 90210-06023 |
| 17700F | Stud bolt (for securing air filter) | 90116-06099 · 90116-06131 · 90116-06142 |
| 17705 | Air filter cover sub-assembly | 17705-24170 · 17705-24270 · 17705-24300 · 17705-25011 · 17705-25030 · 17705-25031 |
| 17706 | No. 2 air filter air inlet sub-assembly | 17752-26020 · 17752-26021 · 17902-27030 · 17902-27031 |
| 17728 | thermostat valve | 17728-24020 · 17728-24030 · 17728-26010 · 17728-26020 |
| 17728A | Bushing | 90386-03001 |
| 17801 | Air filter element sub-assembly | 17801-24010 · 17801-25010 · 17801-31010 |
| 17841 | filter liner | 17841-24020 · 17841-25010 · 17841-31020 |
| 17845 | air cleaner cover gasket | 17845-24010 · 17845-25010 |
| 17848 | Gasket from air cleaner to carburetor | 90430-63187 |
| 17881 | No. 1 air cleaner hose | 17881-13010 · 17881-26010 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-47036 |
| 17902 | No. 1 hot air intake sub-assembly | 17167-24020 |
| 17903 | No. 2 hot air intake sub-assembly | 17168-24010 |
| 17908 | Secondary air suction filter sub-assembly | 17908-27010 |
| 17991 | Secondary air suction filter housing | 17991-27020 |
| 23285B | No. 1 one-way valve | 90917-10049 · 90917-10053 |
