Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 14 images and 25 PNC and OE references.

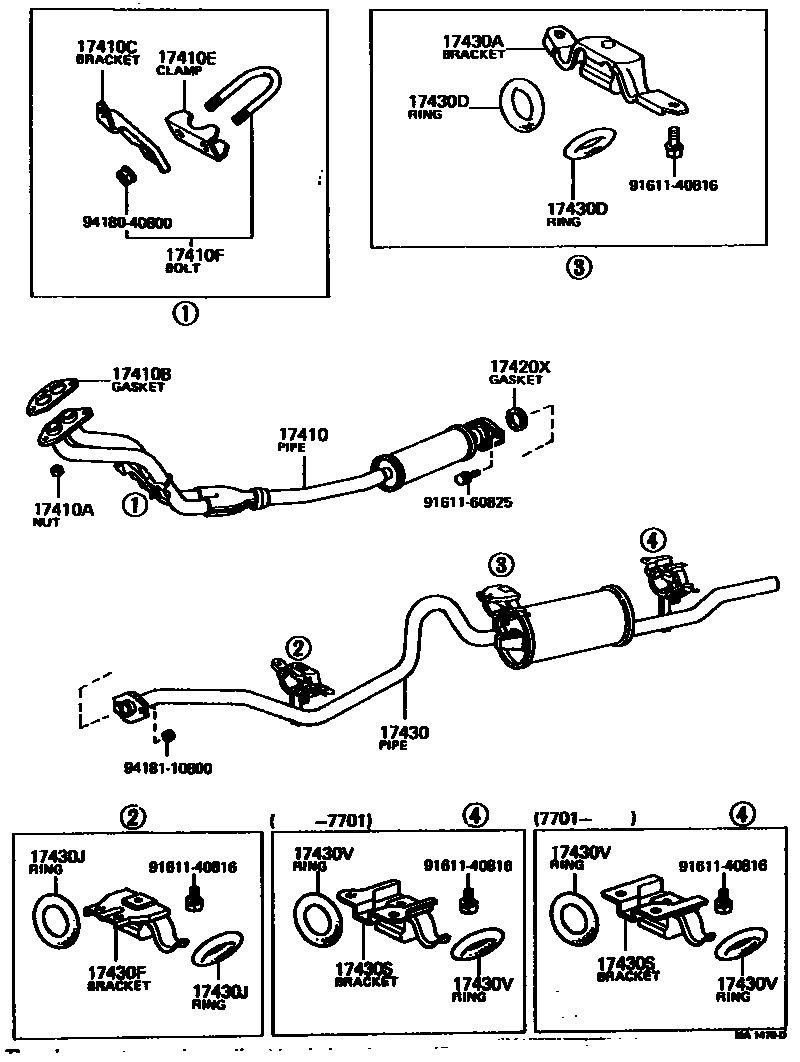

Toyota COROLLA Exhaust Pipe EPC diagram — MA1479D — Exhaust Pipe — MA1479D (197408 – 197908)

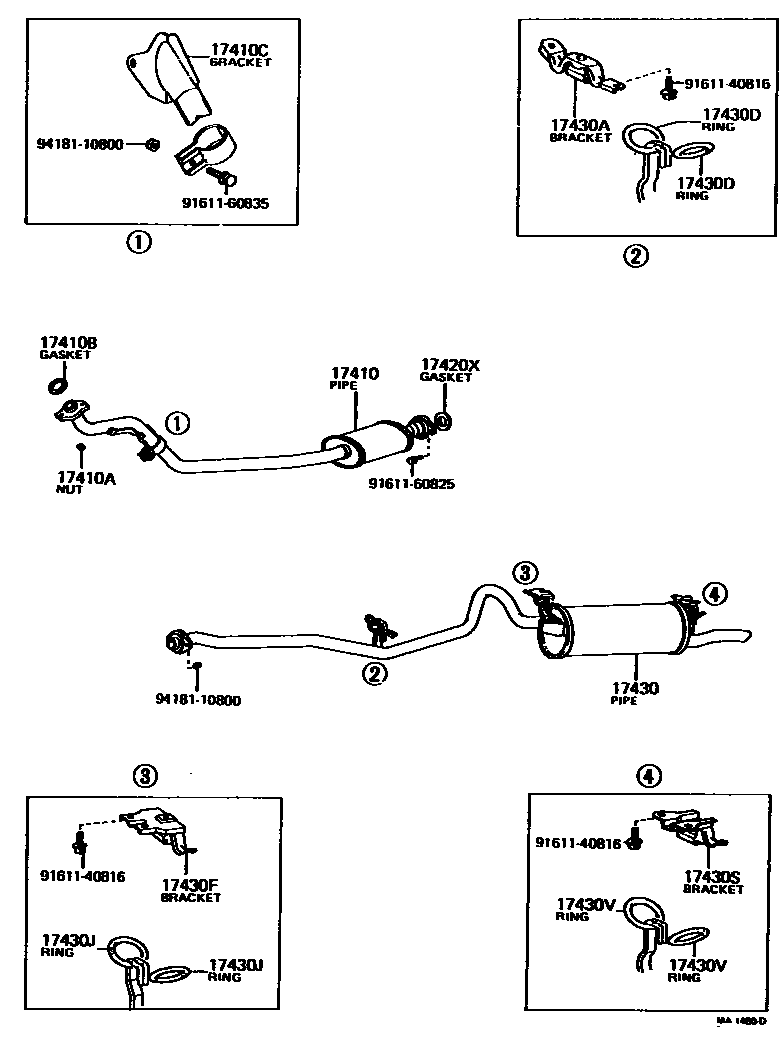

Toyota COROLLA Exhaust Pipe EPC diagram — MA1480D — Exhaust Pipe — MA1480D (197408 – 197908)

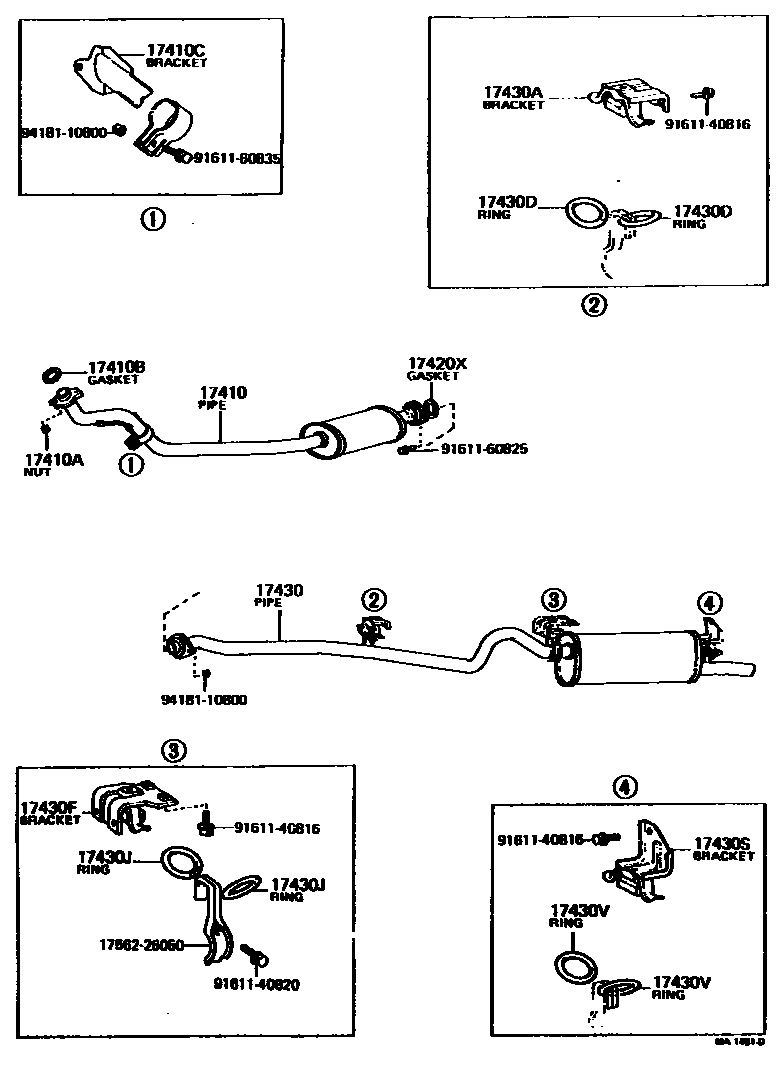

Toyota COROLLA Exhaust Pipe EPC diagram — MA1481D — Exhaust Pipe — MA1481D (197408 – 197908)

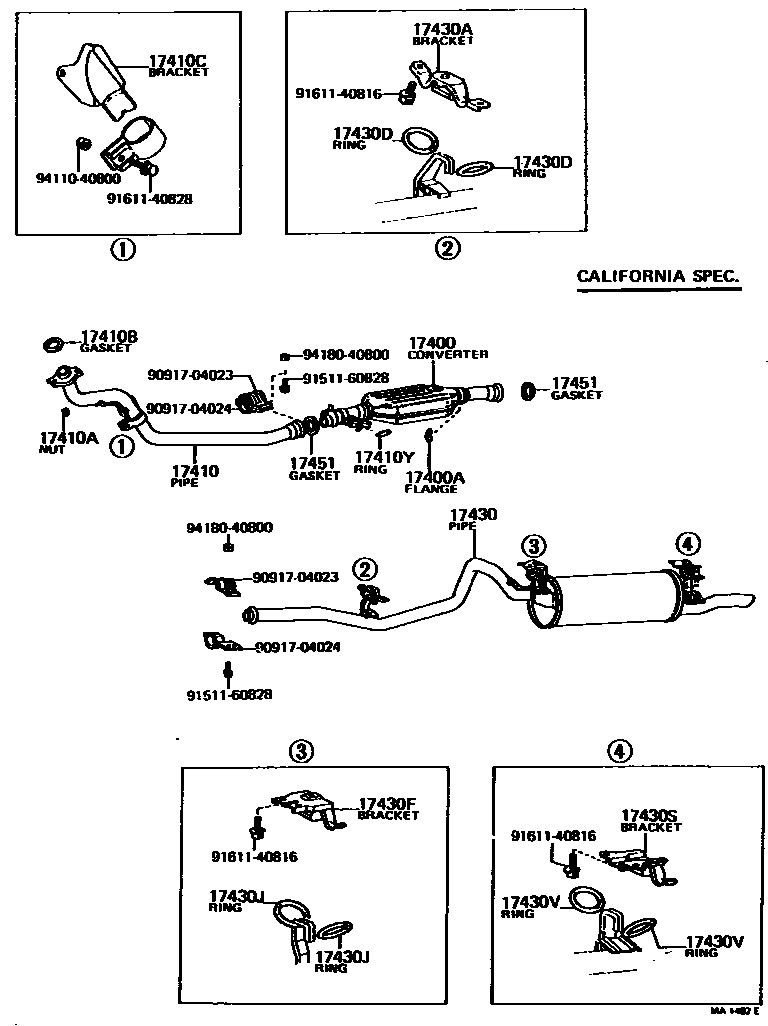

Toyota COROLLA Exhaust Pipe EPC diagram — MA1482E — Exhaust Pipe — MA1482E (197408 – 197508)

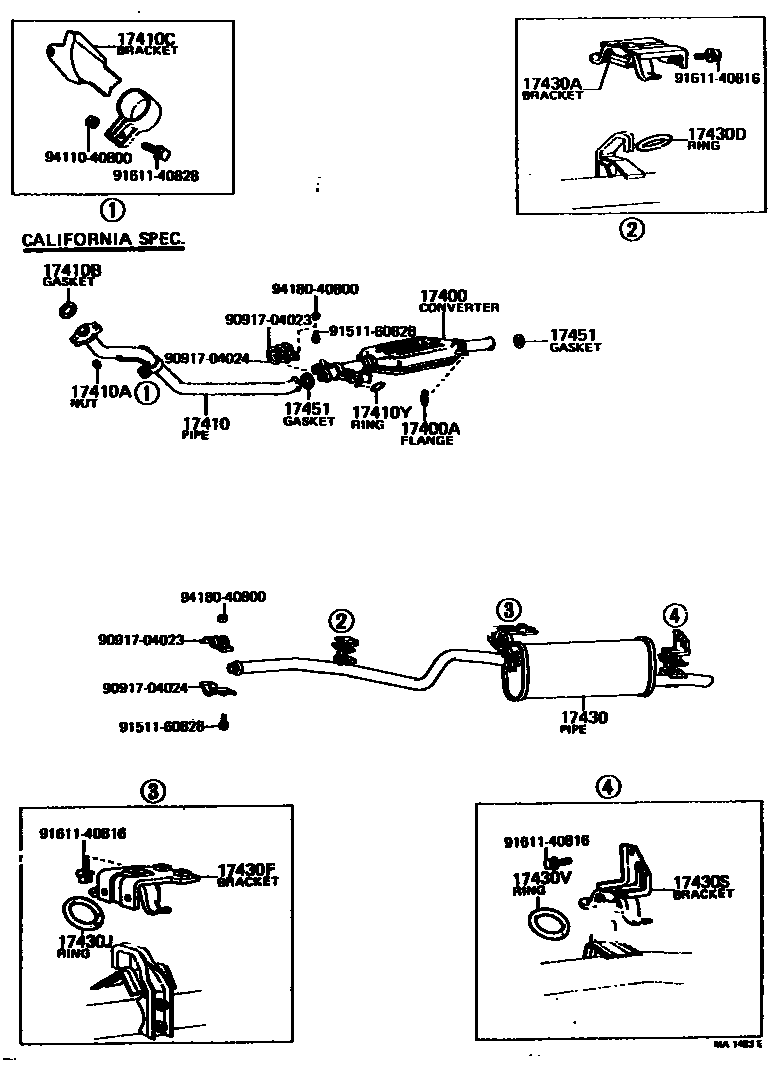

Toyota COROLLA Exhaust Pipe EPC diagram — MA1483E — Exhaust Pipe — MA1483E (197408 – 197508)

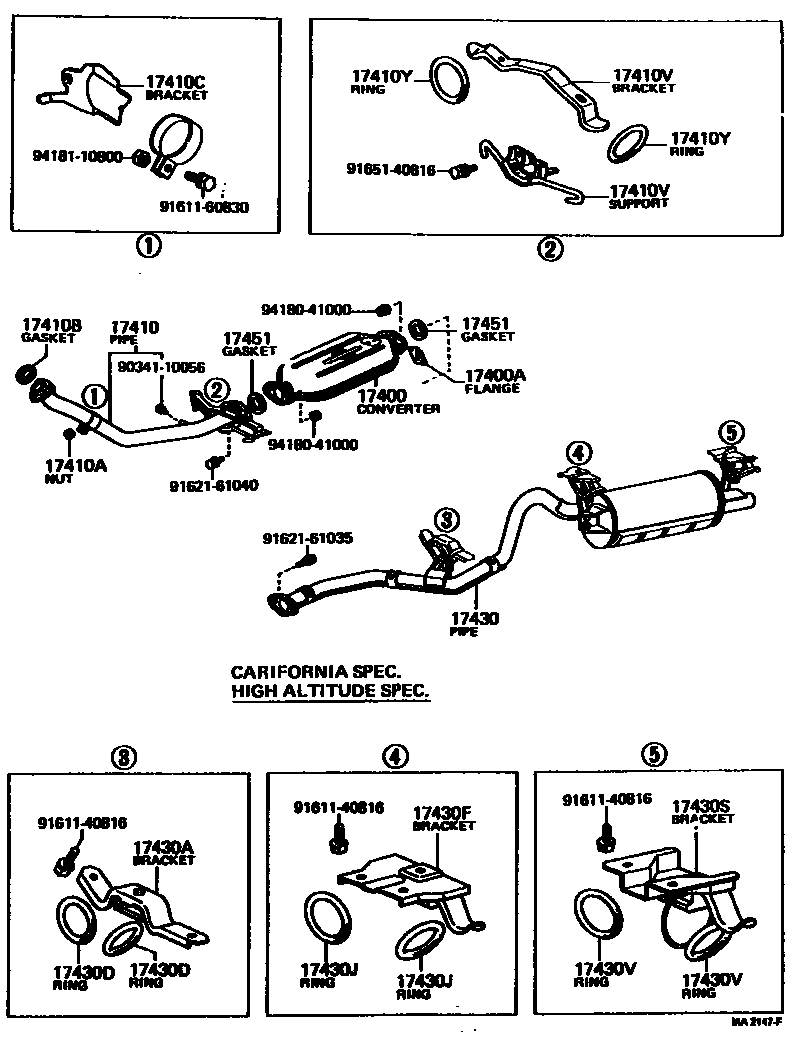

Toyota COROLLA Exhaust Pipe EPC diagram — MA2147F — Exhaust Pipe — MA2147F (197508 – 197908)

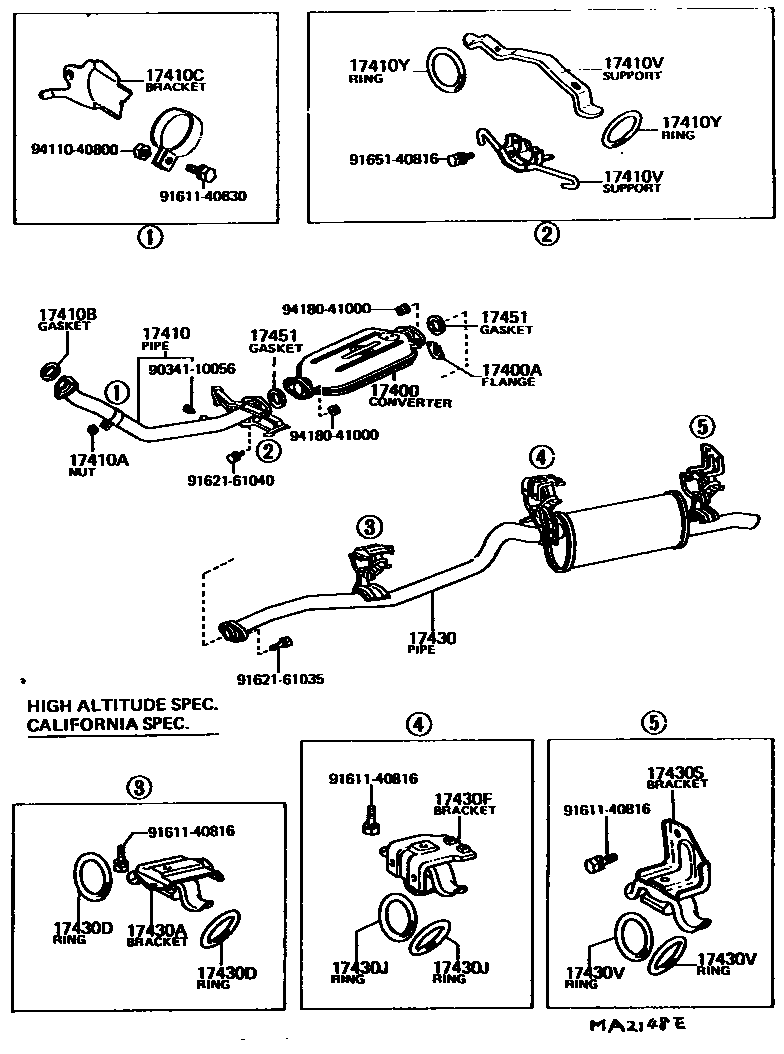

Toyota COROLLA Exhaust Pipe EPC diagram — MA2148E — Exhaust Pipe — MA2148E (197508 – 197708)

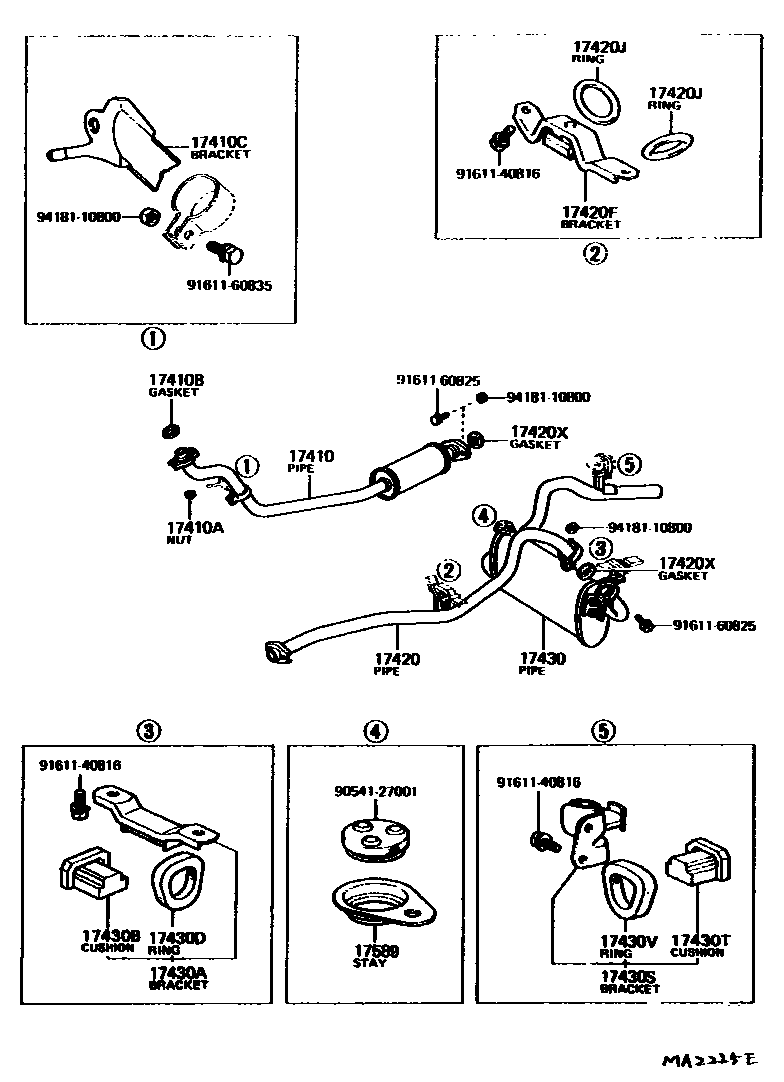

Toyota COROLLA Exhaust Pipe EPC diagram — MA2225E — Exhaust Pipe — MA2225E (197603 – 197908)

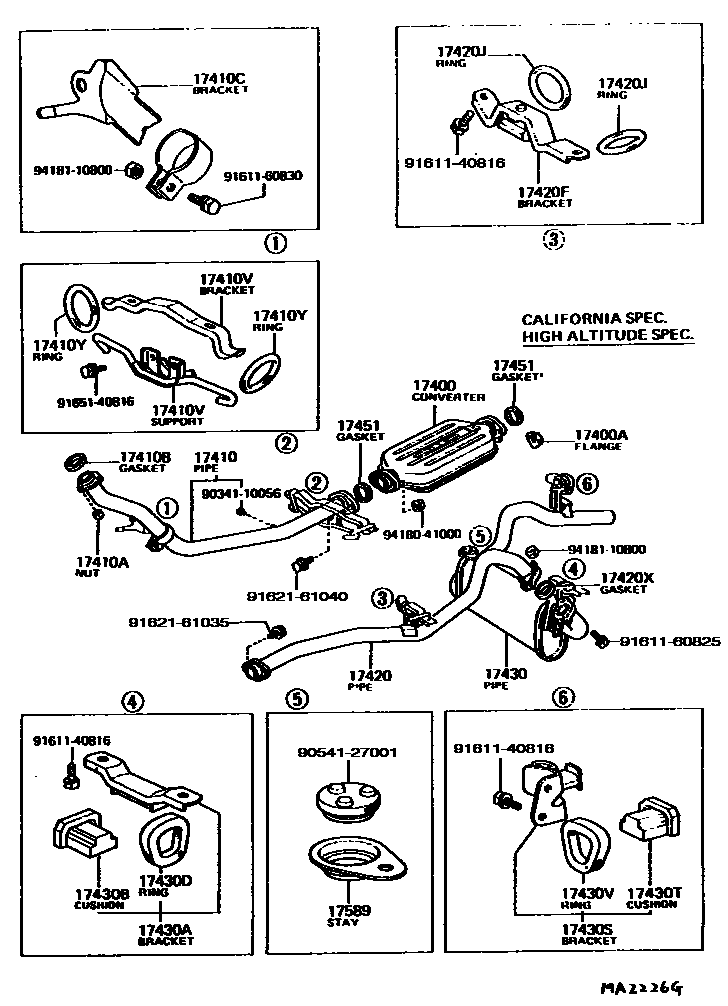

Toyota COROLLA Exhaust Pipe EPC diagram — MA2226G — Exhaust Pipe — MA2226G (197603 – 197908)

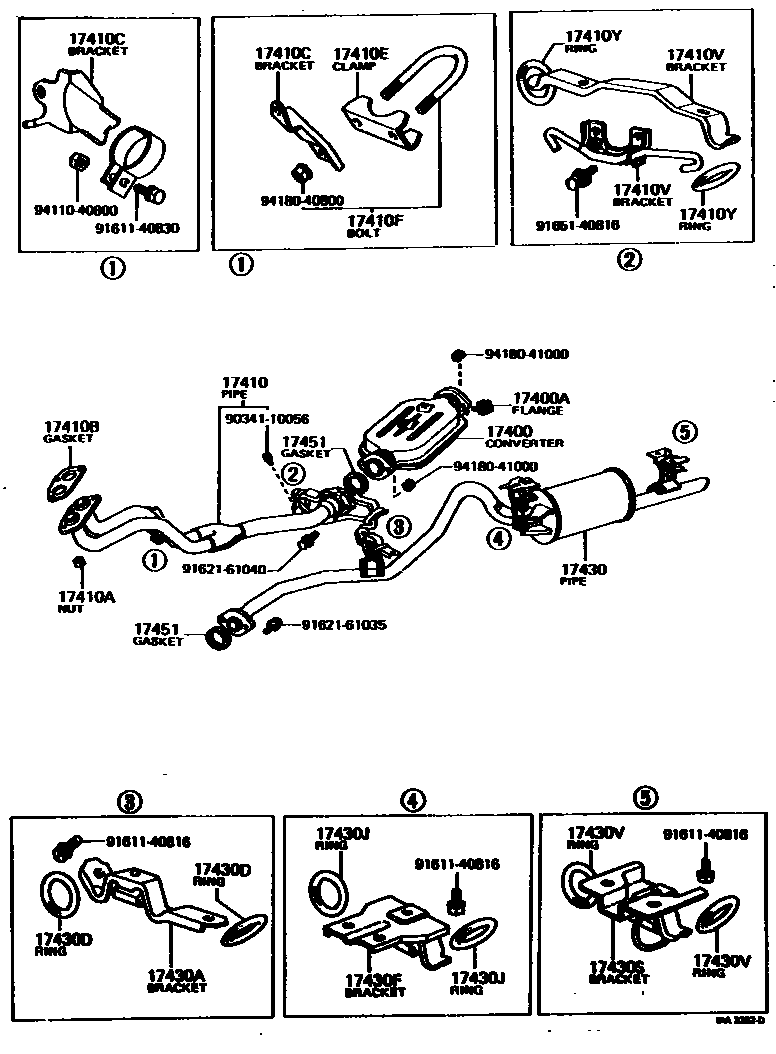

Toyota COROLLA Exhaust Pipe EPC diagram — MA2352D — Exhaust Pipe — MA2352D (197608 – 197908)

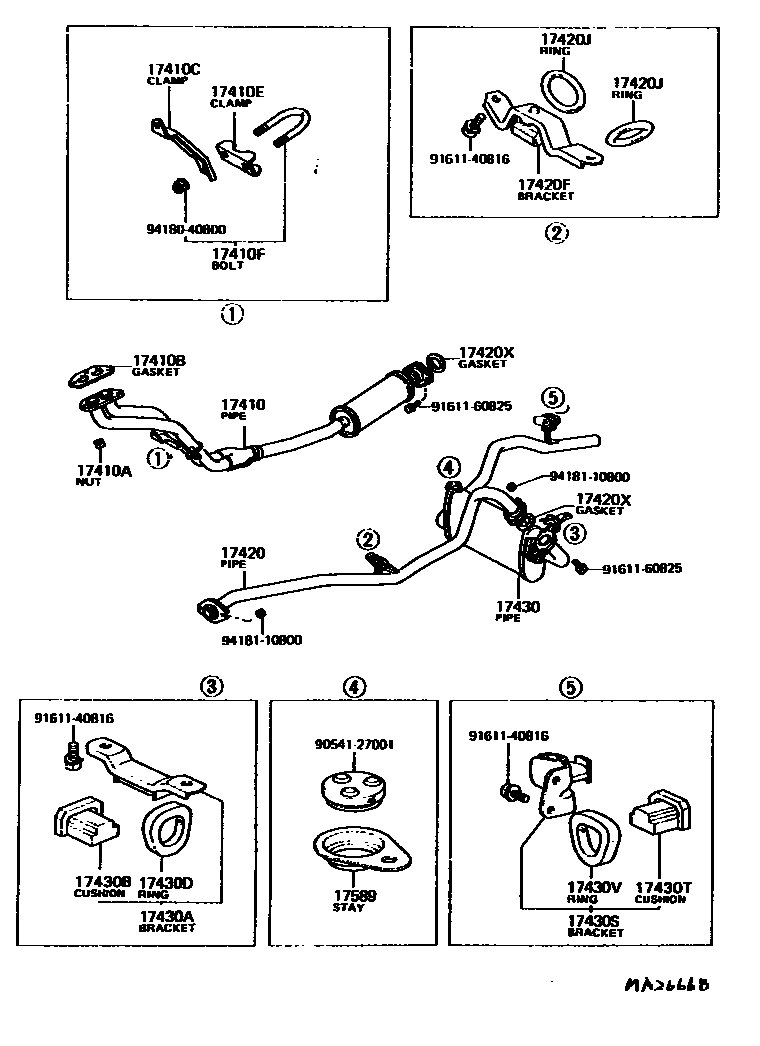

Toyota COROLLA Exhaust Pipe EPC diagram — MA2666B — Exhaust Pipe — MA2666B (197701 – 197908)

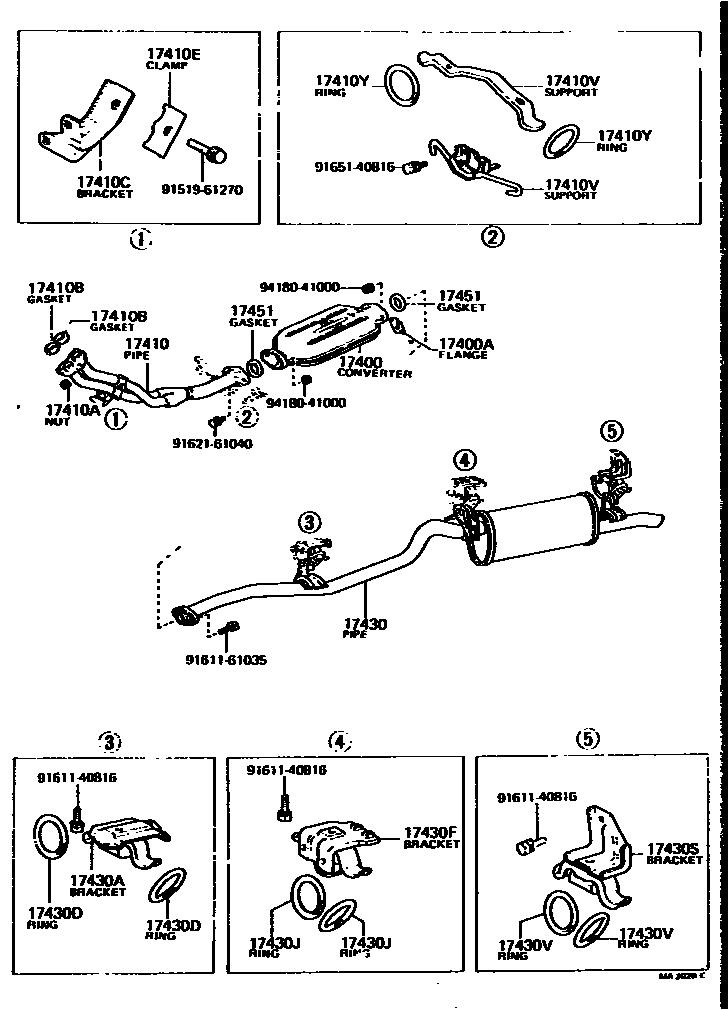

Toyota COROLLA Exhaust Pipe EPC diagram — MA3018D — Exhaust Pipe — MA3018D (197708 – 197908)

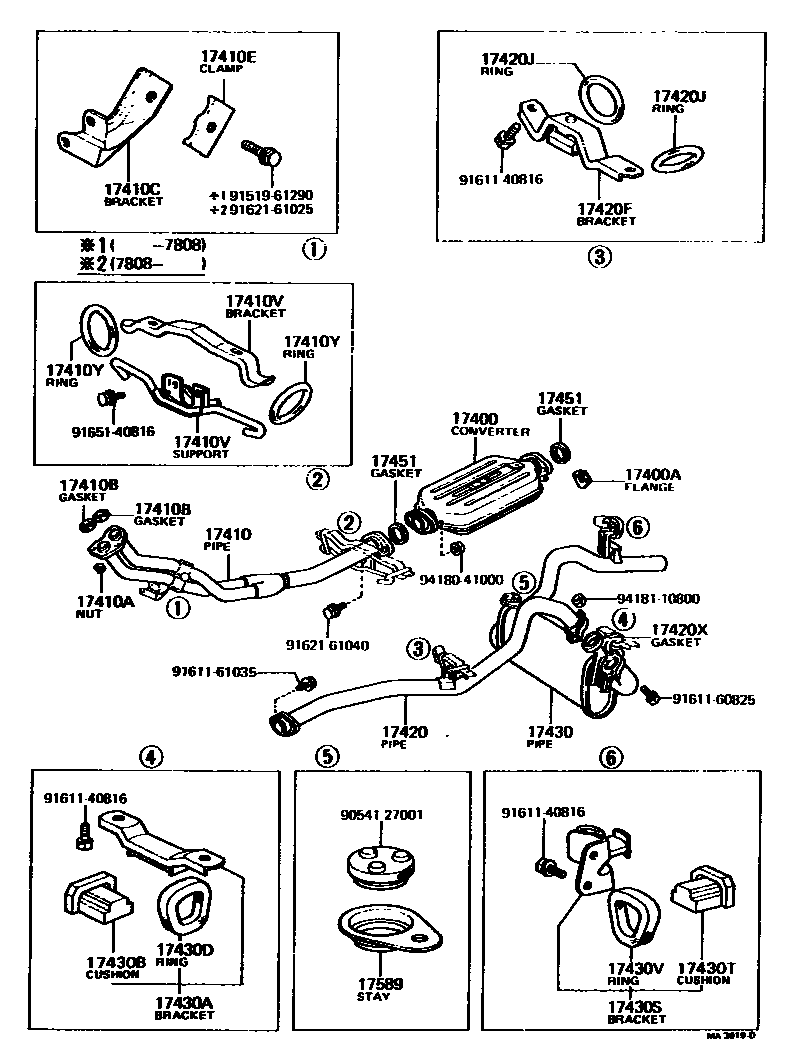

Toyota COROLLA Exhaust Pipe EPC diagram — MA3019D — Exhaust Pipe — MA3019D (197708 – 197908)

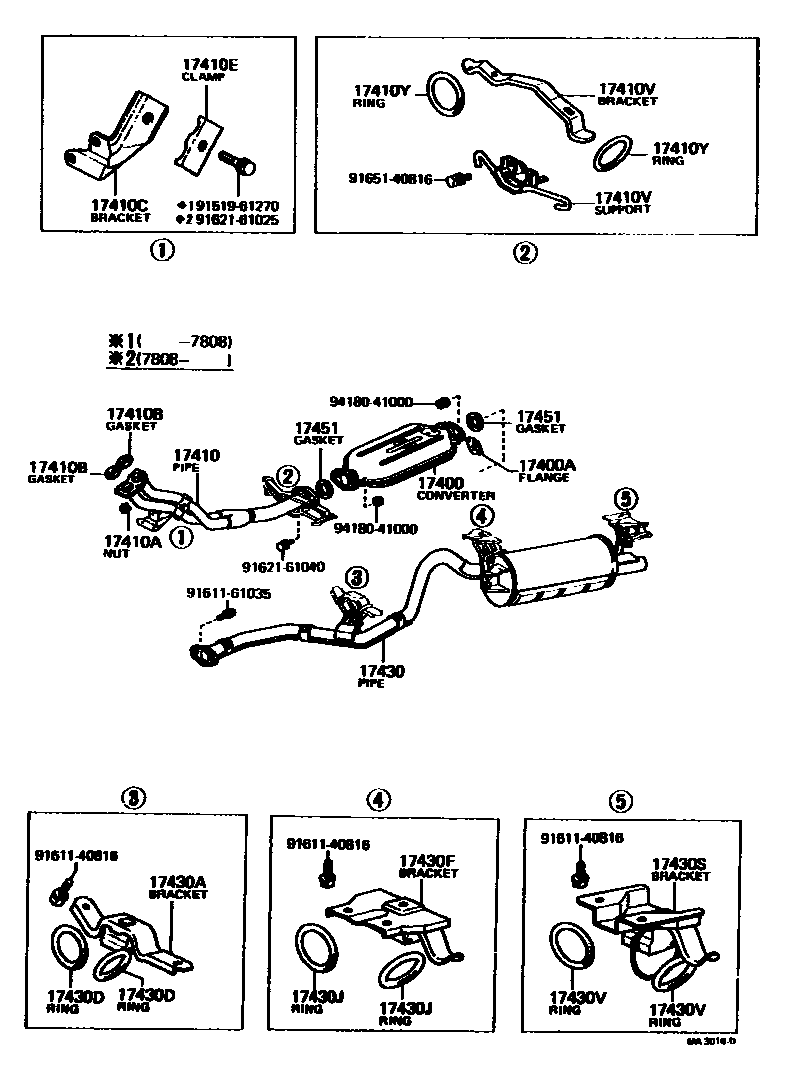

Toyota COROLLA Exhaust Pipe EPC diagram — MA3020C — Exhaust Pipe — MA3020C (197708 – 197908)

PNC and OE references

PNC	Part name	OE numbers
17400	Three-way catalytic converter assembly with catalyst	17040-26040 · 17040-38011 · 17040-38012 · 17040-38013 · 17040-38030 · 17400-24012 · 17400-24030 · 17400-26010 · 17400-26020
17400A	Thermal sensor air inlet flange	18491-38020
17410	Front exhaust pipe assembly	17401-26010 · 17401-26011 · 17401-26012 · 17401-26030 · 17410-24100 · 17410-24101 · 17410-24160 · 17410-24161 · 17410-26080 · 17410-26081 · 17410-26083 · 17410-26240
17410A	Exhaust pipe fixing studs and nuts	90170-10199 · 90179-10010 · 90179-10118
17410B	Exhaust pipe gasket	17451-22010 · 90917-06001 · 90917-06004 · 90917-06005
17410C	Front exhaust pipe bracket (for front)	17571-24040 · 17571-24041 · 17571-26060 · 17571-26070 · 17571-26130 · 17571-26131 · 17571-26150
17410E	No. 1 front exhaust pipe clamp (for front)	90917-04019 · 90917-04030 · 90917-04043
17410F	Front exhaust pipe bolt or ring (for front)	90117-08199 · 90118-08136
17410V	Front exhaust pipe bracket (for rear)	17505-24010 · 17505-26020 · 17505-26030 · 17587-26011 · 17587-26040
17410Y	Front exhaust pipe bolts or rings (for rear)	90301-34207
17420	Central exhaust pipe assembly	17403-24040 · 17403-26020 · 17403-26021 · 17403-26030 · 17403-26050 · 17403-26060
17420F	Central exhaust pipe bracket	17506-24010
17420J	Center exhaust pipe bolt or ring	90301-34172 · 90301-34207
17420X	Center exhaust pipe liner	90917-06001 · 90917-06004
17430	Exhaust tailpipe assembly	17405-24050 · 17405-26010 · 17405-26011 · 17405-26020 · 17430-24080 · 17430-24160 · 17430-26150 · 17430-26151 · 17430-26152 · 17430-26153 · 17430-26154 · 17430-26160 · 17430-26161 · 17430-26170 · 17430-26171 · 17430-26180 · 17430-26181 · 17430-26182 · 17430-26183 · 17430-26370 · 17430-26380 · 17430-26420 · 17430-26430 · 17430-26450 · 17430-26460
17430A	Exhaust tailpipe bracket (for front)	17506-24010 · 17506-24020 · 17507-24060
17430B	Exhaust tailpipe bumper (for front)	17591-45010
17430D	Exhaust tailpipe bolts or rings (for front)	17565-41010 · 90301-34172 · 90301-34207
17430F	Exhaust tailpipe bracket (for center)	17507-24010 · 17507-24020 · 17507-26030 · 17508-26020
17430J	Exhaust tailpipe bolt or ring (for center)	90301-34172 · 90301-34207
17430S	Exhaust tailpipe bracket (for rear)	17508-24030 · 17508-24040 · 17508-24050 · 17508-26030 · 17508-36011
17430T	Exhaust tailpipe cushion (for rear)	17591-45010
17430V	Exhaust tailpipe bolts or rings (for rear)	17565-41010 · 90301-34172 · 90301-34207
17451	Exhaust pipe gasket	90917-06004 · 90917-06008 · 90917-06012 · 90917-06014 · 90917-06018 · 90917-06023
17589	Exhaust pipe stay	17589-26010
