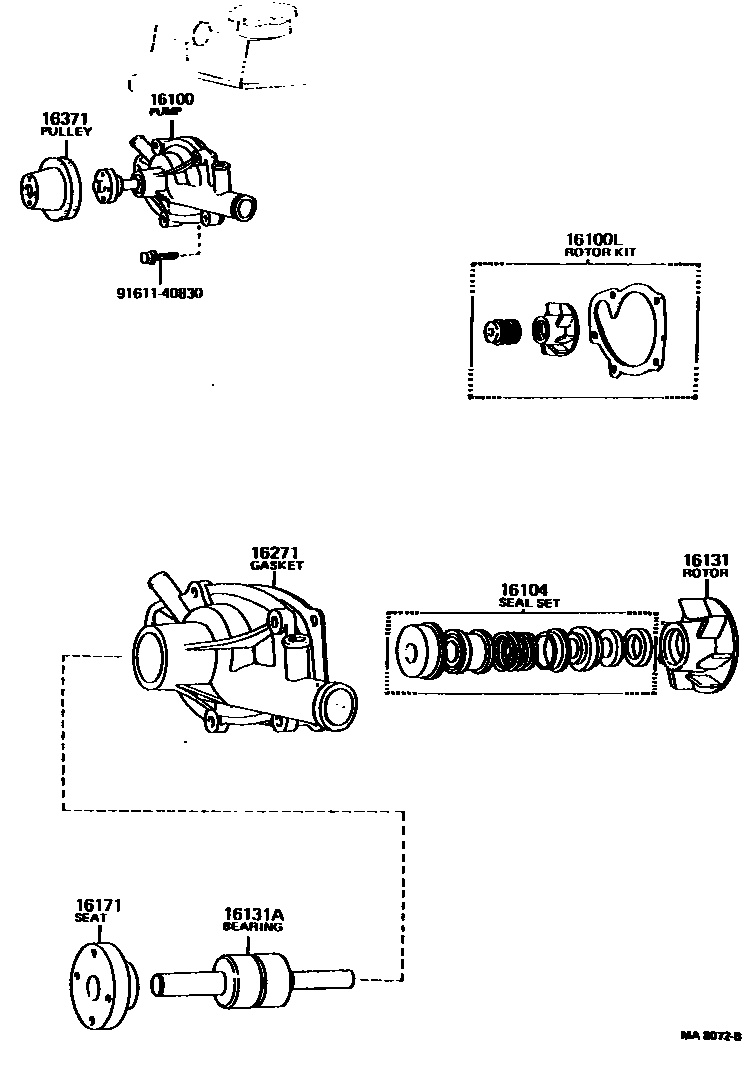

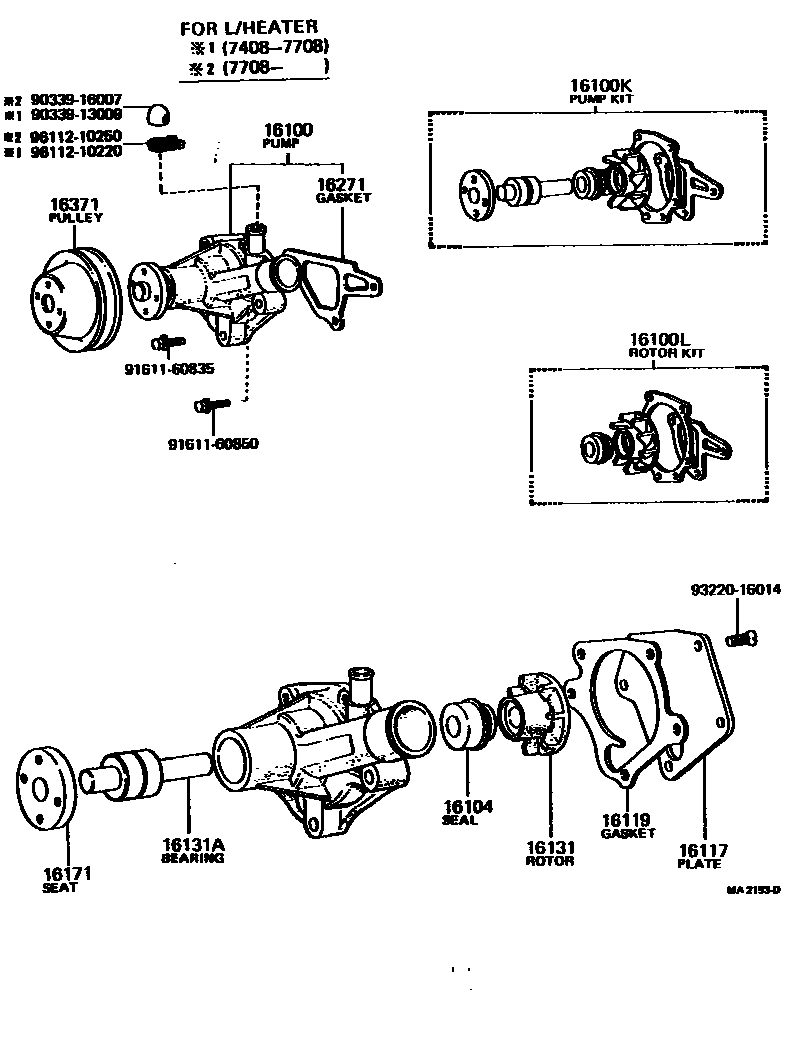

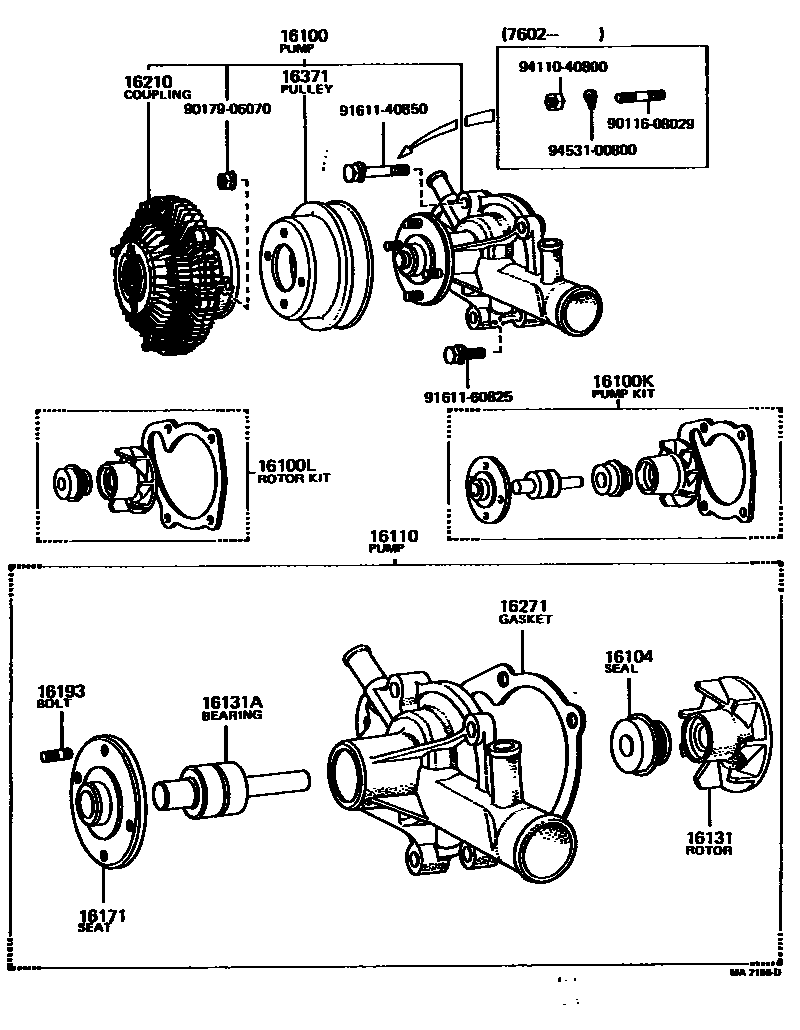

Toyota COROLLA Water Pump — Figure 1601
Toyota COROLLA EPC diagram 1601, Water Pump, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-19015 · 16100-25012 · 16100-26020 · 16100-26021 · 16100-26022 · 16100-26023 · 16100-28020 · 16100-29045 · 16100-29046 |
| 16100K | Water pump components | 04161-13010 · 04161-24010 · 04161-24011 · 04161-28010 |
| 16100L | Water pump rotor assembly | 04162-13010 · 04162-22011 · 04162-22012 · 04162-25011 · 04162-25012 · 04162-28010 |
| 16104 | Water pump seal components | 16104-22010 · 16104-41110 · 16104-41111 |
| 16110 | Water pump assembly without coupling | 16110-26020 · 16110-26021 · 16110-28010 |
| 16117 | water pump plate | 16117-13010 · 16117-22011 |
| 16119 | Water pump body gasket | 16124-22010 |
| 16131 | water pump rotor | 16131-13010 · 16131-22011 · 16131-22012 · 16131-24030 · 16131-25011 · 16131-25012 · 16131-26010 |
| 16131A | water pump bearings | 16140-38011 · 90369-30035 · 90369-30063 |
| 16171 | water pump pulley seat | 16171-24030 · 16171-24031 · 16171-26021 · 16171-31030 · 16171-38021 |
| 16193 | Studs (for water pump cover) | 16193-33030 · 90116-06008 |
| 16210 | Hydraulic coupler assembly | 16210-26020 · 16210-26021 · 16210-28020 |
| 16271 | water pump gasket | 16129-25010 · 16129-25011 · 16271-13020 · 16271-22010 |
| 16371 | fan pulley | 16173-26020 · 16173-26021 · 16173-28010 · 16371-24050 · 16371-25010 · 16371-25020 |
