Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 3 images and 6 PNC and OE references.

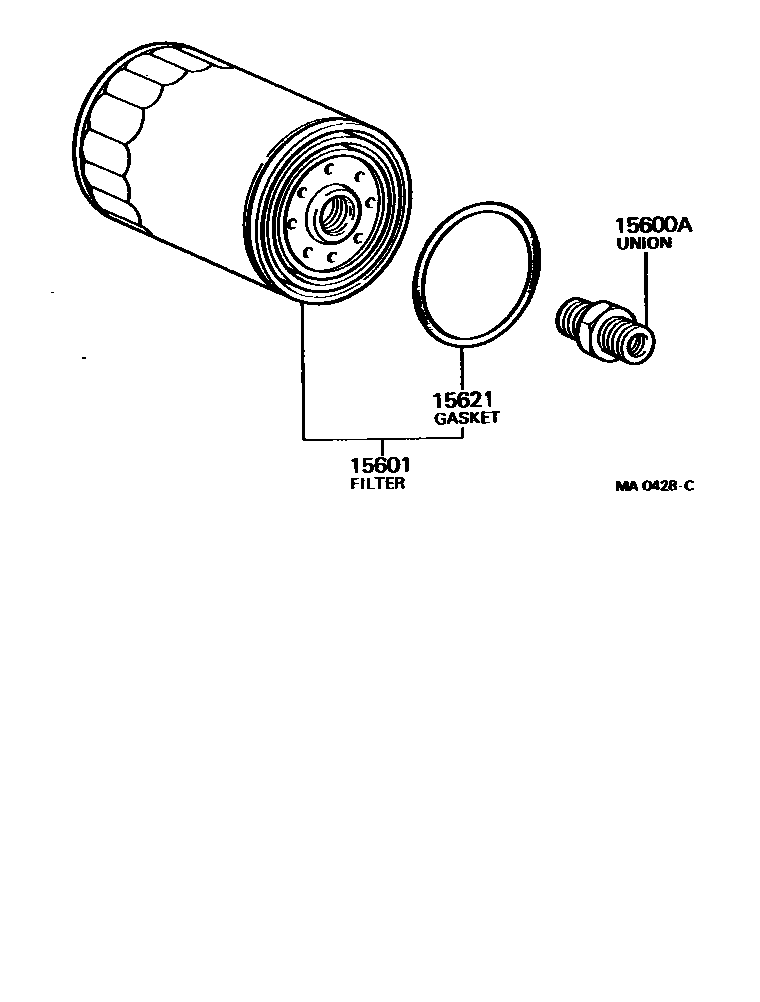

Toyota COROLLA Oil Filter EPC diagram — MA0428C
Oil Filter — MA0428C (197408 – 197908)

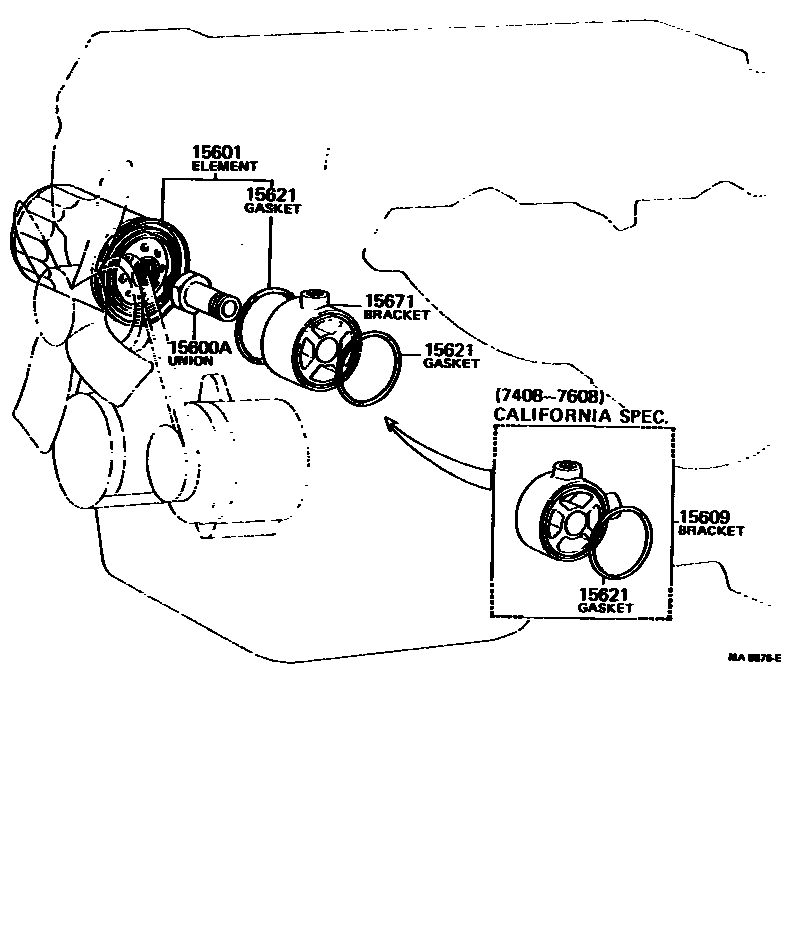

Toyota COROLLA Oil Filter EPC diagram — MA0876E
Oil Filter — MA0876E (197408 – 197805)

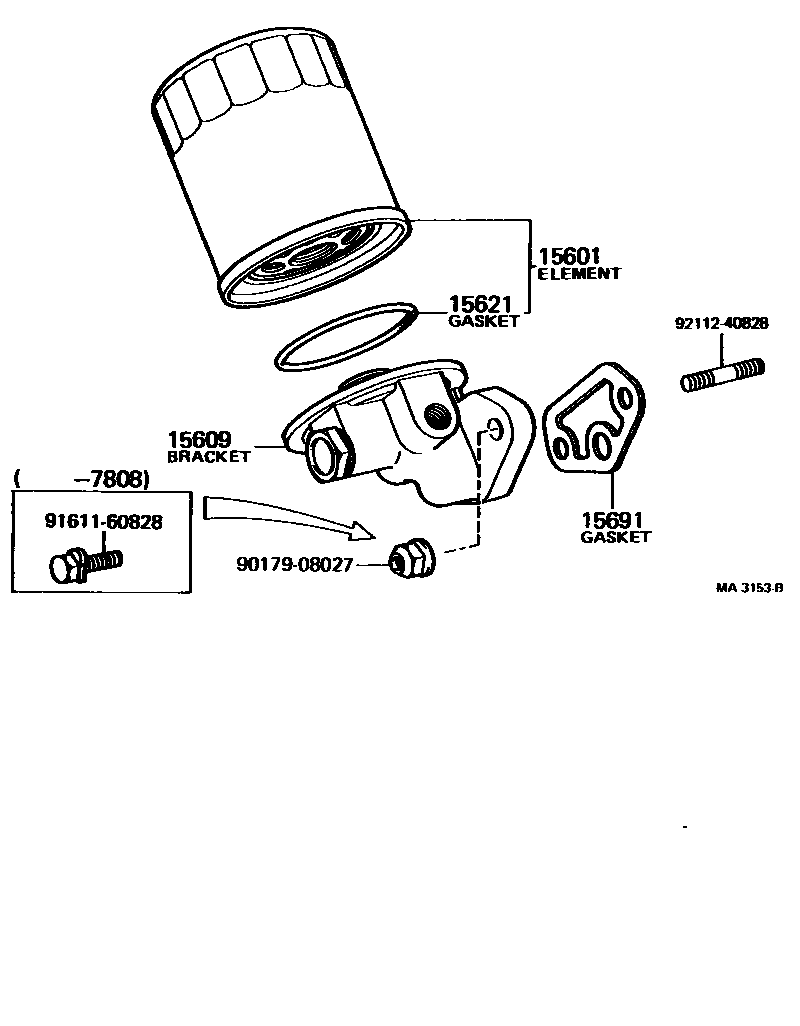

Toyota COROLLA Oil Filter EPC diagram — MA3153B
Oil Filter — MA3153B (197408 – 197908)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19268 · 90404-20173
15601Oil filter sub-assembly15600-25010 · 15601-33020
15609Oil filter bracket sub-assembly15609-22012 · 15609-26020
15621Oil filter body gasket15621-22010 · 15621-41010
15671Oil filter bracket15670-26010
15691oil filter gasket15691-22010
