Toyota COROLLA Engine Oil Pump — Figure 1501

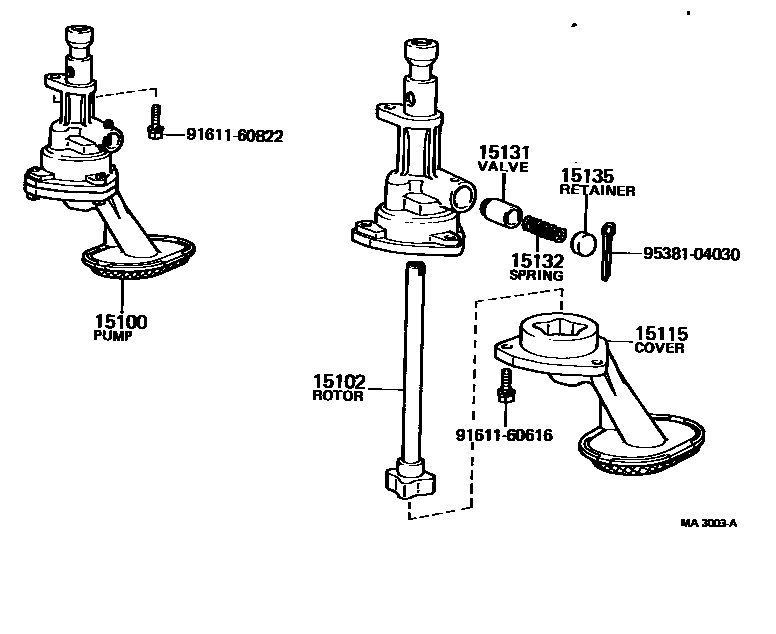

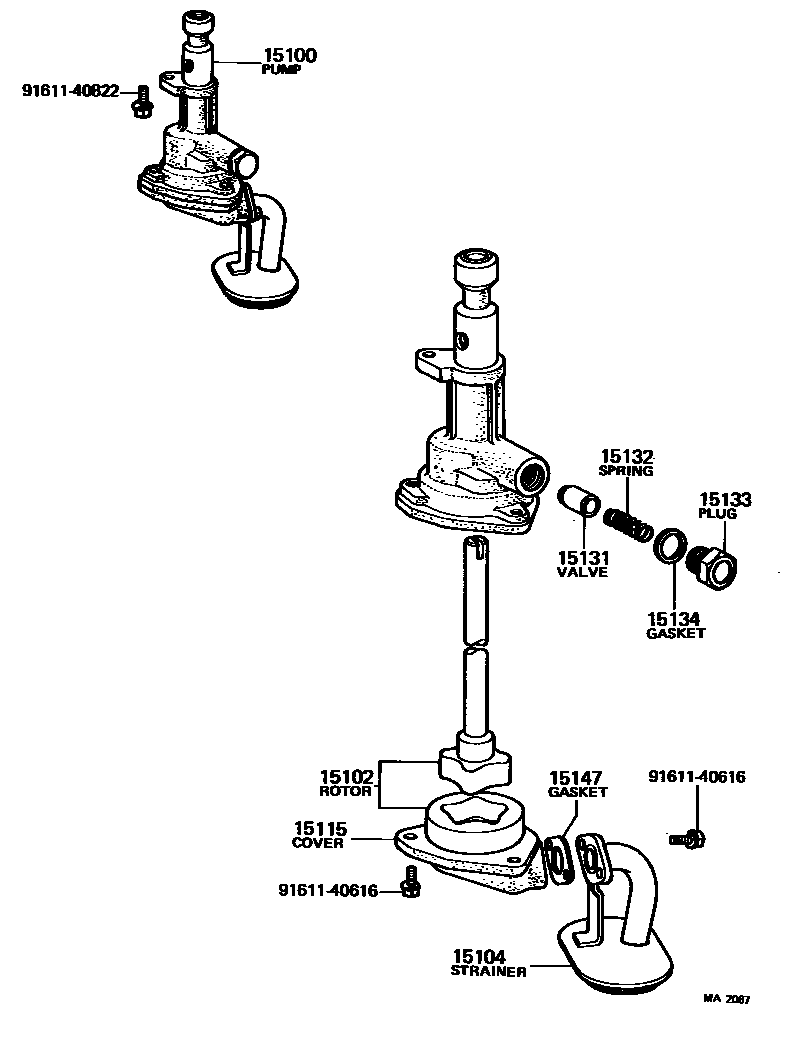

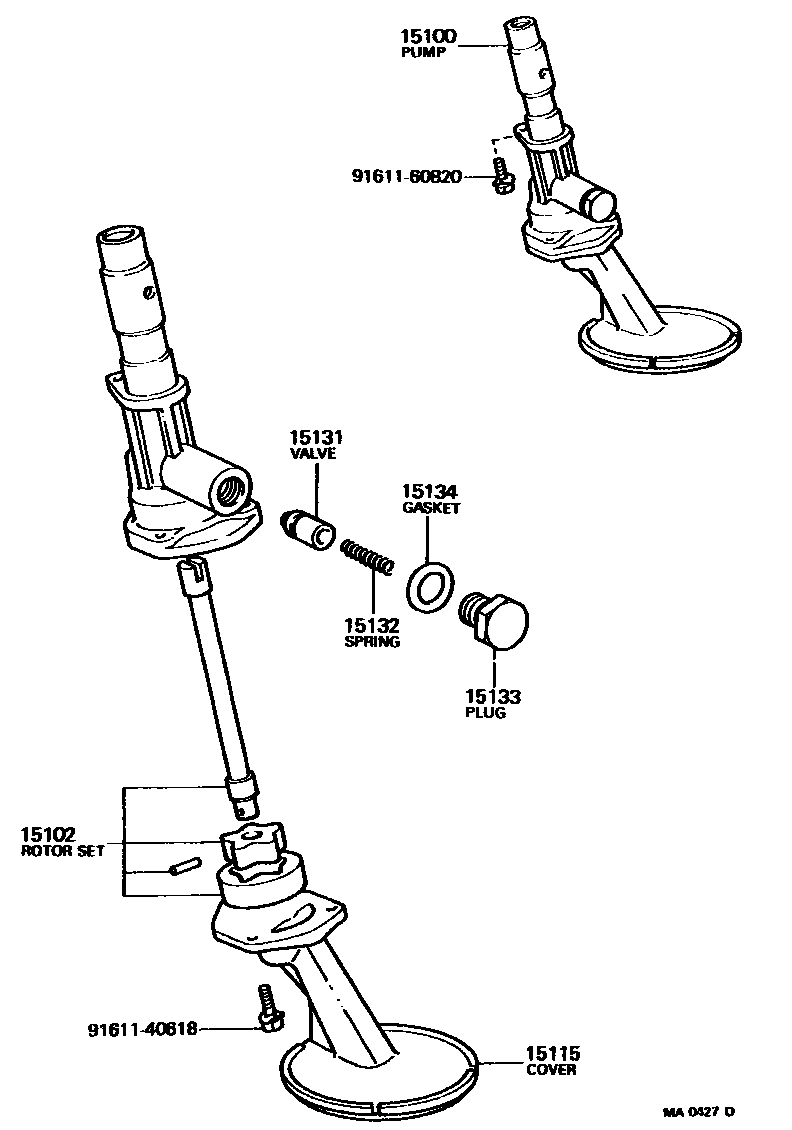

Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-13010 · 15100-24010 · 15100-24011 · 15100-25020 |
| 15102 | Oil pump rotor assembly | 15102-24010 · 15102-25010 |
| 15104 | Oil filter sub-assembly | 15104-22011 |
| 15115 | oil pump cover | 15012-13010 · 15012-25020 · 15115-22010 |
| 15131 | Oil pump pressure reducing valve | 15131-22010 · 15131-24010 |
| 15132 | Oil pump pressure reducing valve spring | 15132-40010 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 · 15133-24010 · 15133-41030 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-20010 |
| 15135 | Oil pump pressure reducing valve retaining ring | 15135-13010 |
| 15147 | Oil filter gasket | 15147-40010 |
