Toyota COROLLA 正时链条 — Figure 1303

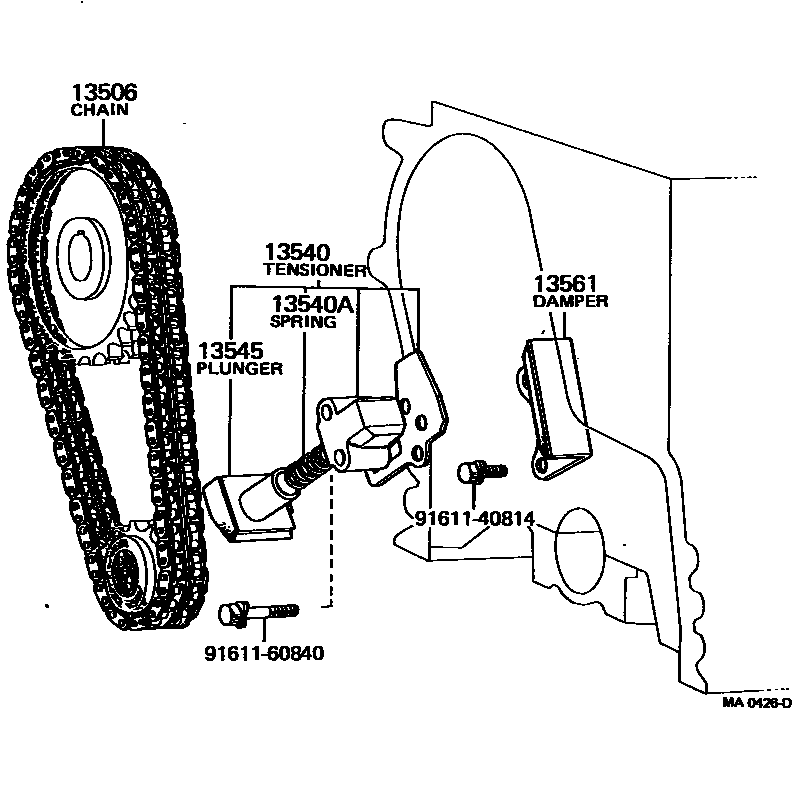

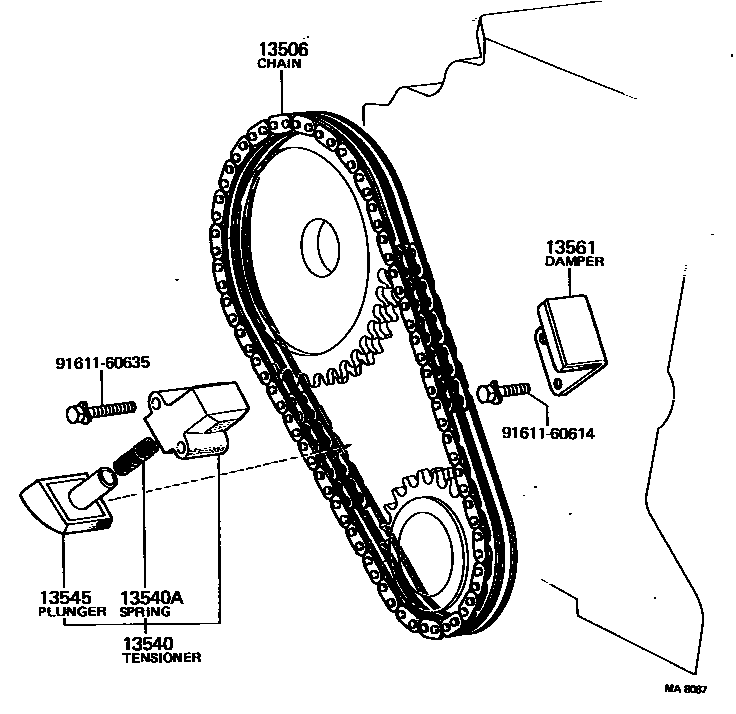

Toyota COROLLA EPC diagram 1303, 正时链条, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13506 | Chain sub-assembly | 13506-22010 · 13506-25010 |
| 13540 | No. 1 chain tensioner assembly | 13540-22012 · 13540-25010 |
| 13540A | Compression spring (for chain tensioner) | 90501-10595 |
| 13545 | chain tensioner plunger | 13545-22010 · 13545-25010 |
| 13561 | No. 1 chain shock absorber | 13561-22010 · 13561-25010 |
