Toyota COROLLA Camshaft & Valve — Figure 1302

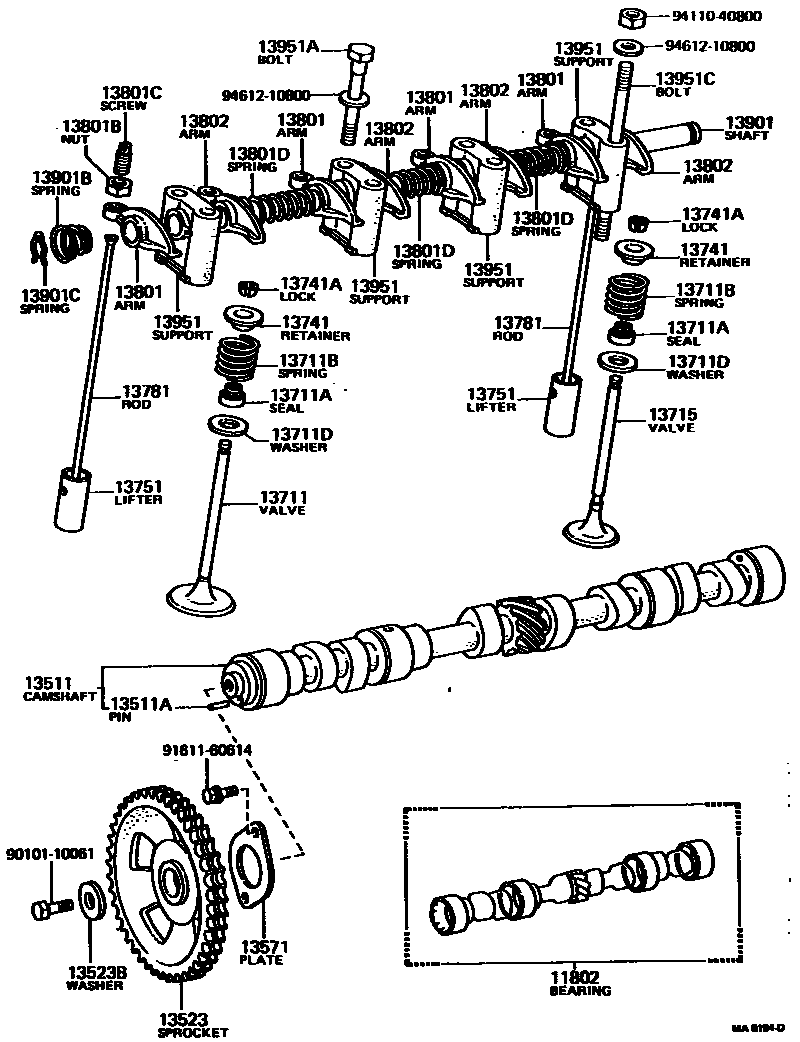

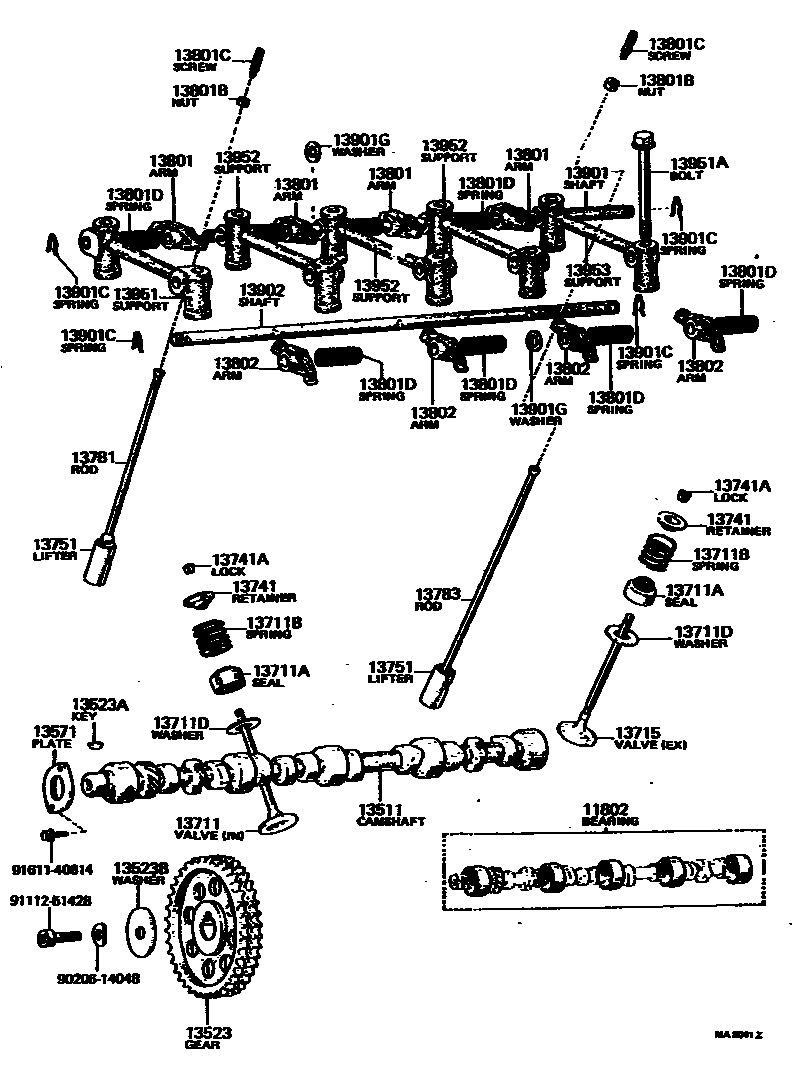

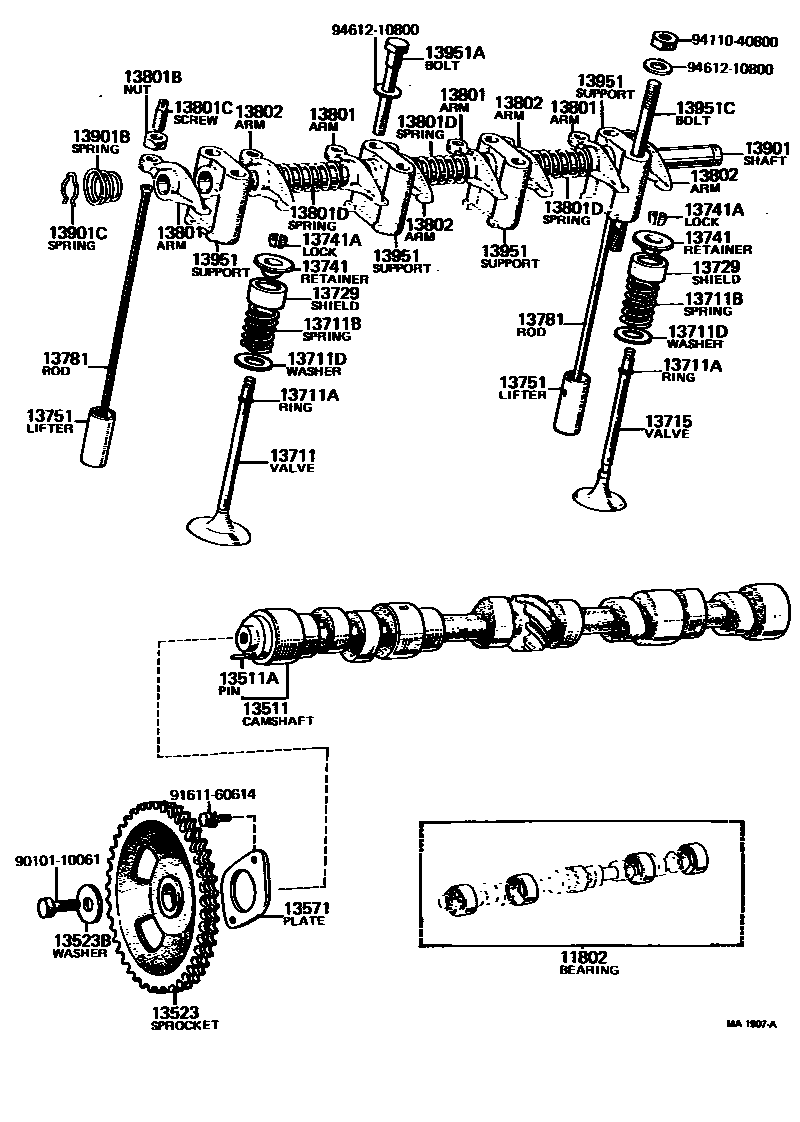

Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11802 | Camshaft bearing assembly | 11802-22010 · 11802-25010 · 11803-22010 · 11803-25010 · 11804-22010 · 11804-25010 |
| 13511 | camshaft | 13501-13010 · 13501-22010 · 13511-25010 · 13511-25030 · 13511-26010 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05121 |
| 13523 | Camshaft timing gear or sprocket | 13522-33010 · 13523-22010 |
| 13523A | Half-moon pin (for timing gear) | 90280-05010 |
| 13523B | Flat washer (for timing gear) | 90201-10489 · 90201-14293 |
| 13571 | Camshaft thrust plate | 13571-13010 · 13571-22010 · 13571-51010 |
| 13711 | intake valve | 13711-24010 · 13711-24011 · 13711-25011 |
| 13711A | Oil seal or O-ring (for valve stem) | 90301-06096 · 90913-02023 · 90913-02024 |
| 13711B | Compression spring (for inner side) | 90501-42293 · 90501-47540 |
| 13711D | Flat washer (for valve spring seat) | 90201-15247 · 90201-15387 · 90201-16002 |
| 13715 | exhaust valve | 13715-24011 · 13715-24012 · 13715-24030 · 13715-25011 |
| 13729 | Valve stem oil stop | 13729-22010 |
| 13741 | Valve spring seat ring | 13741-22011 · 13741-24020 · 13741-25011 · 13741-25012 |
| 13741A | Valve spring seat lock plate | 90913-03005 |
| 13751 | valve lifter | 13751-22012 · 13751-22013 · 13751-31010 · 13751-31020 · 13755-22012 · 13755-22013 · 13755-31010 · 13755-31020 |
| 13781 | valve pushrod | 13781-24021 · 13781-25011 |
| 13783 | No. 2 valve pushrod | 13783-25011 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13811-22011 · 13811-25011 |
| 13801B | Hex nut (for valve adjustment) | 90170-08005 · 90170-08094 |
| 13801C | valve adjustment screw | 90913-05013 |
| 13801D | Compression spring (for rocker arm) | 90501-11008 · 90501-12008 · 90501-14292 |
| 13802 | No. 2 valve rocker arm sub-assembly | 13812-22011 · 13812-25010 |
| 13901 | No. 1 valve rocker arm shaft sub-assembly | 13901-22010 · 13901-22011 · 13901-25010 |
| 13901B | Conical spring (for valve rocker arm shaft) | 90502-14022 |
| 13901C | Stop spring (for valve rocker arm shaft) | 90524-13009 |
| 13901G | Rocker shaft washer | 90201-16172 |
| 13902 | No. 2 valve rocker arm shaft sub-assembly | 13902-25010 |
| 13951 | No. 1 valve rocker arm bracket | 13951-22010 · 13951-24010 · 13951-24012 · 13951-25010 · 13952-24010 · 13952-24012 |
| 13951A | Bolts (for rocker arm bracket assembly) | 90105-08028 · 90910-01005 · 90910-01011 · 90910-02040 |
| 13951C | Stud bolts (for rocker arm bracket) | 90116-08082 · 90116-08127 |
| 13952 | No. 2 valve rocker arm bracket | 13952-25010 |
| 13953 | No. 3 valve rocker arm bracket | 13953-25010 |
