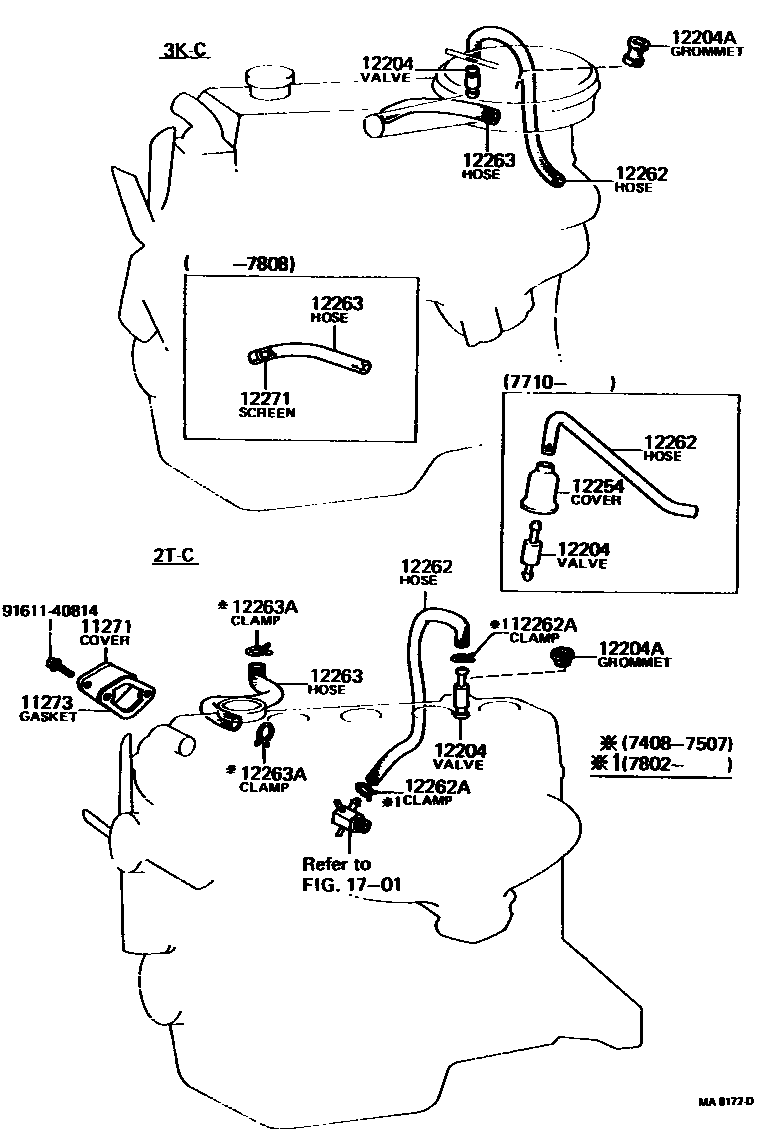

Toyota COROLLA Ventilation Hose — Figure 1201
Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11271 | Cylinder block side cover | 11272-26010 |
| 11273 | Cylinder block side cover gasket | 11274-26010 |
| 12204 | Ventilation valve sub-assembly | 12204-24011 · 12204-34010 |
| 12204A | Gasket (for ventilation system) | 90480-16003 · 90480-16157 · 90480-18180 |
| 12254 | Ventilation valve cover | 12236-24010 |
| 12262 | Ventilation hose No. 2 | 12261-22010 · 12261-24020 · 12261-24021 · 12261-25011 |
| 12262A | Clamp (for vent hose No. 2) | 90467-16010 |
| 12263 | No. 3 ventilation hose | 12262-25010 · 90910-05040 · 90910-05130 |
| 12263A | Clip (for ventilation hose) | 90467-20020 |
| 12271 | Oil separator partition | 12271-24010 |
