Toyota COROLLA Cylinder Block — Figure 1105

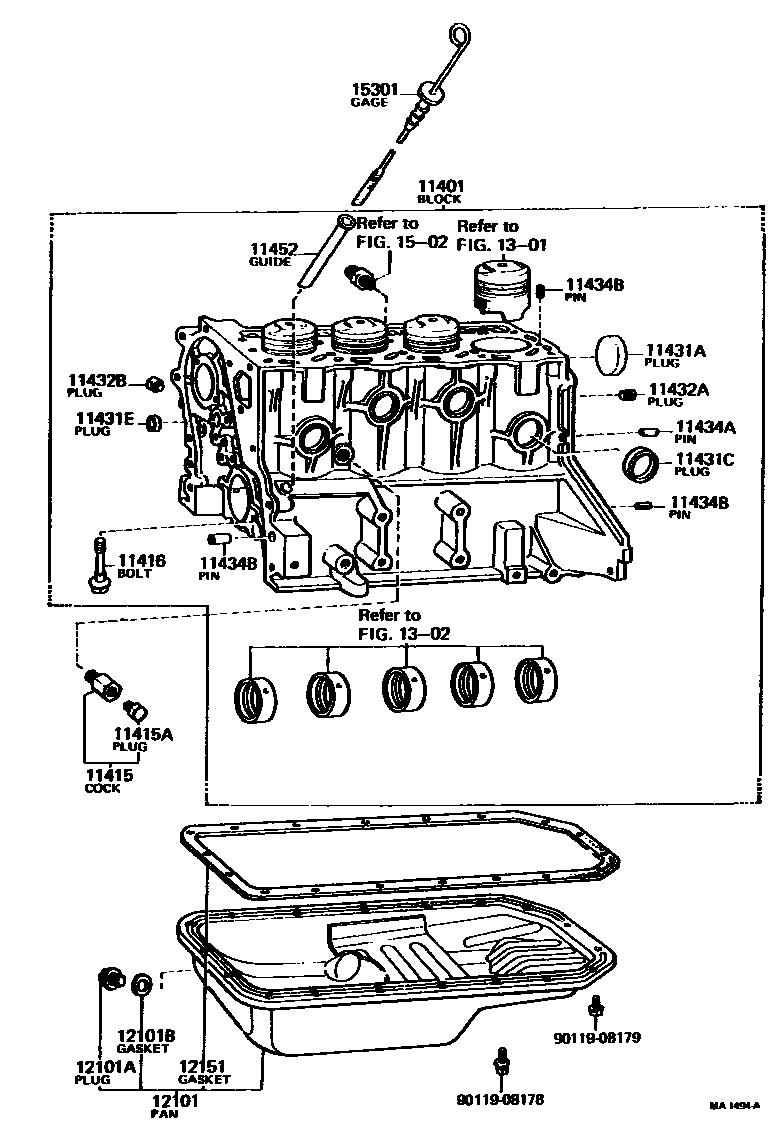

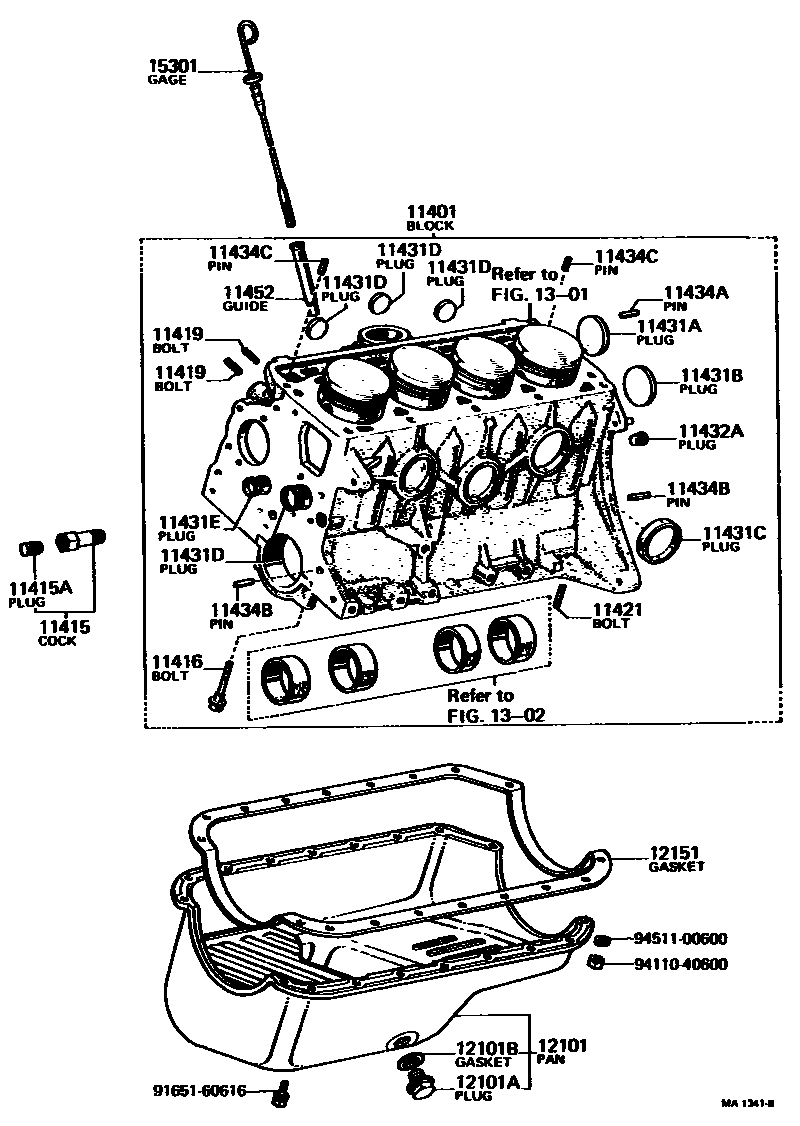

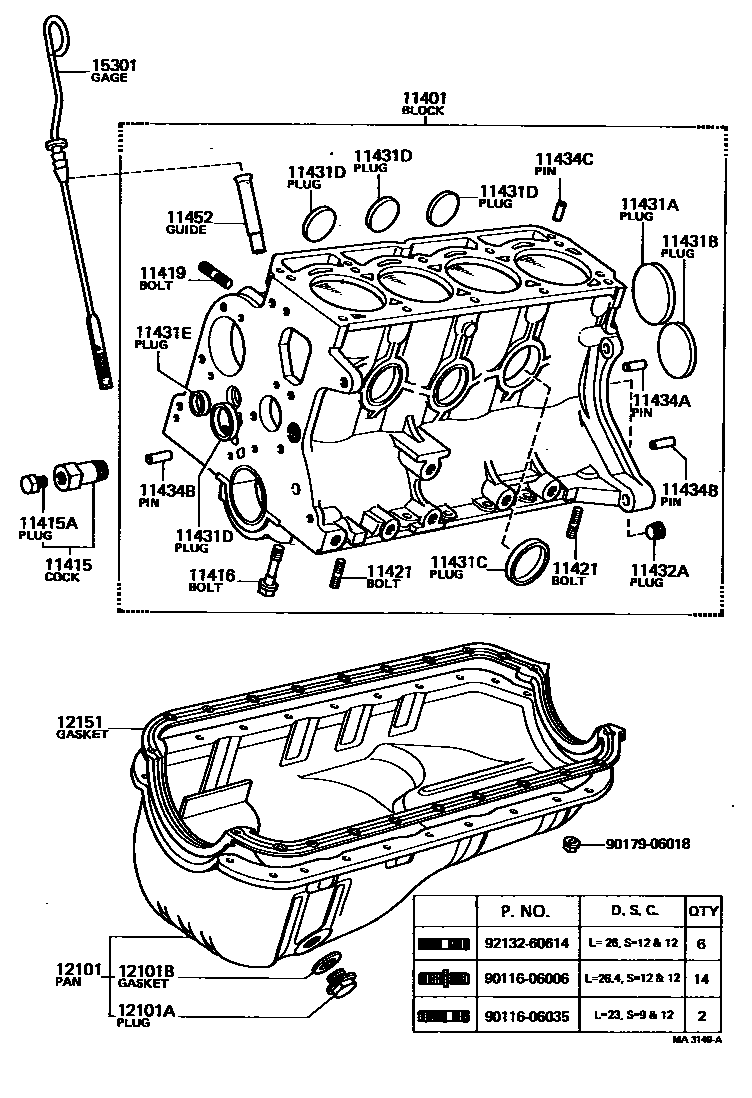

Toyota COROLLA EPC diagram 1105, Cylinder Block, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-29086 · 11401-29087 · 11401-29088 · 11401-29095 · 11401-29096 · 11401-29097 · 11401-29116 · 11401-29145 · 11401-29205 · 11401-29206 · 11401-29215 · 11401-29216 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09057 · 96431-03833 · 96431-03850 · 96431-03873 |
| 11415A | Water drain switch screw plug (for cylinder block) | 96431-23814 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02019 · 90910-02032 |
| 11419 | Studs (for fuel pump) | 90116-08288 |
| 11421 | Stud bolts (for oil pan) | 90116-06006 · 90116-06012 · 92132-40614 · 92132-60614 |
| 11431A | No. 1 sealing plug (for cylinder block) | 90331-47025 · 90331-50015 · 96411-45000 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-44500 |
| 11431C | No. 3 sealing plug (for cylinder block) | 90331-35014 · 96411-43500 |
| 11431D | No. 4 sealing plug (for cylinder block) | 96411-42500 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-01800 · 96412-01800 |
| 11432A | No. 1 headed tapered thread plug | 90344-53011 |
| 11432B | No. 2 headed tapered thread plug | 90345-51005 · 90345-51025 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-08120 · 90250-10113 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-08120 · 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-08054 · 90250-08120 |
| 11452 | Engine oil level gauge guide | 11452-13010 · 11452-22011 · 11452-40010 |
| 12101 | Oil pan sub-assembly | 12101-19025 · 12101-29045 · 12101-29055 · 12101-29065 · 12101-29075 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-18089 |
| 12101B | Gasket (for oil pan drain plug) | 90430-18244 |
| 12151 | oil pan gasket | 12151-12010 · 12151-24020 · 12151-24021 · 12151-25010 |
| 15301 | Engine oil level scoring assembly | 15301-13010 · 15301-22011 · 15301-25011 · 15301-28010 · 15301-28011 |
