Toyota COROLLA Cylinder Head — Figure 1104

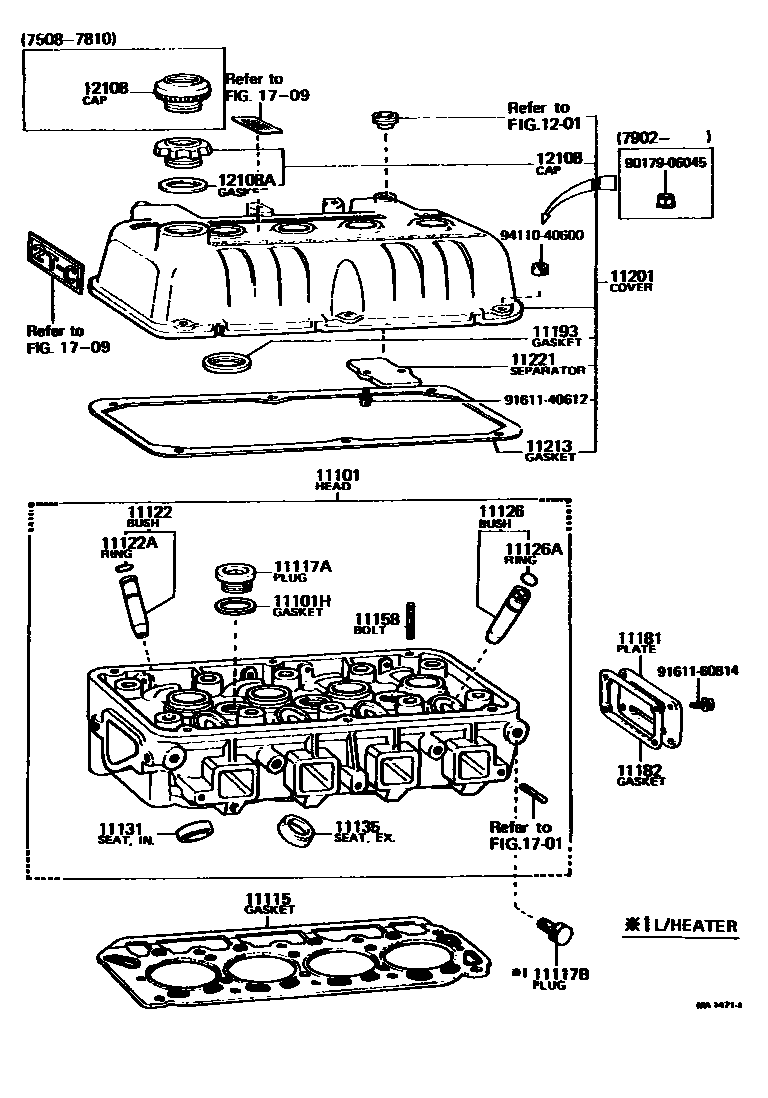

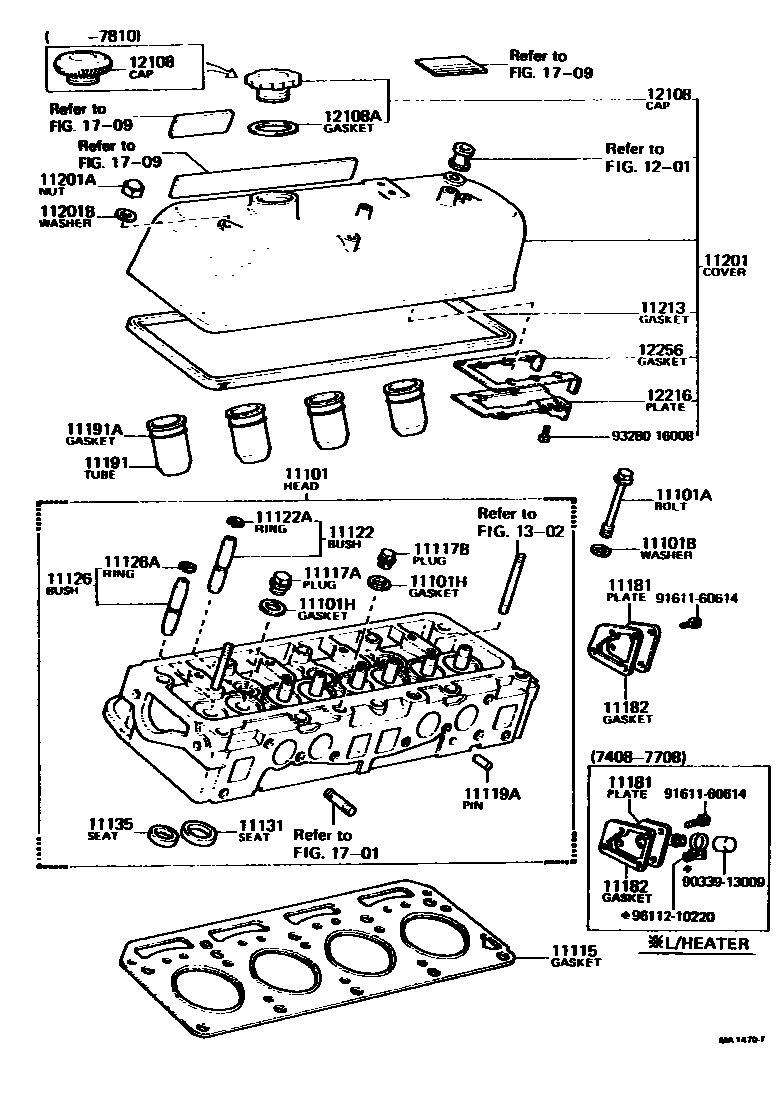

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-29135 · 11101-29136 · 11101-29205 · 11101-29206 · 11101-29207 · 11101-29228 · 11101-29237 · 11101-29238 · 11101-29276 · 11101-29277 · 11101-29285 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02020 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10005 · 90201-10344 |
| 11101H | Gasket (for cylinder head thread plug) | 90430-15151 · 90430-18152 · 90430-24246 |
| 11115 | GASKET, CYLINDER HEAD | 11115-13010 · 11115-24012 · 11115-24013 · 11115-26021 · 11115-26022 · 11115-26023 · 11115-26024 |
| 11117A | No. 1 headed tapered thread plug | 90341-18063 · 90341-24090 |
| 11117B | No. 2 headed tapered thread plug | 90341-15045 · 90345-53007 |
| 11119A | No. 1 direct sales | 90250-08120 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-22020 · 11122-24020 · 11122-25021 · 11123-22020 · 11123-24020 · 11123-25021 |
| 11122A | Shaft snap ring (for valve guide bushing) | 90520-12049 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11126-22020 · 11126-24020 · 11126-25021 · 11127-22020 · 11127-24020 · 11127-25021 |
| 11126A | Shaft snap ring (for valve guide bushing) | 90520-12049 |
| 11131 | intake valve seat | 11131-24010 · 11131-25010 · 11132-24010 · 11132-25010 |
| 11135 | Exhaust valve seat | 11135-13010 · 11135-24012 · 11135-25011 · 11136-13010 · 11136-24010 · 11136-25011 |
| 11158 | STUD (FOR CYLINDER HEAD TO HEAD COVER) | 92122-40618 · 92122-40620 |
| 11181 | cylinder head rear plate | 11181-24010 · 11181-24020 · 11181-25010 |
| 11182 | Rear cylinder head gasket | 11182-24010 · 11182-25010 |
| 11191 | spark plug sleeve | 11191-22010 |
| 11191A | Gasket (for spark plug bushing) | 90430-31141 |
| 11193 | spark plug bushing gasket | 11193-25011 · 11193-25012 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-19015 · 11201-19025 · 11201-19026 · 11201-29037 · 11201-29038 · 11201-29106 · 11201-29107 · 11201-29108 · 11201-29125 · 11201-29127 |
| 11201A | Cap nut (for cylinder head cover) | 94171-10800 |
| 11201B | Gasket (for cylinder head cover) | 90210-08017 · 90210-09007 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-22010 · 11213-25010 · 11213-25011 |
| 11221 | No. 1 cylinder head cover separator | 11221-25010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12181-12903 · 12181-12904 · 12181-31020 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-37140 |
| 12216 | ventilation baffle | 12216-22010 |
| 12256 | ventilation baffle | 12256-22010 |
