Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 2 images and 1 PNC and OE references.

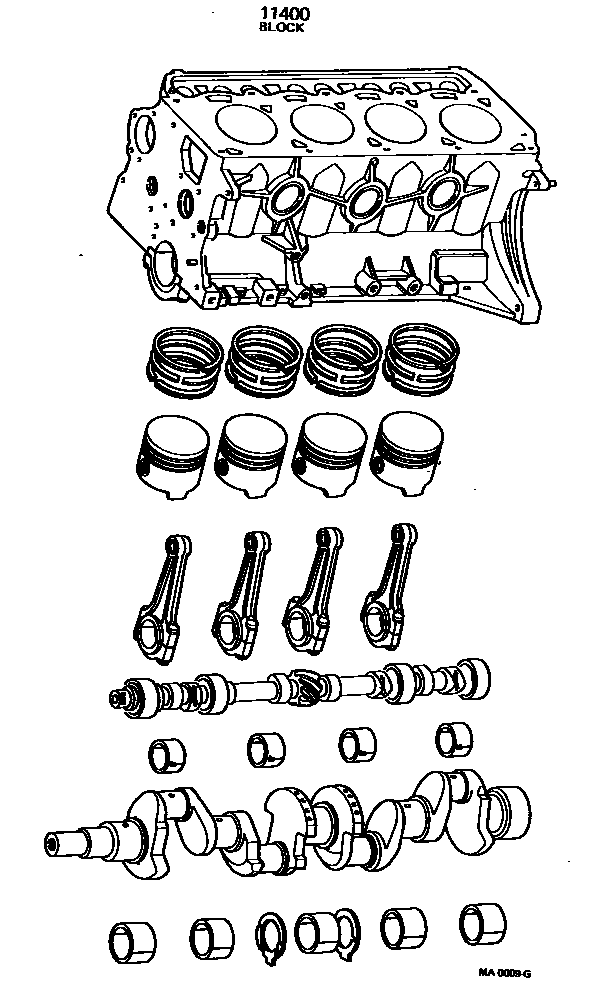

Toyota COROLLA Short Block Assembly EPC diagram — MA0009G
Short Block Assembly — MA0009G (197408 – 197908)

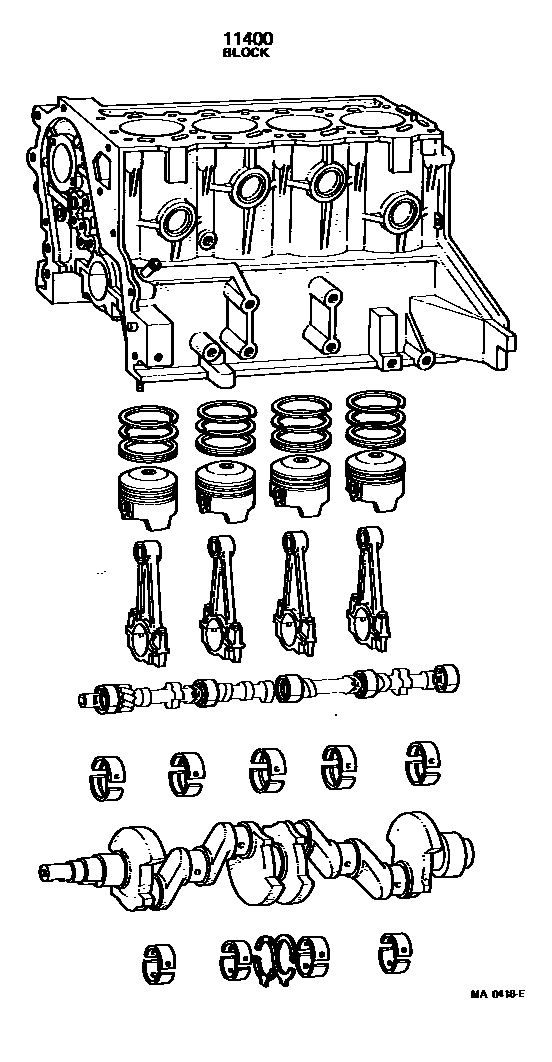

Toyota COROLLA Short Block Assembly EPC diagram — MA0418E
Short Block Assembly — MA0418E (197408 – 197908)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-24020 · 11400-24021 · 11400-26013 · 11400-26021 · 11400-26022 · 11400-26023 · 11400-26050 · 11400-26051 · 11400-26060 · 11400-26061
