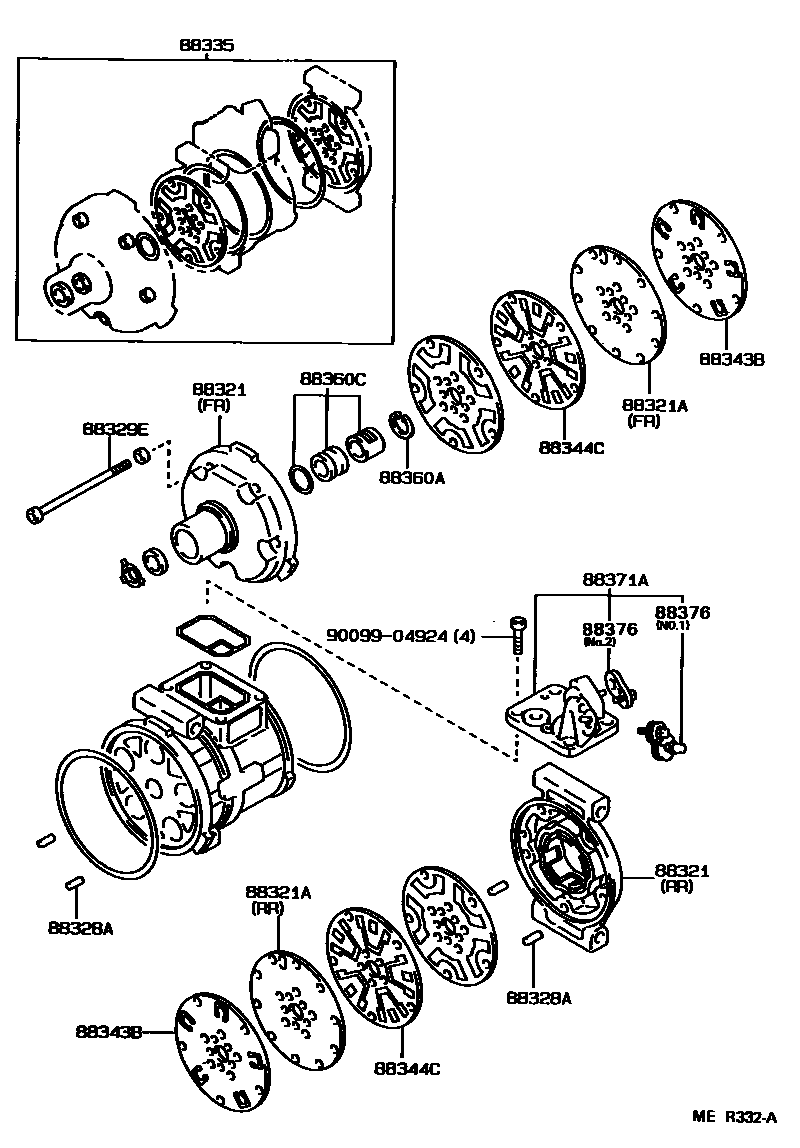

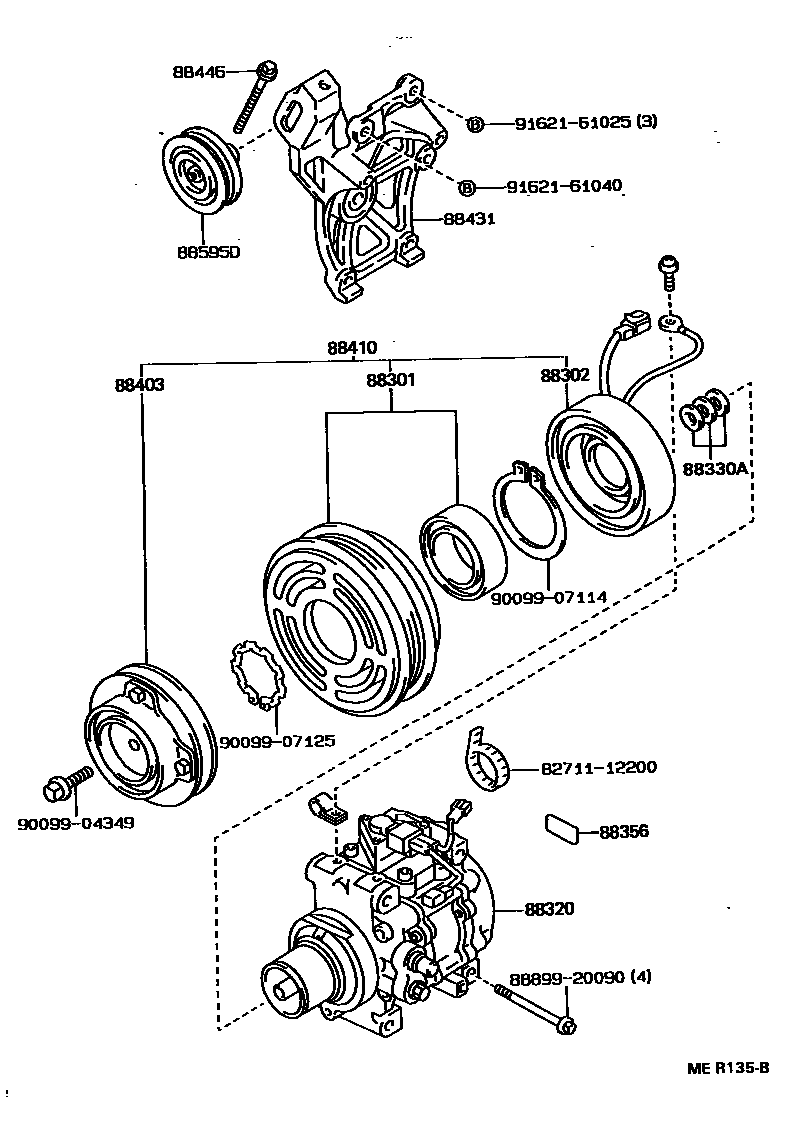

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-12190 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-12141 · 88411-12150 |
| 88320 | Cooler Compressor Assembly | 88320-12720 |
| 88321 | Cooler compressor cylinder head | 88321-14021 · 88322-14020 |
| 88321A | Valve sub-assembly | 88341-14020 · 88342-14020 |
| 88328A | compressor pin | 90099-08058 |
| 88329E | No. 1 compressor bolt | 90099-04370 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 · 90099-01553 · 90099-01554 · 90099-01555 |
| 88335 | Overhaul gasket assembly | 88335-14010 |
| 88343B | suction valve reed | 88343-14020 |
| 88344C | Discharge valve reed | 88344-14020 |
| 88356 | Compressor warning label | 88356-12010 |
| 88360A | Compressor seal ring | 90096-90022 |
| 88360C | Shaft seal assembly | 88360-14030 |
| 88371A | suction valve | 88371-12350 |
| 88376 | blind cover | 88376-17020 · 88376-22020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-16011 |
| 88410 | Magnetic Clutch Assembly | 88410-12330 |
| 88431 | Compressor No. 1 mounting bracket | 88431-12380 |
| 88446 | Idler gear bolt | 88446-12030 |
| 88595D | Idler gear assembly | 88440-17010 |
