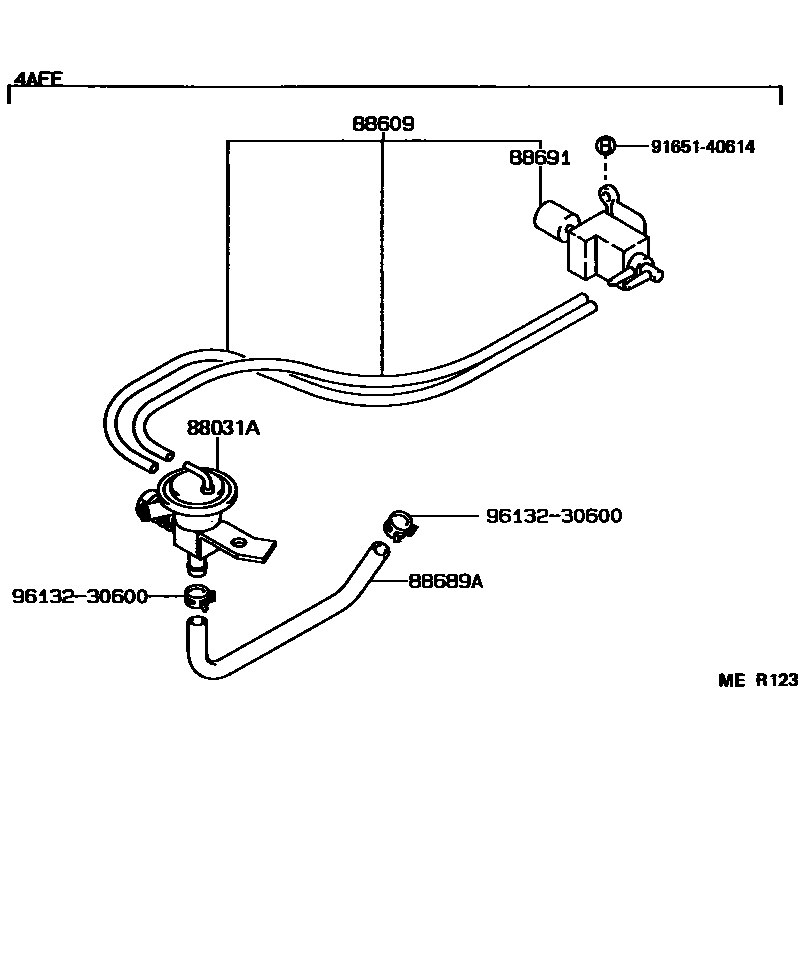

Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717
Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-12050 |
| 88609 | Idle speed lifting device sub-assembly | 88609-12540 |
| 88689A | Cooler Vacuum Hose No. 1 | 88689-12310 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12750 |
