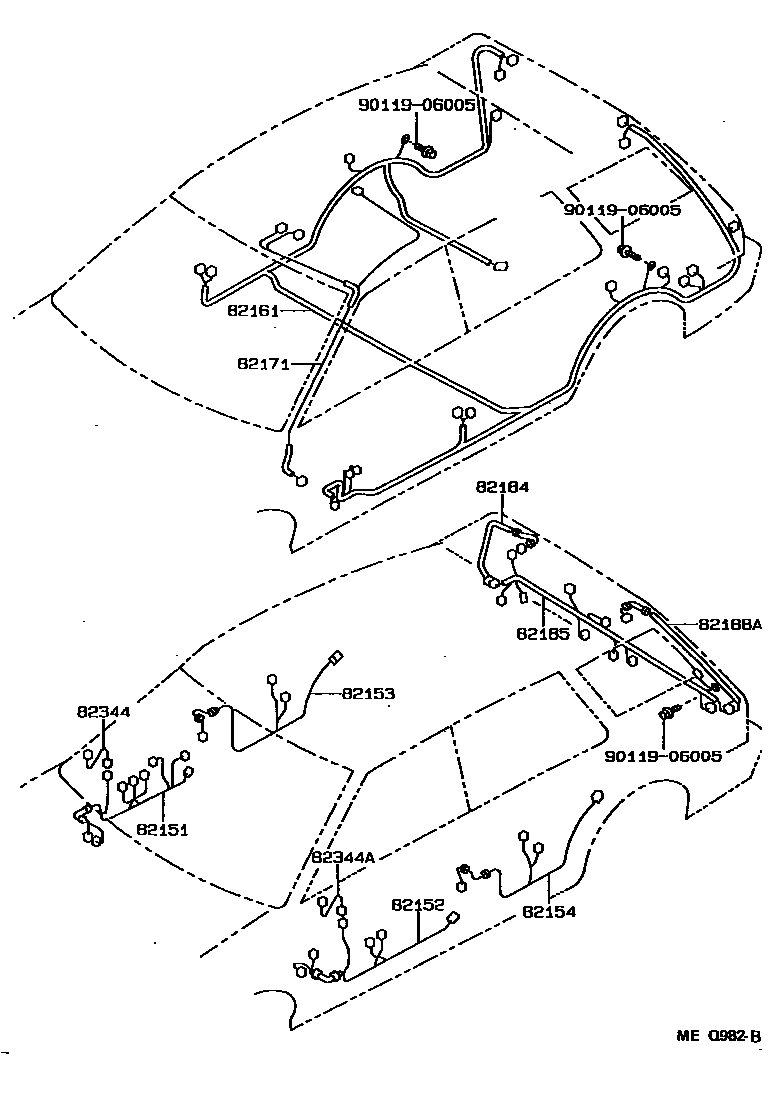

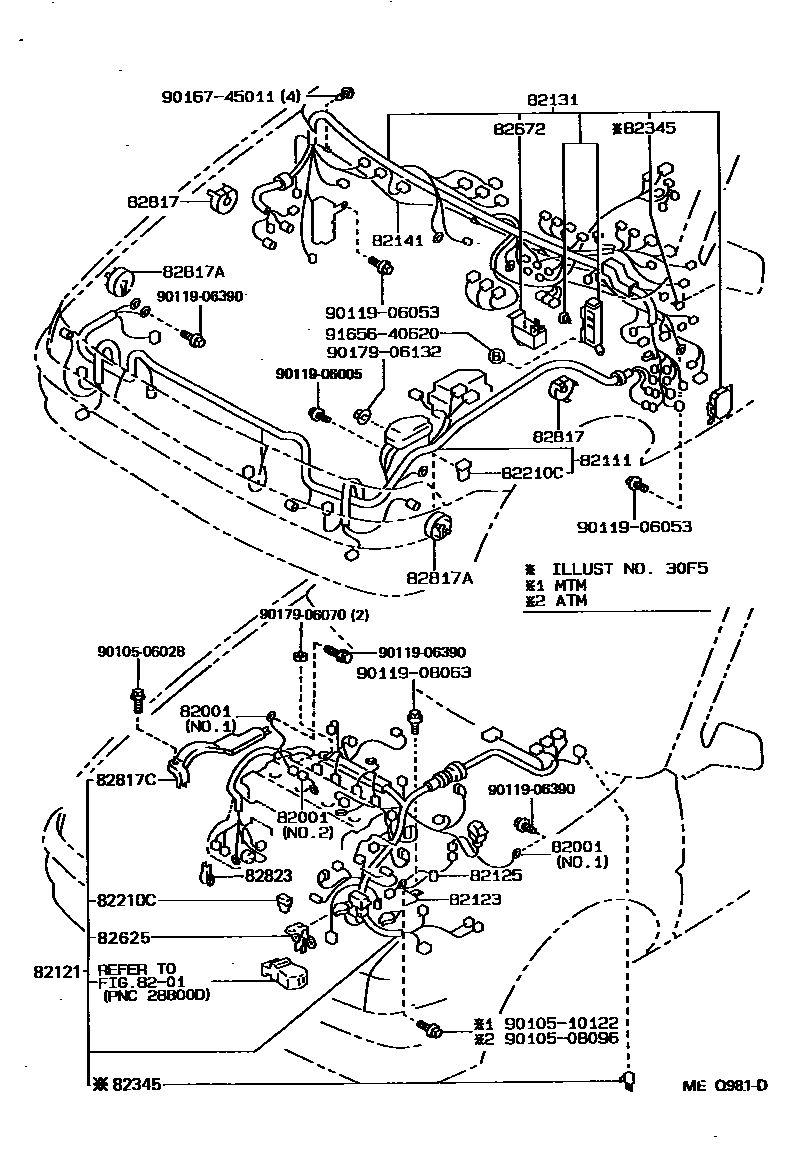

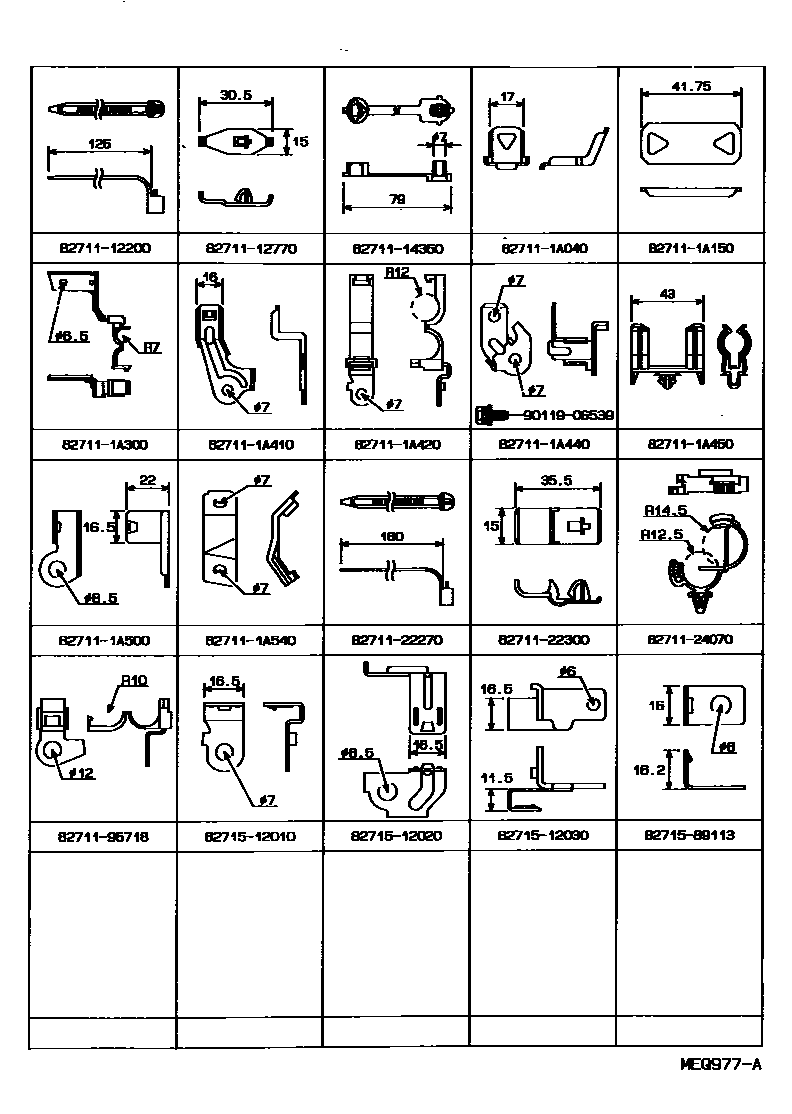

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 5 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07206 · 90980-07299 |
| 82111 | Engine room main wiring harness | 82111-13150 · 82111-13151 · 82111-13160 · 82111-13161 · 82111-13180 · 82111-13190 |
| 82121 | Engine wiring harness | 82121-1E400 · 82121-1E410 |
| 82123 | Engine No. 3 wiring harness | 82123-12170 |
| 82125 | Transmission wiring harness | 82125-12340 |
| 82131 | Front panel wiring harness | 82131-13540 · 82131-13550 · 82131-13560 · 82131-13570 · 82131-13580 · 82131-13581 · 82131-13590 · 82131-13591 · 82131-13600 · 82131-13601 · 82131-13610 · 82131-13611 |
| 82141 | Dashboard wiring harness | 82141-12100 |
| 82151 | Right front door wiring harness | 82151-12260 · 82151-12620 |
| 82152 | Left front door wiring harness | 82152-12400 · 82152-12540 |
| 82153 | Rear door wiring harness No. 1 | 82153-12160 |
| 82154 | Rear door wiring harness No. 2 | 82154-12160 |
| 82161 | floor wiring harness | 82161-1H230 · 82161-1H240 · 82161-1H250 |
| 82171 | Roof No. 1 wiring harness | 82171-12420 · 82171-12430 · 82171-13080 · 82171-13090 |
| 82184 | Rear door No. 1 wiring harness | 82184-12280 |
| 82185 | Rear door wiring harness No. 2 | 82185-13130 · 82185-13180 |
| 82188A | Rear door No. 3 wiring harness | 82188-12010 · 82188-12020 |
| 82210C | fuse | 90982-08188 · 90982-08189 · 90982-08223 · 90982-08246 |
| 82344 | Right rearview mirror wiring harness | 82344-12010 |
| 82344A | Left rearview mirror wiring harness | 82344-12010 |
| 82345 | diode | 82345-12030 · 82345-12050 |
| 82625 | Fuse terminal | 82625-12060 |
| 82672 | Junction box cover | 82672-12111 |
| 82817 | No. 1 wire harness protection device | 82817-14350 |
| 82817A | No. 2 wire harness protection device | 82817-32010 |
| 82817C | No. 4 wire harness protection device | 82817-12700 |
| 82823 | No. 1 terminal cover | 82823-22050 |

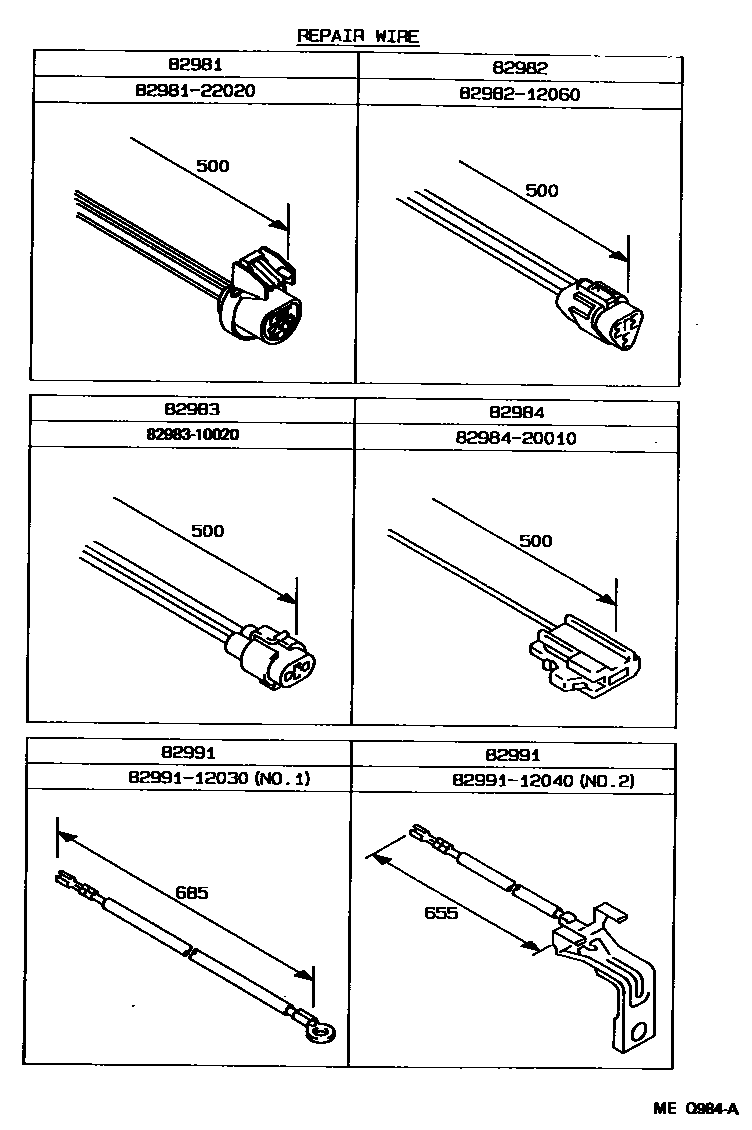

| 82981 | Headlight repair line | 82981-22020 |
| 82982 | Width light repair line | 82982-12060 |
| 82983 | Front turn signal lamp repair line | 82983-10020 |
| 82984 | Speaker repair line | 82984-20010 |
| 82991 | Fuse repair line | 82991-12030 · 82991-12040 |
