Toyota COROLLA 燃油箱和燃油管 — Figure 7701

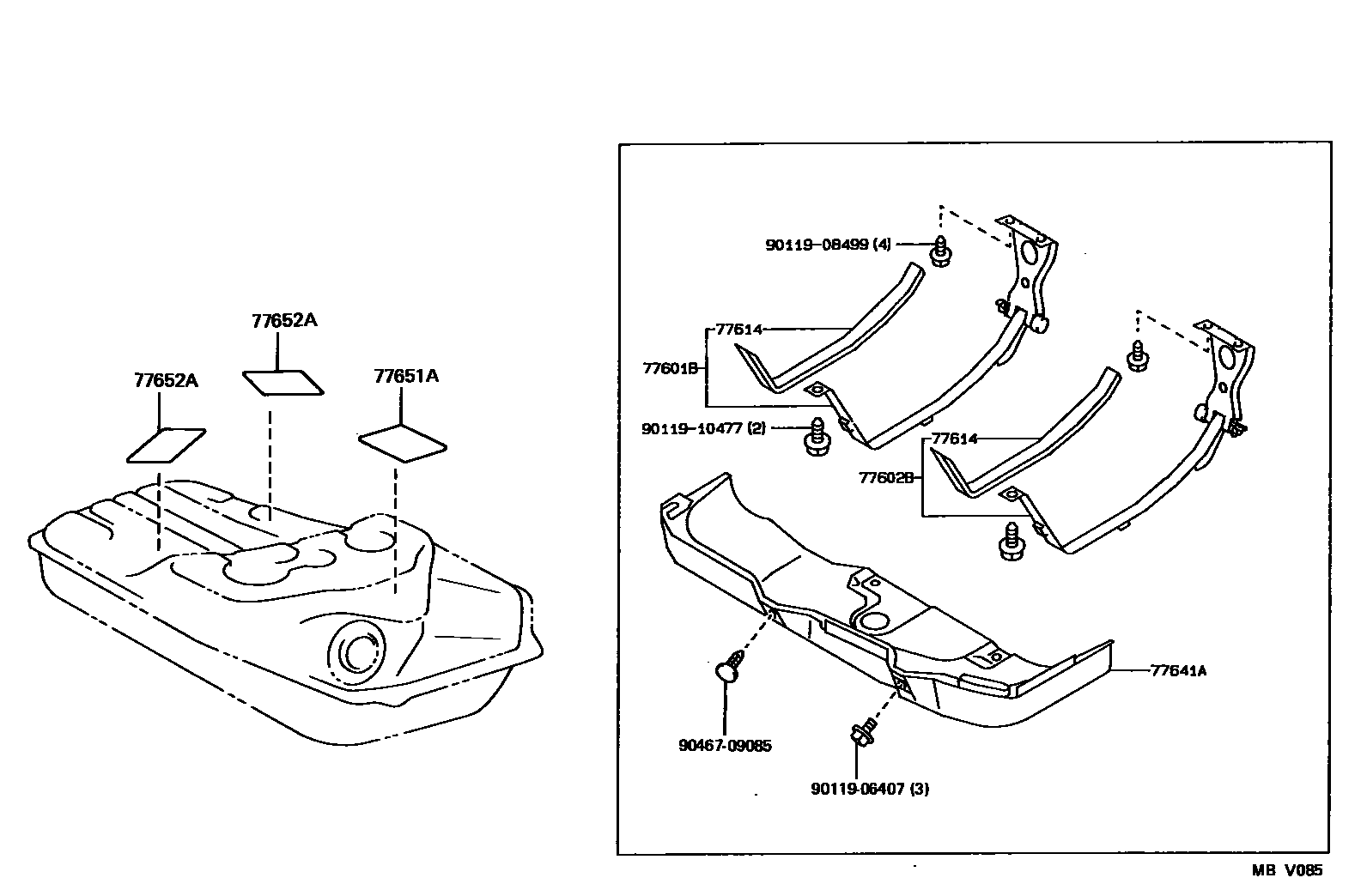

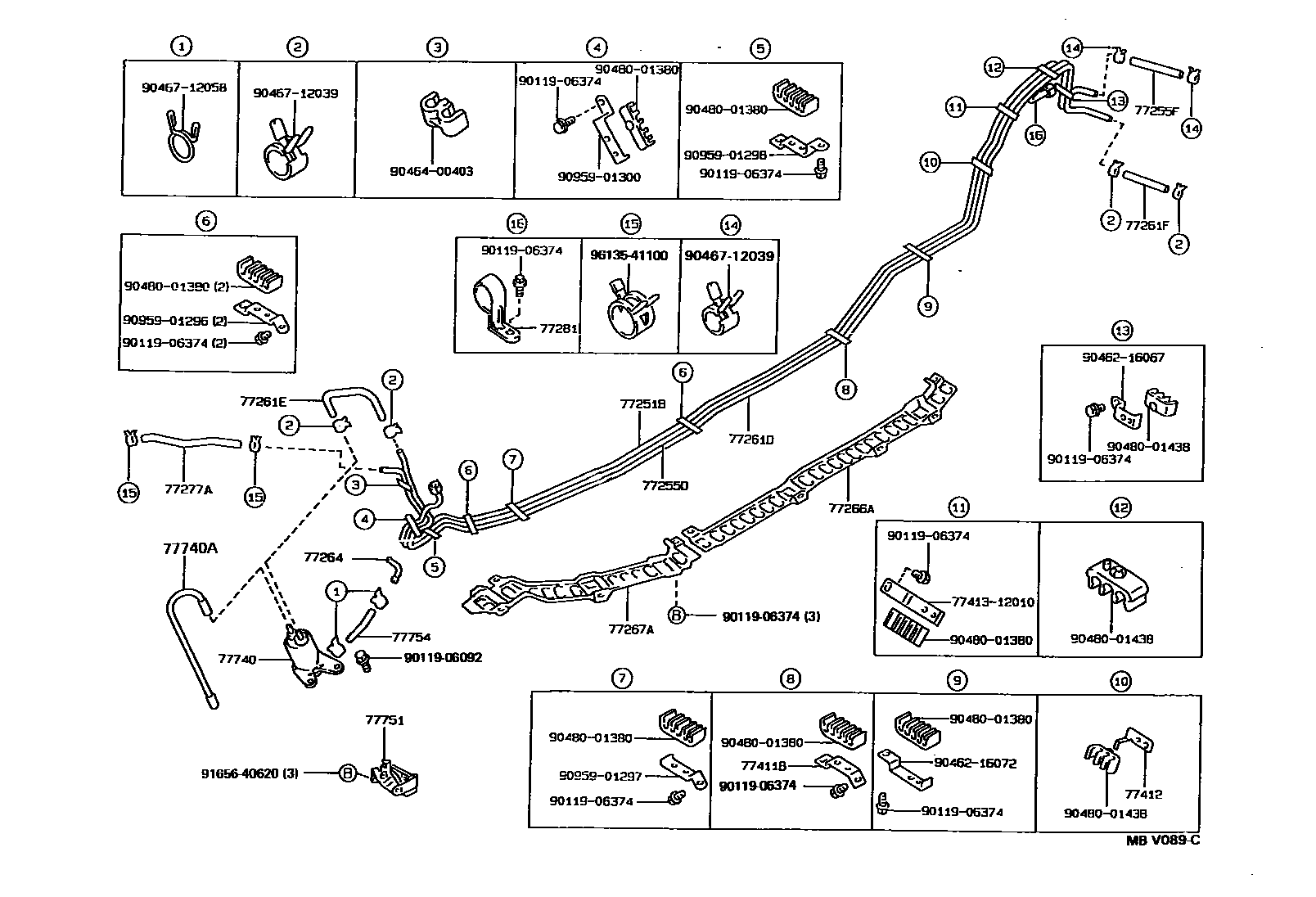

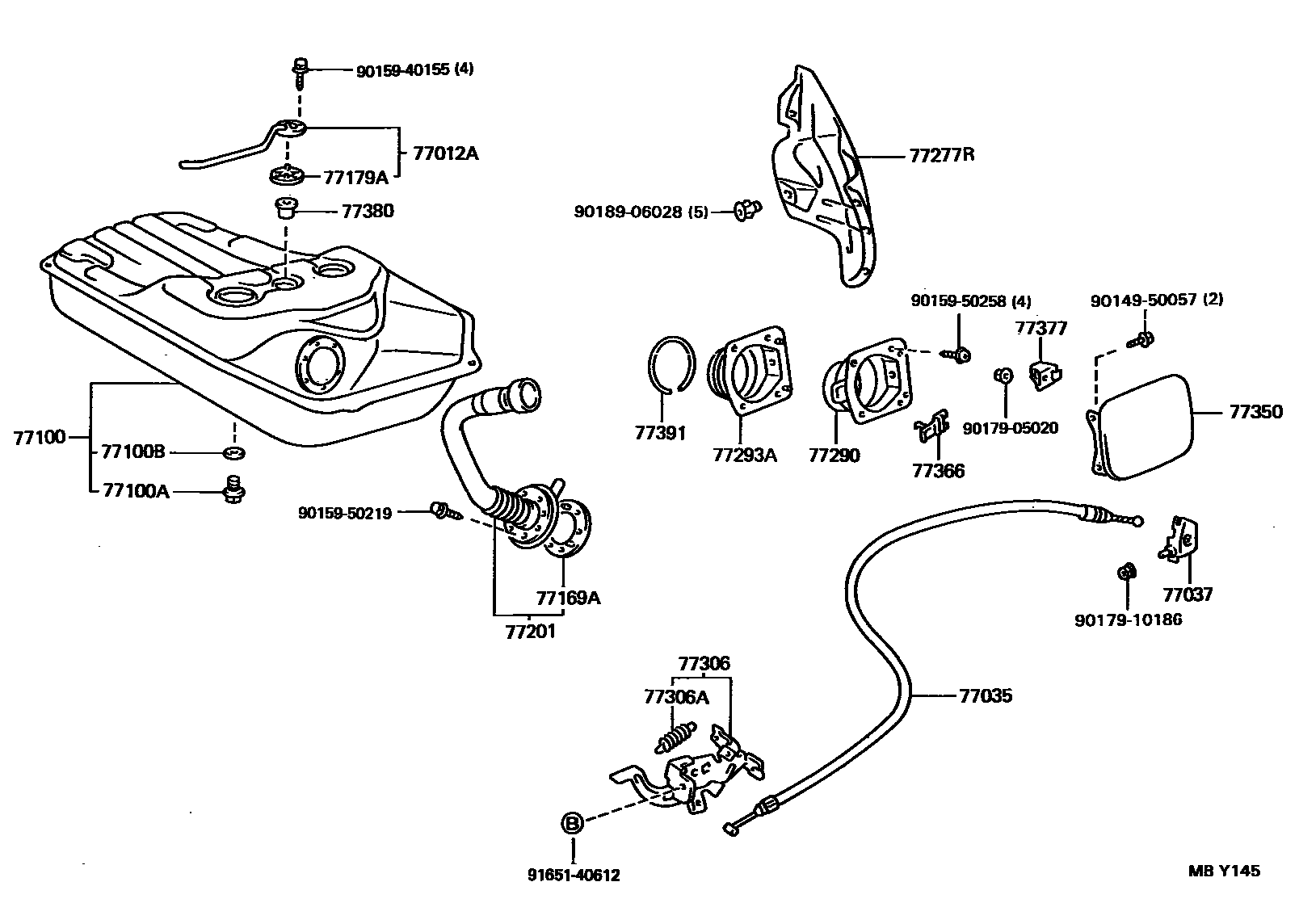

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 3 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77012A | No. 1 fuel tank breather pipe sub-assembly | 77012-12060 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12260 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-12050 |
| 77100 | fuel tank assembly | 77001-19565 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20007 |
| 77169A | Fuel suction pipe fixed gasket | 77169-12020 |
| 77179A | fuel tank breather gasket | 77179-16010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-12370 |
| 77251B | main fuel pipe | 77251-12430 |
| 77255D | fuel return pipe | 77255-12380 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 77279-12090 · 95333-06030 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12280 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77259-12120 |
| 77261F | No. 2 fuel hose (for fuel tank to canister pipe) | 77249-12060 |
| 77264 | Carbon canister to front side member pipe | 77264-12160 |
| 77266A | No. 1 fuel line protection device | 77266-12050 |
| 77267A | No. 2 fuel pipe protection device | 77267-12060 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 90447-12102 |
| 77277R | Fuel tank filler pipe protection device | 77277-12110 |
| 77281 | No. 1 main fuel pipe bracket | 77281-12020 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-12070 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-12040 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-13030 |
| 77306A | Fuel filler cap opening lever spring | 90506-09004 |
| 77350 | Fuel filler cap assembly | 77350-12240 |
| 77366 | Fuel filler cap hinge spring | 77360-12010 |
| 77377 | Fuel filler cap lock retainer | 77377-12040 |
| 77380 | Fuel shut-off valve assembly | 77380-14020 |
| 77391 | fuel inlet ring | 77391-14020 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-12010 |
| 77412 | No. 2 fuel pipe retaining ring bracket | 77412-12010 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-12161 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-12110 |
| 77614 | Fuel tank strap seat | 77681-12020 · 77682-12010 |
| 77641A | No. 1 fuel tank protective shell | 77641-12150 |
| 77651A | No. 1 fuel tank liner | 77652-12070 |
| 77652A | No. 2 fuel tank liner | 77652-12090 |
| 77740 | Carbon canister assembly | 77740-12570 |
| 77740A | No. 1 fuel hose (for canister) | 90447-04125 |
| 77751 | Carbon canister base bracket | 77750-12050 |
| 77754 | No. 1 carbon canister outlet hose | 77754-12130 |
