Toyota COROLLA 挡泥板和扰流板 — Figure 7601

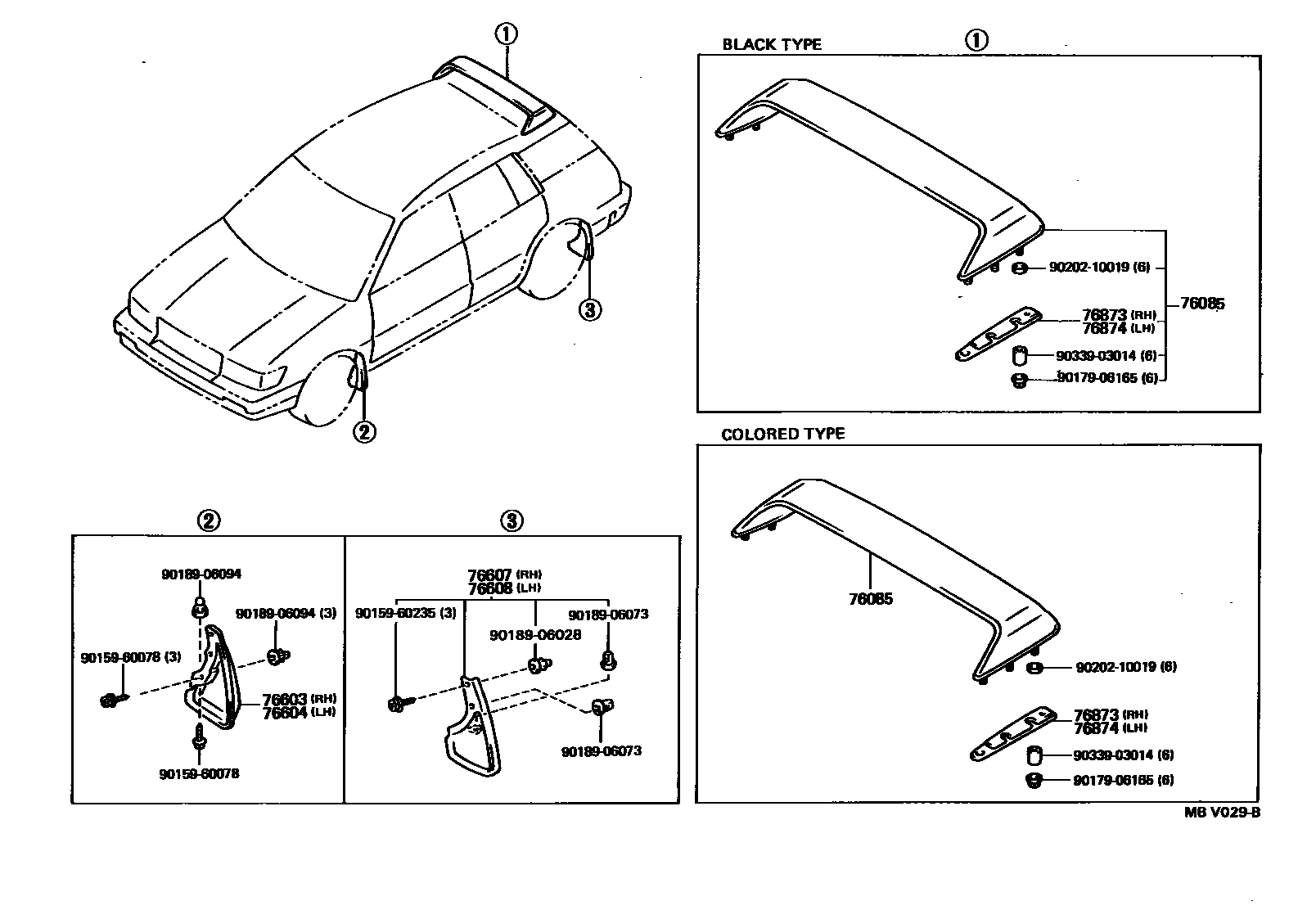

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76085 | Rear spoiler sub-assembly | 76085-12160 · 76085-12904 |
| 76603 | Right front fender fender sub-assembly | 76621-12050 |
| 76604 | Left front fender fender sub-assembly | 76622-12050 |
| 76607 | Right rear side fender sub-assembly | 76625-19265 |
| 76608 | Left rear side fender sub-assembly | 76626-19275 |
| 76873 | No. 2 rear spoiler protective strip | 76873-12080 |
| 76874 | No. 3 rear spoiler protective strip | 76874-12080 |
