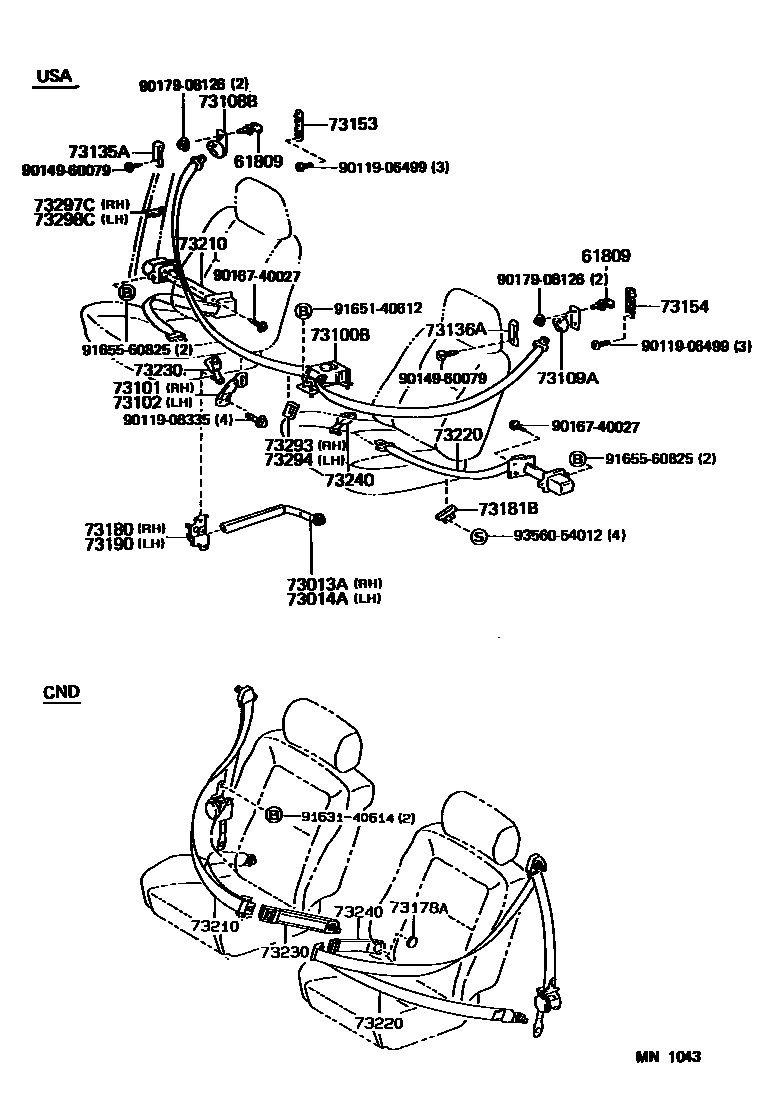

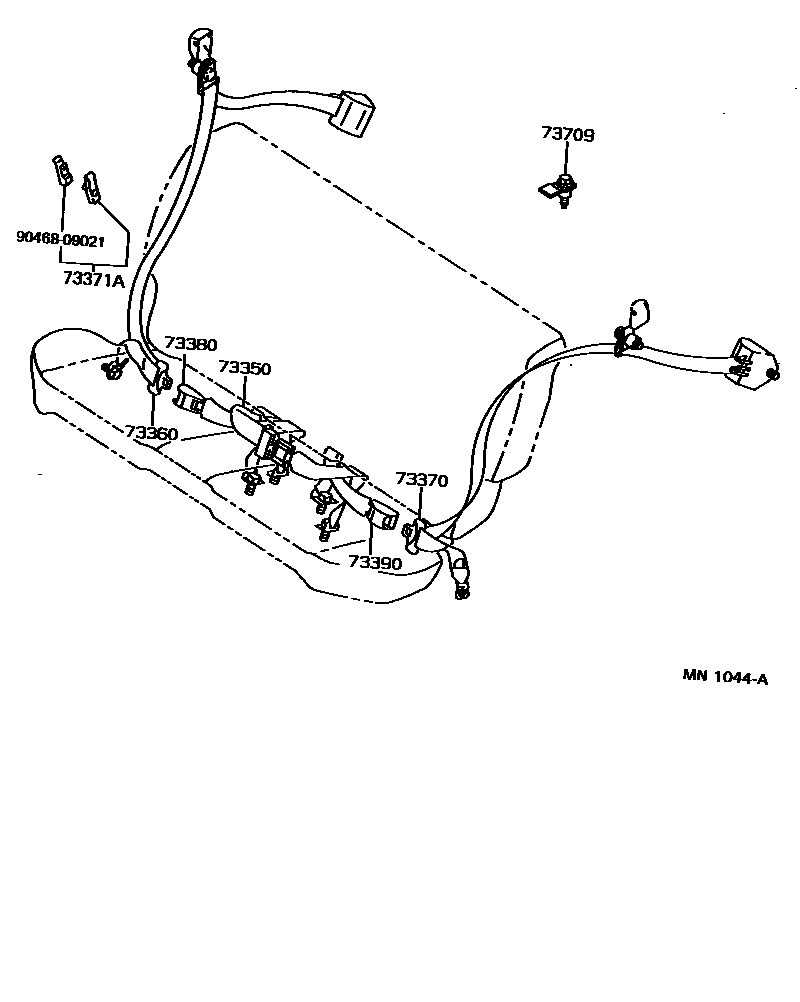

Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104
Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61809 | Shoulder belt anchor pin sub-assembly | 61809-12010 · 61809-12030 · 61809-12040 |
| 73153 | Front right shoulder safety belt anchor U-shaped clip | 73153-12011 |
| 73154 | Front left shoulder safety belt anchor U-shaped clip | 73154-12011 |
| 73180 | Right seat belt inner anchor bracket assembly | 73011-12060 |
| 73190 | Left side seat belt inner anchor bracket assembly | 73012-12060 |
| 73709 | Tie anchor bracket sub-assembly | 73709-20020 |
