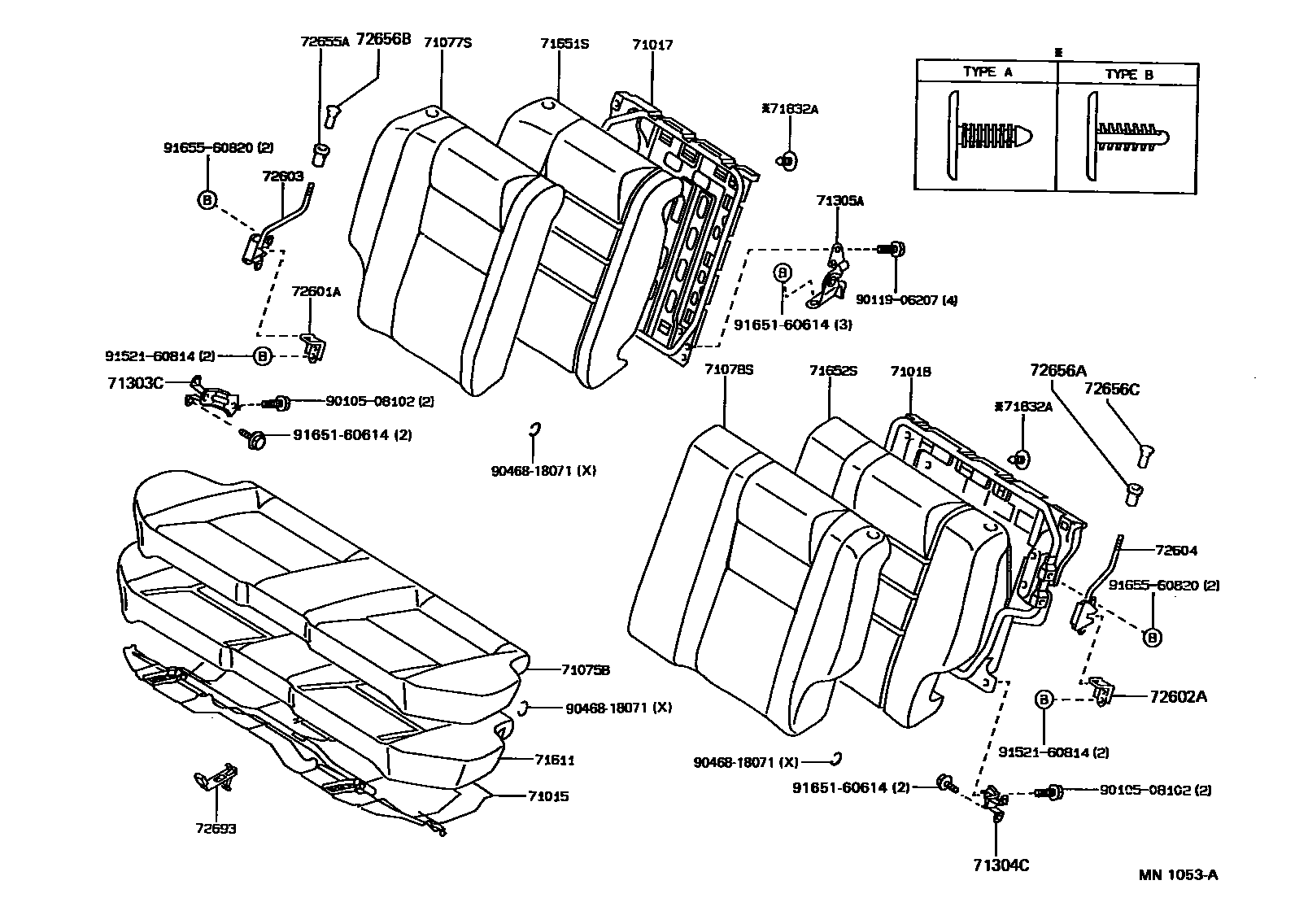

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-12290 |
| 71017 | Right rear seat back frame sub-assembly | 71017-12330 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12110 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-12090 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-12030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12090 |
| 71611 | Rear seat cushion cushion | 71611-12610 · 71611-12620 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12700 · 71651-12710 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12490 · 71652-12500 |
| 72601A | Right rear seat back lock sub-assembly | 72601-16050 |
| 72602A | Rear left seat back lock sub-assembly | 72601-16050 |
| 72603 | Rear right seat back lock sub-assembly | 72630-12190 |
| 72604 | Rear left seat back lock sub-assembly | 72640-12180 |
| 72693 | Rear seat cushion hook | 72693-12040 |
