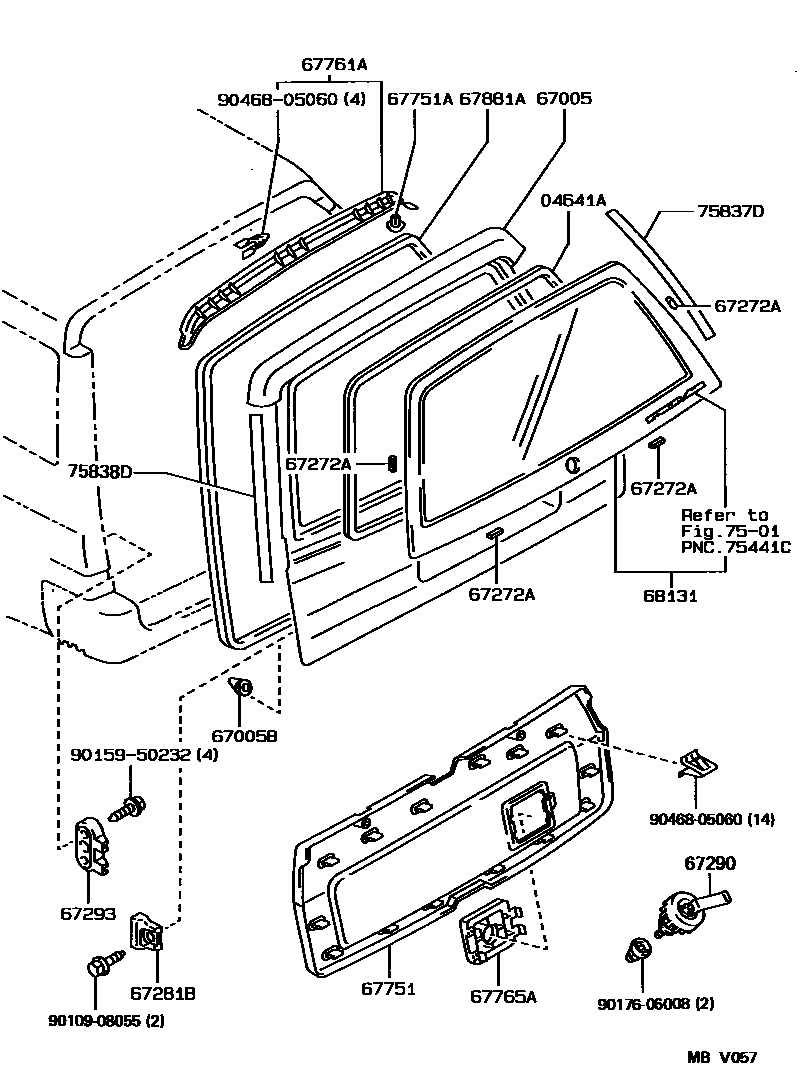

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641A | Rear window glass adhesive sealing strip assembly | 04562-12010 |
| 67005 | Rear door panel sub-assembly | 67005-1A501 |
| 67005B | Cushion pad (for back door panel) | 64459-12010 |
| 67272A | No. 2 rear door stop buffer pad | 67272-12030 |
| 67281B | Back door lower block | 67283-12010 · 67284-12010 |
| 67290 | Back door shock absorber assembly | 67290-13020 |
| 67293 | Back door lower block cushion | 67293-20020 |
| 67881A | Back door seal | 67881-12220 |
| 68131 | back door glass | 68131-1A050 · 68131-1A200 |
| 75837D | Decorative cover on the right side of the rear door | 75837-12050 |
| 75838D | Decorative cover on the left side of the rear door | 75837-12050 |
