Toyota COROLLA 后门板和后门玻璃 — Figure 6705

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 28 PNC and OE references.

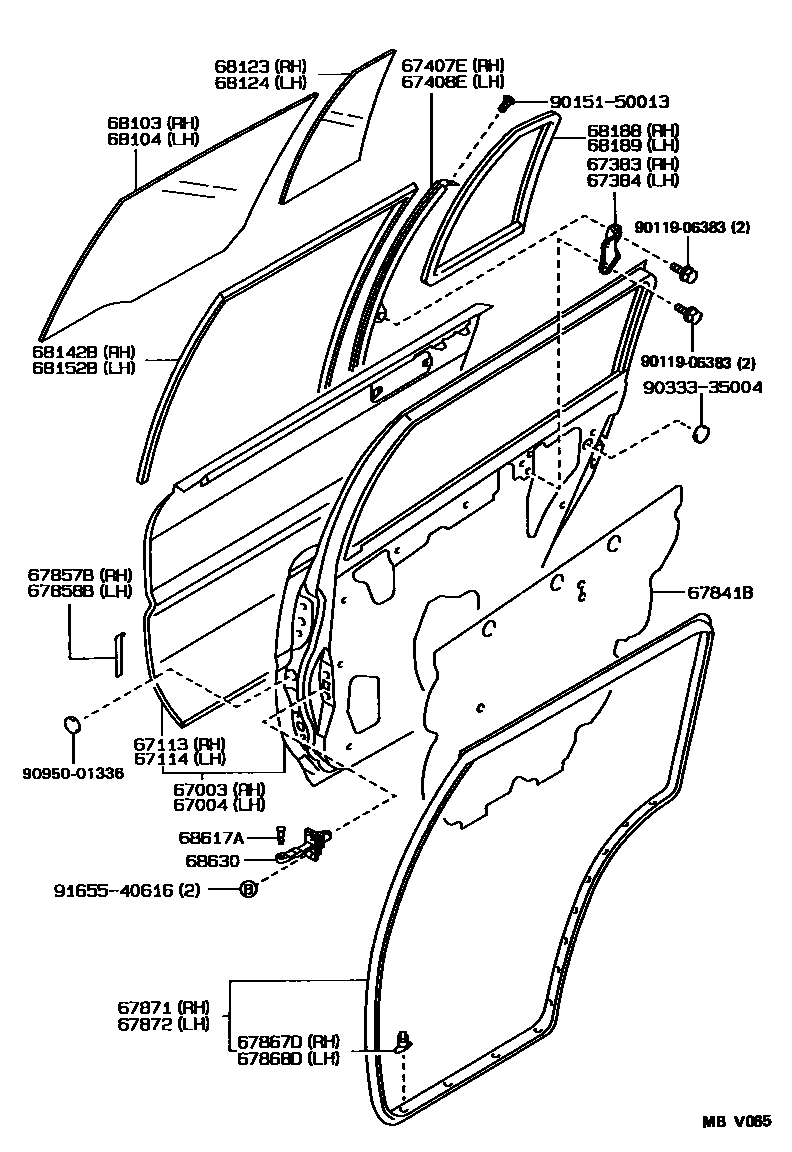

Toyota COROLLA 后门板和后门玻璃 EPC diagram — MBV065
后门板和后门玻璃 — MBV065 (199009 – 999999)

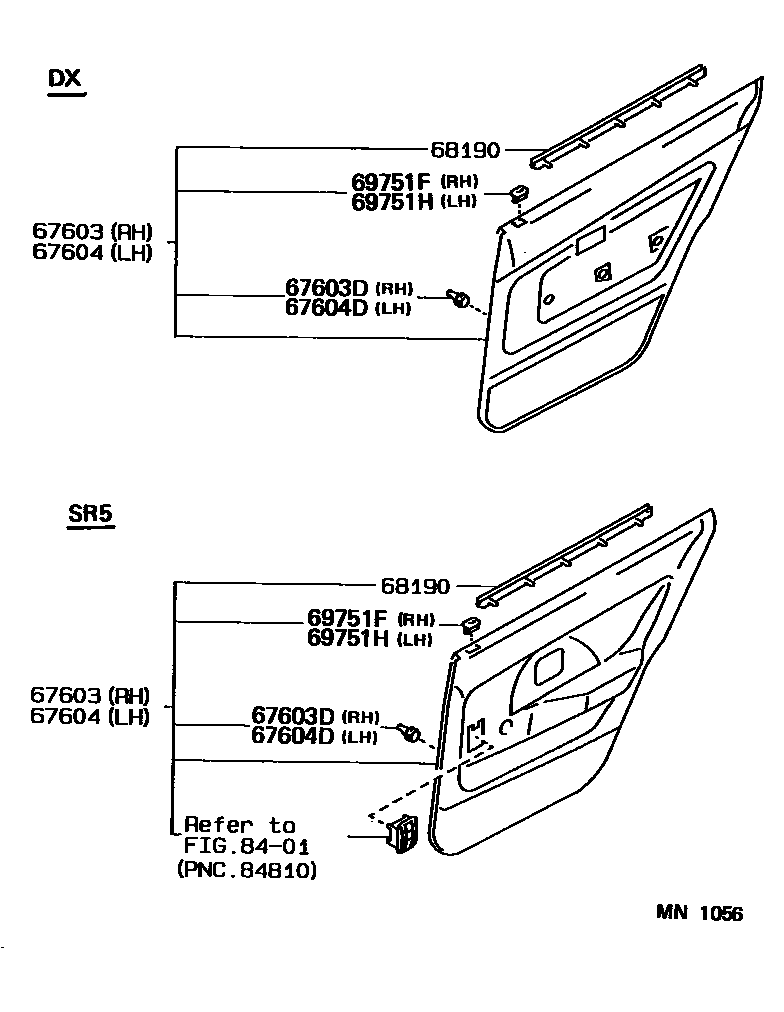

Toyota COROLLA 后门板和后门玻璃 EPC diagram — MN1056
后门板和后门玻璃 — MN1056 (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-12620
67004Left rear door panel sub-assembly67004-12620
67113Right rear door outer panel67113-12171
67114Left rear door outer panel67114-12171
67383No. 2 right rear door inner panel bracket67383-12030
67384No. 2 left rear door inner panel bracket67384-12030
67407ERight rear door window divider sub-assembly67407-13020
67408ELeft rear door window divider sub-assembly67408-13020
67603DRight rear door trim panel fixing67771-12030 · 67771-12040 · 67771-12050 · 67771-89104
67604DLeft rear door trim panel fixing67771-12030 · 67771-12040 · 67771-12050 · 67771-89104
67841BRear door access hole cover67841-12210 · 67841-12220
67857BRight rear door panel protector67857-12020
67858BLeft rear door panel protector67858-12020
67867DRight rear door seal strip fixing67868-12050
67868DLeft rear door seal strip fixing67868-12050
67871Right rear door sealing strip67871-12330
67872Left rear door sealing strip67872-12330
68103Right rear door glass sub-assembly68113-13100
68104Left rear door glass sub-assembly68114-13100
68123Right rear door window glass68123-12540
68124Left rear door window glass68124-12540
68142BRight rear door window lift chute68142-13050
68152BLeft rear door window lift chute68152-13010
68188Right rear door corner window seal68188-12230
68189Left rear door corner window seal68189-12240
68190Rear door glass inner sealing strip assembly68173-12120 · 68173-12140 · 68173-12160
68617ARear door opening limiter pin68617-12030
68630Rear door opening limiter assembly68630-12040
