Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 33 PNC and OE references.

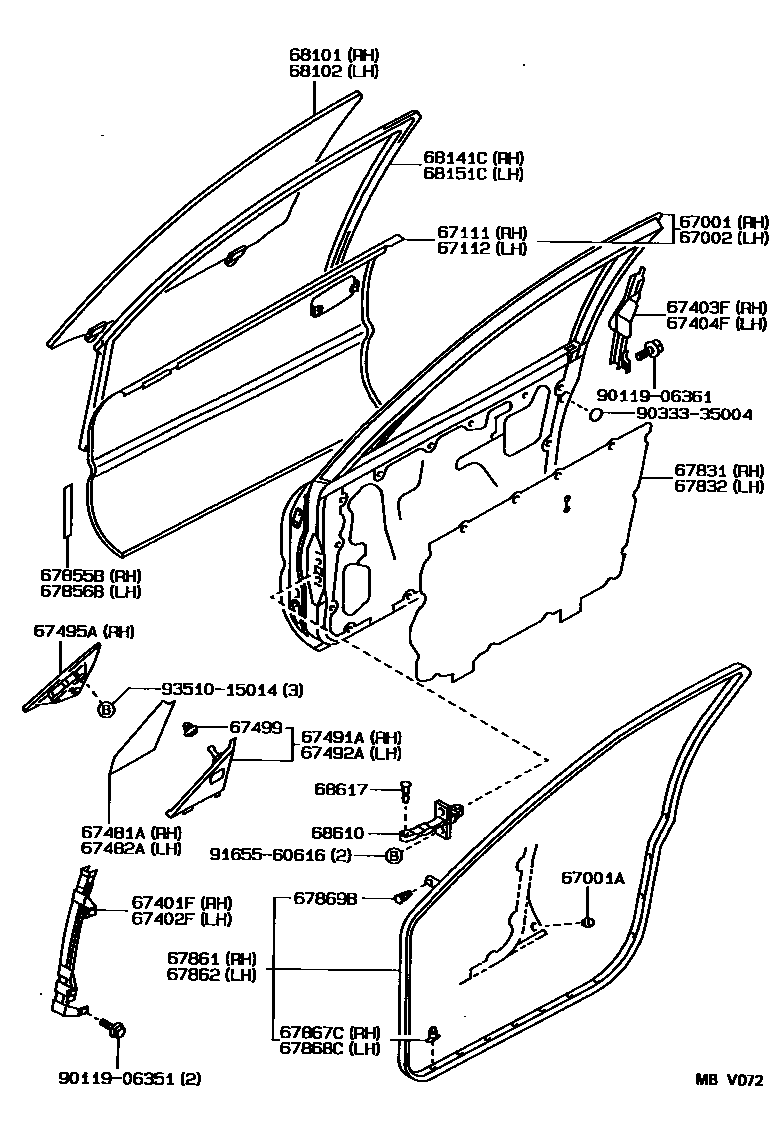

Toyota COROLLA 前门板和前门玻璃 EPC diagram — MBV072
前门板和前门玻璃 — MBV072 (199009 – 999999)

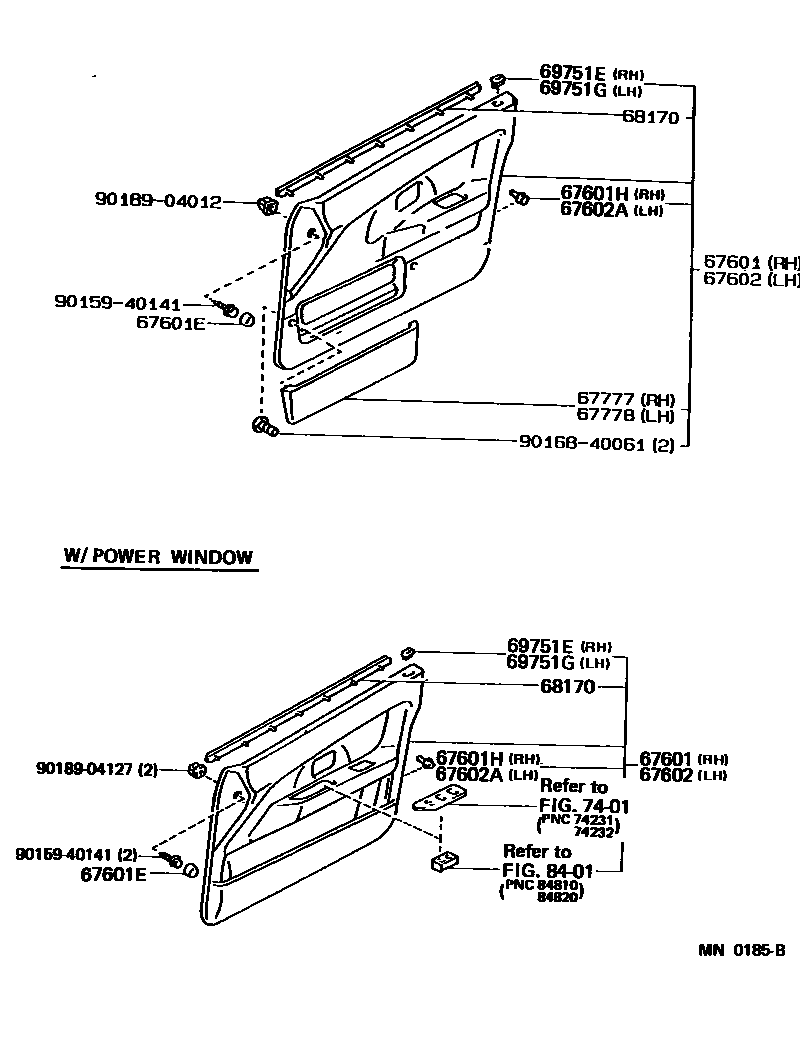

Toyota COROLLA 前门板和前门玻璃 EPC diagram — MN0185B
前门板和前门玻璃 — MN0185B (199009 – 199208)
Toyota COROLLA 前门板和前门玻璃 EPC diagram — MN1060
前门板和前门玻璃 — MN1060 (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-1A230 · 67001-1A261
67001AFront door panel cushion90541-09035
67002Left front door panel sub-assembly67002-1A210 · 67002-1A241
67111Outer right front door panel67111-12460
67112Outer left front door panel67112-12450
67401FRight front door front lower door frame sub-assembly67401-12290
67402FLeft front door front lower door frame sub-assembly67402-12310
67403FRight front door rear lower door frame sub-assembly67403-12100
67404FLeft front door rear lower door frame sub-assembly67404-12100
67481ARight front door front lower door frame seal67481-12210
67482ALeft front door front lower door frame seal67482-12140
67491ARight front door lower door frame bracket decorative strip67491-12170 · 67491-12180
67492ALeft front door lower door frame bracket decorative strip67492-12170 · 67492-12180
67495ARight front door front lower door frame upper cover67495-12130
67499Front door lower door frame bracket trim strip fixing67499-12030
67601HRight door trim panel fixing67771-12030 · 67771-12040 · 67771-12050 · 67771-89104
67602ALeft door trim panel fixing67771-12030 · 67771-12040 · 67771-12050 · 67771-89104
67831Right front door access hole cover67831-12350
67832Left front door access hole cover67831-12350
67855BRight front door panel protector58741-12060
67856BLeft front door panel protector58741-12060
67861Right front door seal67861-12671 · 67861-12760
67862Left front door seal67862-12591 · 67862-12720
67867CRight front door seal strip fixing67868-12050
67868CLeft front door seal strip fixing67868-12050
67869BFront door seal strip clip67869-12020
68101Right front door glass sub-assembly68101-12570
68102Left front door glass sub-assembly68102-12570
68141CRight front door glass lift channel68141-12351
68151CLeft front door glass lift channel68151-12071
68170Front door glass inner sealing strip assembly68171-12170 · 68171-12180 · 68171-12200 · 68172-12100 · 68172-12110 · 68172-12130
68610Front door opening limiter assembly68610-12050
68617Front door opening limiter pin68617-12030
