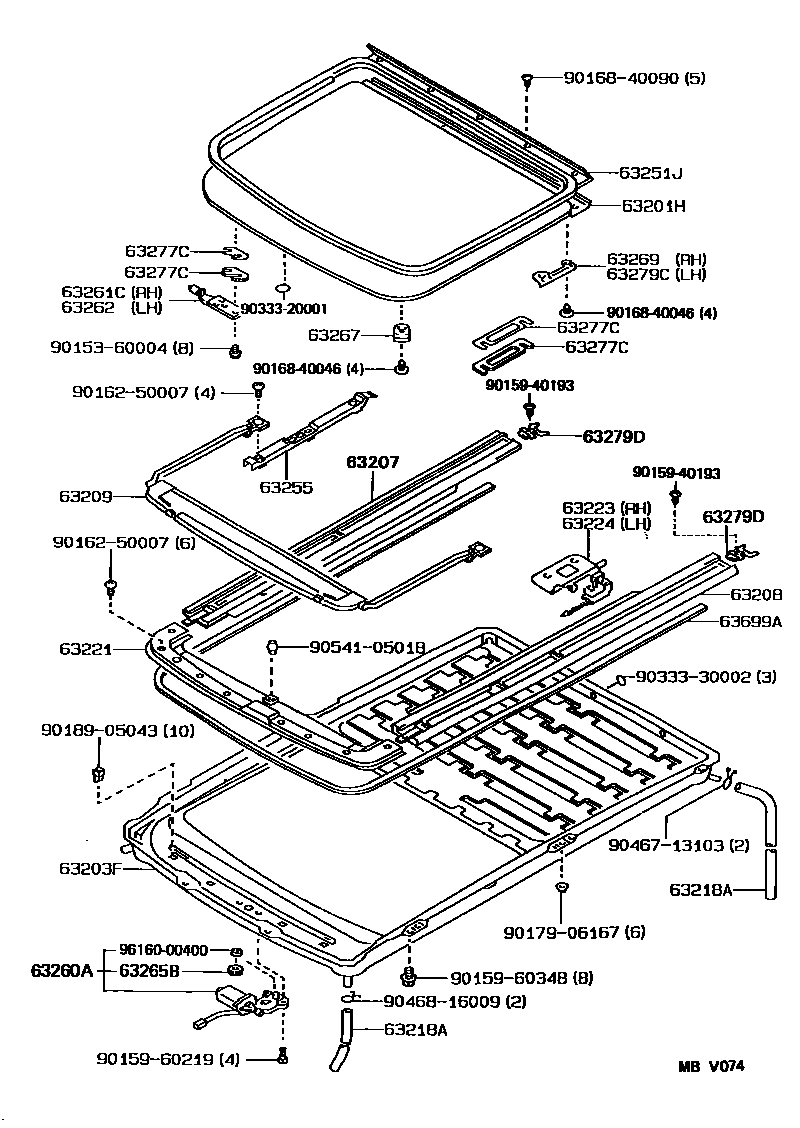

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-12070 |
| 63105A | Back door opening frame sub-assembly | 63105-12190 |
| 63111 | roof panel | 63111-12907 · 63111-12909 · 63111-12911 · 63111-12913 |
| 63141H | Center roof panel reinforcement | 63141-12150 |
| 63142 | No. 2 roof panel reinforcement | 63142-12050 |
| 63143B | No. 3 roof panel reinforcement | 63143-12050 |
| 63144A | No. 4 roof panel reinforcement | 63144-12010 |
| 63201H | Sliding sunroof panel sub-assembly | 63201-12150 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-12140 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-12081 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-12081 |
| 63209 | Roof deflector sub-assembly | 63209-12060 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-12130 · 63249-12140 |
| 63221 | Sliding sunroof cable duct | 63221-12060 |
| 63223 | Right sliding sunroof transmission cable | 63223-12071 · 63223-12072 |
| 63224 | Left sliding sunroof transmission cable | 63224-12061 · 63224-12062 |
| 63251J | Sliding skylight seal | 63251-12080 |
| 63255 | Right sliding sunroof guide cover | 63255-12070 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12040 · 63260-12041 |
| 63261C | Right front sliding sunroof slider | 63261-12041 |
| 63262 | Left front sliding sunroof slider | 63262-12041 |
| 63265B | Sliding sunroof driving gear | 63265-20010 |
| 63267 | Sliding sunroof sealing strip protection | 63267-12020 |
| 63269 | Sliding sunroof sealing strip fixings | 63269-20010 |
| 63277C | Sliding skylight panel gasket | 63277-24010 · 63277-30020 · 63277-32010 · 63277-32020 |
| 63279C | Left sliding sunroof sealing strip fixing | 63279-20010 |
| 63279D | Sliding sunroof guide rail stop | 63279-32010 |
| 63699A | Sliding sunroof guide seals | 63699-12040 |
