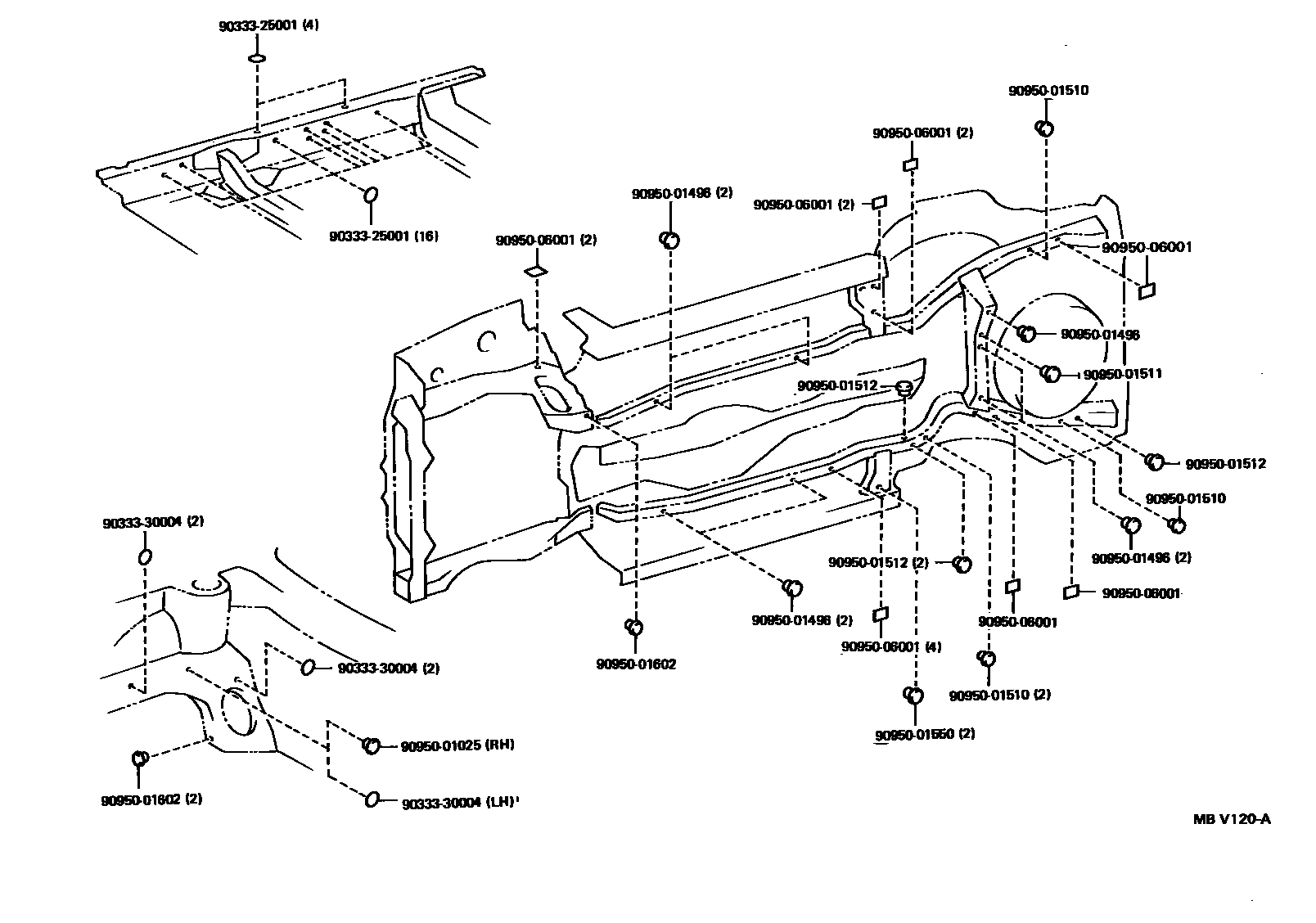

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 2 images and 30 PNC and OE references.

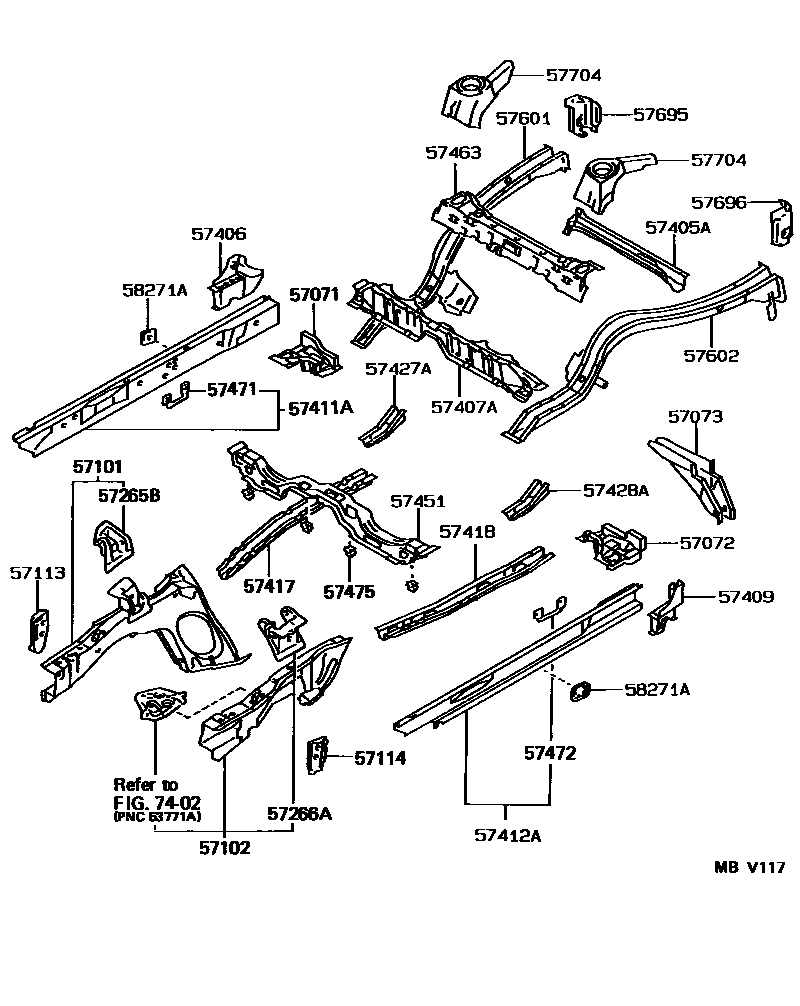

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57071 | Right rear anti-torsion box-section sub-assembly | 57071-12030 |
| 57072 | Left rear anti-torsion box-section sub-assembly | 57072-12030 |
| 57073 | Transverse thrust rod bracket sub-assembly | 57073-12041 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-12361 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-12391 |
| 57113 | Right front longitudinal beam extension | 57113-12120 |
| 57114 | Left front longitudinal beam extension | 57114-12120 |
| 57265B | Engine right side mounting bracket | 57265-12030 |
| 57266A | Engine left mounting bracket | 57208-12080 |
| 57405A | Center floor No. 2 beam sub-assembly | 57405-12050 |
| 57406 | Main floor right longitudinal beam sub-assembly | 57406-12020 |
| 57407A | Center floor beam sub-assembly | 57407-12030 |
| 57409 | Main floor left longitudinal beam sub-assembly | 57409-12020 |
| 57411A | Floor right inner longitudinal beam | 57411-12160 · 57411-12900 |
| 57412A | Floor left inner longitudinal beam | 57412-12160 · 57412-12900 |
| 57417 | Front floor lower right reinforcement | 57417-12090 |
| 57418 | Front floor lower left reinforcement | 57418-12050 |
| 57427A | Front floor No. 3 right reinforcement | 57427-12010 |
| 57428A | Front floor No. 3 left reinforcement | 57428-12030 |
| 57451 | front floor cross member | 57451-12121 |
| 57463 | Center floor beam No. 3 | 57463-12050 |
| 57471 | Right seat belt anchor to floor support reinforcement | 57471-12100 |
| 57472 | Left-hand seat belt anchor to floor support reinforcement | 57472-12080 |
| 57475 | Front floor cross member panel | 57475-32010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12620 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-12520 |
| 57695 | Rear floor cross member rear right extension | 57695-12010 |
| 57696 | Rear floor cross member rear left extension | 57696-12010 |
| 57704 | Rear suspension spring bracket sub-assembly | 57701-12060 · 57704-12070 |
| 58271A | Seat belt anchor No. 3 to floor pan reinforcement | 58271-12050 |
