Toyota COROLLA 后保险杠及附件 — Figure 5202

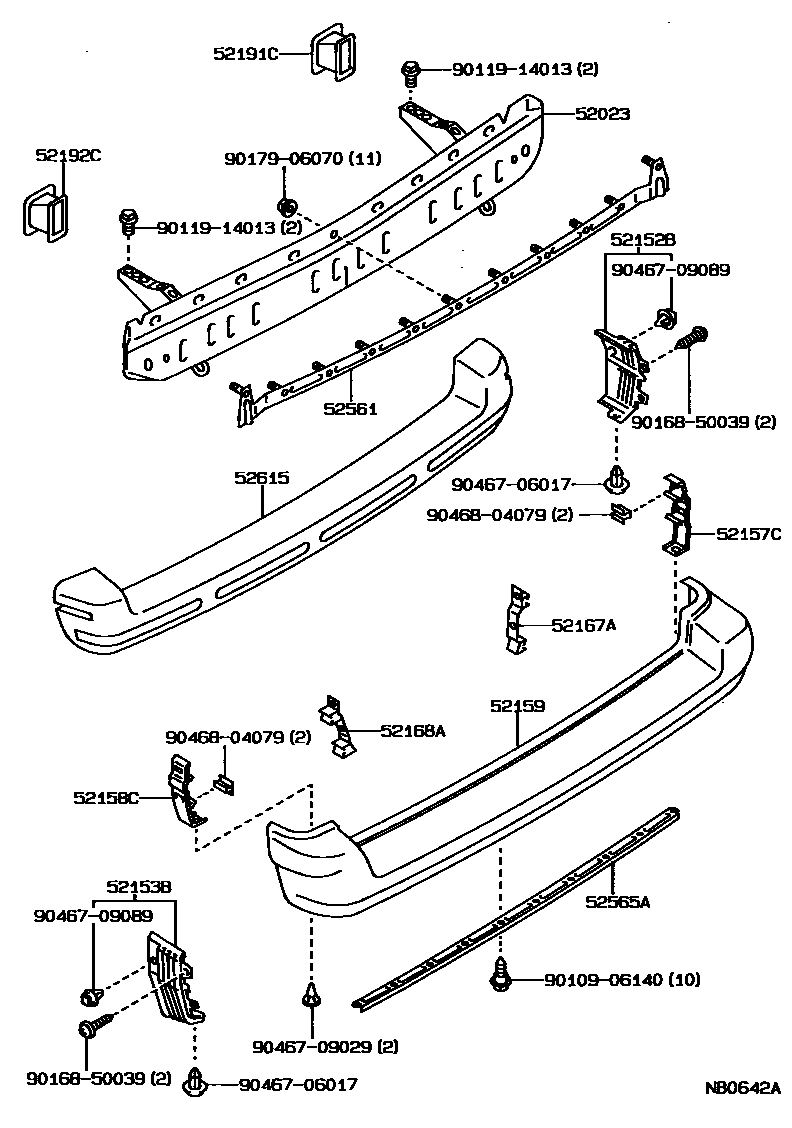

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-12140 |
| 52152B | Rear bumper right extension | 52152-12250 |
| 52153B | Rear bumper left extension | 52153-12250 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-12110 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-12060 |
| 52159 | rear bumper cover | 52159-1A100 · 52159-1A900 |
| 52167A | Rear bumper No. 4 right side bracket | 52167-12030 |
| 52168A | Rear bumper No. 4 left side bracket | 52168-12020 |
| 52191C | Rear bumper right arm seal | 52191-12020 |
| 52192C | Rear bumper left arm seal | 52192-12010 |
| 52561 | Rear bumper upper center fixing bracket | 52508-12010 |
| 52565A | Rear bumper lower fixing bracket | 52565-12070 |
| 52615 | Rear bumper energy absorber | 52615-12100 |
