Toyota COROLLA 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510

Toyota COROLLA EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 1 images and 27 PNC and OE references.

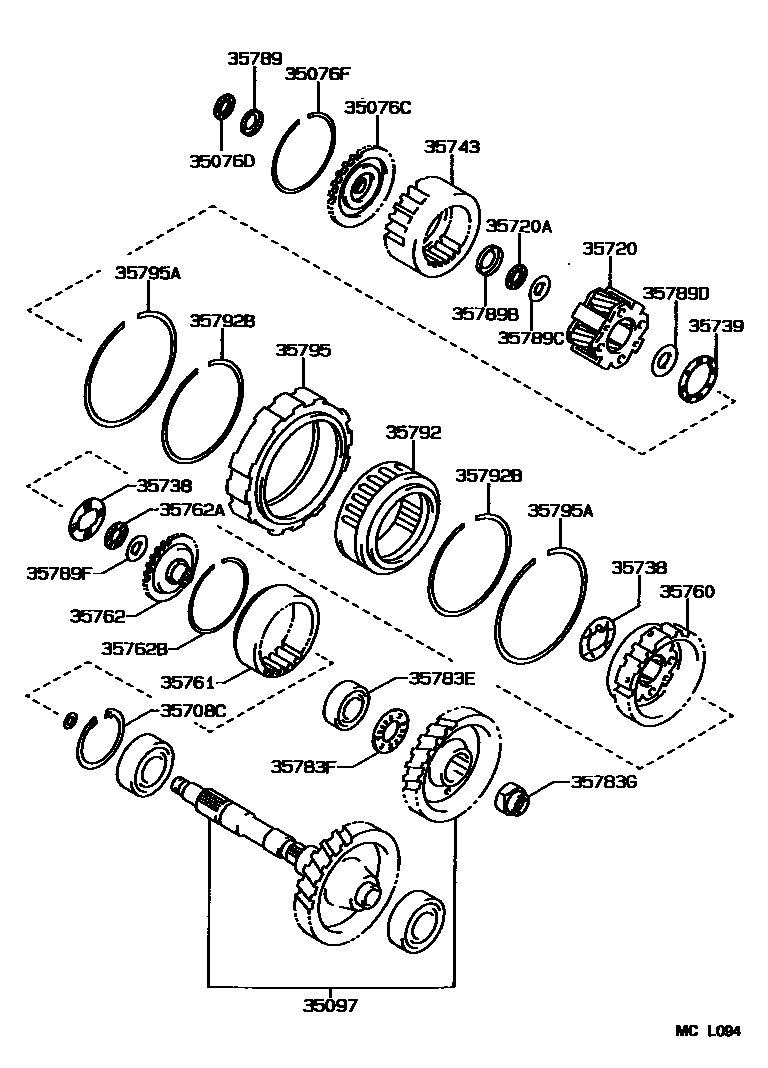

Toyota COROLLA 行星齿轮、倒档活塞和中间轴齿轮(ATM) EPC diagram — MCL094
行星齿轮、倒档活塞和中间轴齿轮(ATM) — MCL094 (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
35076CFront planetary ring gear flange sub-assembly35076-32011
35076DThrust needle roller bearing (for front planetary gear flange)90374-22001
35076FHole snap ring (for front planetary gear flange)90521-99014
35097Automatic transmission axle countershaft gear assembly35097-20010
35708CHole snap ring (for countershaft front bearing)90521-76003
35720Front planetary gear assembly35720-32010
35720AThrust needle roller bearing (for front planetary gear)90374-22001
35738No. 2 planetary gear carrier thrust washer35738-32010
35739No. 3 planetary gear carrier thrust washer35739-32011
35743Front planetary ring gear35743-32020 · 35743-32040
35760Rear planetary gear assembly35760-32010
35761Rear planetary ring gear35761-32010
35762Rear planetary gear flange35762-32010
35762AThrust needle roller bearing (for rear planetary gear flange)90374-24002
35762BHole snap ring (for rear planetary ring gear flange)90521-90001
35783ERoller bearings (for countershaft driven gear)90365-37001
35783FThrust needle roller bearing (for countershaft driven gear)90374-41001
35783GNut (for countershaft driven gear)90179-20013
35789Front thrust bearing race (for front planetary gear flange)35789-32050
35789BRear thrust bearing race (for front planetary gear flange)35789-32040
35789CFront thrust bearing race (for front planetary gear)35789-32060
35789DRear thrust bearing race (for front planetary gear)35789-32070
35789FThrust bearing race (for rear planetary gear flange)35789-32080
35792No. 2 one-way clutch35792-32011
35792BHole snap ring (for No. 2 one-way clutch)90521-99010
35795One-way clutch outer race35795-32010
35795AHole snap ring (for one-way clutch outer race)90521-99011
