Toyota COROLLA Shift Lever & Retainer — Figure 3312

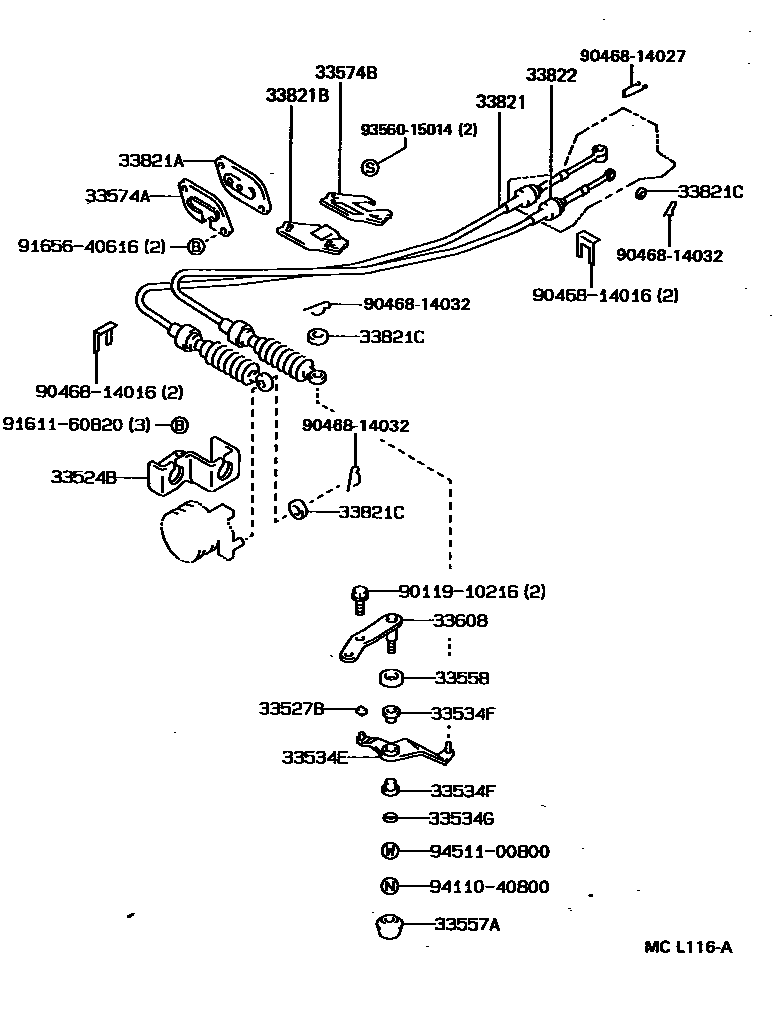

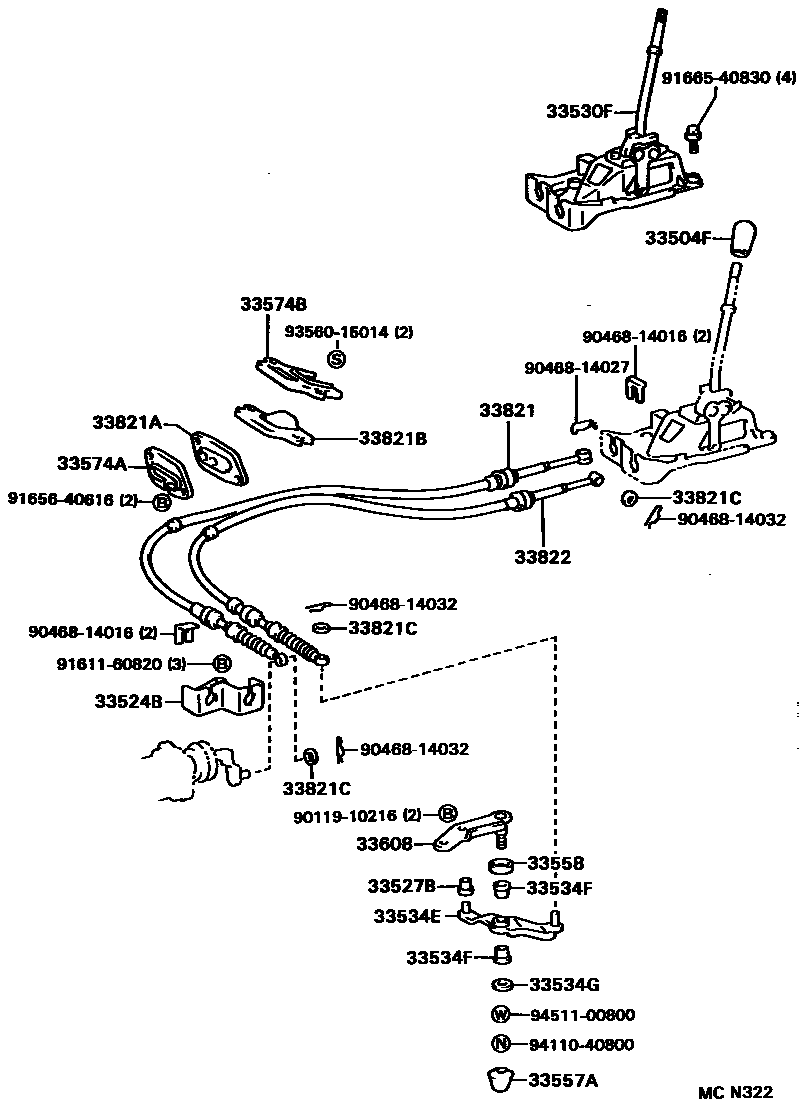

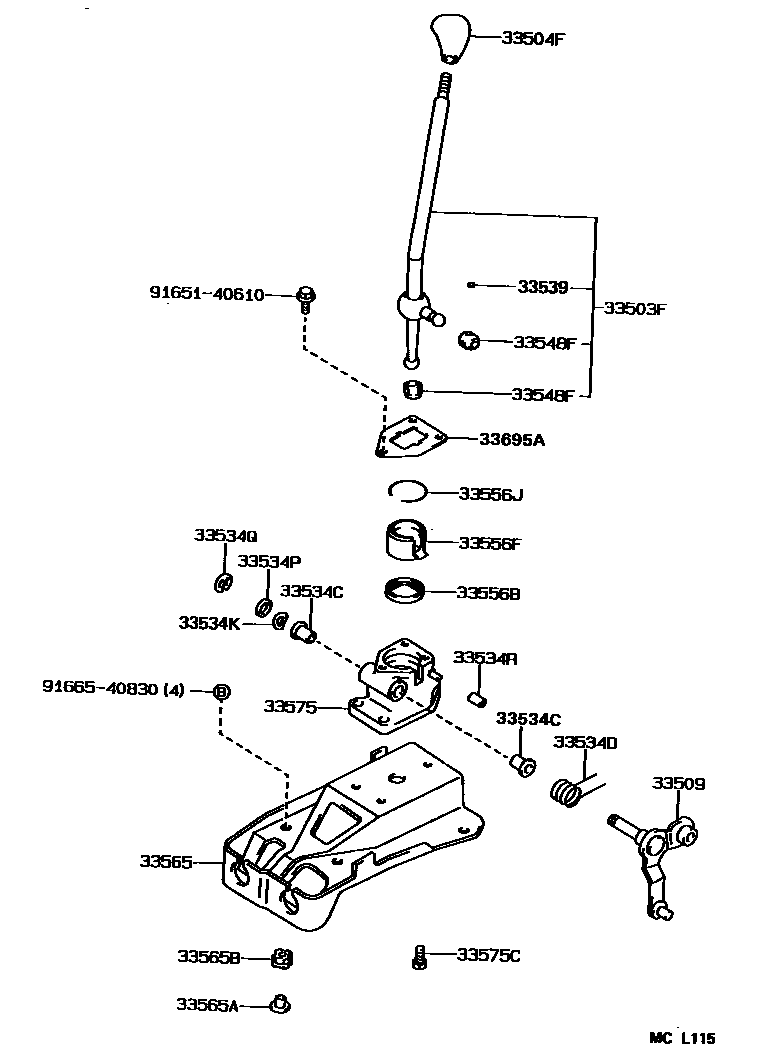

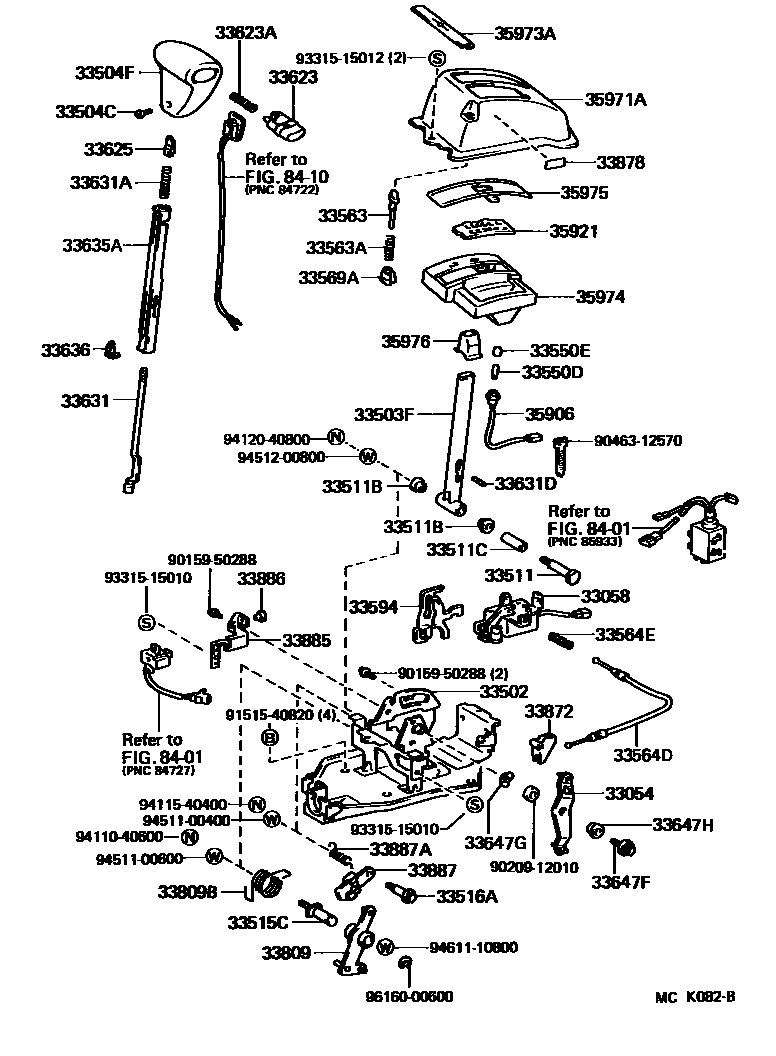

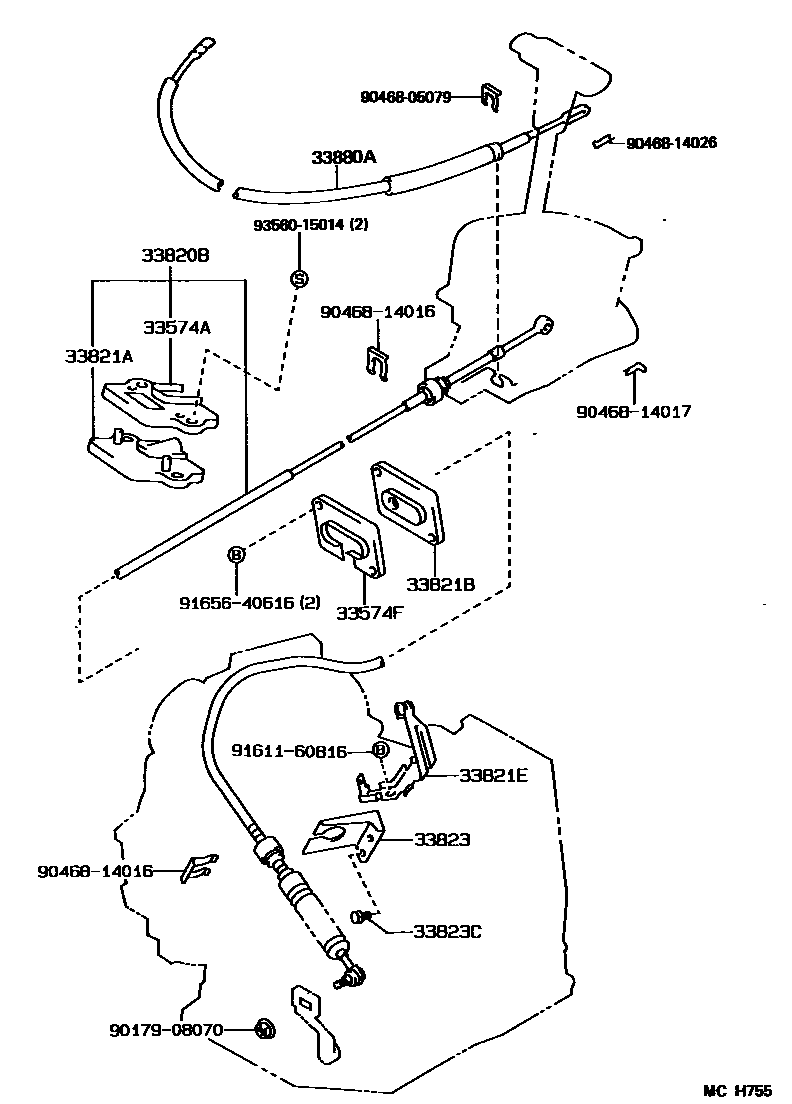

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 5 images and 79 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33054 | No. 2 shift lever sub-assembly (for floor shift) | 33054-12050 |
| 33058 | Shift lock solenoid valve bracket sub-assembly | 33058-12030 |
| 33502 | Shift lever base plate sub-assembly | 33502-12370 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33503-12402 · 33503-12470 |
| 33504C | Screw (for securing shift lever knob) | 90159-40109 |
| 33509 | No. 1 gear selection right-angle lever sub-assembly | 33509-12071 |
| 33511 | Control shaft (for floor shifting) | 33511-12070 |
| 33511B | Bushing (for control shaft) | 90386-11012 |
| 33511C | Shaft collar (for control shaft) | 90387-08114 |
| 33515C | No. 2 control axis | 33515-12010 |
| 33516A | No. 3 control axis | 33516-12010 |
| 33524B | Control cable bracket | 33524-20010 |
| 33527B | Bushing (for shift control lever) | 90389-10009 |
| 33530F | Shift lever assembly (for floor shift) | 33530-13030 |
| 33534C | Bushing (for No. 1 gear selector right-angle lever) | 90386-12034 |
| 33534D | Torsion spring (for No. 1 gear selector right-angle lever) | 90508-20084 |
| 33534E | No. 2 gear selection right-angle lever | 33534-12090 · 33534-20020 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33534K | Wave washer (for No. 1 gear selection right-angle lever) | 90206-12003 |
| 33534P | Flat washer (for No. 1 gear selector right-angle lever) | 90201-12052 |
| 33534Q | E-ring (for No. 1 gear selection right-angle lever) | 96160-00900 |
| 33534R | Cushion pad (for No. 1 gear selector right-angle lever) | 90540-06029 |
| 33539 | Gear shifter anti-vibration cushion | 33539-12010 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-12040 |
| 33550D | position indicator light bulb | 99132-12034 |
| 33550E | position indicator cover | 90339-09004 |
| 33556B | Bushing (for transmission shift lever ball seat) | 90385-34001 |
| 33556F | Transmission shift lever ball seat | 33556-20020 |
| 33556J | Shaft snap ring (for transmission shift lever ball seat) | 90520-36018 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-12010 |
| 33563A | Compression spring (for shift lock release button) | 90501-07086 |
| 33564D | Shift lock release cable | 33564-12020 |
| 33564E | Compression spring (for shift lock release cable) | 90501-07087 |
| 33565 | Shift control lever cover | 33565-12030 |
| 33565A | Bushing No. 1 (for shift lever cover) | 90389-08031 |
| 33565B | Bushing No. 2 (for shift lever cover) | 90389-10020 |
| 33569A | Shift lock release button guide | 33569-12030 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-12040 · 33574-12080 |
| 33574B | No. 2 shift cable seal | 33574-12060 |
| 33574F | Dust seal retainer (for floor shift) | 33574-12030 |
| 33575 | Shift lever stop (for floor shift) | 33575-12133 |
| 33575C | Bolt (for shift lever stop) | 90119-08622 |
| 33594 | Shift lock plate (for floor shift) | 33594-12040 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12030 · 33608-20010 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 |
| 33625 | Shift lever handle sleeve | 33625-24010 |
| 33631 | Locking lever | 33631-16050 |
| 33631A | Compression spring (for locking lever) | 90501-08128 |
| 33631D | Grooved pin (for locking lever) | 90256-04003 |
| 33635A | Cable guide No. 1 (for gear selector) | 33635-12040 |
| 33636 | Cable guide No. 2 (for gear selector) | 33636-35010 |
| 33647F | Control linkage shaft (for floor shift) | 90119-08606 |
| 33647G | Wave washer (for controlling connecting rod shaft) | 90206-12002 |
| 33647H | Bushing (used to control connecting rod shaft) | 90386-12040 |
| 33695A | shift lever ball cover | 33695-12031 |
| 33809 | Cable control lever sub-assembly | 33809-12040 |
| 33809B | Torsion spring (for cable control lever) | 90508-08026 |
| 33820B | Transmission control cable assembly | 33820-12340 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-12282 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01395 · 90480-01400 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90480-01391 · 90480-01398 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 · 90201-08267 · 90201-10042 |
| 33821E | Clamp No. 1 (for transmission control cable) | 90949-01381 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-12131 |
| 33823 | No. 1 transmission control cable bracket | 33823-12070 |
| 33823C | Bolt (for transmission control cable bracket) | 91611-61022 |
| 33872 | No. 2 shift lock release link | 33872-12020 |
| 33878 | No. 2 shift lock information label | 33878-32010 |
| 33880A | Parking lock cable assembly (for floor shift) | 33880-12010 |
| 33885 | Shift lever stop bracket | 33885-12040 |
| 33886 | shift lever block | 33886-16010 |
| 33887 | Cable control lever stop | 33887-12010 |
| 33887A | Torsion spring (for cable control lever stop) | 90508-10046 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-20030 |
| 35921 | control position indicator board | 35921-12310 |
| 35973A | Position indicator light housing cover connector | 35973-12030 |
| 35974 | Position indicator light lower shell | 35974-12120 |
