Toyota COROLLA 分电器 — Figure 1902

Toyota COROLLA EPC diagram 1902, 分电器, with 1 images and 12 PNC and OE references.

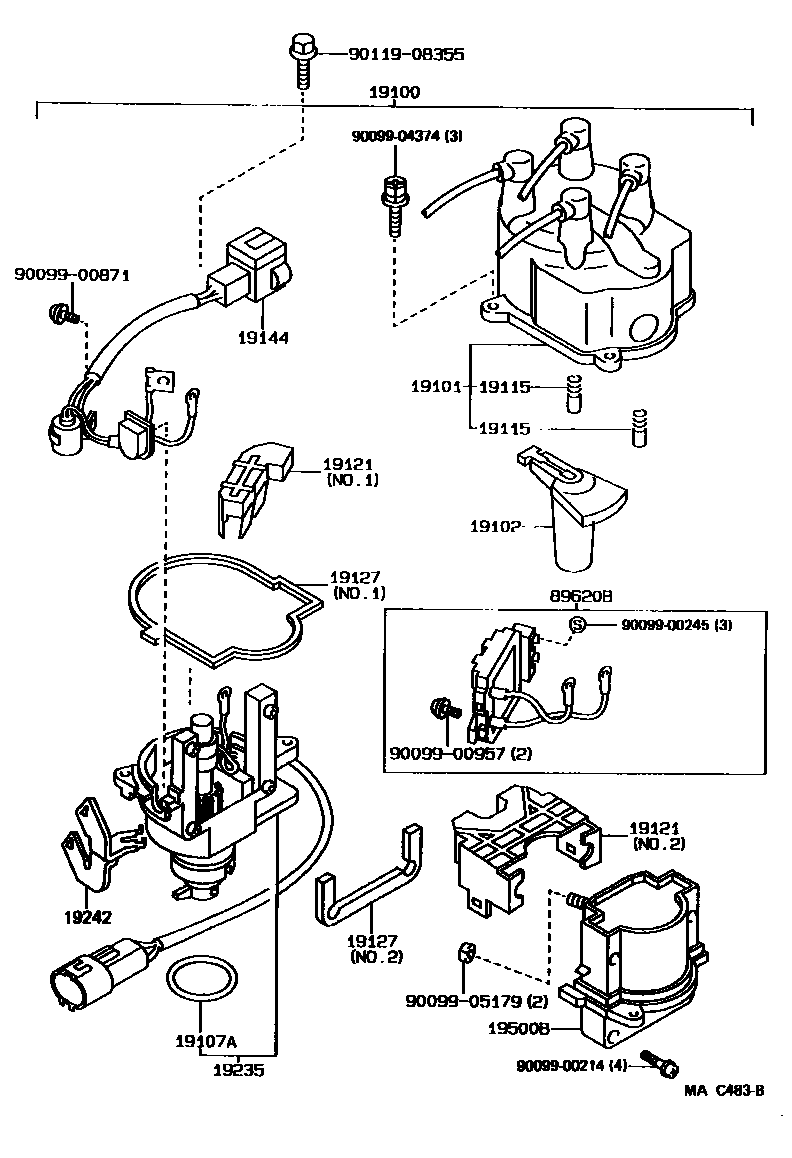

Toyota COROLLA 分电器 EPC diagram — MAC483B
分电器 — MAC483B (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Distributor assembly19030-16140
19101Distributor cover sub-assembly19101-16140
19102Distributor flame head sub-assembly19102-11031
19107ADistributor housing O-ring90099-14091 · 96711-35030
19115Distributor cover center piece19115-63010
19121dust cover19121-63040 · 19121-63090
19127Dust seal19127-63010 · 19127-63020
19144Distributor breaker lead19144-16200
19235Distributor housing19235-15130
19242Cable clip19242-15140
19500BIgnition coil assembly90919-02196
89620BIgnition assembly89620-12430
