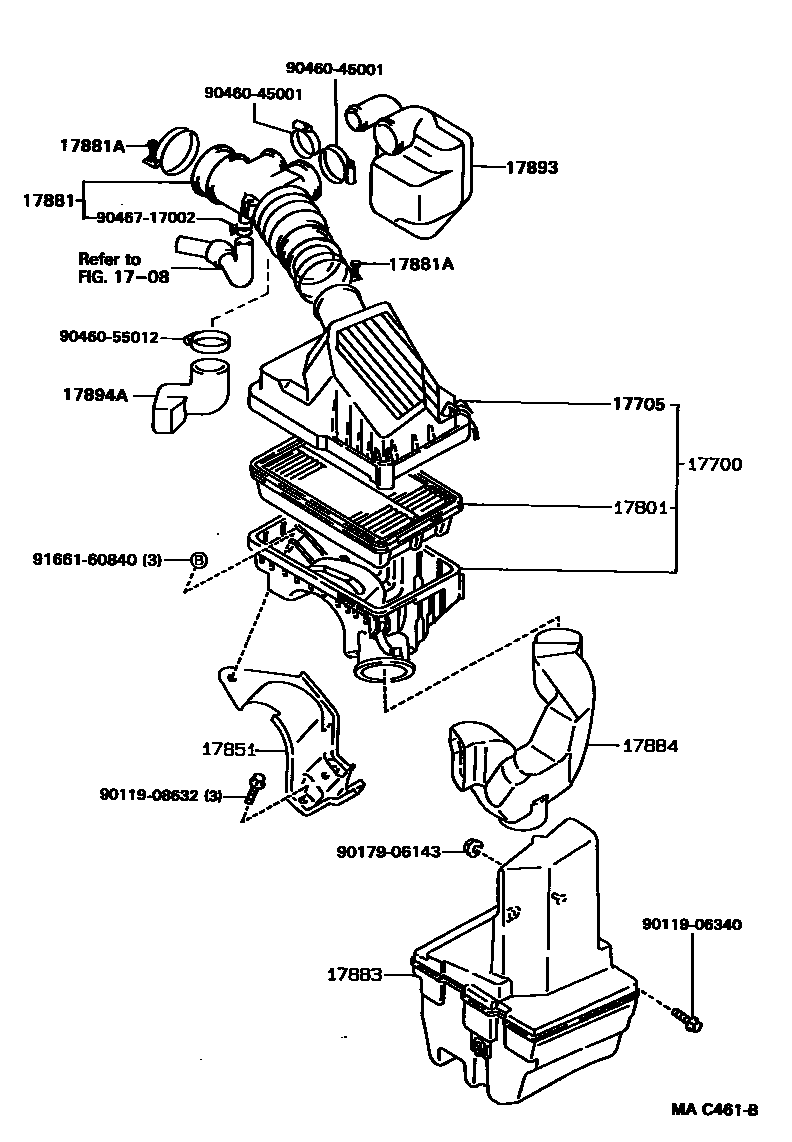

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-16680 |
| 17705 | Air filter cover sub-assembly | 17705-16360 |
| 17801 | Air filter element sub-assembly | 17801-74020 |
| 17851 | air filter bracket | 17851-15010 |
| 17881 | No. 1 air cleaner hose | 17881-15160 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-73005 · 96111-10730 |
| 17883 | No. 3 air cleaner hose | 17883-16041 |
| 17884 | No. 4 air cleaner hose | 17882-16100 |
| 17893 | Intake resonator | 17893-16060 |
| 17894A | No. 2 intake resonator | 17894-16020 |
