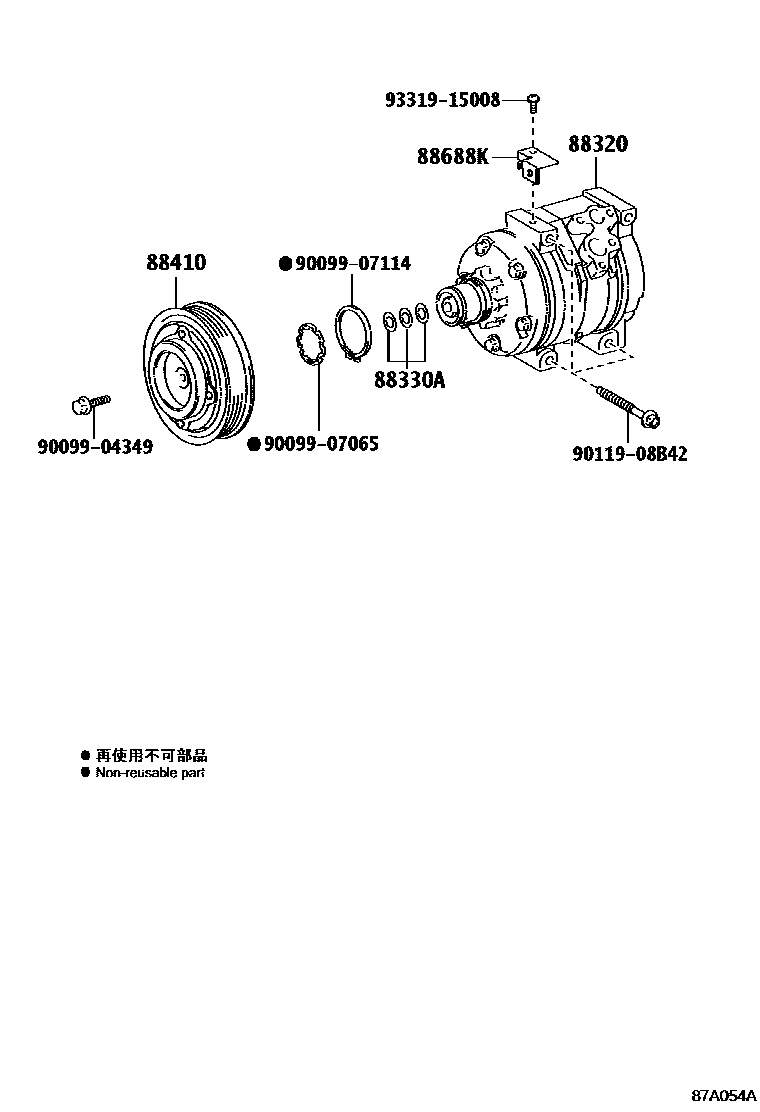

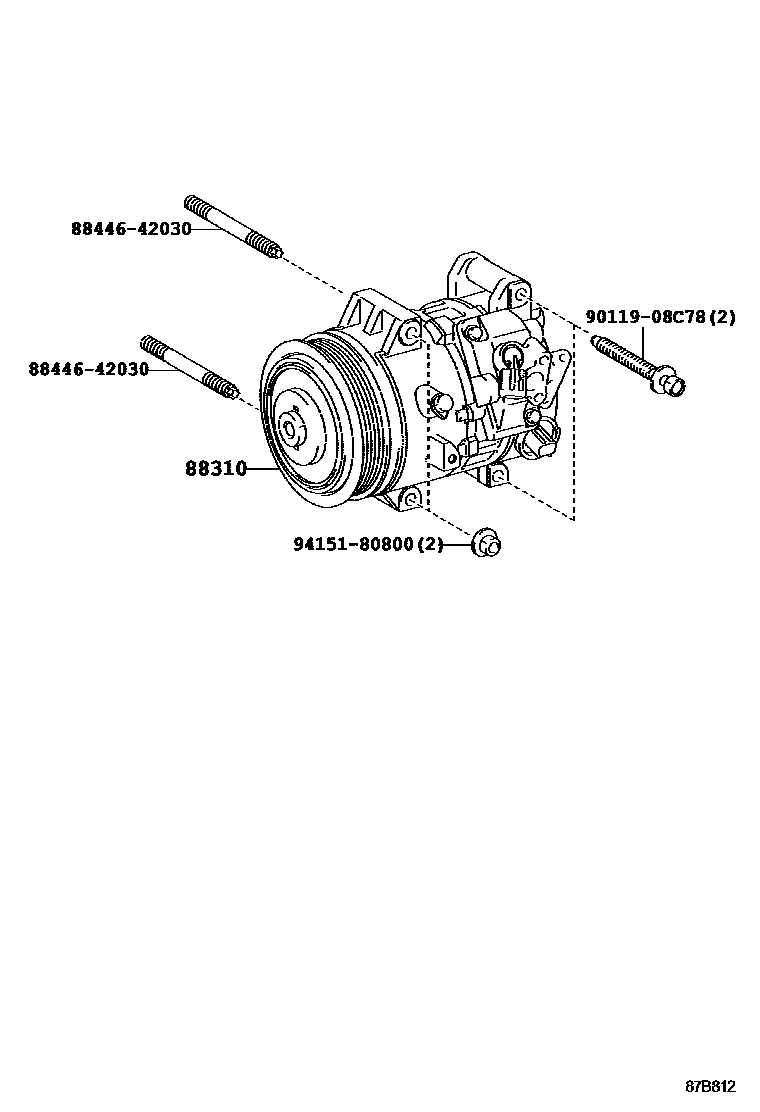

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-02620 · 88310-02680 · 88310-1A660 · 88310-68031 · 88310-68032 |
| 88320 | Cooler Compressor Assembly | 88320-02150 · 88320-02180 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88410 | Magnetic Clutch Assembly | 88410-02170 |
| 88688K | Cooler compressor bracket | 88688-33260 |
