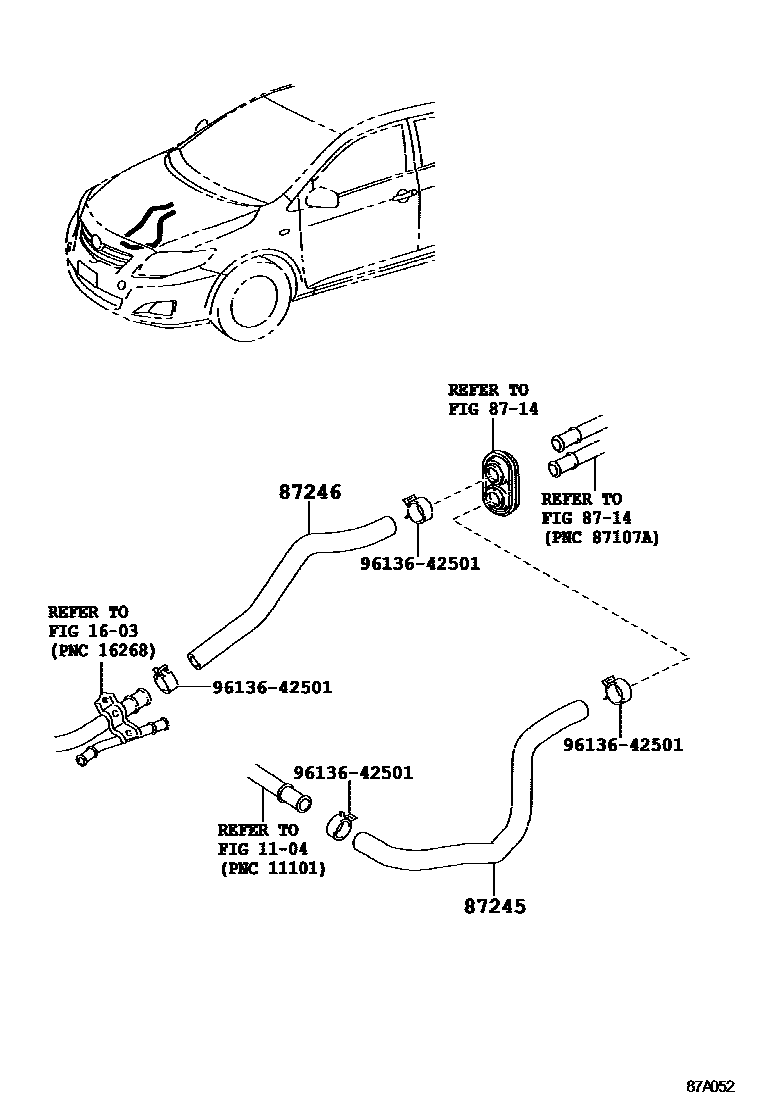

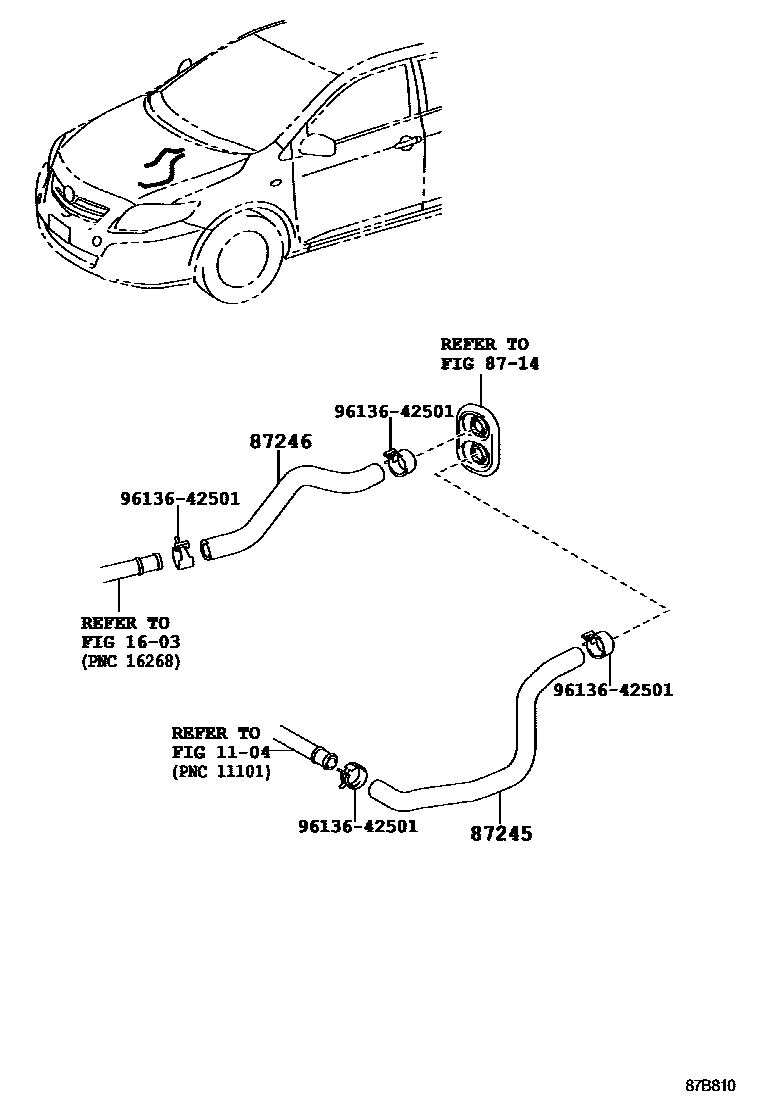

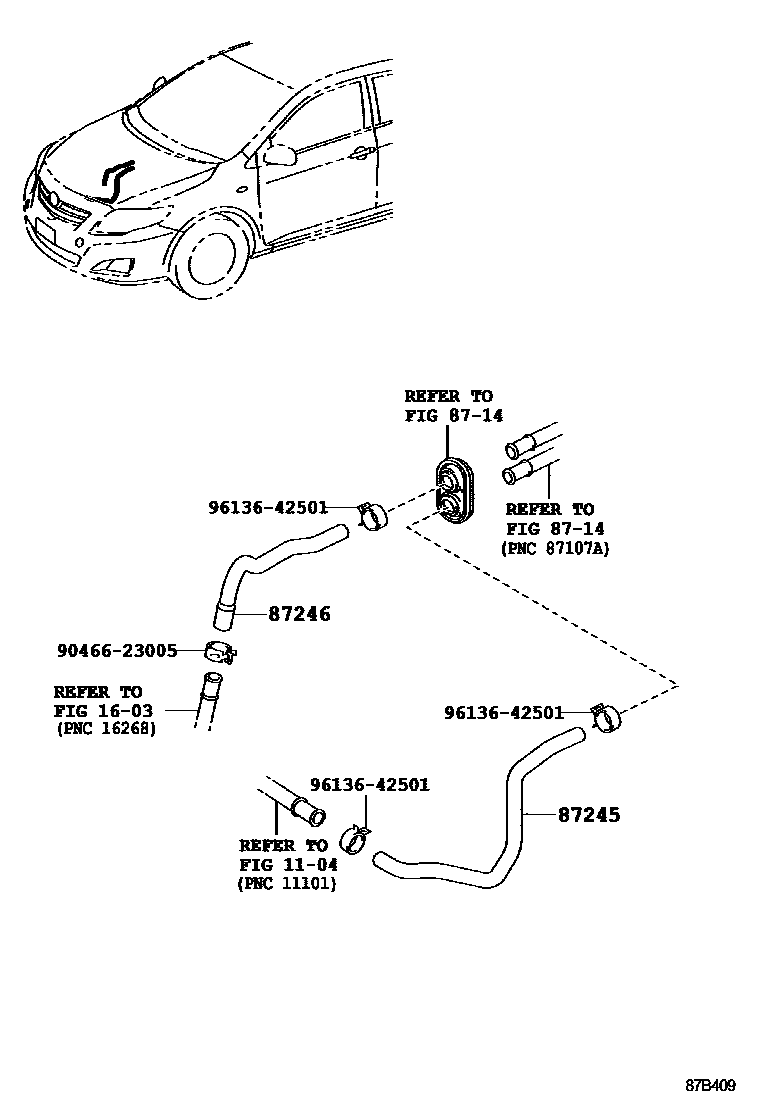

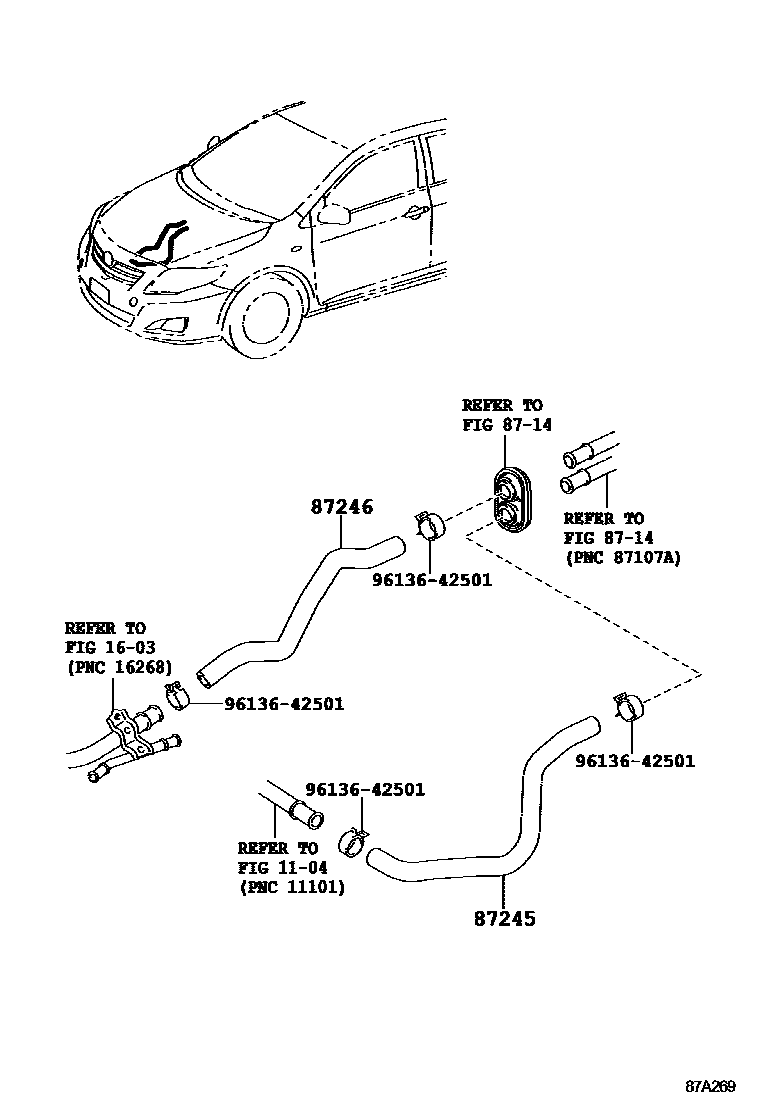

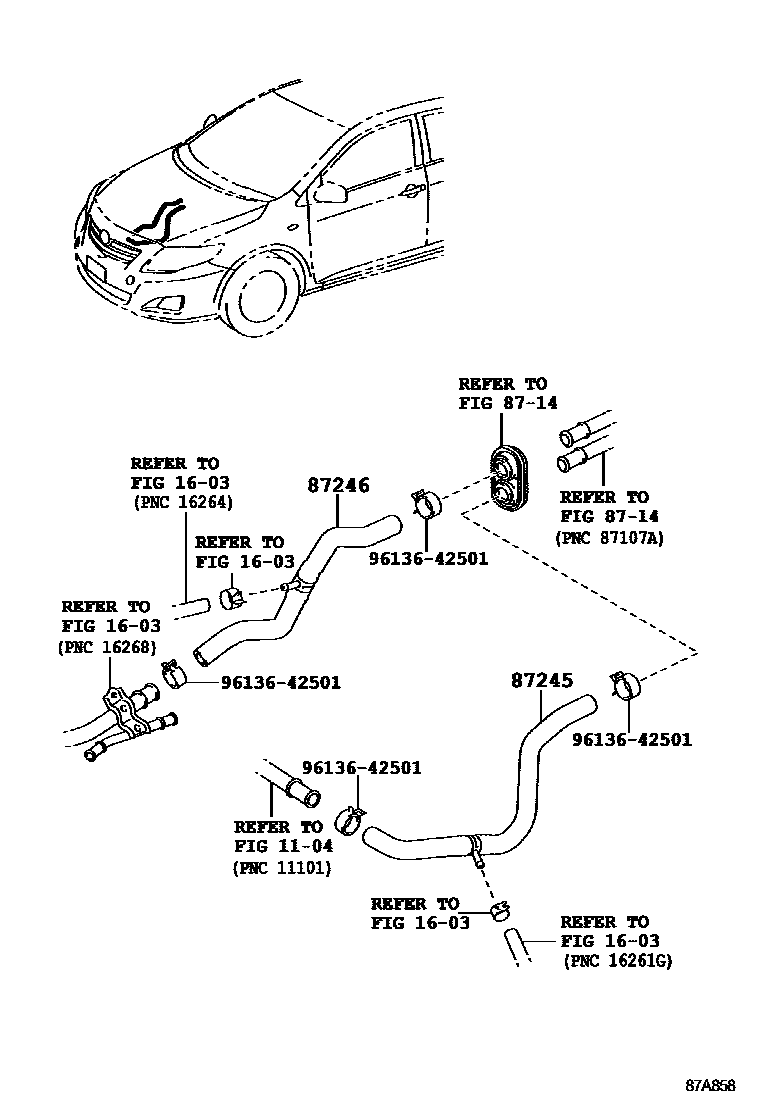

Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716
Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 5 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245 | Heater water inlet hose | 87209-12510 · 87209-12511 · 87245-02E40 · 87245-02E50 · 87245-02G20 · 87245-02K50 |
| 87246 | Heater outlet hose | 87209-12620 · 87209-12621 · 87245-02E60 · 87245-02E70 · 87245-02G30 · 87245-02K60 |
