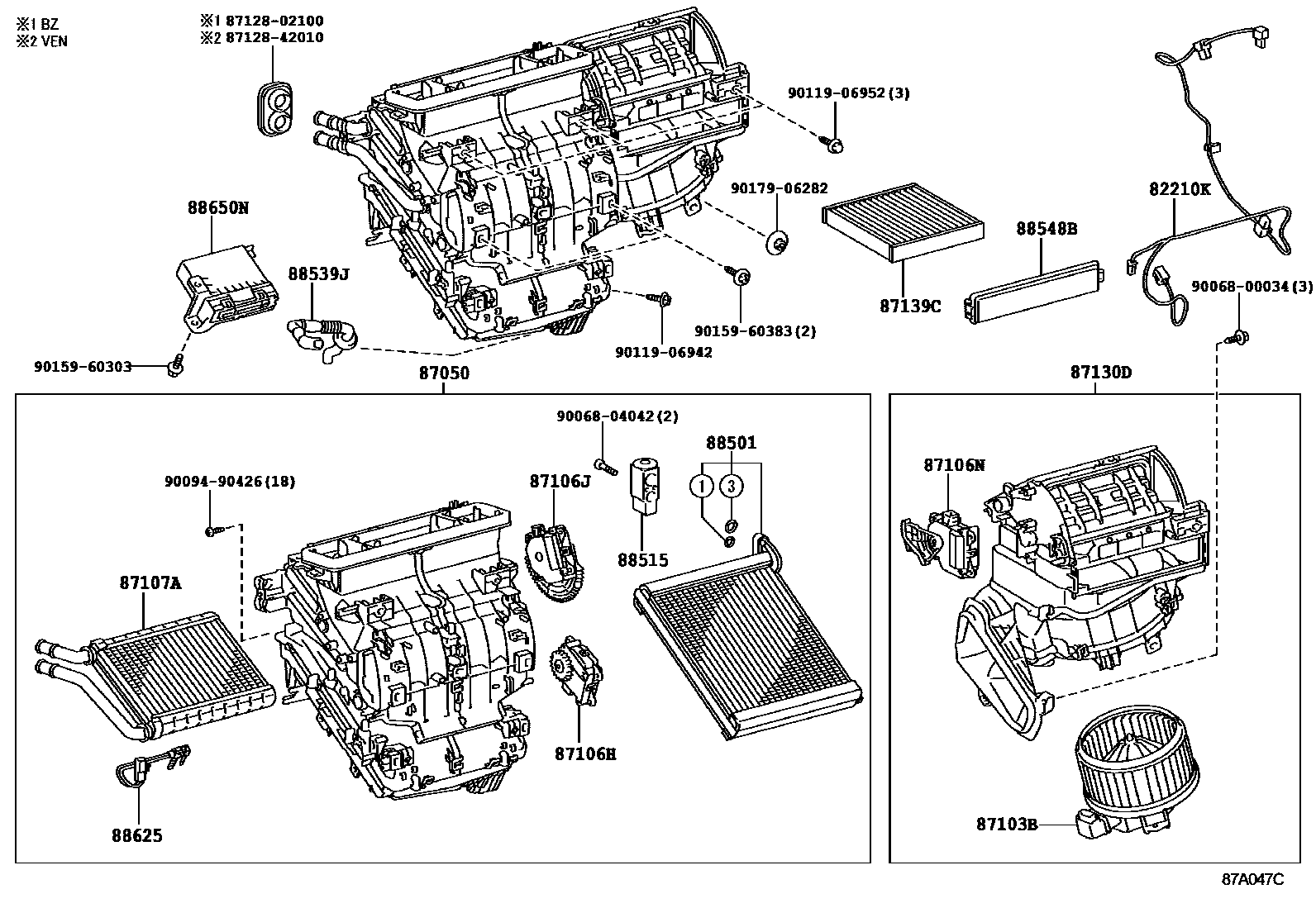

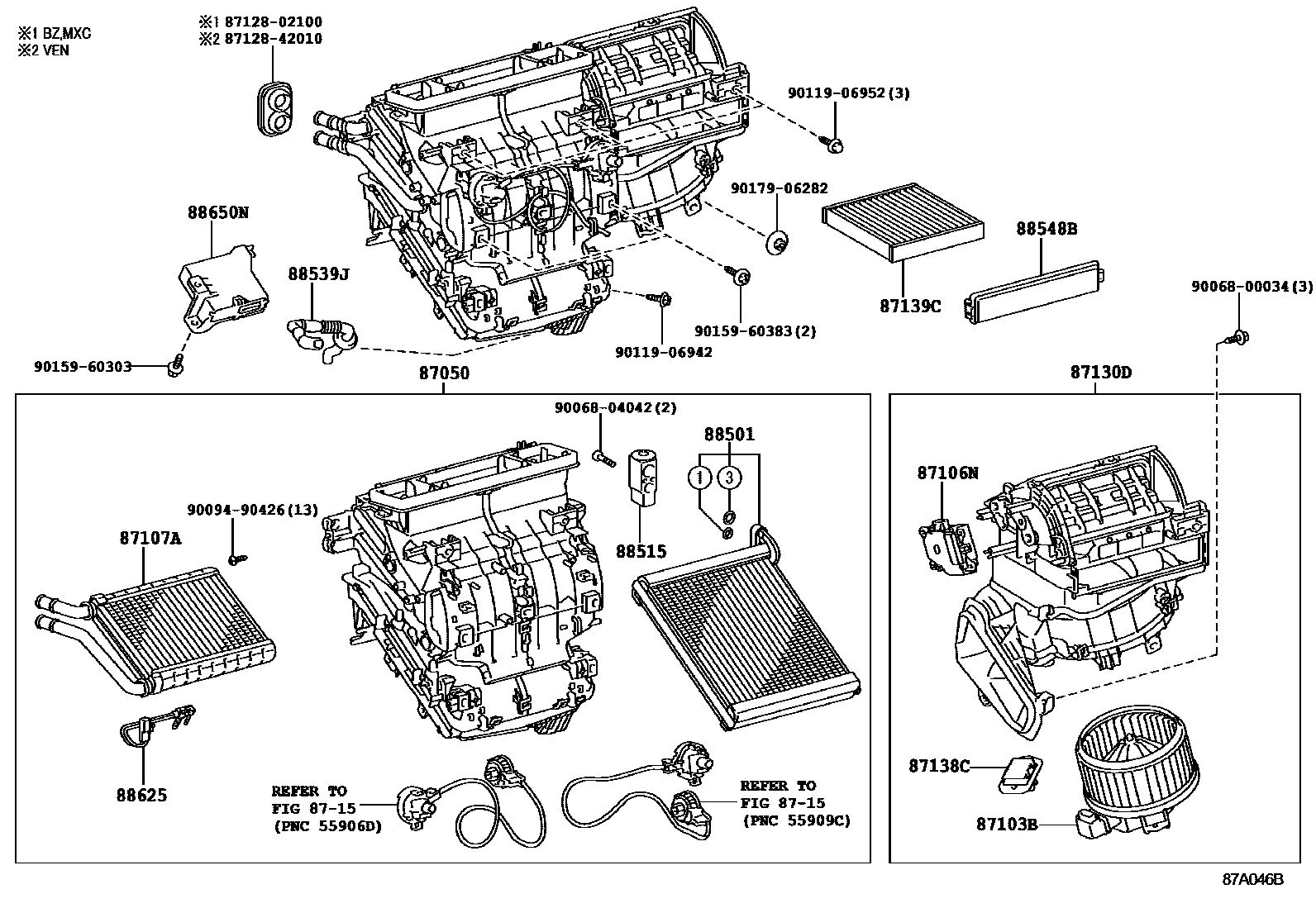

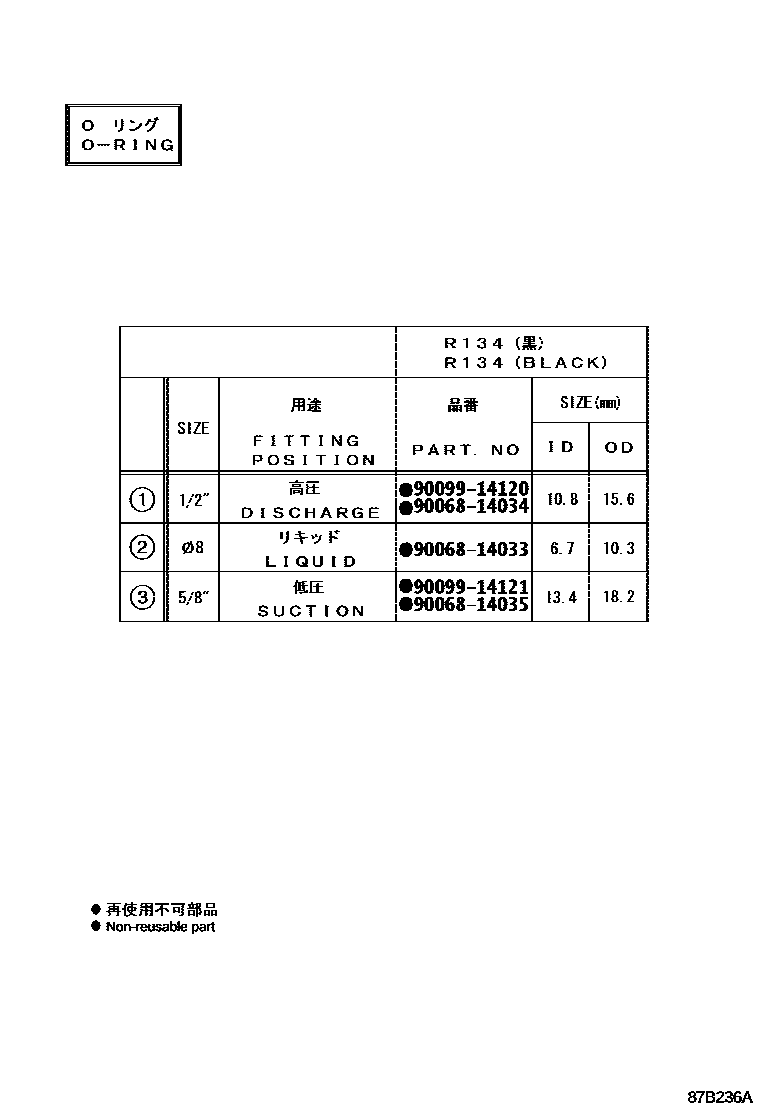

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-02090 |
| 87050 | Air conditioning radiator assembly | 87050-02D40 · 87050-02D50 · 87050-02D60 · 87050-02D70 · 87050-02F40 · 87050-02J10 |
| 87103B | Blower motor sub-assembly with fan | 87103-02280 · 87103-02330 · 87103-12080 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-02410 · 87106-12170 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02420 · 87106-42100 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-02430 · 87106-02440 · 87106-42130 · 87106-42140 |
| 87107A | Heater radiator device sub-assembly | 87107-02260 · 87107-02270 · 87107-0K030 |
| 87130D | Blower assembly | 87130-02630 · 87130-02640 · 87130-02650 · 87130-02660 |
| 87138C | Blower resistor | 87138-26160 |
| 87139C | air purification filter | 87139-02070 · 87139-02150 · 87139-52020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02250 · 88501-02251 · 88501-12510 |
| 88515 | Cooler expansion valve | 88515-02170 · 88515-02270 · 88515-02410 · 88515-12090 · 88515-28160 |
| 88539J | Cooler drain hose | 88539-02220 · 88539-02230 |
| 88548B | air filter housing | 88548-02170 · 88548-02180 |
| 88625 | Cooler No. 1 Thermistor | 88620-02120 · 88625-26090 |
| 88650N | Air conditioning amplifier assembly | 88650-12B40 · 88650-12E00 · 88650-12E10 · 88650-12F10 · 88650-12F30 |
