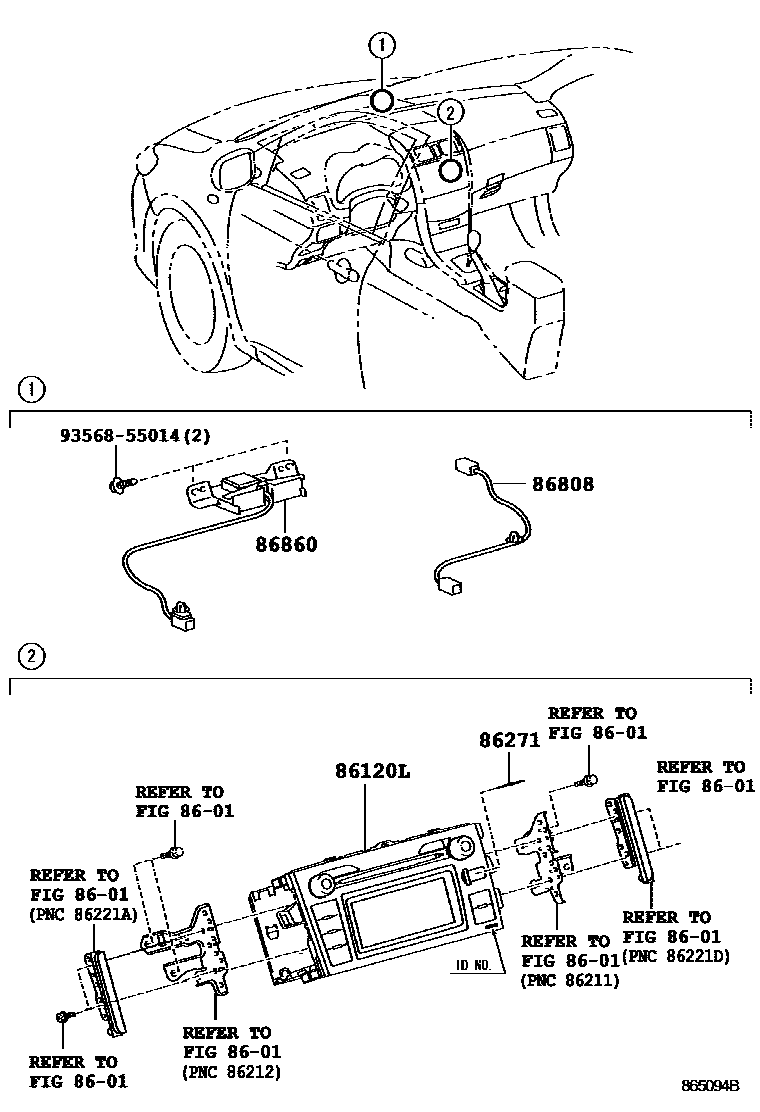

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86100-02160 · 86100-02161 |
| 86271 | CD | 86271-12120 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-12060 |
| 86860 | Navigation antenna assembly | 86860-12070 |
